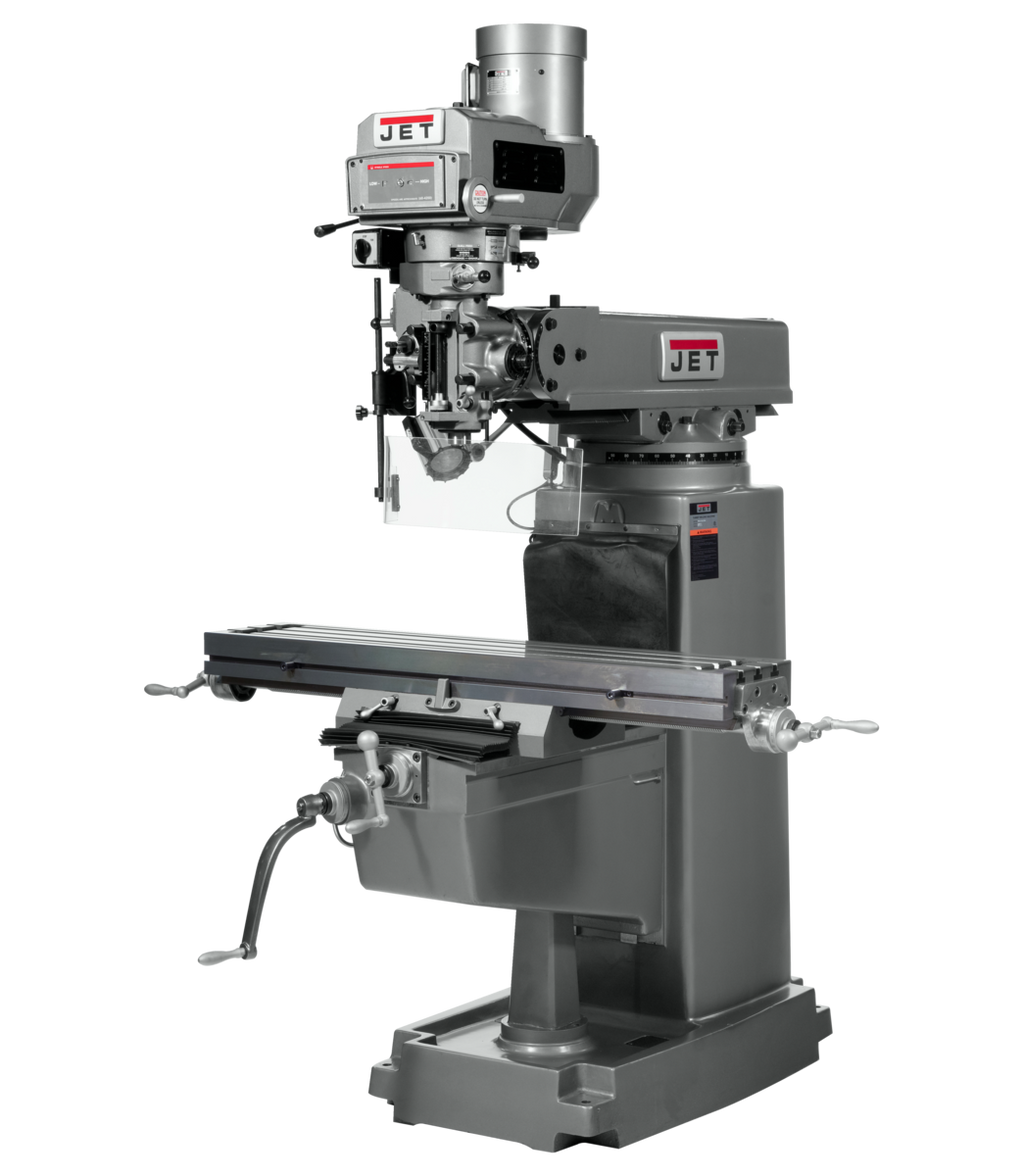

JET JTM-1050VS2 Mill with ACU-RITE 203 DRO with X-Axis Powerfeed is a professional-grade vertical milling machine from JET engineered for precision metalworking operations. Featuring Certified Meehanite castings, a hardened and ground 10" x 50" table, and high precision Class 7 bearings supporting the spindle, this variable speed mill delivers exceptional accuracy and repeatability for demanding machining environments. The integrated ACU-RITE 203 digital readout and X-axis powerfeed further streamline workflow, making this machine a compelling choice for shops that require both precision and productivity.
Key Features
- Certified Meehanite castings for superior rigidity and vibration damping
- Heavy-duty hardened and ground 10" x 50" table provides a stable, precise work surface
- High precision Class 7 bearings support the spindle for smooth, accurate operation
- Precision bored and honed milling head ensures quality cuts across a wide range of materials
- Variable spindle speed range of 70 - 3,800 RPM for versatile machining applications
- Three-stage power downfeed with automatic stop for ease of use and repeatable depth control
- ACU-RITE 203 DRO included for precise axis positioning and streamlined setup
- X-axis powerfeed for consistent, hands-free longitudinal table movement
- Adjustable gibs throughout for fine-tuning of axis fit and movement
- Chrome lead screws on X and Y axis for smooth, durable feed operation
- Chrome-plated motor shaft with bearing support at the end for extended service life
- Hardened and ground square vertical knee ways and cross ways for precise, lasting accuracy
- Heavy duty motor drive rated at 3 HP, 230/460V, 3-Phase
- Internal coolant tank built into the base for use with a coolant system
- Large diameter quill is chromed for smooth travel and durability
- One shot lubrication system for simplified, consistent machine maintenance
- Spindle head is internally cooled to maintain operating temperatures during extended use
- Tolerance test sheet included to verify machine accuracy out of the box
- Backed by the industry-leading JET Two Year Warranty
Specifications
- MPN: JT9-690117
- Stock Number: 690117
- Style / Type: Variable Speed R8
- Motor: 3 HP, 230/460V, 3Ph
- Range of Spindle Speeds (RPM): 70 - 3,800
- Spindle Taper: R-8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Collet Capacity: 1/8 - 7/8
- Table Size: 10" x 50"
- Table Longitudinal Travel (In.): 35
- Table Longitudinal Travel With Powerfeed (In.): 29-3/4
- Table Cross Travel (In.): 15-1/4
- T-Slot Centers (In.): 2-1/2
- Distance Spindle to Column, Max. (In.): 26
- Max Distance Spindle to Table (In.): 19
- Number of Axis: 2
- Powerfeed: X-Axis
- Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-1050VS2 Variable Speed Milling Machine
- ACU-RITE 203 Digital Readout (DRO)
- X-Axis Powerfeed
- Tolerance test sheet
Frequently Asked Questions
- What spindle taper does the JET JTM-1050VS2 use?
- The JTM-1050VS2 uses an R-8 spindle taper, which is a widely used standard in vertical knee mills and is compatible with a broad range of collets, end mill holders, and tooling accessories.
- Does this mill include a coolant system?
- The machine features an internal coolant tank built into the base designed for use with a coolant system; however, a coolant pump is not included and would need to be added separately.
- What power supply is required for the JTM-1050VS2?
- This mill is powered by a 3 HP motor requiring 230/460V, 3-Phase electrical service. Ensure your facility has the appropriate 3-phase power supply before installation.
- How is machine accuracy verified on the JTM-1050VS2?
- Every JTM-1050VS2 ships with a tolerance test sheet included, providing documented verification of the machine's precision and accuracy as it leaves the factory.
