Product Features
Product Description

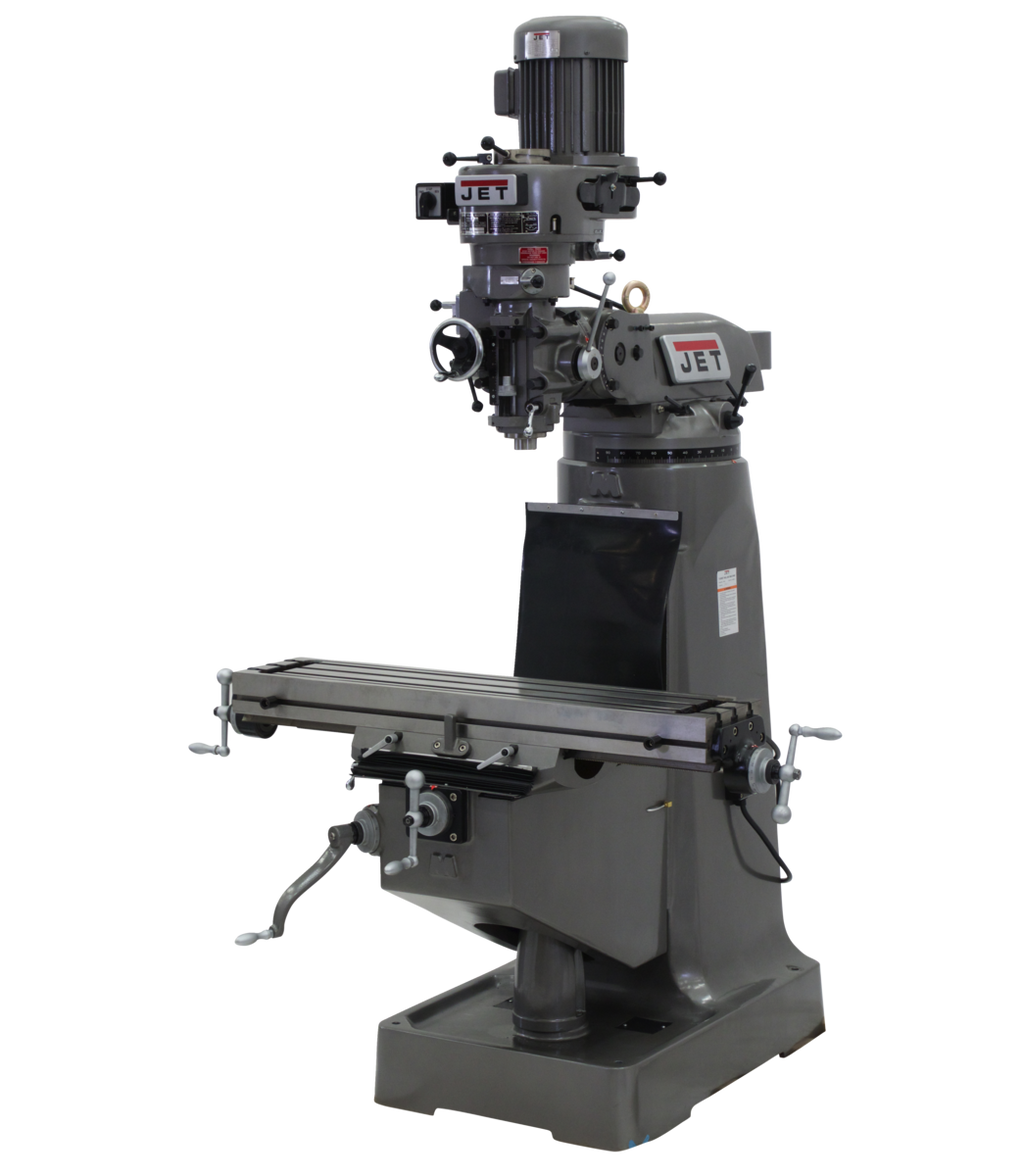

JET JTM-2 Mill with 3-Axis ACU-RITE 203 DRO (Knee) with X-Axis Powerfeed is a precision milling machine engineered by JET for demanding machining applications that require accuracy, rigidity, and repeatable results. Equipped with a 3-axis ACU-RITE 203 digital readout on the knee and an X-axis powerfeed, this mill delivers the control and efficiency professional machinists depend on. Backed by the industry-leading JET Two Year Warranty, the JTM-2 is built to perform at the highest level.
Key Features
- Certified Meehanite castings provide rugged structural stability and vibration damping for superior machining accuracy
- Large diameter quill is chromed for enhanced durability, smooth operation, and long service life
- Precision bored and honed milling head ensures tight tolerances and consistent, high-quality results
- Three-stage power down feed with auto stop for precise depth control and repeatable operations
- High precision Class 7 spindle bearings deliver smooth, accurate spindle performance
- Internally cooled spindle head prevents seizing and supports extended operation under load
- 3-axis ACU-RITE 203 DRO (Knee) provides real-time position readout for efficient, accurate work
- X-axis powerfeed reduces operator fatigue and improves surface finish consistency
- R-8 spindle taper offers broad compatibility with a wide range of tooling
- Variable speed operation allows the operator to dial in the optimal cutting speed for any material or application
- Backed by the JET Two Year Warranty with support from Authorized Service Centers throughout the United States
Specifications
- MPN: JT9-690095
- Stock Number: 690095
- Spindle Taper: R-8
- Style (Type): Variable Speed R8
- DRO: 3-Axis ACU-RITE 203 (Knee)
- Powerfeed: X-Axis
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Two Year Warranty
Frequently Asked Questions
- What type of spindle taper does the JET JTM-2 Mill use?
- The JTM-2 uses an R-8 spindle taper, which is one of the most widely used standards in vertical milling machines and is compatible with a broad selection of tooling, collets, and accessories commonly available in the market.
- What are Meehanite castings and why do they matter?
- Meehanite castings are certified cast iron materials produced to a controlled quality standard, known for their superior strength, vibration damping, and dimensional stability. On the JTM-2, these castings contribute directly to the rigidity and long-term accuracy of the machine during heavy milling operations.
- What is the purpose of the chromed large diameter quill?
- The large diameter quill is chromed to improve surface hardness and wear resistance, which translates to smoother quill movement, reduced friction, and an extended service life compared to non-treated quill surfaces.
- What warranty coverage comes with the JET JTM-2 Mill?
- The JTM-2 is covered by the JET Two Year Warranty. JET Authorized Service Centers located throughout the United States can authorize warranty repair, assist with obtaining parts, or perform routine maintenance and major repair on JET tools.
