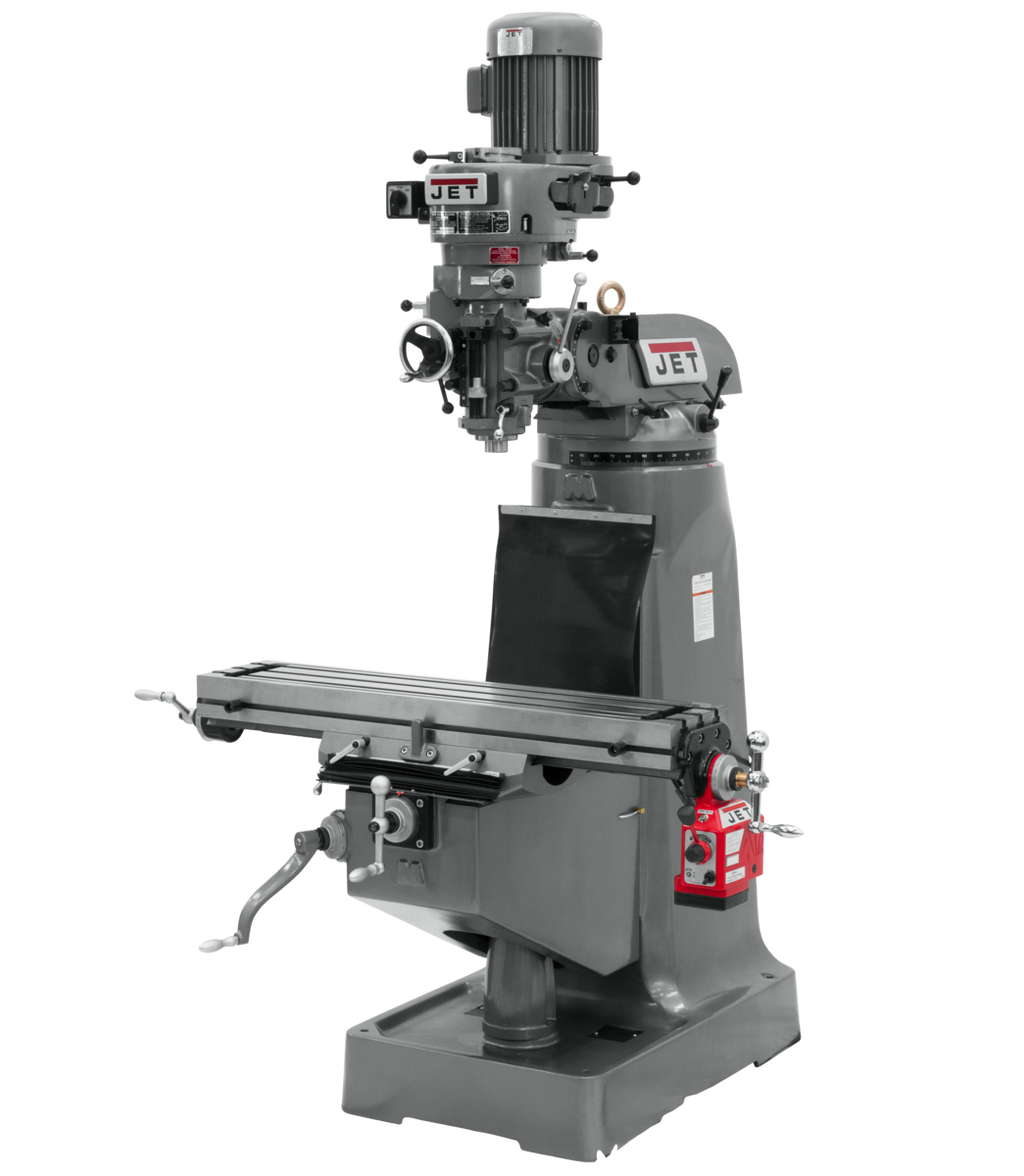

JET JTM-1 Mill with X-Axis Powerfeed from JET delivers professional-grade vertical milling performance built around Certified Meehanite castings, precision hardened and ground ways, and a three-stage power down feed with automatic stop. Designed for shops that demand repeatable accuracy and reliable rigidity, this step pulley R-8 mill pairs a 2 HP motor with 16 spindle speeds spanning 80-5,440 RPM, giving machinists the range they need to tackle a broad variety of milling, drilling, and boring operations with confidence. Backed by the industry-leading JET Two Year Warranty, the JTM-1 is built to perform at the highest level shift after shift.

Key Features

• Heavy duty splined motor drive for reliable, consistent power transmission
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth, precise vertical travel
• One shot lubrication system simplifies maintenance and extends way life
• Precision bored and honed milling head for superior spindle alignment and finish quality
• Precision hardened and ground ways deliver exceptional rigidity and accuracy
• Satin chrome finished dials for clear, easy-to-read measurements
• Tolerance test sheet included for verified out-of-box accuracy
• Three-stage power down feed with automatic stop for repeatable quill depth control
• High precision Class 7 spindle bearings minimize runout and maximize surface finish
• Internally cooled spindle head prevents seizing during extended operations
• X-Axis powerfeed for consistent, hands-free longitudinal table movement
• 16 spindle speeds (80-5,440 RPM) to match cutting parameters across a wide range of materials

Specifications

• MPN: JT9-690019
• Country of Origin: Taiwan
• Style (Type): Step Pulley R8
• Motor: 2 HP, 230V, 3Ph
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80-5,440
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015-.003-.006
• Collet Capacity: 1/8-7/8
• Table Size (L x W) (In.): 9 x 42
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column - Max. (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Powerfeed: X-Axis
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle taper does the JTM-1 use, and what collet sizes are compatible?

The JTM-1 uses an R-8 spindle taper, which is one of the most widely supported standards in manual vertical milling. Collet capacity ranges from 1/8 to 7/8 inch, providing broad tooling compatibility for end mills, drills, and other common cutting tools.

Does this mill include a coolant pump?

The JTM-1 features an internal coolant tank built into the base that is ready for use with a coolant system; however, the coolant pump is not included and must be sourced separately.

What power supply is required to operate the JTM-1?

The JTM-1 is powered by a 2 HP motor rated at 230V, 3-phase. Ensure your facility has an appropriate 3-phase electrical supply before installation.

How is spindle accuracy verified before the mill leaves the factory?

Each JTM-1 ships with a tolerance test sheet confirming that the machine has been inspected and meets specified accuracy standards. The precision bored and honed milling head, combined with high precision Class 7 spindle bearings, ensures consistent, repeatable performance right out of the box.
