Product Features
Product Description

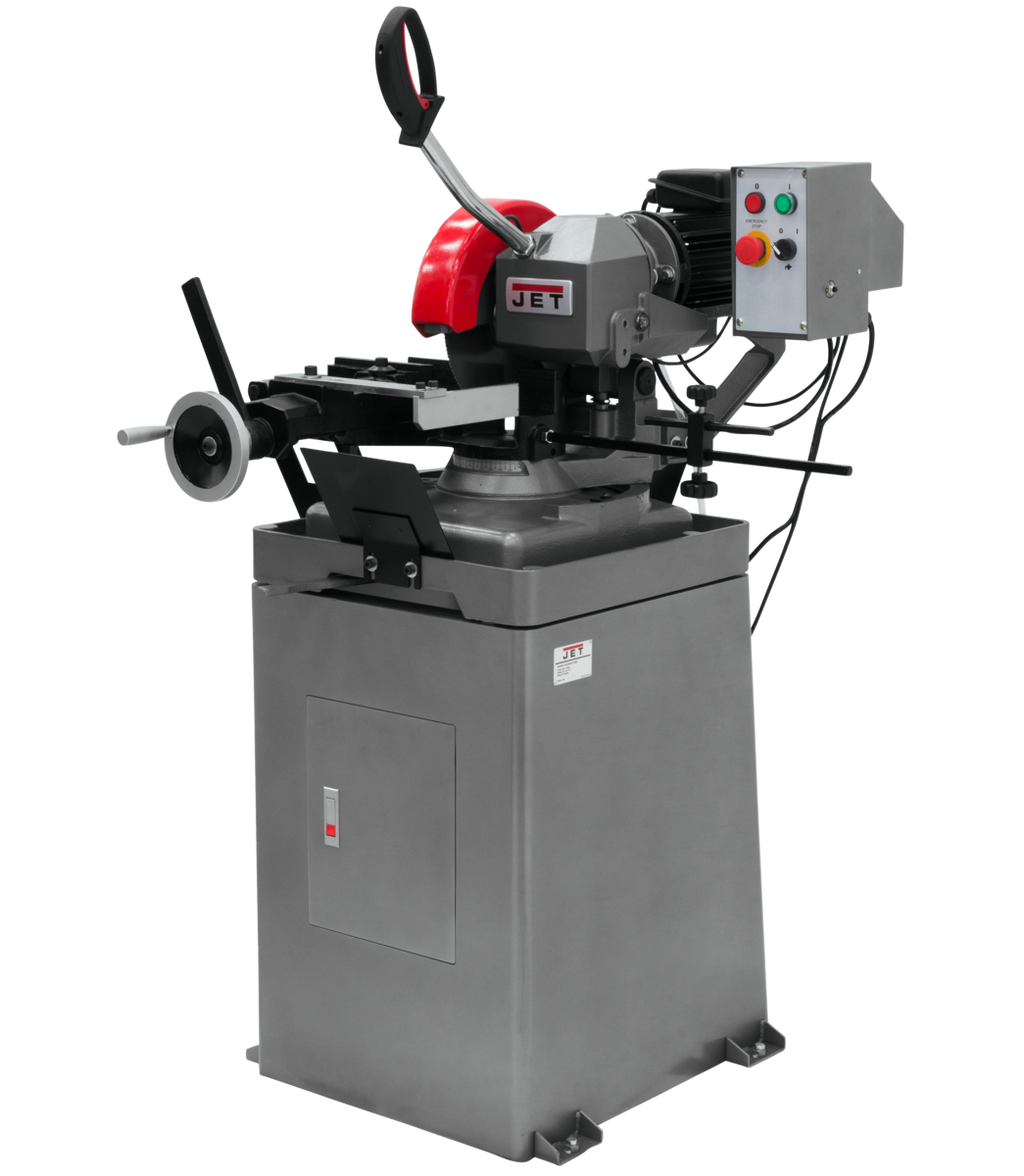

JET CS-275 275mm Ferrous Manual Cold Saw from JET delivers the clean, burr-free cuts that machine shop and fabrication professionals demand. Engineered for cutting steel, stainless steel, and tough-to-cut alloys, this 1-1/2 HP cold saw combines a hardened and ground drivetrain, a flood coolant system, and a quick-clamping cam-action vise into a robust 360-pound platform built for repeatable, high-production cutting operations. A full-service Two-Year Warranty backs every JET cold saw.
Key Features
- 275mm (10") Ferrous Cold Saw for steel, stainless and tough to cut alloys
- Blade drive reduction gearbox operates in an oil bath for increased durability

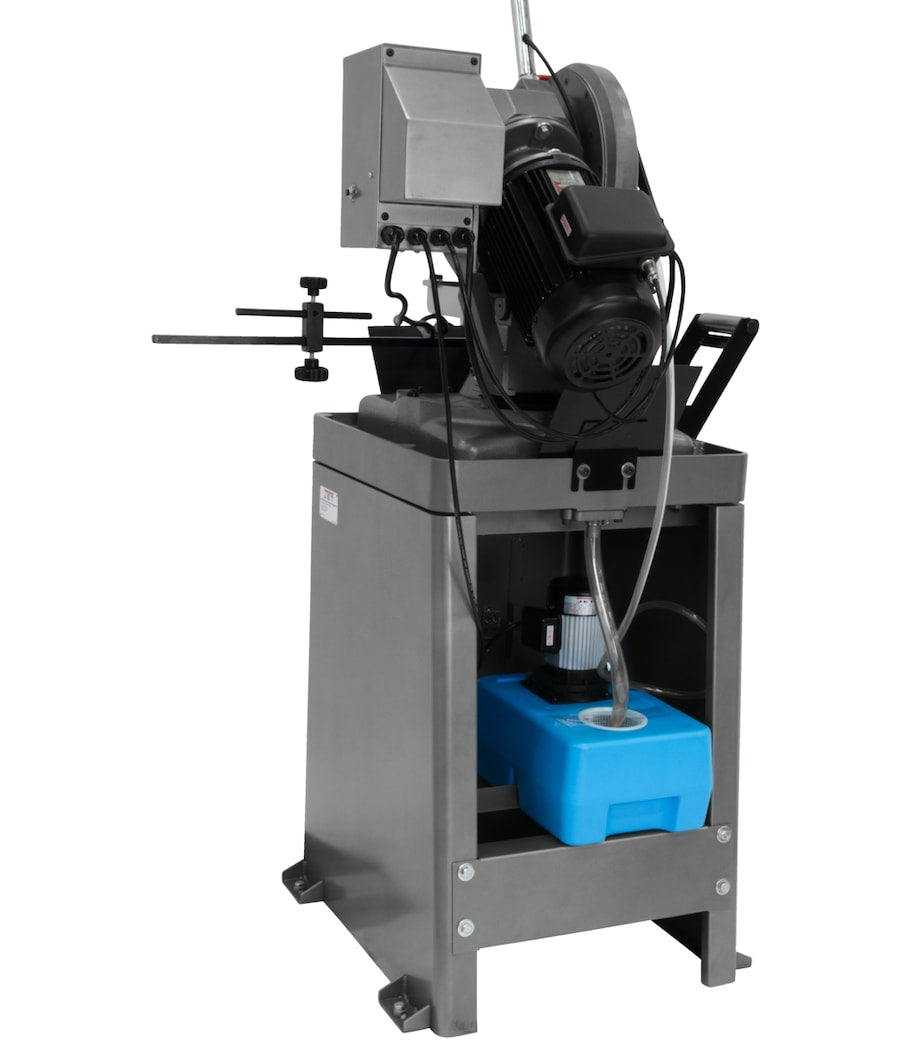

- Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
- Fully adjustable material depth stop for sawing repeatability and increased production
- Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade

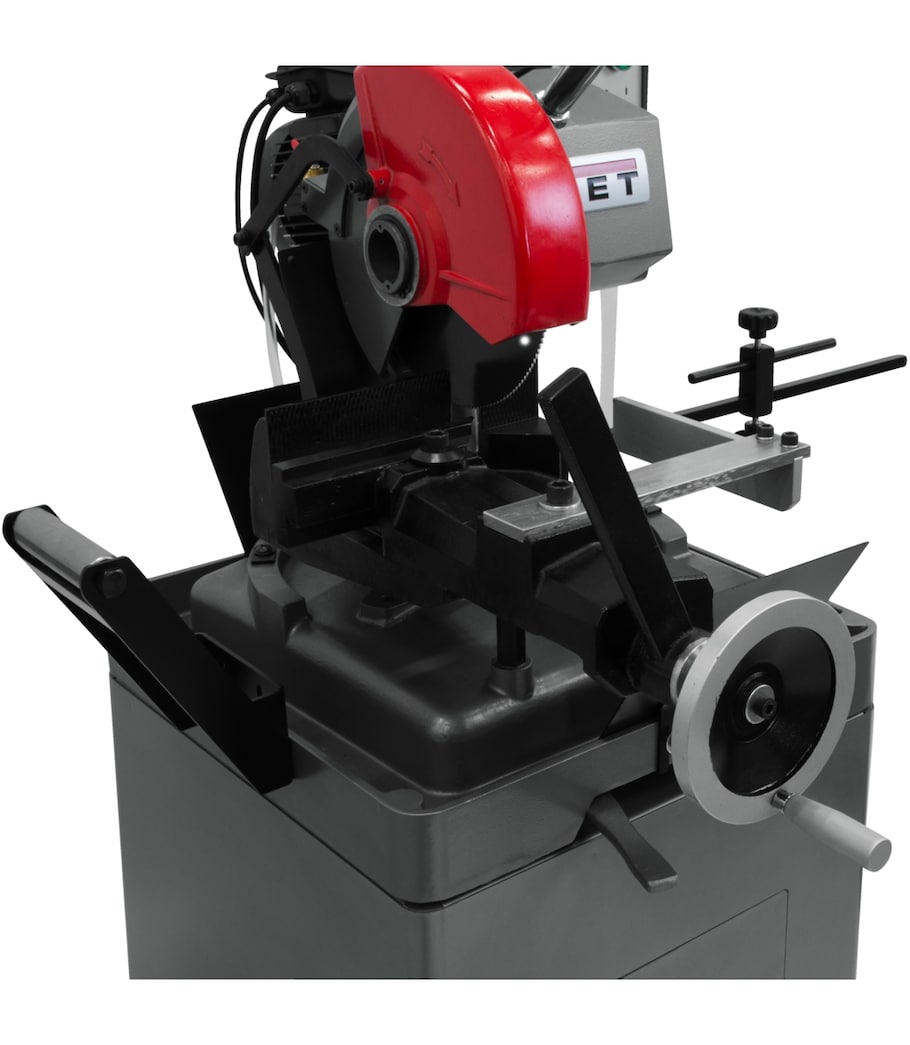

- Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
- Quick tension and release mitering capabilities with stops at 45 deg. right, 45 deg. left
- Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
- Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
Specifications
- MPN: JT9-414228
- Stock Number: 414228
- Style (Type): Ferrous
- Motor: 1-1/2 HP, 115/230V Prewired 115V, 15.68/7.8 Amps
- Blade Speeds (RPM): 54
- Maximum Vise Opening: 4 in.
- Solid Round at 90 Degrees: 3-19/64 in.
- Solid Round at 45 Degrees: 3-19/64 in.
- Solid Rectangle at 90 Degrees: 3-3/32 x 2 in.
- Solid Rectangle at 45 Degrees: 2-3/16 x 2 in.
- Solid Square at 90 Degrees: 2-1/2 x 2-1/2 in.
- Solid Square at 45 Degrees: 2-3/16 x 2-3/16 in.
- Tubing Round at 90 Degrees: 3-19/64 in.
- Tubing Round at 45 Degrees: 3-19/64 in.
- Tubing Rectangle at 90 Degrees: 3-3/32 x 2 in.
- Tubing Rectangle at 45 Degrees: 2-3/16 x 2 in.
- Weight: 360 lbs.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What materials can the JET CS-275 cut?
- The CS-275 is designed as a 275mm (10") Ferrous Cold Saw for steel, stainless and tough to cut alloys, making it well suited for demanding machine shop and fabrication environments.
- How does the flood coolant system benefit blade performance?
- The flood coolant system includes a 1-1/3 Gallon coolant reservoir and pump with a flow control system, which actively extends blade life during ferrous cutting operations by managing heat buildup at the cut zone.
- What miter angles does the CS-275 support?
- The CS-275 features quick tension and release mitering capabilities with positive stops at 45 deg. right and 45 deg. left, enabling fast and accurate angle cuts without time-consuming adjustments.
- How are blade changes performed on the CS-275?
- The two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards, reducing downtime and keeping the machine ready for continuous production use.
