Product Features
Product Description

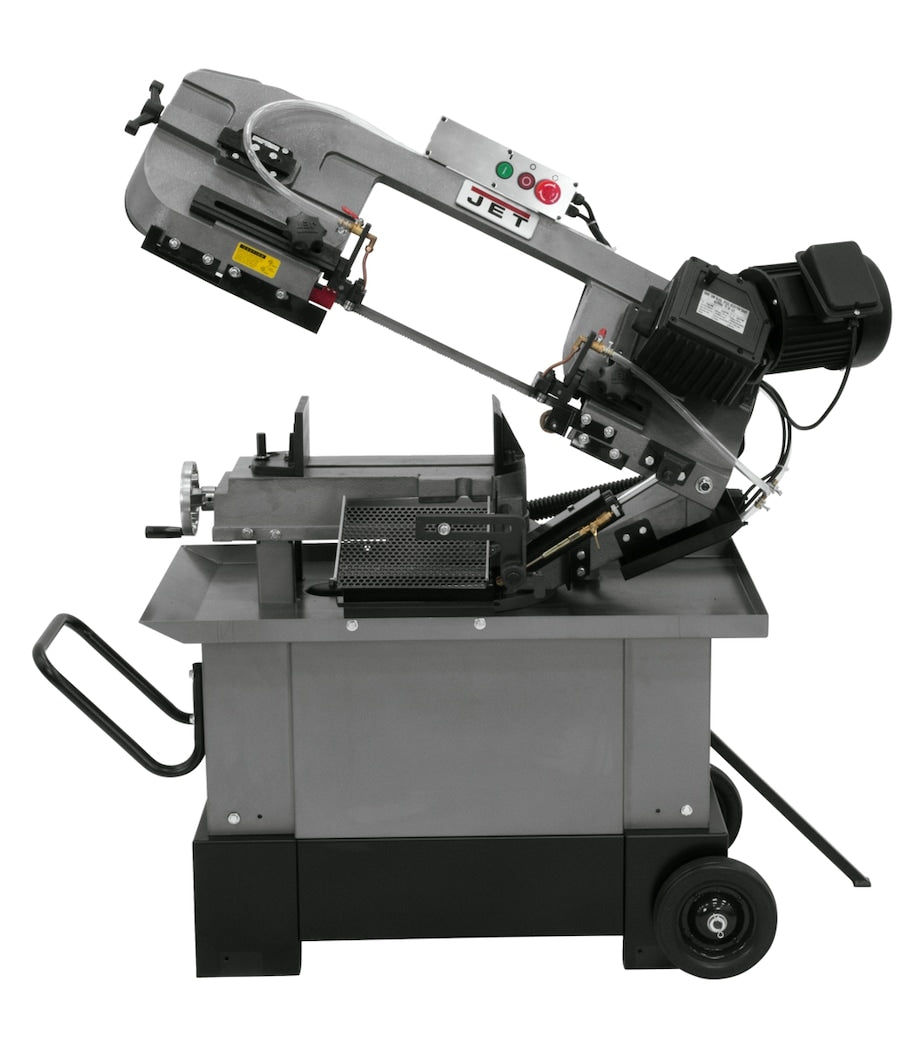

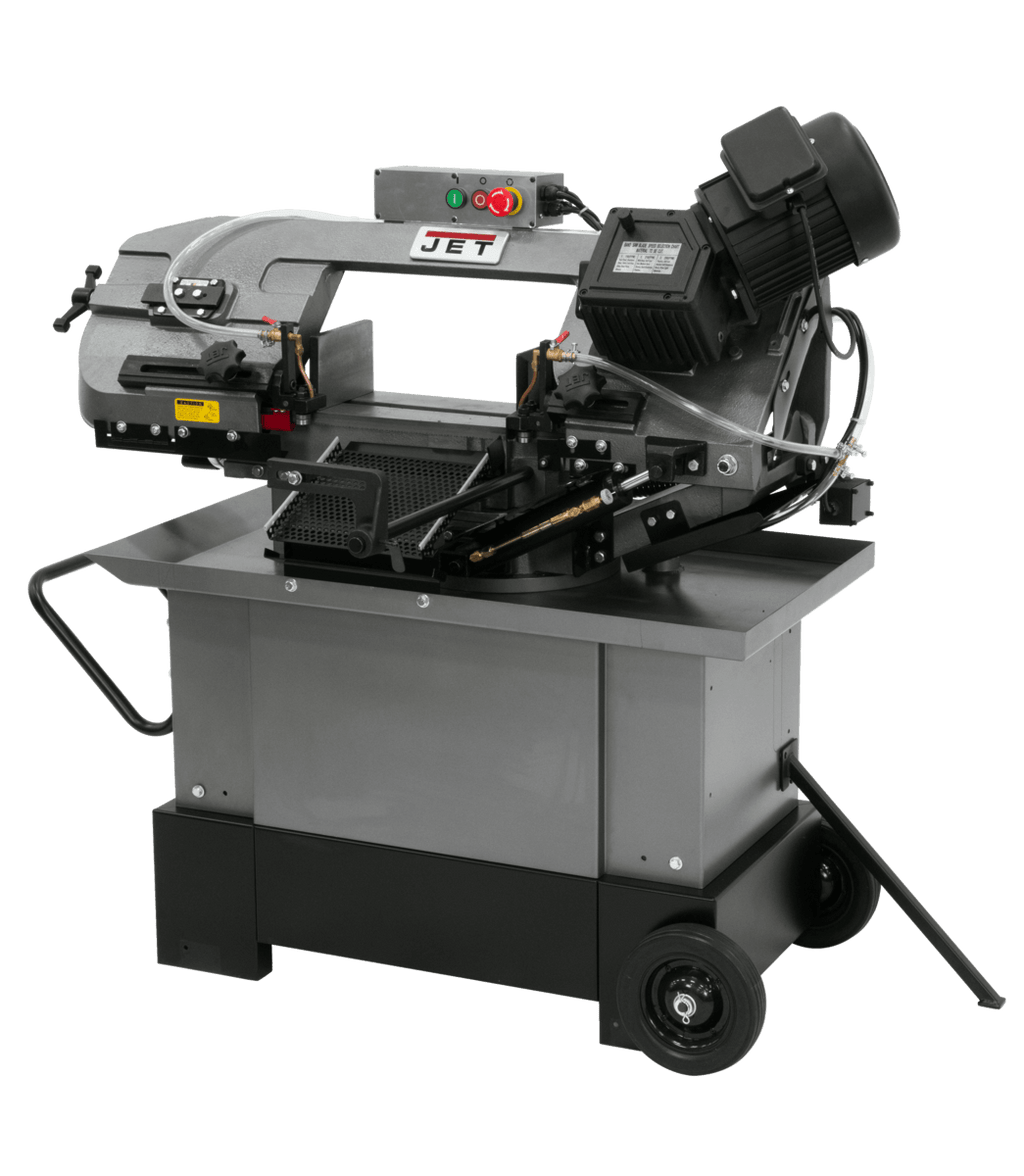

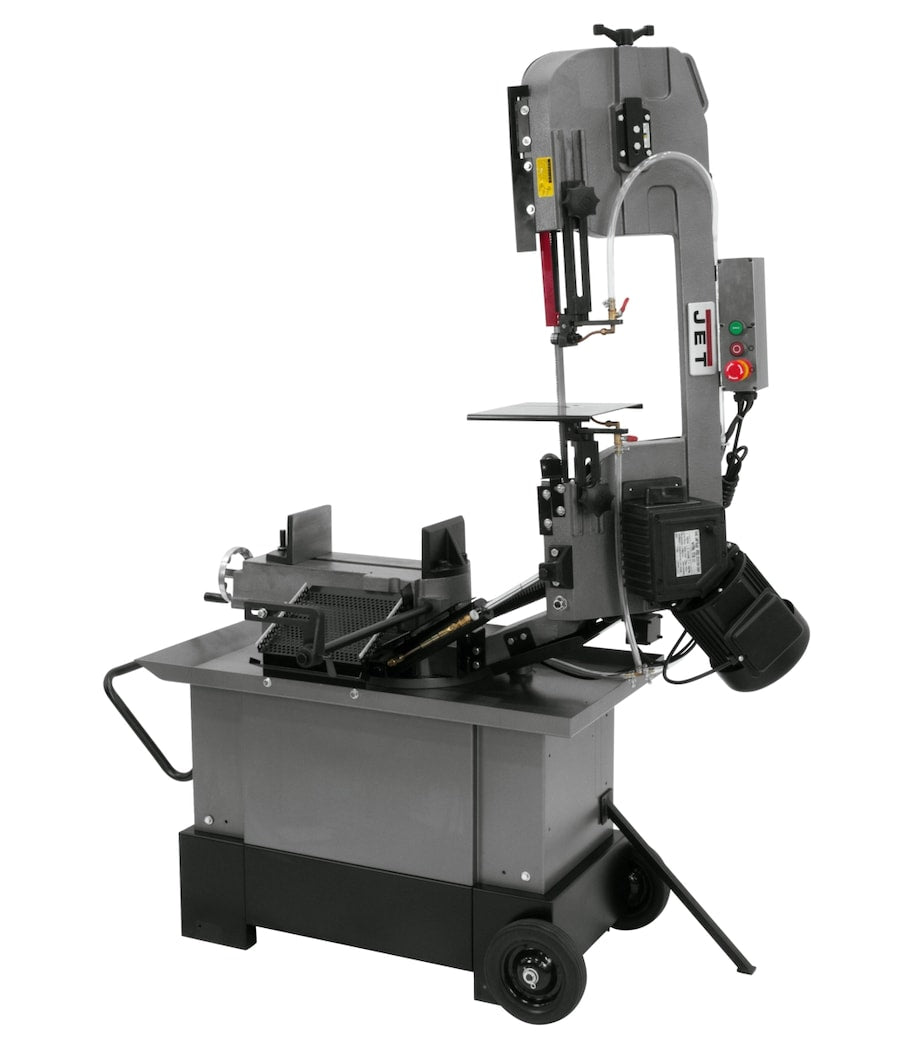

JET HVBS-710G 7" x 10-1/2" Horizontal/Vertical Mitering Geared Head Bandsaw from JET delivers industrial-grade cutting performance for shops that demand accuracy and durability. The geared head drive design transmits maximum torque directly to the blade wheels through hardened and ground drive shaft and worm gears, making this machine an ideal choice for cutting round stock up to 7" and rectangular stock up to 7" x 10-1/2" at 90 deg.. Its mitering head swivels to cut any angle from 0 deg. to 45 deg. while the work piece remains secured, eliminating the need to reposition material between cuts and dramatically improving throughput on repetitive miter work.
Key Features
- Mitering head swivels to cut any angle 0 deg. - 45 deg. while the work piece remains secured
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Fully adjustable hydraulic downfeed system for controlled, consistent cutting pressure
- Heavy-duty cast iron saw bow and bed for rigid, vibration-dampening construction
- Built-in, self-propelled blade brush extends blade life by continuously clearing chips from the blade
- Quick-positioning vise with fully adjustable jaws secures work pieces firmly during cuts
- Adjustable material stop for repeatable, accurate batch cutting
- Large 8" wheels and handle for easy movement around the shop floor
Specifications
- Model: HVBS-710G
- MPN: JT9-413452
- Drive Type: Geared Head
- Motor: 1 HP, 115/230V, 1Ph
- Prewired Voltage: 115V
- Rectangle at 90 Degrees: 7 x 10-1/2 in.
- Rectangle at 45 Degrees: 4-3/4 x 4 in.
- Round at 90 Degrees: 7 in.
- Round at 45 Degrees: 4 in.
- Vise Swivel Range: 45 deg.
- Blade Wheel Diameter: 11-3/4 in.
- Bed Height: 23 in.
- Overall Dimensions (L x W x H): 51 x 22-1/2 x 41 in.
- Weight: 396 lbs.
- Stock Number: 413452
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET 2-Year Red Assurance Warranty
Frequently Asked Questions
- What is the maximum miter angle this bandsaw can cut?
- The mitering head swivels to cut any angle from 0 deg. to 45 deg. while the work piece remains secured in place, allowing accurate miter cuts without repositioning the material.
- What are the maximum cutting capacities at 90 degrees?
- At 90 deg., the HVBS-710G cuts rectangular stock up to 7 x 10-1/2 in. and round stock up to 7 in. in diameter.
- How does the geared head drive benefit cutting performance?
- The hardened and ground drive shaft and worm gears transmit maximum torque to the blade wheels, providing consistent blade speed and cutting force even through dense or tough materials.
- How is blade life maintained on this machine?
- The built-in, self-propelled blade brush is integrated directly into the saw and continuously clears chips and debris from the blade during operation, extending blade life without requiring manual intervention.
