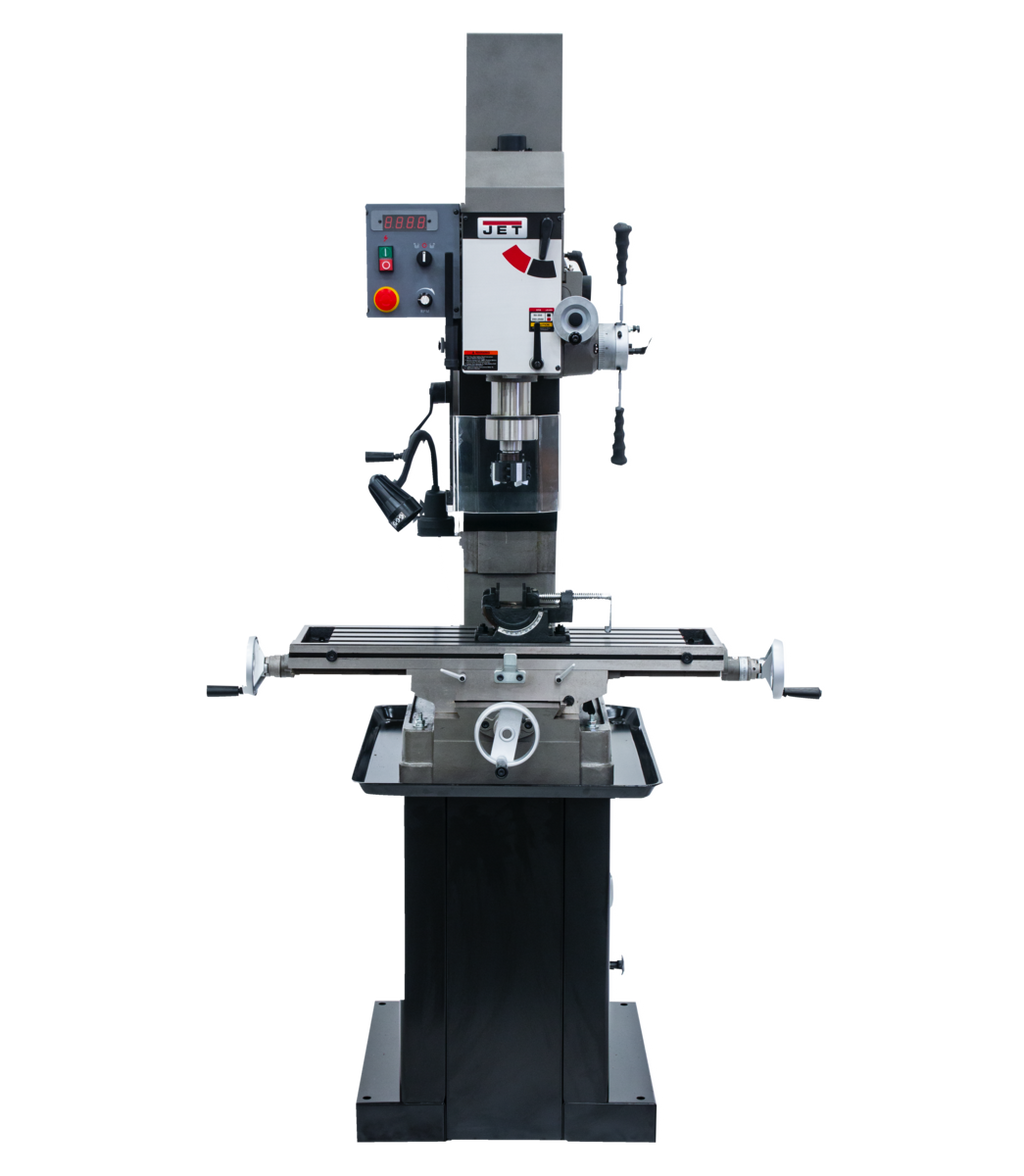

JET JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill with Newall DP700 2-Axis DRO & X-Axis Powerfeed is a heavy-duty milling and drilling machine engineered to maximize production in high-intensity environments. Powered by a 1-1/2HP, 115/230V, 1Ph motor and featuring a variable speed geared head with a spindle speed range of 50-2500 RPM, this mill/drill delivers full power to cutting tools while maintaining the rigidity required for a wide variety of precision drilling and milling applications. CSA/CUS Certified for added assurance of quality and safety.

Key Features

• Easy to read internal depth gauge for accurate depth control during drilling and milling operations
• Full power to the cutting tools through Variable Speed geared head for consistent, reliable performance across the entire speed range
• Heavy-duty design allows for a variety of precision drilling applications in demanding, high-intensity environments
• Milling table allows for movement, enabling versatile workpiece positioning and multi-axis machining
• R8 spindle allows use of all mill tooling, maximizing compatibility with a wide range of cutting tools and accessories
• Rapid spindle speed changes through quick-select gear shift levers for efficient workflow and minimal downtime between operations
• Square column with dovetail ways provides superior rigidity and precise, repeatable head positioning
• Newall DP700 2-Axis DRO for precise digital readout of table position during milling and drilling
• X-Axis Powerfeed for automated table travel along the longitudinal axis, improving accuracy and reducing operator fatigue
• Mill Drill Stand (p/n 350045, shown in some images) is optional and sold separately

Specifications

• Stock Number: 351155
• Motor: 1-1/2HP, 115/230V, 1Ph
• Range of Spindle Speeds (RPM): 50-2500
• Spindle Taper: R8
• Quill Diameter (In.): 3
• Spindle Travel (In.): 5
• Spindle Travel Auto (In.): 4-1/4
• Max Distance Spindle to Table (In.): 18-1/8
• Table Size (L x W) (In.): 9-1/2 x 32-1/4
• Table Longitudinal Travel (In.): 20-1/2
• Swing (In.): 19-11/16
• Face Mill Capacity (In.): 4
• Base Dimensions (In.): 26-11/16 x 15-15/16
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Weight (Lbs.): 827
• Powerfeed: X-Axis Powerfeed
• DRO: Newall DP700 2-Axis
• Certification: CSA/CUS
• Prop 65: Cancer and Reproductive Harm
• Country of Origin: Taiwan

Frequently Asked Questions

What spindle taper does the JMD-45VSPF use, and what tooling is compatible?

The JMD-45VSPF features an R8 spindle, which allows use of all mill tooling. R8 is one of the most widely used taper standards for knee mills and mill/drills, meaning a broad selection of end mill holders, collets, drill chucks, and other tooling is compatible with this machine.

What is the spindle speed range of this mill/drill?

The JMD-45VSPF offers a spindle speed range of 50-2500 RPM. Speed changes are made quickly and efficiently through quick-select gear shift levers, allowing operators to adapt to different materials and cutting tools with minimal downtime.

Does the JMD-45VSPF include a stand?

No. The Mill Drill Stand (p/n 350045), shown in some product images, is optional and not included with the machine. It must be purchased separately if desired.

What is the maximum longitudinal table travel and table size on this machine?

The milling table measures 9-1/2 x 32-1/4 inches and offers a maximum longitudinal travel of 20-1/2 inches. The X-Axis Powerfeed automates movement along this axis for improved accuracy and reduced operator fatigue during extended milling operations.
