Product Features
Product Description

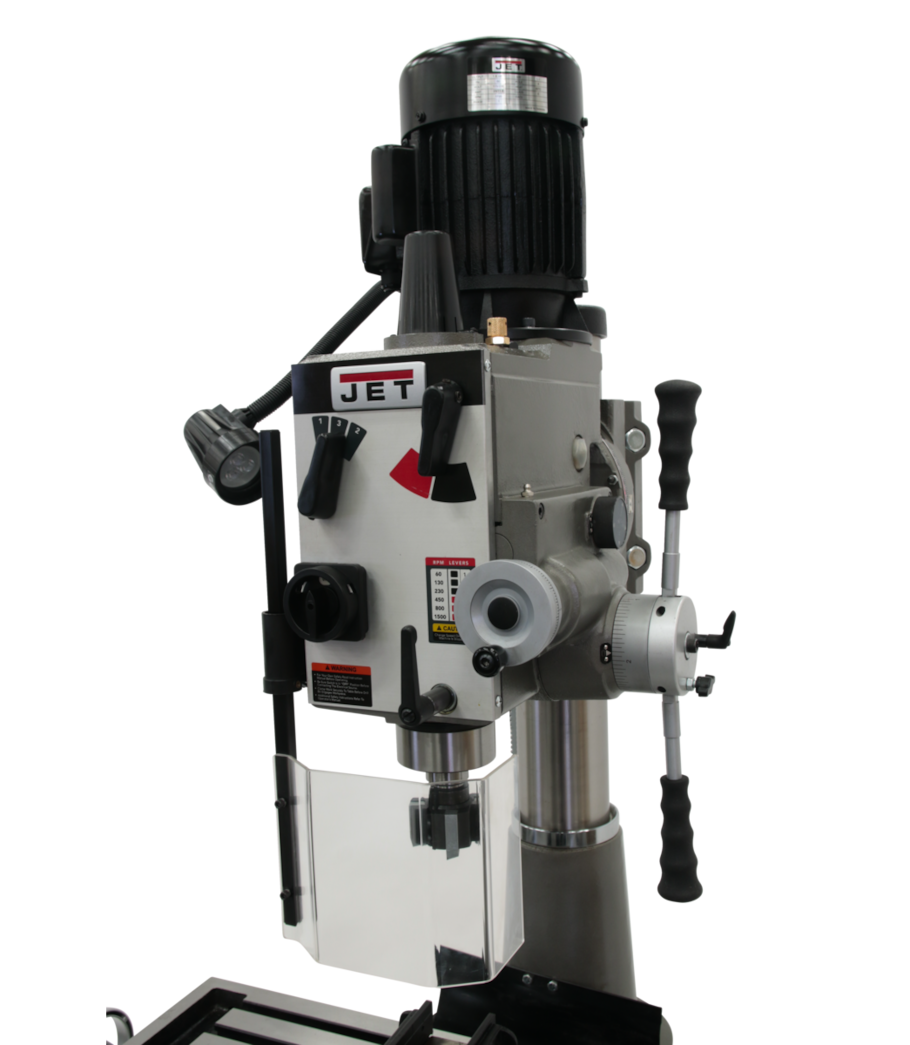

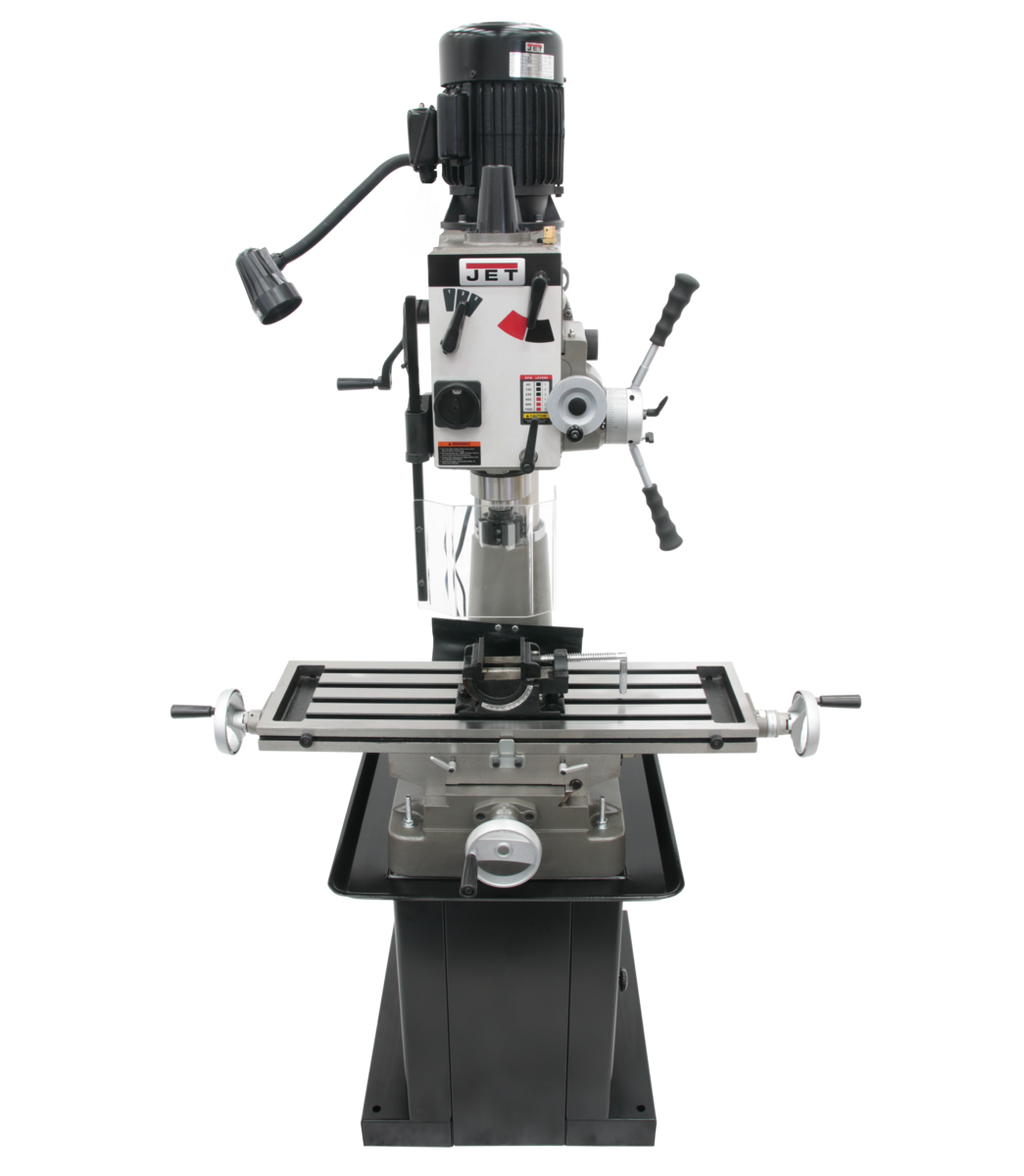

JET JMD-40GHPF Geared Head Mill/Drill with Power Downfeed, Newall DP500 2-Axis DRO, and X-Powerfeed by JET is a heavy-duty round column mill/drill engineered for a wide variety of precision drilling and milling applications. The 6-speed geared head delivers full power directly to the cutting tools, while the standard power downfeed and integrated X-Powerfeed combine to give operators consistent, repeatable results on demanding workpieces. CSA/CUS Certified and built for long-term shop reliability, this machine pairs mechanical precision with digital readout capability through the included Newall DP500 2-Axis DRO.
Key Features
- Calibrated fine down feed built in for repeatable, precise depth control
- CSA/CUS Certified for safety and compliance assurance
- Easy to read internal depth gauge keeps measurements accessible at a glance
- Full power to the cutting tools through 6 speed geared head for consistent performance across all speeds
- Heavy-duty design allows for a variety of precision drilling applications

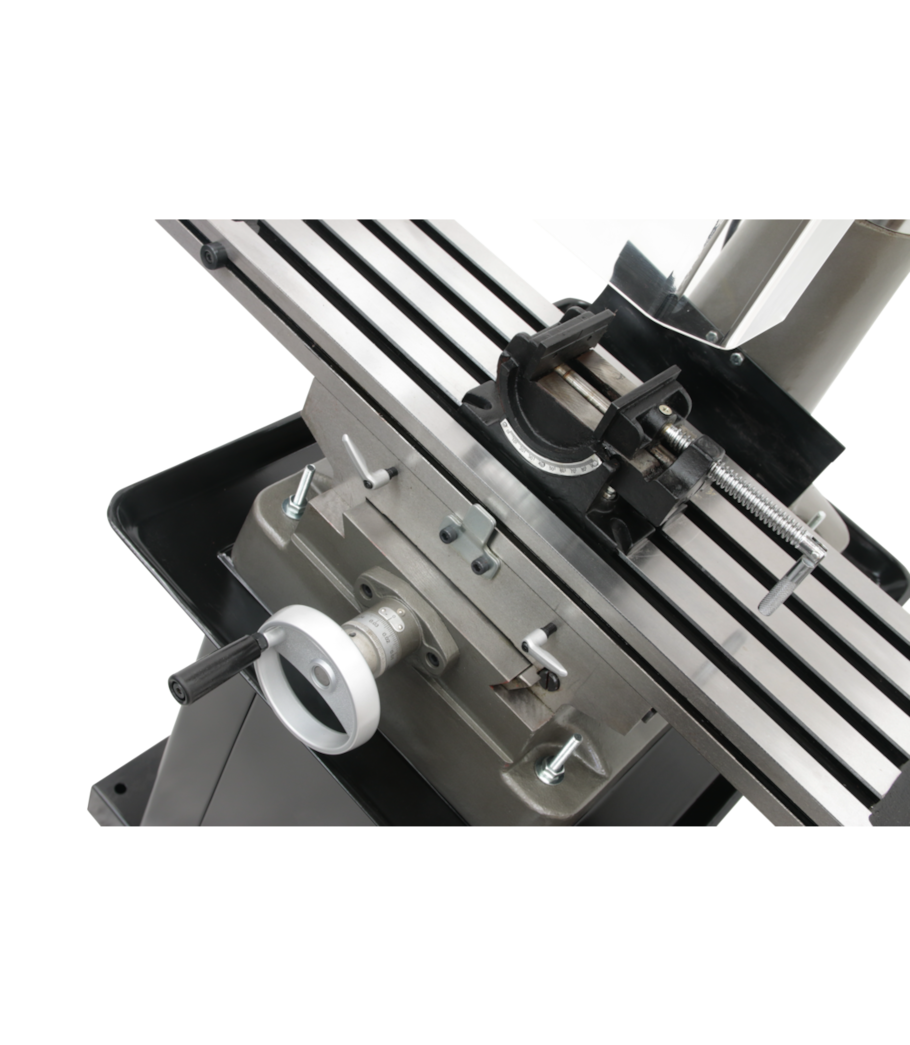

- Milling table allows for movement to reposition workpieces efficiently
- Power Downfeed standard for automated, controlled spindle advancement
- R8 spindle allows use of all mill tooling, maximizing tooling compatibility
- Rapid spindle speed changes through quick-select gear shift levers minimize setup time
- Newall DP500 2-Axis DRO included for high-accuracy digital position readout
- X-Powerfeed included for powered longitudinal table movement
- Mill Drill Stand (p/n 350045), shown in some images, is optional and sold separately
Specifications
- Stock Number: 351147
- Country of Origin: Taiwan
- Motor: 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65-1550 RPM
- Spindle Taper: R8
- Spindle Travel: 5 in.
- Spindle Travel Auto: 4-1/2 in.
- Quill Diameter: 3 in.
- Swing: 21 in.
- Table Size (L x W): 8-1/4 x 28-3/4 in.
- Table Longitudinal Travel: 20-1/2 in.
- Max Distance Spindle to Table: 15-3/4 in.
- Face Mill Capacity: 4 in.
- Column Diameter: 4-1/2 in.
- Base Dimensions: 24-1/4 x 15-15/16 in.
- Overall Dimensions (L x W x H): 29 x 36 x 50 in.
- Powerfeed: X-Powerfeed
- Weight: 721 lbs.
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JMD-40GHPF use?
- The JMD-40GHPF uses an R8 spindle taper, which allows use of all mill tooling and provides broad compatibility with standard milling accessories and collets.
- What is the spindle speed range on this mill/drill?
- The machine offers 6 spindle speeds ranging from 65-1550 RPM. Speed changes are made quickly through quick-select gear shift levers, minimizing downtime between operations.
- Is a stand included with the JMD-40GHPF?
- No. The Mill Drill Stand (p/n 350045), which is shown in some product images, is optional and not included with the machine.
- Does this machine come with a digital readout system?
- Yes. The JMD-40GHPF includes the Newall DP500 2-Axis DRO, providing precise digital position readout for both axes, as well as an easy to read internal depth gauge and calibrated fine down feed built in for maximum measurement accuracy.
