Product Features
Product Description

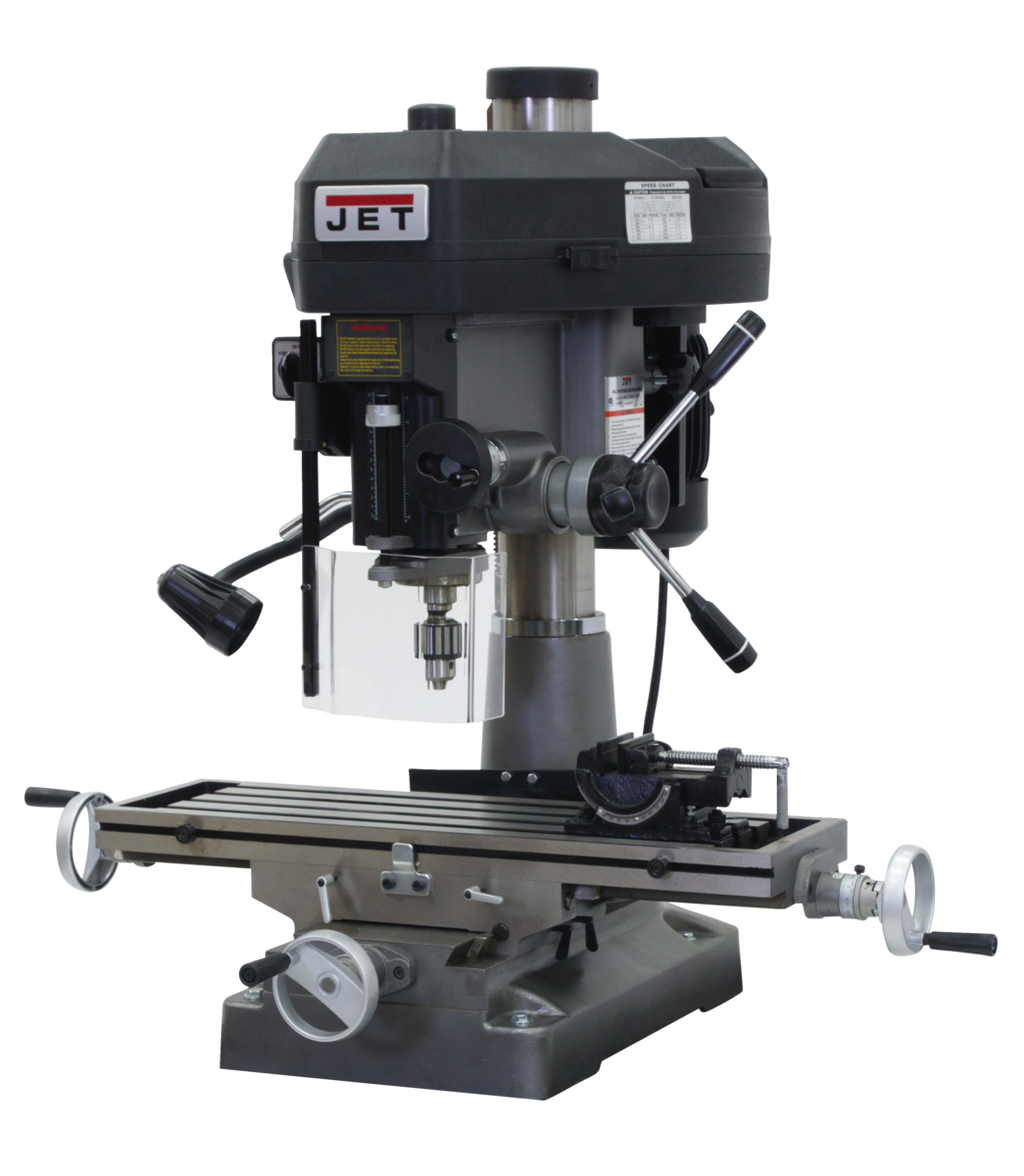

JET JMD-18 Mill/Drill with Newall DP500 DRO and X-Axis Table Powerfeed from JET delivers a space-saving, versatile solution for light machining tasks that demand both drilling precision and milling capability. This belt-driven mill/drill combines dual-coordinate table movement with a rigid one-piece cast iron column, making it an efficient and affordable alternative to a full-size milling machine for shops where floor space and budget are priorities. The addition of the Newall DP500 Digital Readout and X-Axis Table Powerfeed elevates positioning accuracy and operational ease, allowing machinists to work faster and with greater confidence on every pass.
Key Features
- One-piece cast iron column provides added rigidity and long-term structural support
- 360-degree head swivel for versatile positioning and approach angles
- Adjustable carbide facemill included for immediate face milling capability
- Positive quick-stop knob and easy-to-read internal depth gauge for precise quill control
- Base taper design allows for easier cleanup of chips and coolant
- Forward and Reverse Switch for adaptable cutting operations
- 12 spindle speeds ranging from 150-3,000 RPM to match a wide variety of materials and cutting tools
- R-8 spindle taper - the industry-standard for milling machine tooling compatibility
- Locking collet prevents cutting tool from pulling away from the spindle under lateral forces
- Mill drills offer space-saving versatility and affordability compared to full-size milling machines
- UL Listed for safety compliance
- JET Red Assurance 2-Year Warranty
Specifications
- Stock Number: 350134
- Motor: 2 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 150-3,000 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Quill Diameter: 3 in.
- Face Mill Capacity: 3 in.
- Max Distance Spindle to Table: 17-1/2 in.
- Table Size (L x W): 9-1/2 x 32-1/4 in.
- Table Longitudinal Travel: 20-1/2 in.
- T-Slots Number and Size: 4 and 5/8 in.
- T-Slot Centers: 1-13/16 in.
- Work Table Weight Capacity: 400 lbs.
- Overall Dimensions (L x W x H): 47 x 40 x 51 in.
- Weight: 660 lbs.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: Taiwan
What's Included
- 1/2 in. drill chuck and chuck arbor
- Adjustable carbide facemill
- Newall DP500 Digital Readout (DRO)
- X-Axis Table Powerfeed
Options
- Mill Drill Stand (p/n 320020) - shown in some images, sold separately as an optional accessory
Frequently Asked Questions
- What is the spindle speed range on the JMD-18, and how many speeds are available?
- The JMD-18 offers 12 spindle speeds ranging from 150-3,000 RPM, giving operators the flexibility to dial in the correct cutting speed for a wide variety of materials and tooling diameters.
- What spindle taper does the JMD-18 use?
- The JMD-18 uses an R-8 spindle taper, which is the industry-standard for milling machine collets and toolholders, making it compatible with a broad range of readily available tooling.
- Is a stand included with the JMD-18?
- No, the Mill Drill Stand (p/n 320020) is an optional accessory sold separately. It is shown in some product images but is not included in the base purchase of the JMD-18.
- What motor power and electrical requirements does the JMD-18 require?
- The JMD-18 is powered by a 2 HP motor rated for 115/230V, single-phase power, providing the flexibility to wire it for either standard household voltage or a dedicated 230V circuit depending on your shop setup.
