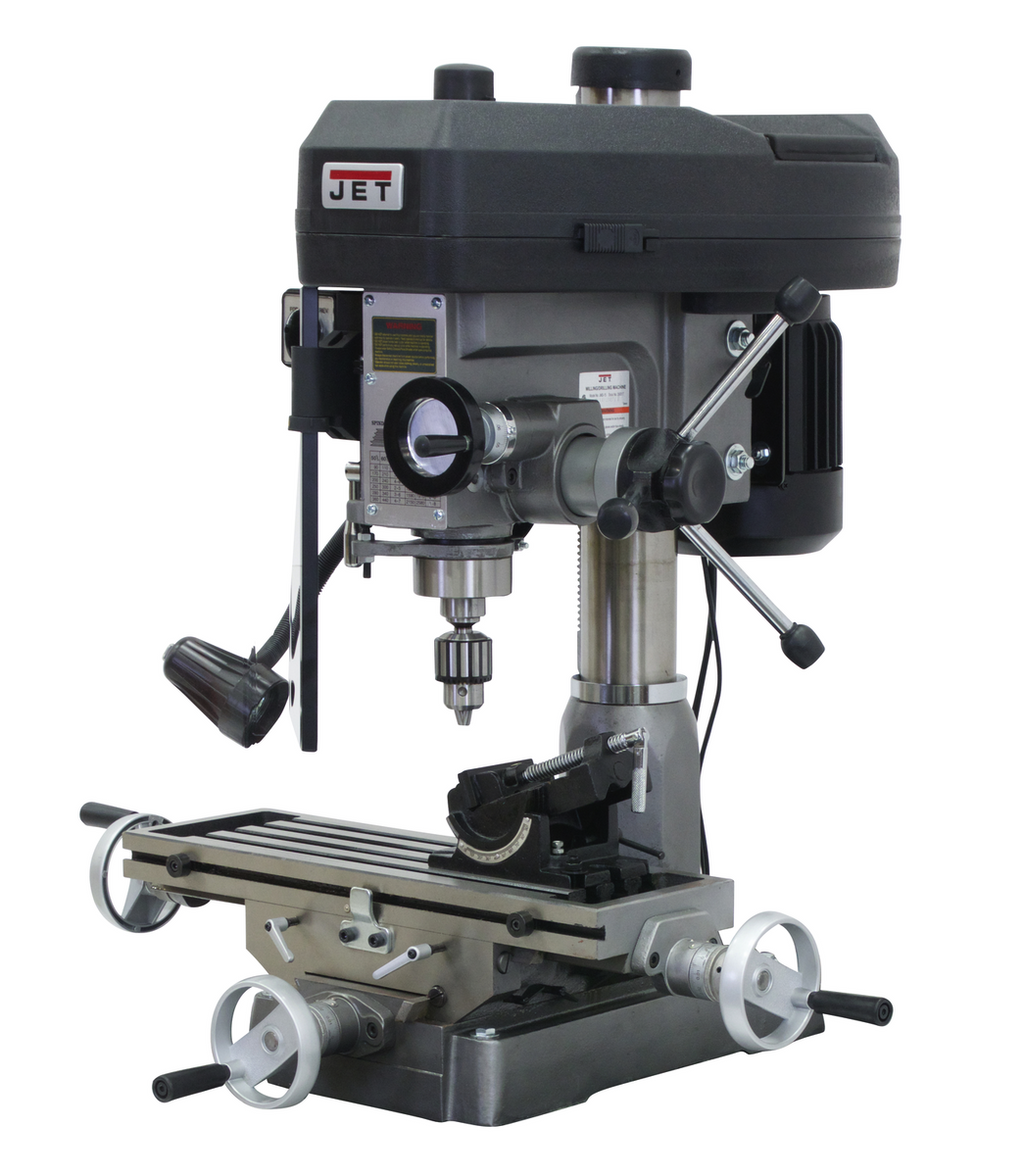

JET JMD-15 Mill/Drill with NEWALL DP500 DRO from JET delivers a space-saving, versatile solution for light machining tasks that demand both drilling precision and milling capability. Combining a belt-driven drill press with the dual-coordinate flexibility of a milling table, this mill/drill is enhanced by an integrated NEWALL DP500 Digital Readout system for exceptional positional accuracy. Weighing in at 440 lbs. and built around a one-piece cast iron column, the JMD-15 offers the rigidity and dependability serious machinists expect - at a fraction of the footprint of a dedicated milling machine.
Key Features
- 1/2" drill chuck and chuck arbor included for immediate setup
- 360-degree head swivel for flexible workpiece positioning and angular drilling or milling
- Adjustable carbide facemill for efficient material removal
- Base taper design allows for easier clean up of chips and debris
- Easy-to-read external depth gauge for precise depth control
- One-piece cast iron column provides added support and rigidity during operation
- NEWALL DP500 Digital Readout (DRO) for enhanced positioning accuracy
- UL Listed for safety and compliance
- Mill Drill Stand (p/n 350045), shown in some images, is optional and sold separately
Specifications
- MPN: JT9-350132
- Country of Origin: Taiwan
- Stock Number: 350132
- Motor: 1 HP, 115/230V, 1Ph
- Drilling Capacity: 1 in.
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 110-2,580 RPM
- Spindle Taper: R-8
- Spindle Travel: 3-1/2 in.
- Quill Diameter: 2-7/16 in.
- Max Distance Spindle to Table: 14-1/2 in.
- Table Size (L x W): 7-1/2 x 23 in.
- Table Longitudinal Travel: 14 in.
- T-Slots Number and Size: 4 and 9/16 in.
- T-Slot Centers: 1-13/16 in.
- Work Table Weight Capacity: 350 lbs.
- Overall Dimensions (L x W x H): 38 x 37-1/2 x 42 in.
- Weight: 440 lbs.
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Red Assurance 2-Year Warranty
What's Included
- 1/2" drill chuck
- Chuck arbor
- Adjustable carbide facemill
- NEWALL DP500 Digital Readout (DRO)
Frequently Asked Questions
- What is the spindle speed range on the JMD-15 Mill/Drill?
- The JMD-15 offers 12 spindle speeds ranging from 110-2,580 RPM, giving operators broad flexibility for a variety of drilling and milling operations across different materials.
- Does the JMD-15 come with a stand?
- The Mill Drill Stand (p/n 350045), shown in some images, is optional and is not included with the machine. It must be purchased separately.
- What spindle taper does the JMD-15 use?
- The JMD-15 uses an R-8 spindle taper, a widely adopted standard in milling and drilling machines that provides broad compatibility with R-8 collets and tooling.
- Is the JMD-15 Mill/Drill UL Listed?
- Yes, the JMD-15 is UL Listed, confirming that it meets established safety standards for electrical and mechanical construction.
