Product Features
Product Description

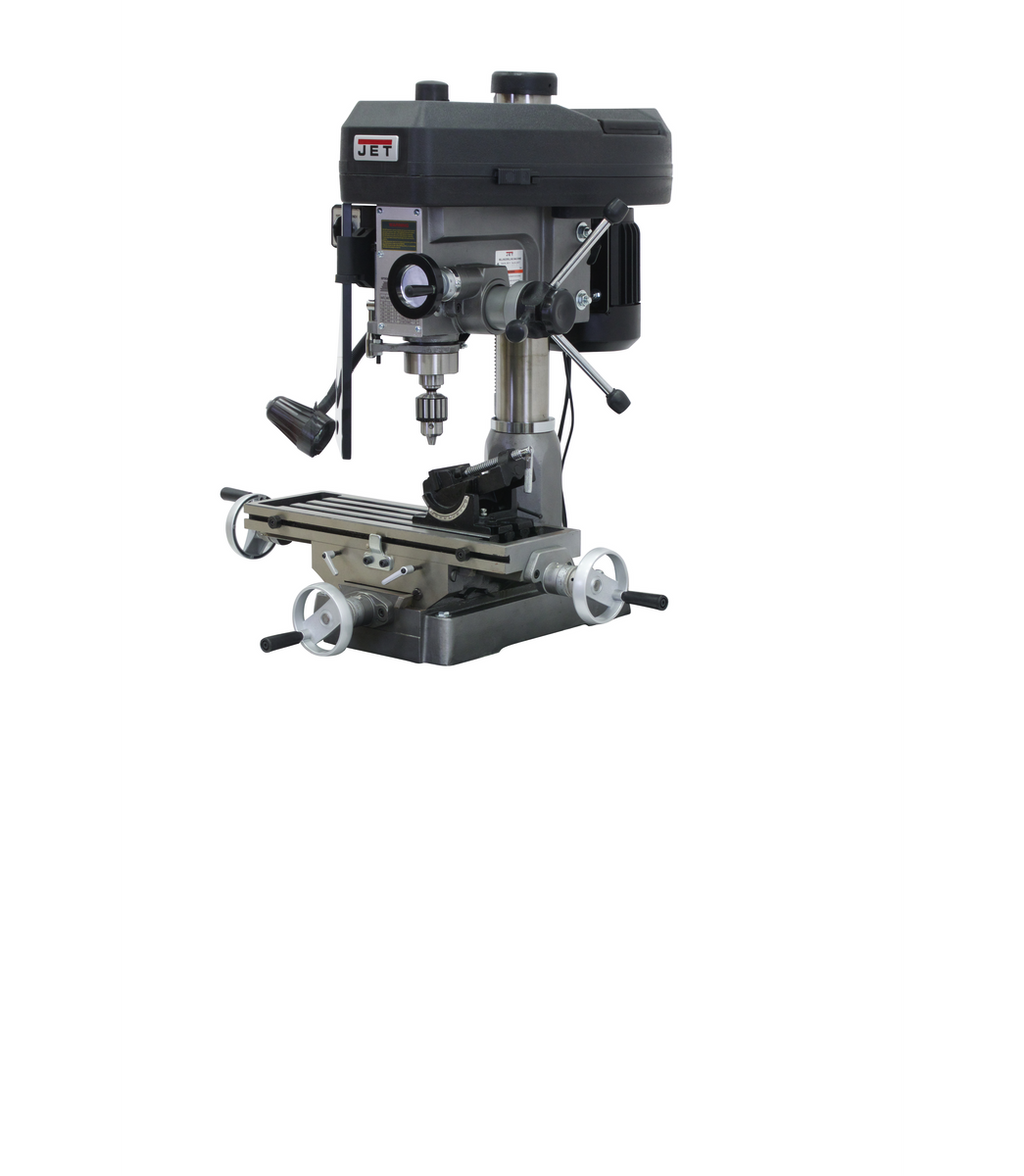

JET JMD-15 Mill/Drill with NEWALL DP700 DRO from JET combines the functionality of a belt-driven drill press with the dual-coordinate precision of a milling machine table, delivering space-saving versatility and capable light machining in a single unit. The integrated NEWALL DP700 Digital Readout brings enhanced accuracy to every operation, making this machine an ideal choice for machinists and craftspeople who demand efficiency without the footprint of a full-sized milling machine.
Key Features
- 1/2" drill chuck and chuck arbor included for immediate use
- 360-degree head swivel for maximum operational flexibility
- Adjustable carbide facemill for versatile cutting applications
- Base taper design allows for easier clean up around the work area

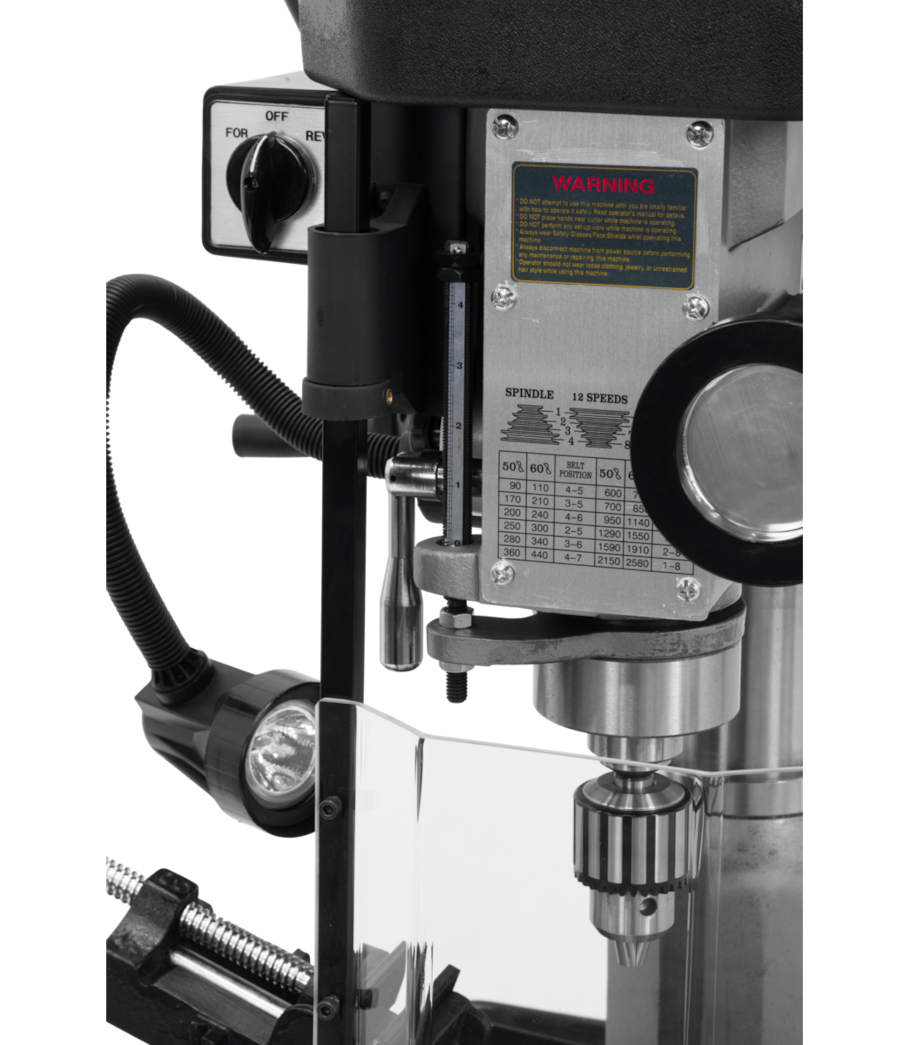

- Easy-to-read external depth gauge for accurate depth control
- One-piece cast iron column provides added support and rigidity
- UL Listed for safety compliance
- Mill Drill Stand (p/n 320020), shown in some images, is optional
Specifications
- Stock Number: 350125
- Country of Origin: Taiwan
- Base Dimensions (In.): 12-1/2 x 19-3/4
- Column Diameter (In.): 3-5/8
- Drilling Capacity (In.): 1
- Max Distance Spindle to Table (In.): 14-1/2
- Motor: 1 HP, 115/230V, 1Ph

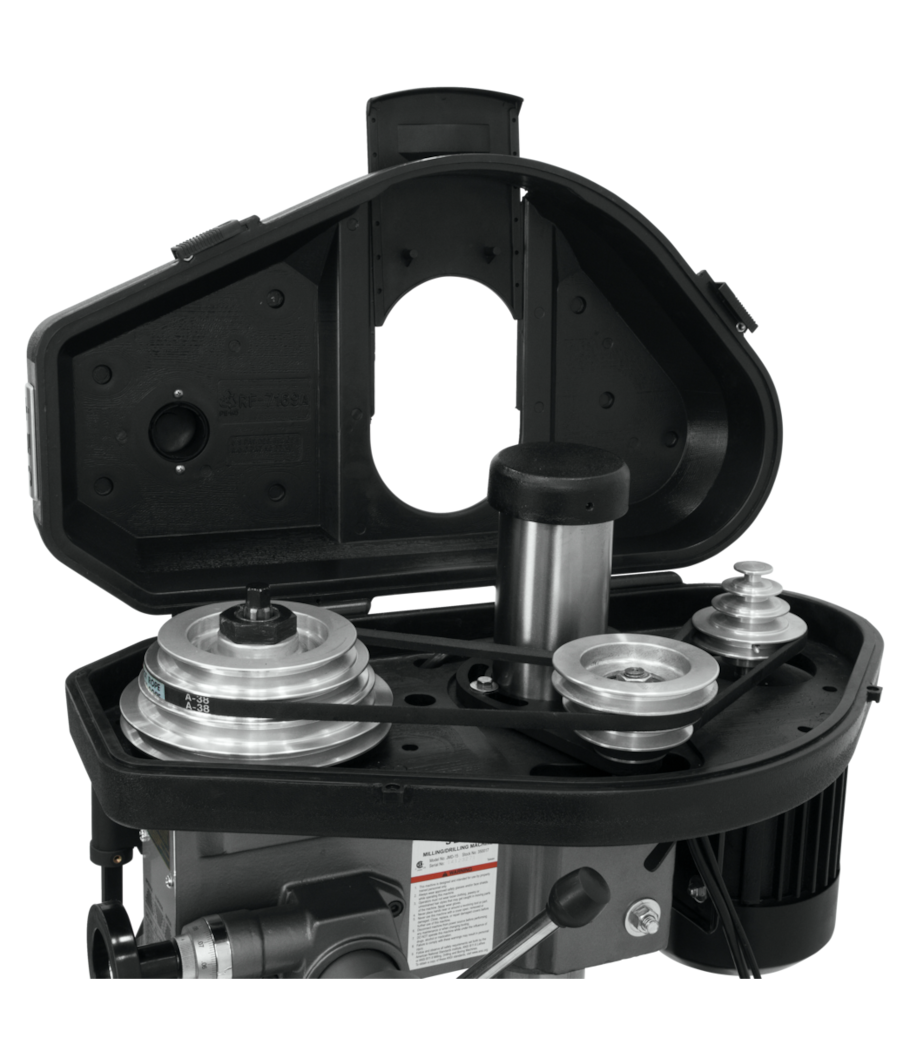

- Number of Spindle Speeds: 12
- Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 2-7/16
- Range of Spindle Speeds (RPM): 110-2,580
- Spindle Taper: R-8
- Spindle Travel (In.): 3-1/2
- Swing (In.): 14-1/2
- T-Slot Centers (In.): 1-13/16
- T-Slots Number and Size (In.): 4 and 9/16
- Table Longitudinal Travel (In.): 14
- Table Size (L x W) (In.): 7-1/2 x 23
- Weight (Lbs.): 440
- Work Table Weight Capacity (Lbs.): 350
What's Included
- 1/2" drill chuck
- Chuck arbor
- Adjustable carbide facemill
- NEWALL DP700 Digital Readout (DRO)
Frequently Asked Questions
- What spindle taper does the JET JMD-15 use?
- The JMD-15 uses an R-8 spindle taper, a widely adopted standard in milling and drilling machines that offers broad tooling compatibility.
- How many spindle speeds are available, and what is the RPM range?
- The JMD-15 offers 12 spindle speeds with a range of 110-2,580 RPM, allowing operators to select the appropriate speed for a wide variety of materials and cutting tools.
- Is the Mill Drill Stand included with the machine?
- No, the Mill Drill Stand (p/n 320020), which is shown in some product images, is an optional accessory and is not included with the JMD-15.
- What is the maximum weight capacity of the work table?
- The work table on the JMD-15 has a maximum weight capacity of 350 lbs., and the table measures 7-1/2 x 23 in. with 14 in. of longitudinal travel to accommodate a range of workpieces.
