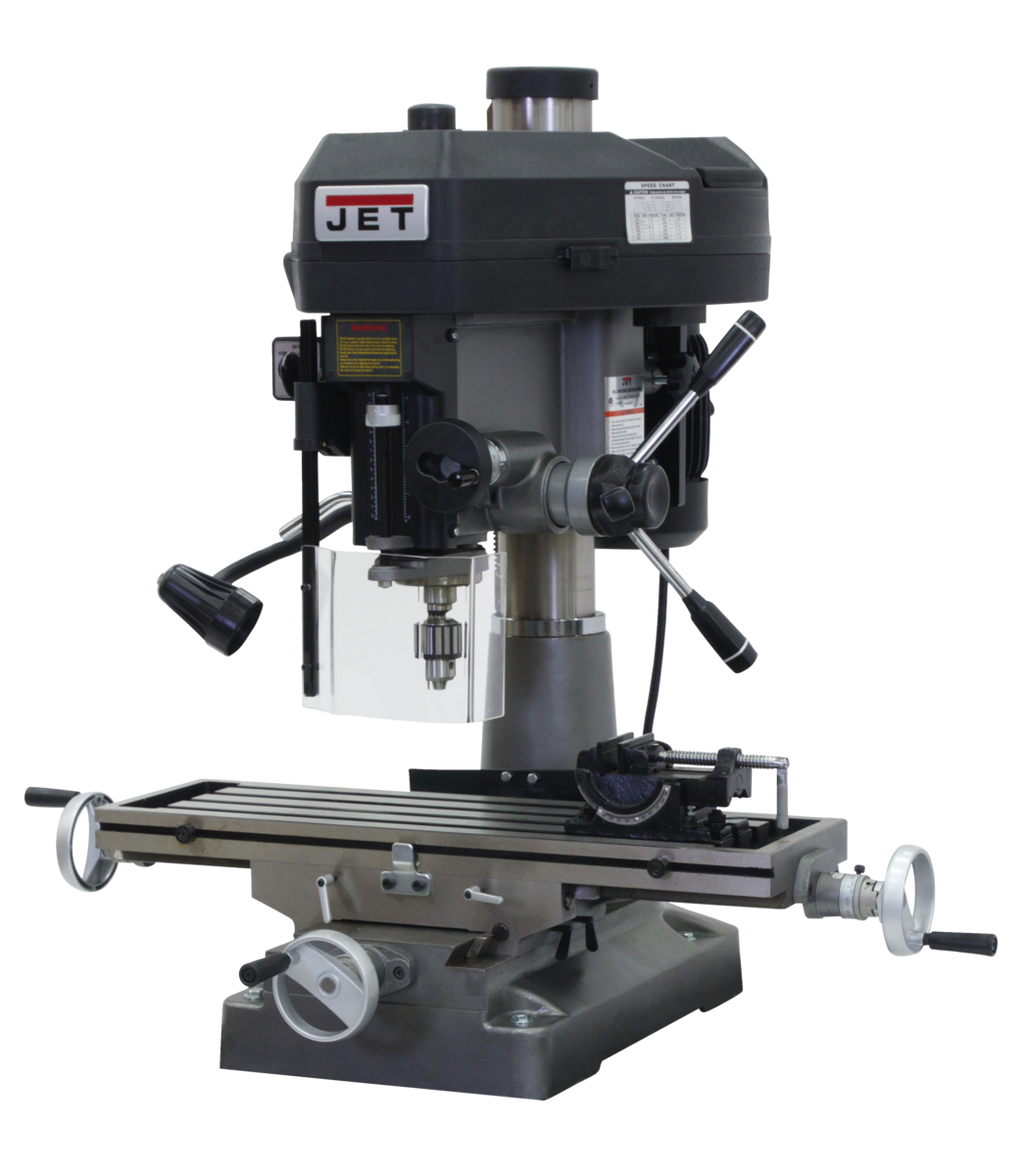

JET JMD-18 Mill/Drill with X-Axis Table Powerfeed by JET delivers a space-saving, versatile solution for light machining tasks that demand both drilling precision and milling flexibility. Combining a belt-driven drill press with the dual-coordinate capability of a milling table, this machine offers 12 spindle speeds ranging from 150-3,000 RPM, a 2 HP motor rated at 115/230V, 1Ph, and an X-Axis powerfeed - making it an efficient workhorse for shops where floor space and budget are equally important considerations.

Key Features

• 1/2" drill chuck and chuck arbor included for immediate setup
• 360 deg. head swivel provides maximum positioning flexibility for angled work
• Adjustable carbide facemill accommodates a wide range of milling tasks
• Base taper design allows for easier clean up of chips and debris
• Easy-to-read internal depth gauge for accurate, repeatable depth settings
• Positive quick-stop knob works in tandem with the internal depth gauge for precise depth control
• Forward and Reverse Switch for versatile cutting and tool-release operations
• One-piece cast iron column delivers added rigidity and long-term structural support
• X-Axis table powerfeed reduces operator fatigue during extended longitudinal cuts
• UL Listed for safety compliance
• Mill Drill Stand (p/n 320020), shown in some images, is optional and sold separately

Specifications

• MPN: JT9-350119
• Country of Origin: Taiwan
• Motor: 2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Range of Spindle Speeds: 150-3,000 RPM
• Spindle Taper: R-8
• Quill Diameter: 3 in.
• Spindle Travel: 5 in.
• Max Distance Spindle to Table: 17-1/2 in.
• Face Mill Capacity: 3 in.
• Powerfeed: X-Axis
• Table Size (L x W): 9-1/2 x 32-1/4 in.
• Table Longitudinal Travel: 20-1/2 in.
• T-Slots Number and Size: 4 and 5/8 in.
• T-Slot Centers: 1-13/16 in.
• Swing: 15-7/8 in.
• Column Diameter: 4-1/2 in.
• Base Dimensions: 15-3/4 x 23-3/4 in.
• Overall Dimensions (L x W x H): 47 x 40 x 51 in.
• Weight: 660 lbs.
• Stock Number: 350119
• Prop 65: Cancer and Reproductive Harm

What's Included

• 1/2" Drill chuck
• Chuck arbor
• Adjustable carbide facemill

Frequently Asked Questions

What spindle taper does the JMD-18 use, and why does it matter?

The JMD-18 uses an R-8 spindle taper, one of the most widely adopted standards in hobby and light industrial milling. This means a broad range of collets, end mill holders, and tooling are readily available, making it easy to expand your tooling options without proprietary adapters.

What does the X-Axis powerfeed do, and how does it benefit the operator?

The X-Axis powerfeed automatically drives the table along its longitudinal axis, which spans 20-1/2 in. of travel. This reduces hand-cranking fatigue during extended milling passes and helps produce more consistent feed rates, improving surface finish quality on workpieces.

Is the Mill Drill Stand included with the JMD-18?

No. The Mill Drill Stand (p/n 320020) is optional and is not included with the JMD-18. It is shown in some product images for reference purposes only.

How many spindle speeds are available, and what is the full speed range?

The JMD-18 offers 12 spindle speeds with a range of 150-3,000 RPM, giving operators the flexibility to select the appropriate speed for a wide variety of materials and cutting tool diameters, from slow heavy-duty face milling to higher-speed finish drilling.
