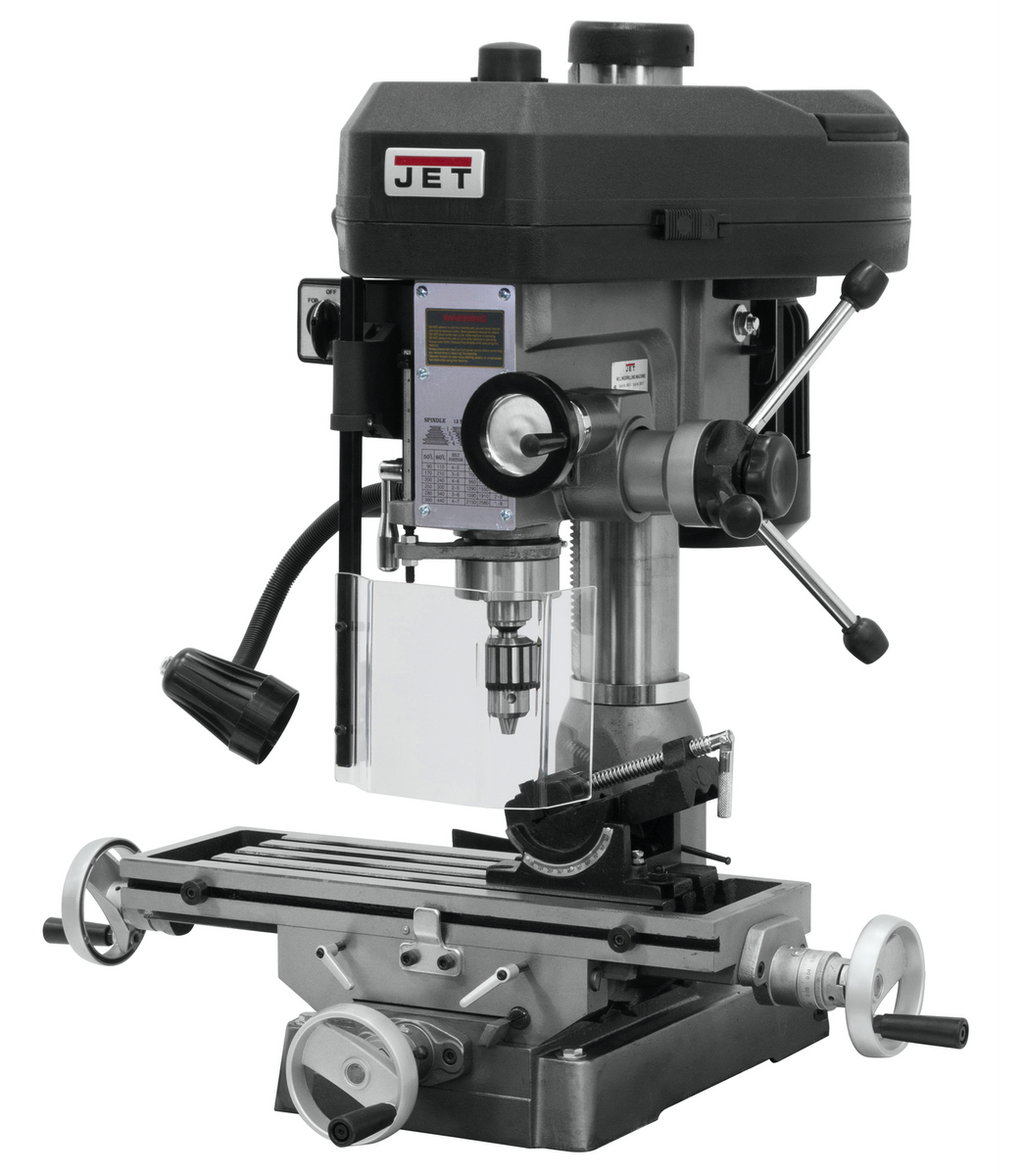

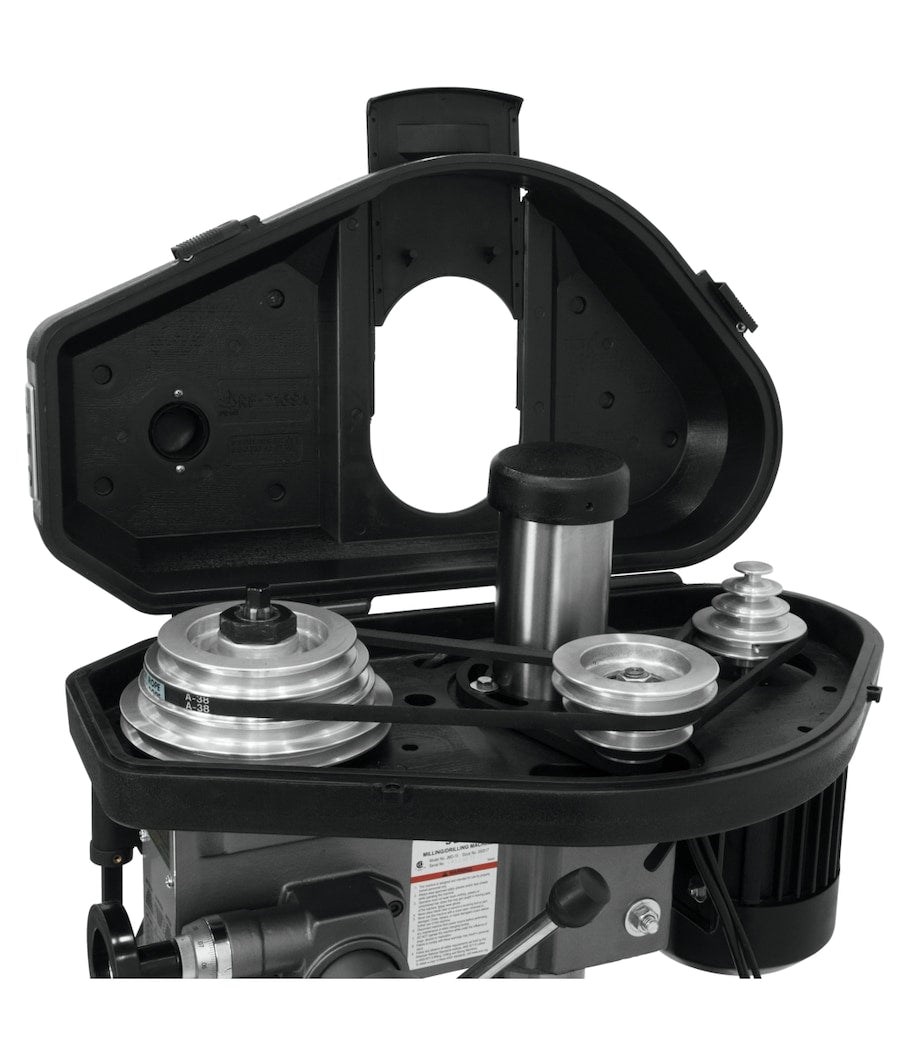

JET JMD-15 Mill/Drill with R-8 Taper 115/230V 1Ph by JET delivers the dual-coordinate versatility of a milling machine table combined with belt-driven drill press performance - all in a space-saving, affordable package ideally suited for light machining, drilling, and milling tasks in shops where floor space and budget are equally valuable. With 12 spindle speeds ranging from 110-2,580 RPM, a 1 HP motor rated for 115/230V 1Ph operation, and a robust one-piece cast iron column for added rigidity, this mill/drill is built to handle a wide variety of metalworking operations with precision and reliability.

Key Features

• 1/2" drill chuck and chuck arbor included for immediate use out of the box
• 360-degree head swivel for versatile positioning and angled drilling or milling operations
• Adjustable carbide facemill for consistent surface finishing performance
• Base taper design allows for easier cleanup of chips and coolant

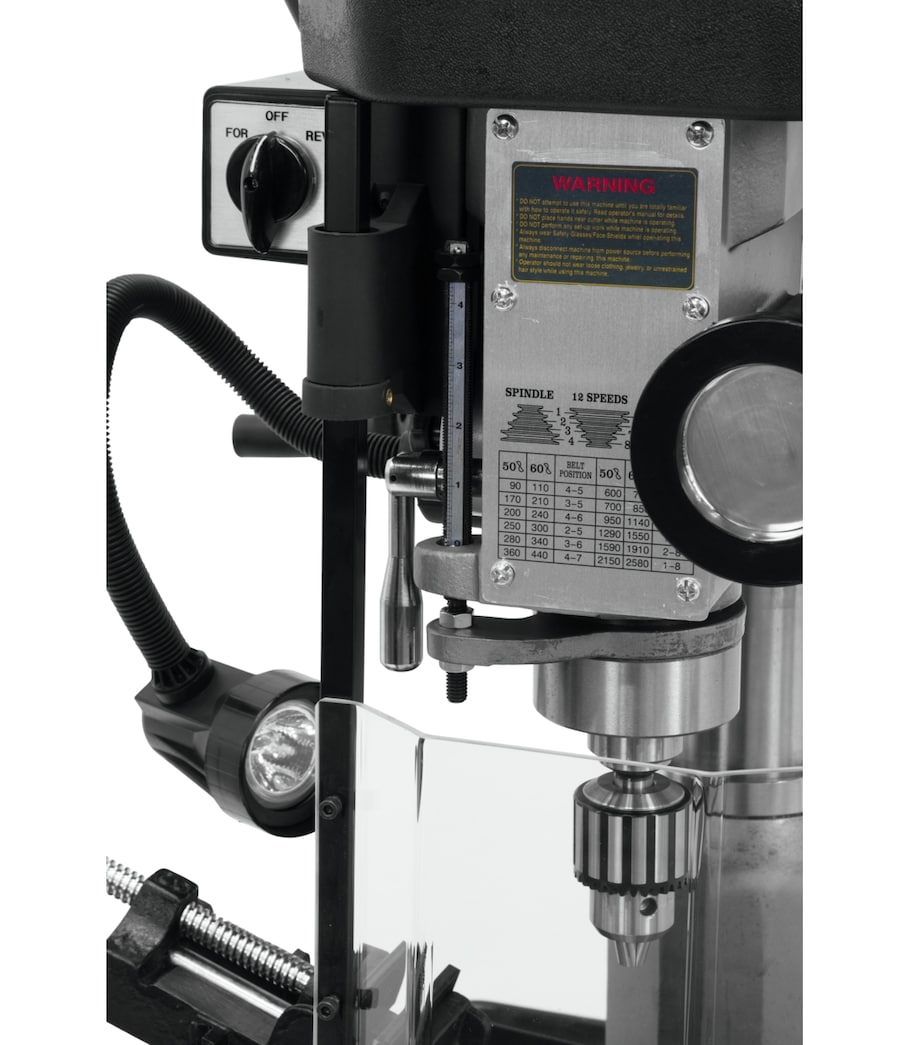

• Easy-to-read external depth gauge for accurate depth control during drilling and milling
• One-piece cast iron column provides added support and minimizes vibration during operation
• A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit
• UL Listed for safety compliance

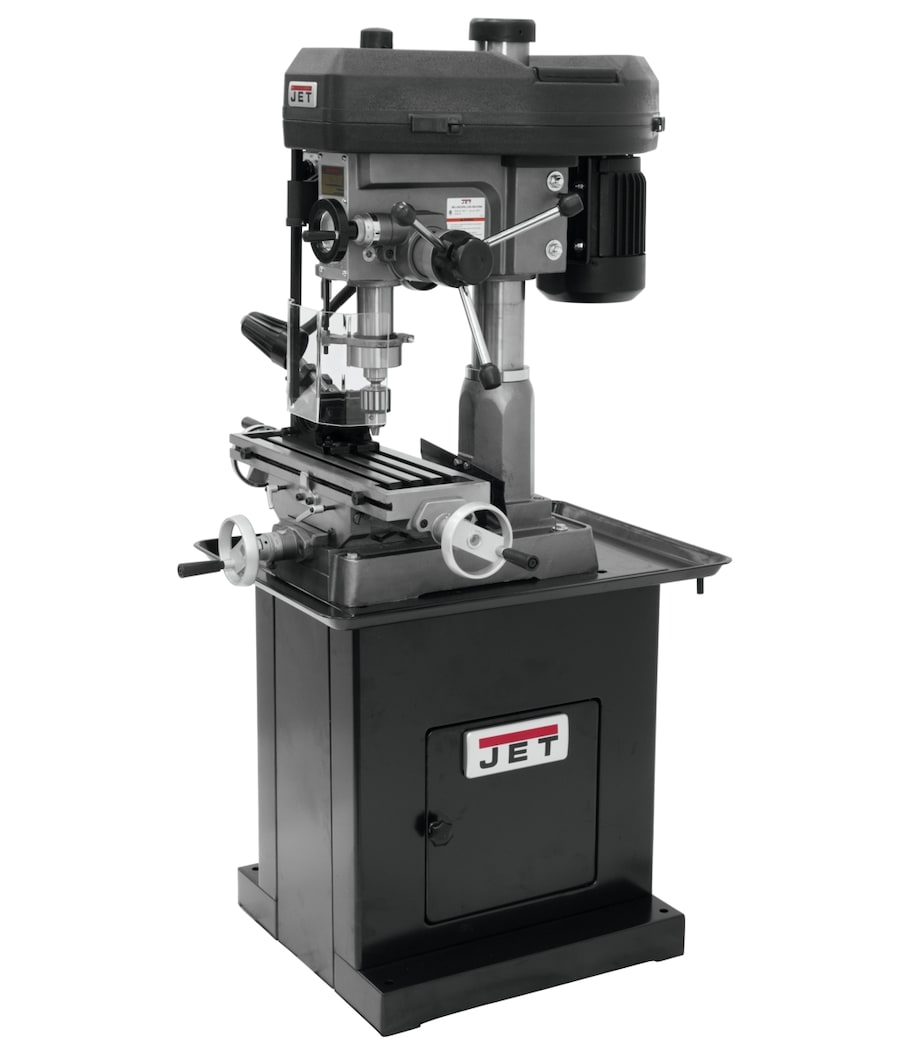

• Mill Drill Stand (p/n 350045, shown in some images) is optional and sold separately

Specifications

• Stock Number: 350017
• Motor: 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 110-2,580
• Spindle Taper: R-8
• Spindle Travel (In.): 3-1/2
• Quill Diameter (In.): 2-7/16
• Drilling Capacity (In.): 1
• Max Distance Spindle to Table (In.): 14-1/2
• Swing (In.): 14-1/2
• Table Size (L x W) (In.): 7-1/2 x 23
• Table Longitudinal Travel (In.): 14
• T-Slots Number and Size (In.): 4 and 9/16
• T-Slot Centers (In.): 1-13/16
• Work Table Weight Capacity (Lbs.): 350
• Column Diameter (In.): 3-5/8
• Base Dimensions (In.): 12-1/2 x 19-3/4
• Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
• Weight (Lbs.): 440
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• 1/2" drill chuck
• Chuck arbor
• Adjustable carbide facemill

Frequently Asked Questions

What spindle taper does the JMD-15 use?

The JMD-15 uses an R-8 spindle taper, which is a widely accepted standard in milling and drilling applications, making it compatible with a broad range of R-8 tooling and collets.

Can the JMD-15 be wired for both 115V and 230V operation?

Yes. The 1 HP motor on the JMD-15 is rated for 115/230V, 1Ph operation, giving you the flexibility to wire it to the available power supply in your shop.

Does the Mill Drill Stand shown in the product images come with the machine?

No. The Mill Drill Stand (p/n 350045) shown in some images is optional and is not included with the JMD-15. It must be purchased separately.

How many spindle speeds are available, and what is the RPM range?

The JMD-15 offers 12 spindle speeds with a range of 110-2,580 RPM, providing the versatility needed to work with a variety of materials and cutting tool sizes.
