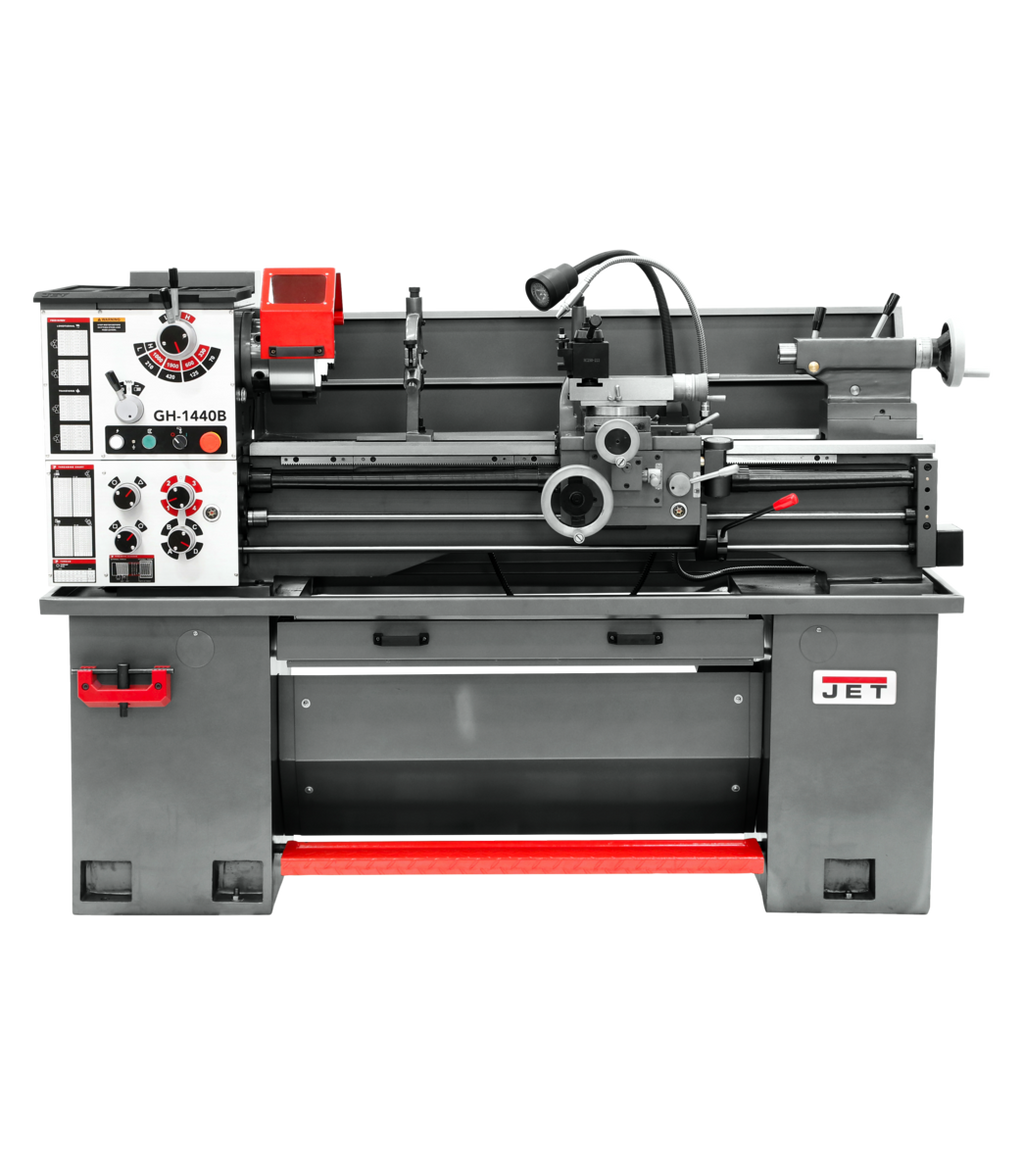

JET GH-1440B Geared Head Bench Lathe with Newall DP500 & Taper Attachment from JET is a precision-engineered bench lathe designed for machinists who demand smooth, quiet operation alongside broad threading and feed versatility. Built around an enclosed gearbox design and equipped with a Newall DP500 digital readout and taper attachment, this lathe is well-suited for demanding production and toolroom environments where accuracy, operator safety, and adaptability are essential.
Key Features

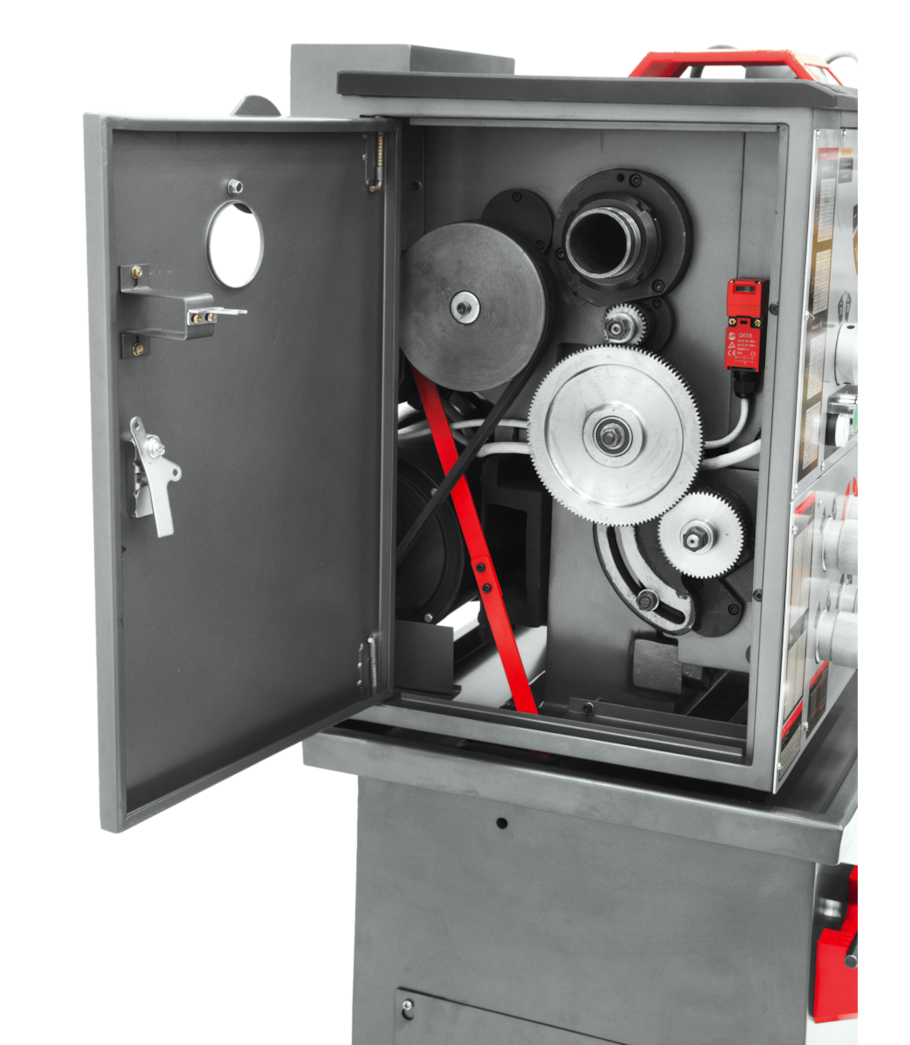

- Enclosed gearbox design provides smooth, quiet operation
- Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes

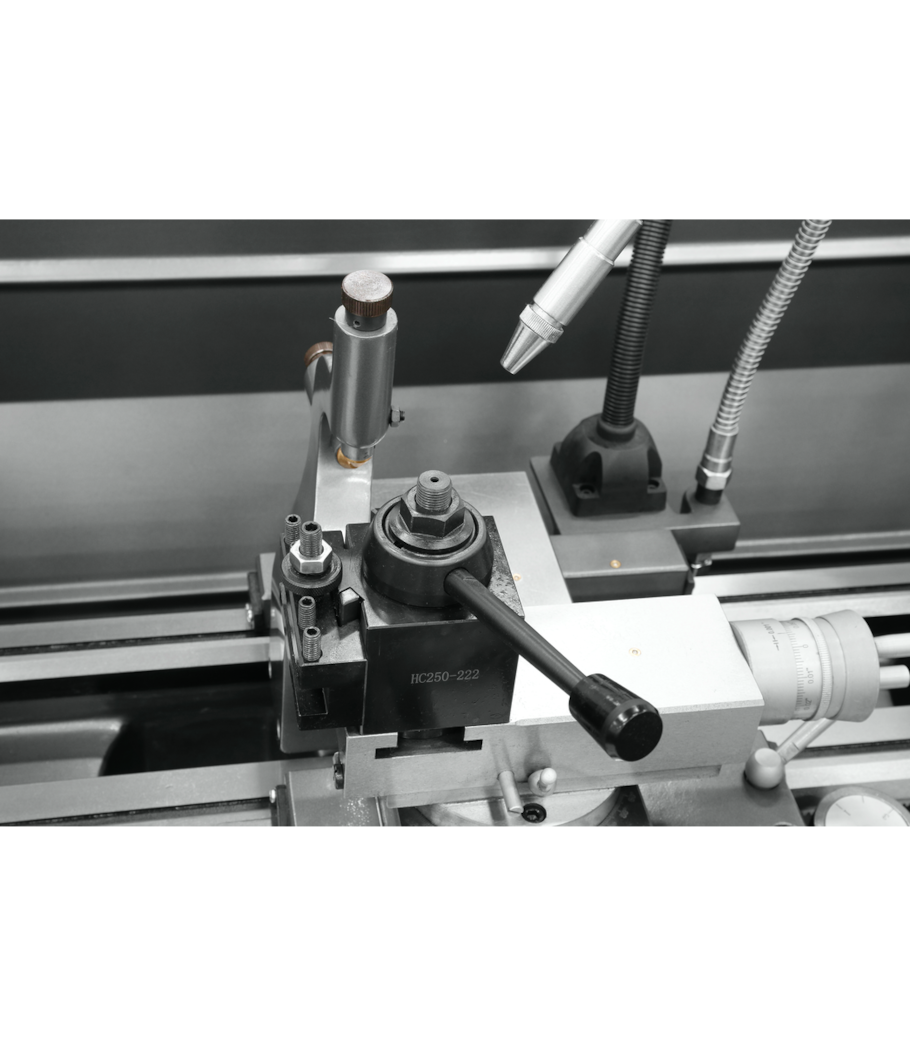

- Compound and cross slide have backlash adjustment for improved accuracy and repeatability

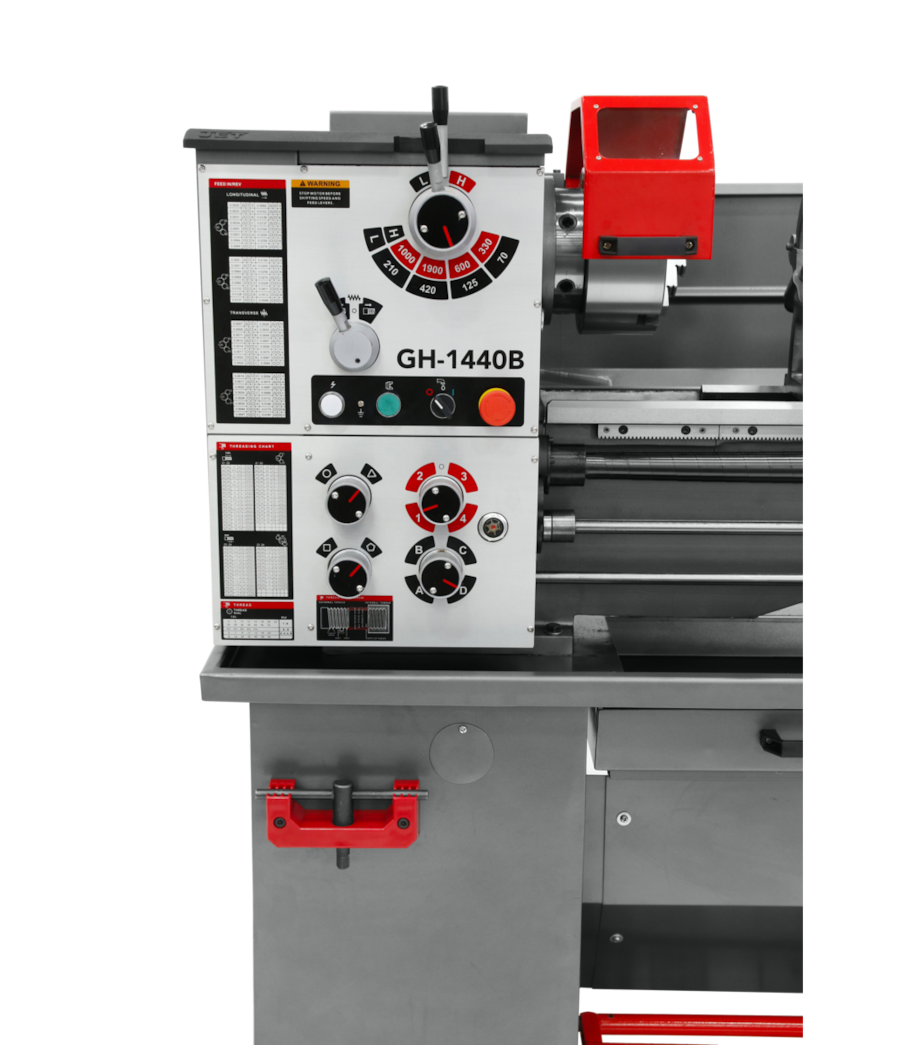

- Emergency stop within easy reach of the Operator for enhanced workplace safety
- Tailstock may be offset for turning taper
- Spindle Spider available for ease of turning gun barrels

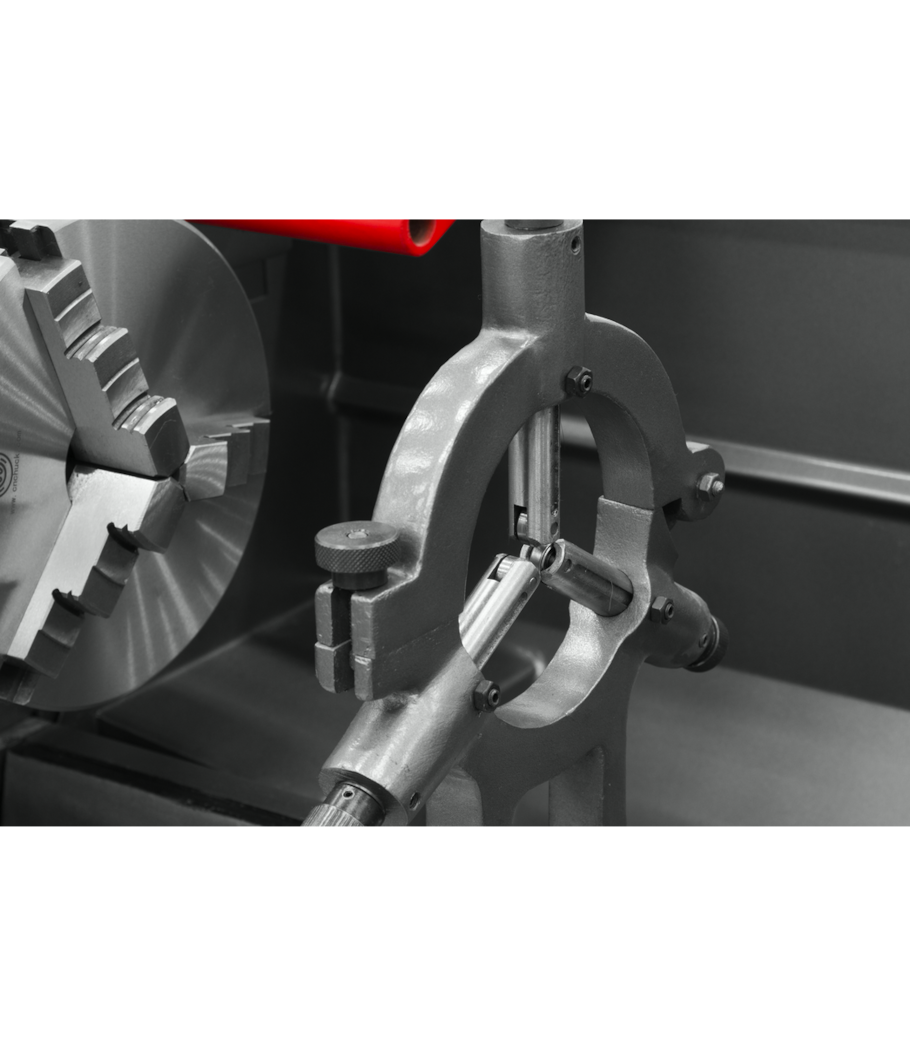

- Steady Rest with Roller Bearings included as a standard accessory
Specifications
- MPN: JT9-323448
- Stock Number: 323448
- Motor: 2 HP, 230V, Single Phase
- Number of Spindle Speeds: 8
- Range of Spindle Speeds (RPM): 70-1900
- Carriage Travel (In.): 37-2/5
- Cross Slide Travel (In.): 7
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 8
- Max Tool Size (In.): 4/5 x 4/5
- Number of Inch Threads: 34
- Range of Inch Threads (TPI): 4-56
- Number of Metric Threads: 26
- Range of Metric Threads: 0.4-7
- Number of Longitudinal and Cross Feed Rates: 32/32
- Range of Longitudinal Feeds (IPR): 0.002-0.0548
- Range of Cross Feeds (IPR): 0.007-0.0187
- Overall Dimensions (L x W x H) (In.): 76-13/32 x 29-29/32 x 59-13/16
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: China
What's Included
- Steady Rest with Roller Bearings
- Newall DP500 Digital Readout
- Taper Attachment
Frequently Asked Questions
- How many spindle speeds does the GH-1440B offer, and what is the RPM range?
- The GH-1440B provides 8 spindle speeds with a range of 70-1900 RPM, allowing operators to match the correct speed to a wide variety of materials and cutting operations.
- Does this lathe support both inch and metric threading?
- Yes. The enclosed gearbox gives a wide range of inch & metric threading & feed capabilities with few gear changes. It supports 34 inch thread pitches ranging from 4-56 TPI and 26 metric thread pitches ranging from 0.4-7.
- What safety features are built into the GH-1440B?
- The GH-1440B features an emergency stop within easy reach of the Operator, helping to ensure quick shutdown in the event of an unexpected situation during machining.
- Can the GH-1440B be used for turning gun barrels?
- Yes. A Spindle Spider is available for ease of turning gun barrels, making this lathe a capable option for gunsmiths and precision machinists who require this specialized functionality.
