Product Description
The JET GH-1440-3 Geared Head Lathe with Newall DP700 DRO, Collet Closer, and Taper Attachment by JET delivers serious metal-turning capability for professional machinists and industrial shops demanding precision, durability, and versatile operation. Weighing over one ton and built around precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this geared head engine lathe is engineered for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover ensure smooth, quiet operation while maintaining peak performance. An emergency stop within easy reach of the operator and a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key safely docked make this lathe as safe as it is powerful.
Key Features
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Front Removable Chip Tray for fast, convenient workstation cleanup
- Full Length Splash Guard to contain coolant and debris during operation
- Inch-metric dials are standard, providing flexibility for both measurement systems
- Independent lead screw and feed rod for versatile threading and feed operations
- Safety on/off switch for reliable operator protection
- Spindle actuation control is apron mounted for convenient, ergonomic access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, t keyed, shafts are utilized for robust power transmission and durability

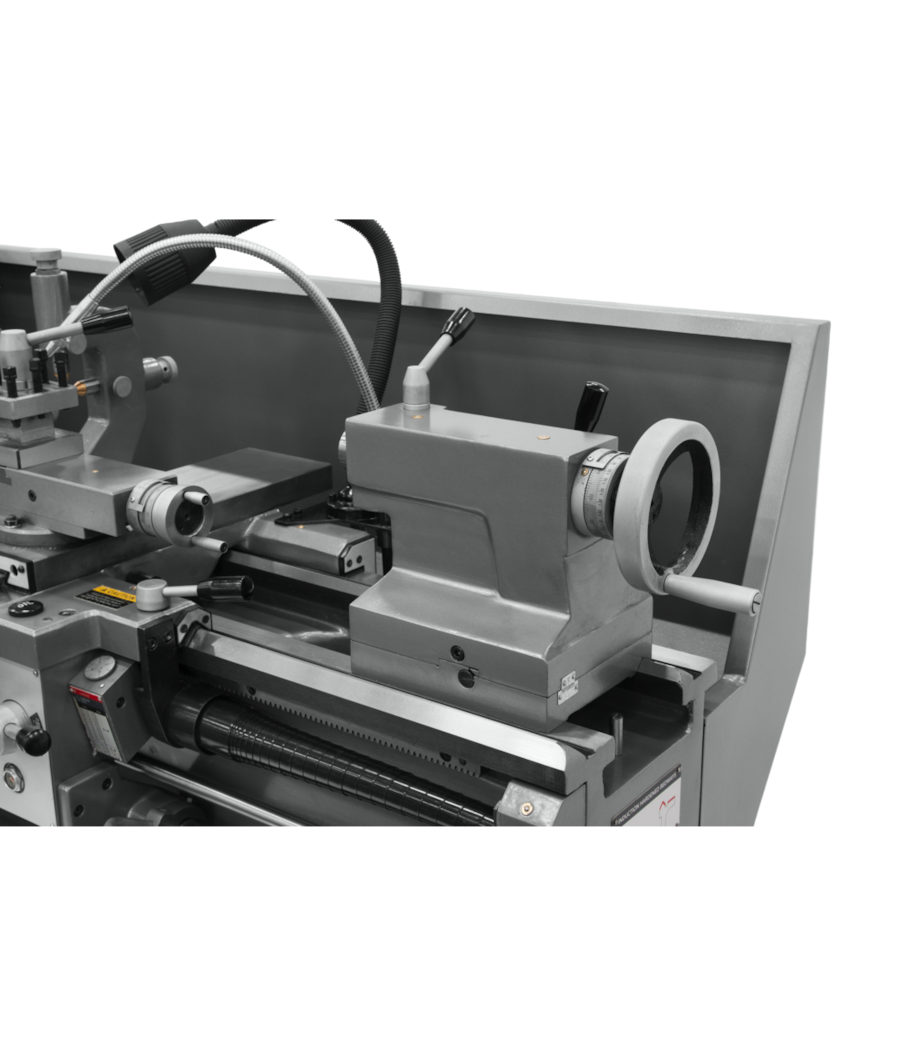

- Tailstock may be offset for turning taper, expanding the range of workpiece geometries
- Precision induction hardened ground bed-ways for long-lasting accuracy
- Spindle roller bearings and high-quality steel hardened gears in the headstock

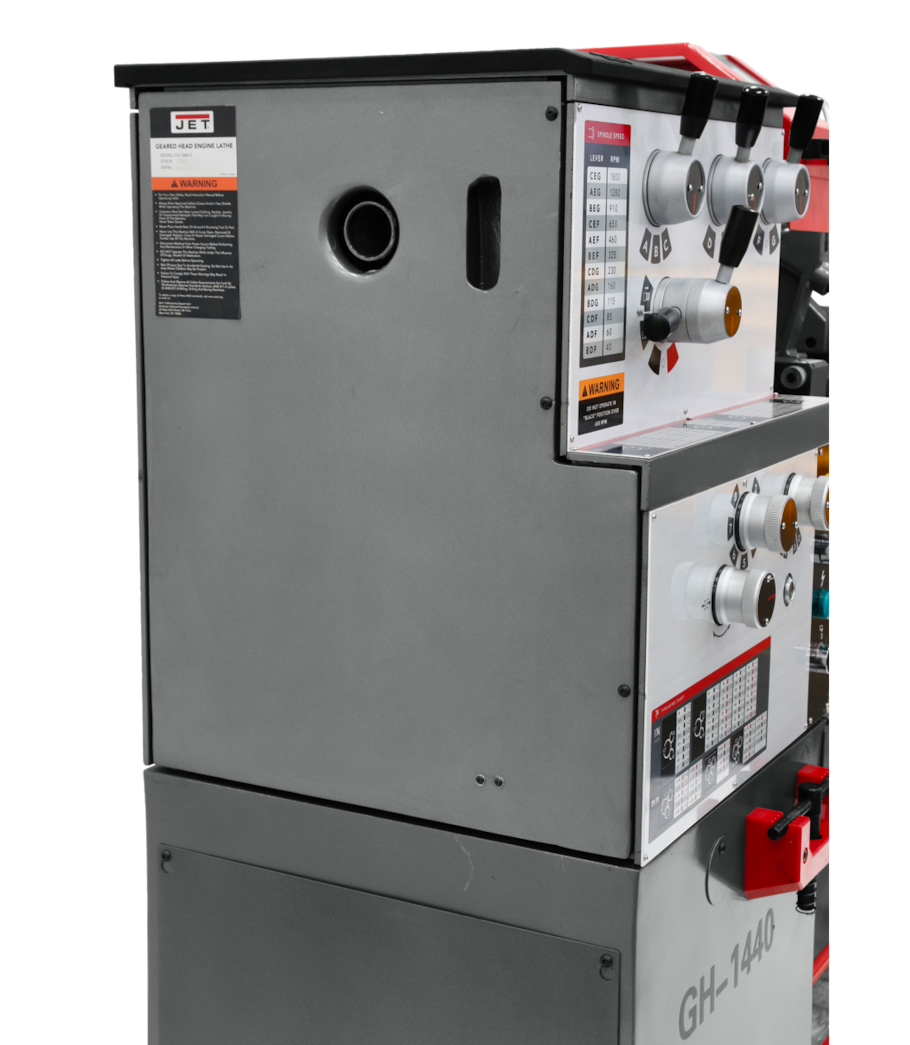

- Enclosed gearbox design for smooth, quiet operation
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Emergency stop conveniently positioned within easy reach of the operator
- 12 spindle speeds and 40 longitudinal and cross feed rates for wide operational versatility
- Powered by a 3HP, 230/460V, 3-phase motor for industrial-grade performance
Specifications
- Stock Number: 323414
- MPN: JT9-323414
- Motor: 3HP, 230/460V, 3PH
- Number of Spindle Speeds: 12
- Number of Longitudinal and Cross Feed Rates: 40
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Range of Inch Threads (TPI): 4-112
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0004-0.0103
- Carriage Travel (In.): 37-1/2
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9-3/8
- Max Tool Size (In.): 5/8 x 5/8
- Overall Dimensions (L x W x H) (In.): 74-4/5 x 28 x 46
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What thread cutting capabilities does the JET GH-1440-3 offer?
- This lathe supports 40 inch threads with a range of 4-112 TPI and 23 metric threads, giving machinists extensive flexibility for threading a wide variety of workpieces in both measurement systems. Inch-metric dials are standard to support both systems conveniently.
- How does the backlash elimination on the compound and cross slide benefit precision work?
- The backlash elimination on the compound and cross slide minimizes unwanted play between mating components, allowing machinists to make precise, repeatable cuts and adjustments without compensating for mechanical slop - critical for achieving tight tolerances in professional machining applications.
- Can this lathe perform taper turning?
- Yes. The tailstock may be offset for turning taper, and the machine also comes equipped with a Taper Attachment, providing two methods for producing tapered workpieces to suit different setups and taper requirements.
- What safety features are built into the GH-1440-3?
- The GH-1440-3 includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents the lathe from starting up unless the chuck key is safely docked - helping to reduce the risk of accidents in the workplace.
