Product Description
JET GH-1440-3 Geared Head Lathe with Newall DP700 DRO is a heavy-duty engine lathe from JET engineered for professional machinists who demand precision, durability, and reliable performance on demanding turning operations. Weighing over one ton and equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this 3HP geared head lathe delivers the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth, quiet operation while maintaining peak performance - and the integrated Newall DP700 DRO adds digital readout accuracy to every pass.
Key Features
- Compound and cross slide have backlash elimination for improved accuracy and repeatability
- Front Removable Chip Tray keeps the work area clean and accessible
- Full Length Splash Guard protects the operator and surrounding area from coolant and chips
- Inch-metric dials are standard, allowing seamless switching between measurement systems
- Independent lead screw and feed rod provide greater flexibility and control over threading and feeding operations
- Safety on/off switch and emergency stop are within easy reach of the operator
- Spindle actuation control is apron mounted for intuitive, convenient access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, t keyed, shafts are utilized for robust power transmission

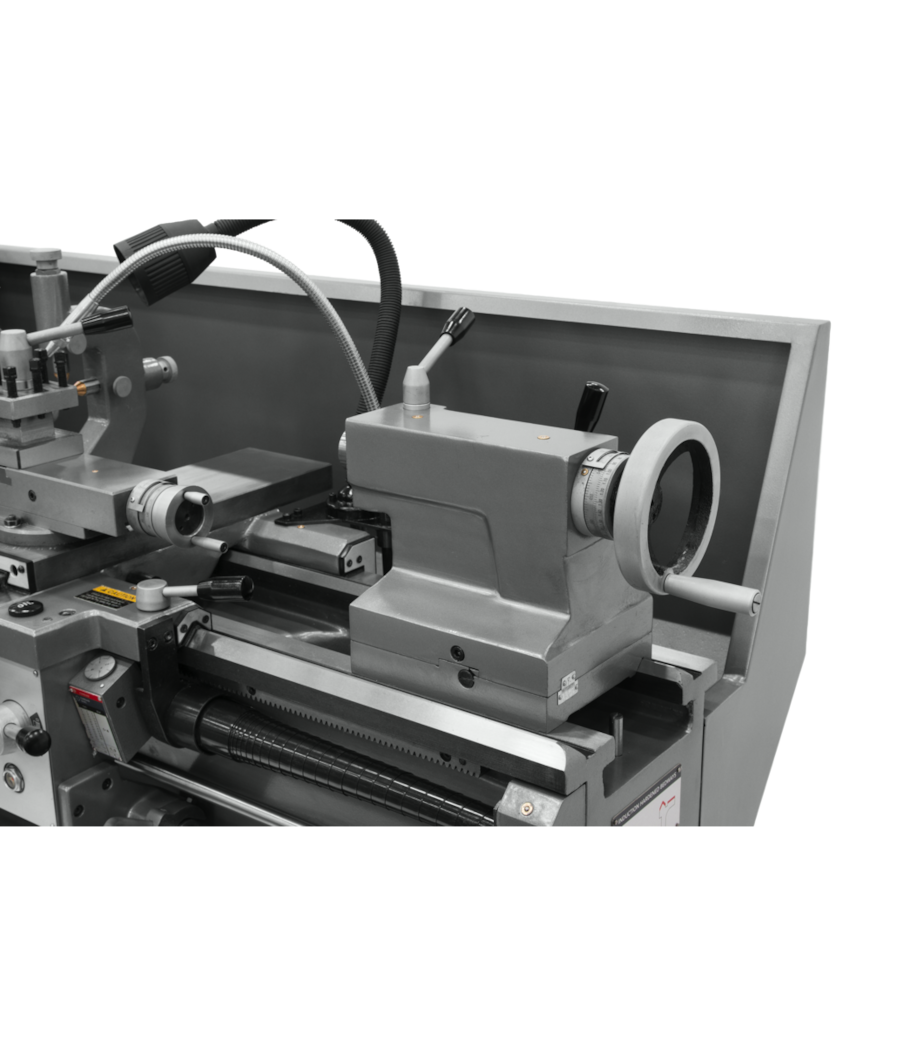

- Tailstock may be offset for turning taper, expanding the range of workpiece geometries achievable
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key when safely docked
- Precision induction hardened ground bed-ways for long-term accuracy and wear resistance
- Spindle roller bearings for smooth, precise spindle rotation under load
- High-quality steel hardened gears in the headstock for lasting durability
- Standard coolant system supports extended cutting operations
Specifications
- MPN: JT9-323411
- Stock Number: 323411
- Motor: 3HP, 230/460V, 3PH
- Number of Spindle Speeds: 12
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Inch Threads (TPI): 4-112
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0004-0.0103
- Carriage Travel (In.): 37-1/2
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9-3/8
- Max Tool Size (In.): 5/8 x 5/8
- Overall Dimensions (L x W x H) (In.): 74-4/5 x 28 x 46
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What power supply does the JET GH-1440-3 require?
- The GH-1440-3 is powered by a 3HP motor rated at 230/460V, 3-phase. This makes it suited for industrial and professional shop environments with three-phase power available.
- How many thread and feed options does this lathe offer?
- The GH-1440-3 provides 40 inch threads with a range of 4-112 TPI, 23 metric threads, and 40 longitudinal and cross feed rates - with longitudinal feeds ranging from 0.0012-0.0294 IPR and cross feeds ranging from 0.0004-0.0103 IPR - giving machinists extensive versatility for a wide range of threading and turning tasks.
- Does this lathe include features to improve operator safety?
- Yes. The GH-1440-3 includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents the lathe from starting without the chuck key safely docked, significantly reducing the risk of accidental startup.
- Can the tailstock be adjusted for taper turning?
- Yes. The tailstock may be offset for turning taper, allowing operators to produce tapered workpieces without the need for additional specialized attachments.
