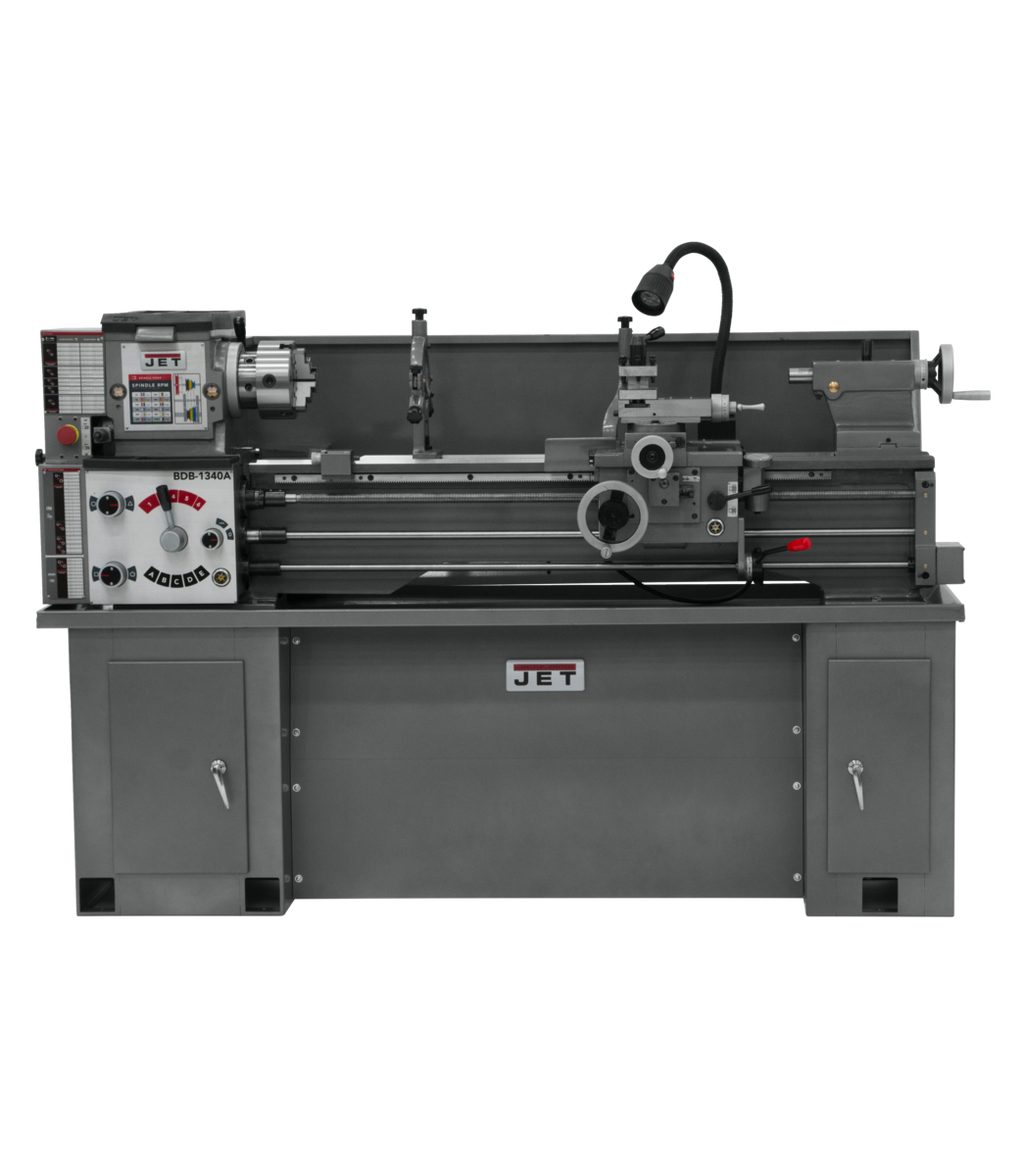

JET BDB-1340A Belt Drive Bench Lathe with Newall NMS300 DRO from JET delivers precision metalworking performance in a compact bench-top format. Engineered for machinists who demand accuracy and versatility, this 13 x 40 belt drive lathe combines an enclosed gearbox with helical cut gears for exceptionally quiet, smooth operation - while the integrated Newall NMS300 Digital Readout system brings shop-floor precision to every turning, facing, and threading operation.
Key Features
- Enclosed gearbox with helical cut gears reduces noise and ensures smooth, consistent operation
- Full-length splash guard on all sizes keeps hot chips and cutting fluid from contaminating the work area
- Quick change gearbox allows fast and easy gear changes for metric threading operations
- Newall NMS300 Digital Readout (DRO) system provides precise positional feedback for enhanced accuracy
- 12 spindle speeds ranging from 60-1,240 RPM accommodate a wide variety of materials and operations
- 38 inch thread pitches (3-1/2-80 TPI) and 23 metric thread pitches (0.45-10 mm) give extensive threading versatility
- 38 longitudinal and cross feed rates for dialed-in material removal control
- D1-4 spindle mount with a 1-3/8 in. spindle bore for secure, repeatable chuck mounting
- MT-5 (MT-3 with sleeve) spindle taper for broad tooling compatibility
- Powered by a robust 2 HP, 230V, 1-phase motor built for sustained heavy-duty use
- Backed by the industry-leading JET Two Year Warranty
Specifications
- Stock Number: 323130
- Size: 13 x 40
- Drive: Belt
- Motor: 2 HP, 230V, 1Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 60-1,240
- Spindle Bore (In.): 1-3/8
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5 (MT-3)
- Carriage Travel (In.): 35
- Compound Slide Travel (In.): 2-11/16
- Length of Gap (In.): 8
- Max Tool Size (In.): 5/8 x 5/8
- Number of Inch Threads: 38
- Range of Inch Threads (TPI): 3-1/2-80
- Number of Metric Threads: 23
- Range of Metric Threads: 0.45-10
- Number of Longitudinal and Cross Feed Rates: 38
- Range of Longitudinal Feeds (IPR): 0.0018-0.0374
- Range of Cross Feeds (IPR): 0.0006-0.013
- Overall Dimensions (L x W x H) (In.): 71 x 32 x 45
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does the BDB-1340A offer, and how many speeds are available?
- The BDB-1340A provides 12 spindle speeds spanning 60-1,240 RPM, giving machinists the flexibility to work with a broad range of materials and cutting conditions on a single machine.
- What threading capabilities does this lathe support?
- This lathe is equipped with a quick change gearbox that supports 38 inch thread pitches ranging from 3-1/2-80 TPI and 23 metric thread pitches ranging from 0.45-10 mm, making it well-suited for both inch and metric threading work.
- What motor power and electrical requirements does this machine need?
- The BDB-1340A is powered by a 2 HP motor requiring a 230V, single-phase electrical supply. Ensure your shop has the appropriate 230V single-phase outlet and wiring before installation.
- What warranty coverage does JET provide for this lathe?
- JET backs the BDB-1340A with their industry-leading Two Year Warranty, providing coverage and peace of mind for professional and serious hobbyist machinists alike.
