Product Features
Product Description

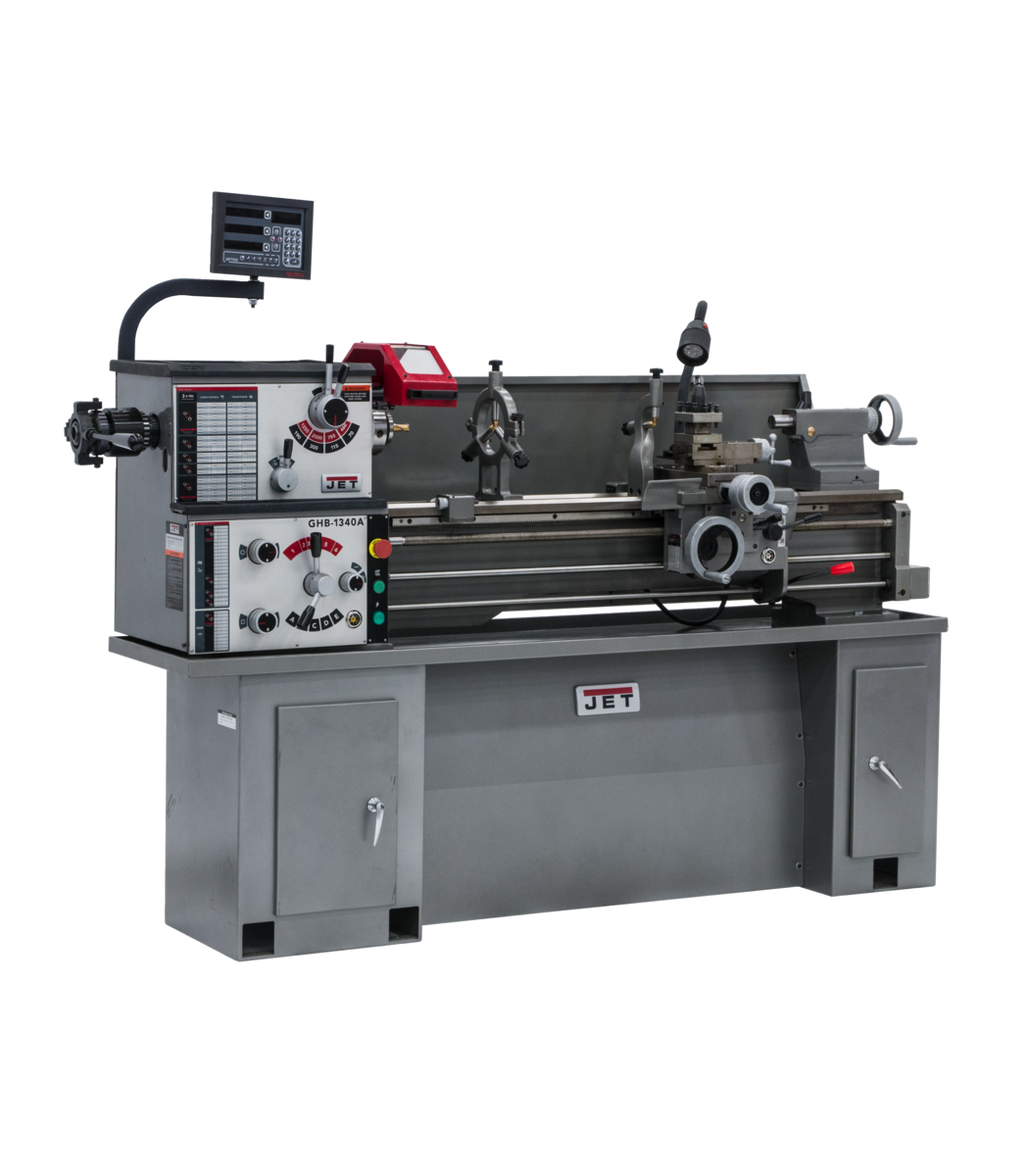

JET GHB-1340A Geared Head Bench Lathe w/Newall NMS300 DRO w/Taper Attachment is a precision-engineered bench lathe from JET designed for machinists who demand accuracy, smooth operation, and versatile threading and turning capabilities. The enclosed gearbox delivers quiet, dependable performance, while precision roller bearings support the hardened and ground spindle to maintain tight tolerances across demanding operations. Headstock lubrication runs continuously during operation, minimizing maintenance requirements and extending machine life - all backed by the industry-leading JET Two Year Warranty.
Key Features
- 6" 3-jaw direct mount chuck with top reversing jaw for secure, versatile workholding
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Fast, easy speed changes across 8 spindle speeds ranging from 70-2,000 RPM
- Hardened and ground gears are featured in the headstock and gearbox for long-term durability
- Independent lead screw and feed rod for flexible machining operations
- Spindle actuation control is apron mounted for convenient, ergonomic access
- Tailstock may be offset for turning taper, adding versatility to the machine's capabilities
- V-Way bed design is induction hardened and ground for rigidity and wear resistance
- Tolerance test certificate included, confirming factory-verified accuracy
- Enclosed gearbox provides smooth, quiet operation
- Precision roller bearings support the hardened and ground spindle for tight tolerances
- Headstock is constantly oiled during operation to reduce maintenance needs
- Image shown with optional bench, p/n 321443AK (sold separately)
Specifications
- Stock Number: 323115
- Size: 13 x 40
- Drive: Geared Head
- Motor: 2 HP, 230V, 1Ph
- Number of Spindle Speeds: 8
- Range of Spindle Speeds (RPM): 70-2,000
- Spindle Bore (In.): 1-3/8
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5 (MT-3)
- Carriage Travel (In.): 35
- Compound Slide Travel (In.): 2-11/16
- Max Tool Size (In.): 5/8 x 5/8
- Length of Gap (In.): 8
- Steady Rest Capacity (In.): 2-3/4
- Number of Inch Threads: 38
- Range of Inch Threads (TPI): 3-1/2-80
- Number of Metric Threads: 23
- Range of Metric Threads: .45-10
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds (IPR): .0018-.0374
- Range of Cross Feeds (IPR): .0006-.0130
- Overall Dimensions (L x W x H) (In.): 79 x 28-1/2 x 30
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- 6" 3-jaw direct mount chuck with top reversing jaw
- Tolerance test certificate
- Newall NMS300 Digital Readout (DRO)
- Taper Attachment
Frequently Asked Questions
- What spindle speed range does the JET GHB-1340A offer?
- The GHB-1340A provides 8 spindle speeds ranging from 70-2,000 RPM, allowing operators to match the cutting speed to a wide variety of materials and operations.
- Does this lathe support both inch and metric threading?
- Yes. The GHB-1340A supports 38 inch thread pitches ranging from 3-1/2-80 TPI and 23 metric thread pitches ranging from .45-10, making it highly versatile for both inch and metric work.
- How is backlash addressed on the compound and cross slide?
- The compound and cross slide have backlash elimination built in, ensuring precise and repeatable movements during fine finishing cuts and detailed machining work.
- Can this lathe cut tapers, and what is the spindle mount type?
- Yes - the tailstock may be offset for turning taper, and the machine also includes a taper attachment for additional flexibility. The spindle mount is D1-4, with a spindle taper of MT-5 (MT-3) with sleeve.
