Product Description

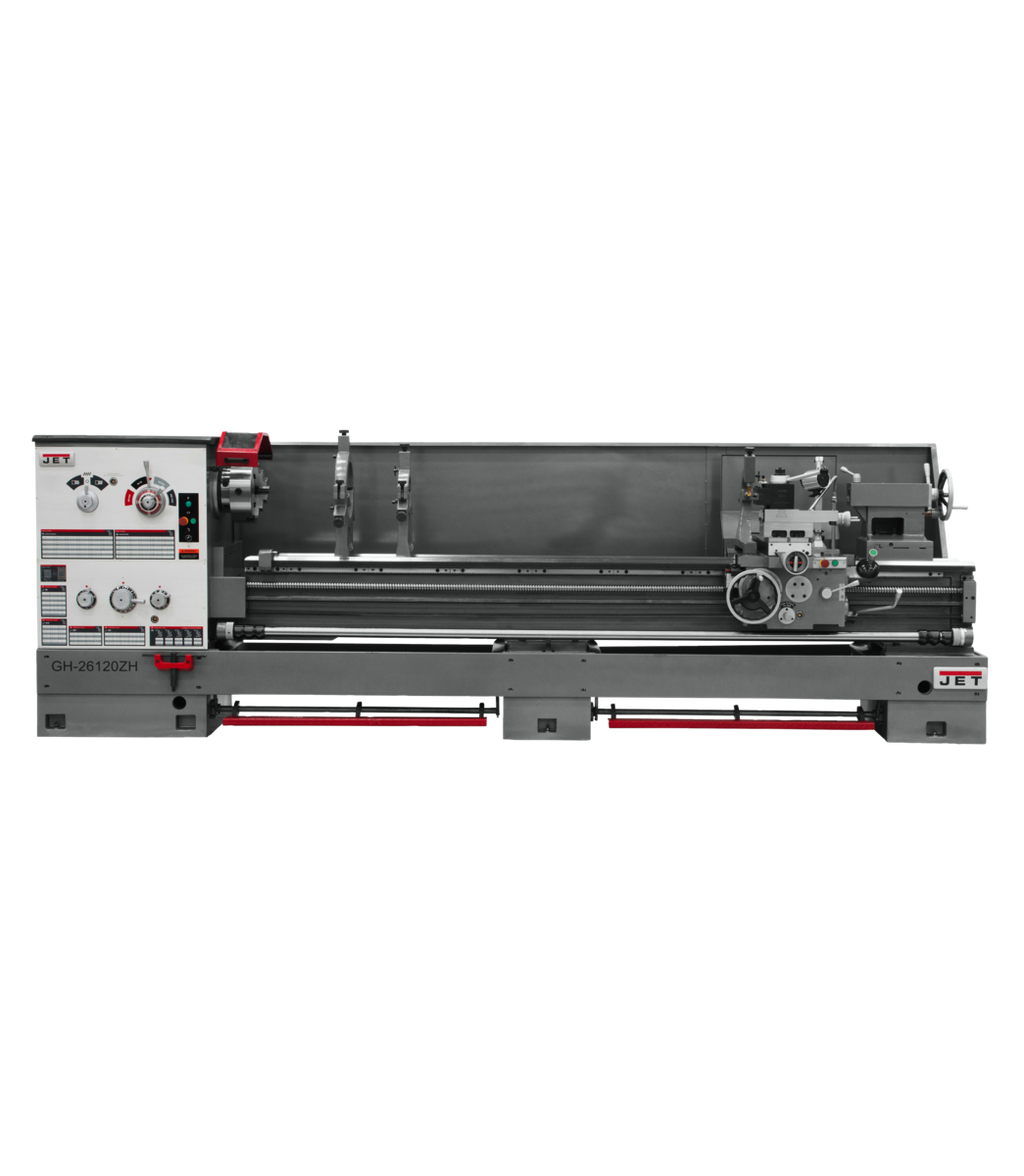

JET GH-26120ZH 4-1/8" Spindle Bore Lathe with ACU-RITE 203 DRO and Taper Attachment is a heavy-duty geared head lathe engineered by JET for consistent, reliable, and high-output production turning operations. Constructed using the Certified Meehanite casting process for exceptional rigidity, this ZH-Series lathe delivers precision performance through a clutch-operated headstock with all headstock gears hardened and ground, a universal gearbox, a fully integrated coolant system, and a rapid traverse on the apron. The included ACU-RITE 203 Digital Readout and Taper Attachment further elevate accuracy and versatility, making this machine an outstanding choice for demanding shop environments. JET backs this lathe with the industry-leading JET Two Year Warranty.
Key Features
- Certified Meehanite casting process provides added durability and rigidity throughout the machine
- Clutch-operated headstock with all headstock gears hardened and ground for long-lasting precision
- Universal gearbox supports 48 inch thread pitches ranging 2-30 TPI and 22 metric thread pitches ranging 1-14
- Fully integrated coolant system for sustained cutting performance
- Rapid power traverse to cross slide and carriage for efficient high-output production
- Bed ways are induction hardened and ground for durability
- 12" 3 jaw scroll chuck with top reversing jaws included
- 2 steady rests with roller bearings for secure workpiece support
- Heavy-duty tailstock and quill for reliable support of long workpieces
- E-Stop on carriage for added operator safety
- Large easy-to-use foot brake for quick, convenient machine stopping
- Electronic chuck key holder keeps the chuck key organized and accessible
- Full length splash guard contains coolant and chips effectively
- Fitted top mats to hold tooling securely in place
- ACU-RITE 203 Digital Readout (DRO) for precise, real-time position monitoring
- Taper Attachment enables accurate taper turning operations
- 12 spindle speeds ranging 36-1,600 RPM accommodate a wide variety of materials and operations
- 65 longitudinal and cross feed rates for versatile feed selection
- 10 HP, 230/460V, 3-Phase motor delivers robust cutting power
Specifications
- Stock Number: 321895
- MPN: JT9-321895
- Drive Type: Geared Head
- Motor: 10 HP, 230/460, 3 Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 36-1,600
- Spindle Bore: 4-1/8"
- Carriage Travel (In.): 108-1/4
- Compound Slide Travel (In.): 5-1/2
- Length of Gap (In.): 8
- Max Tool Size (In.): 1-1/4 x 1-1/4
- Number of Inch Threads: 48
- Range of Inch Threads (TPI): 2-30
- Number of Metric Threads: 22
- Range of Metric Threads: 1-14
- Number of Longitudinal and Cross Feed Rates: 65
- Range of Longitudinal Feeds (IPR): .0023-.0937
- Range of Cross Feeds (IPR): .0040-.0404
- Overall Dimensions (L x W x H) (In.): 178 x 43 x 57
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- 12" 3 jaw scroll chuck with top reversing jaws
- 2 steady rests with roller bearings
- ACU-RITE 203 Digital Readout (DRO)
- Taper Attachment
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
Frequently Asked Questions
- What spindle speed range does the JET GH-26120ZH provide?
- The GH-26120ZH offers 12 spindle speeds ranging from 36-1,600 RPM, giving operators the flexibility to turn a wide variety of materials and workpiece diameters at optimal cutting speeds.
- What electrical requirements does this lathe have?
- This lathe is powered by a 10 HP motor requiring 230/460V, 3-Phase power. Ensure your facility has the appropriate 3-phase electrical service available before installation.
- How many thread pitches can this lathe cut?
- The GH-26120ZH supports 48 inch thread pitches ranging 2-30 TPI and 22 metric thread pitches ranging 1-14, providing comprehensive threading capability for both inch and metric work.
- What safety features are built into this lathe?
- The GH-26120ZH includes an E-Stop on the carriage for added safety, a large easy-to-use foot brake for rapid machine stopping, an electronic chuck key holder to prevent accidental chuck key ejection, and a full length splash guard to contain coolant and chips during operation.
