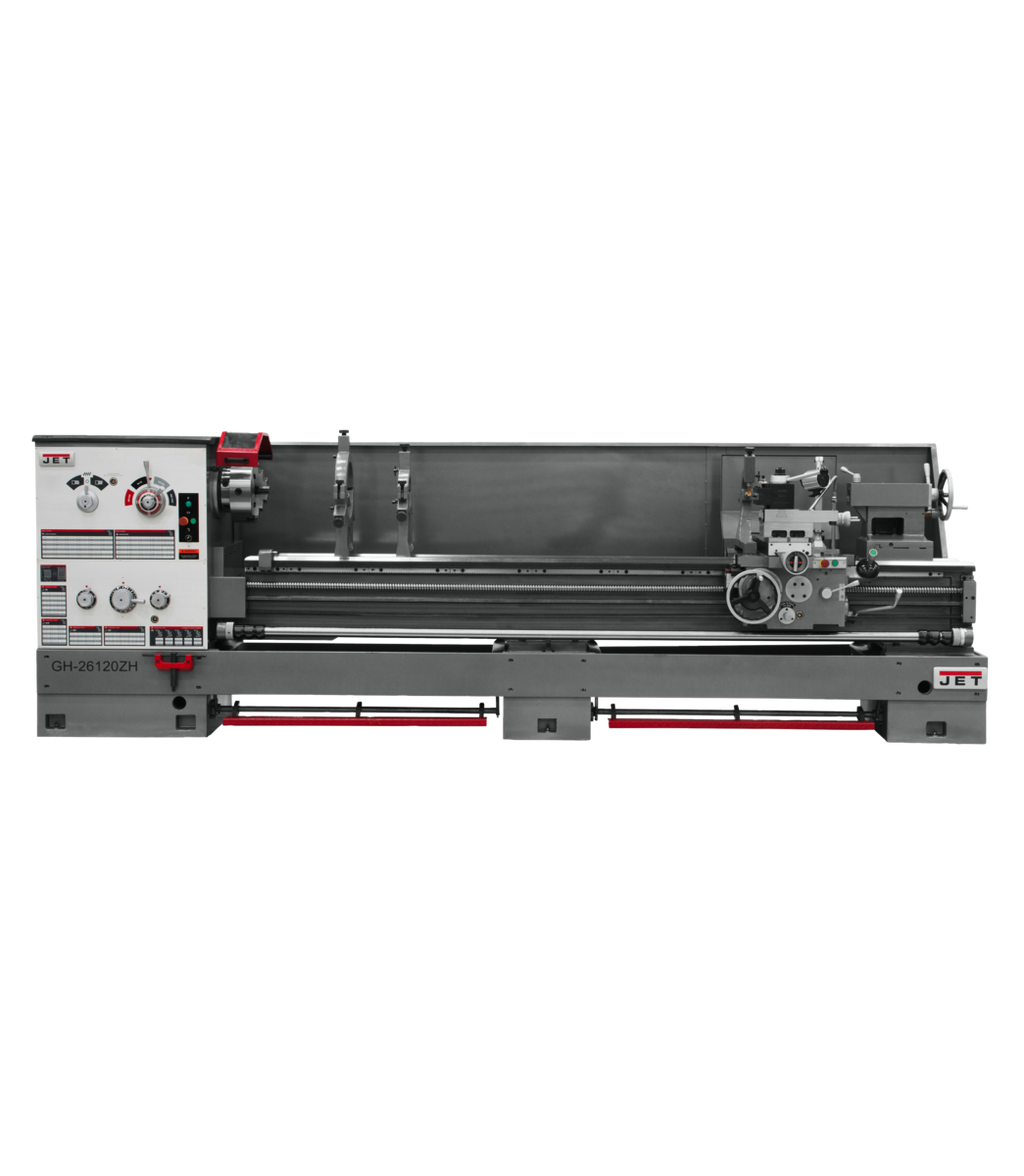

JET GH-26120ZH 4-1/8" Spindle Bore Lathe with ACU-RITE 203 DRO is a heavy-duty geared head lathe engineered by JET for high-output production applications. Built on a Certified Meehanite casting process for exceptional rigidity, this machine features a clutch-operated headstock with all headstock gears hardened and ground, a universal gearbox, a fully integrated coolant system, and a rapid traverse on the apron - delivering consistent, reliable performance across demanding metalworking environments. Backed by the industry-leading JET Two Year Warranty, the GH-26120ZH is a serious production tool for professional machine shops.
Key Features
- 12" 3 Jaw scroll chuck with top reversing jaws
- 2 Steady rests with roller bearings
- Bed ways are induction hardened and ground for durability
- E-Stop on Carriage for added safety
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
- Heavy-duty tailstock and quill
- Large easy to use foot brake
- Rapid power traverse to cross slide and carriage
- Clutch operated headstock with all headstock gears hardened and ground
- Universal gearbox for versatile threading and feed configurations
- Fully integrated coolant system
- Certified Meehanite casting process for added durability
Specifications
- Stock Number: 321892
- Drive Type: Geared Head
- Motor: 10 HP, 230/460, 3 Ph
- Range of Spindle Speeds (RPM): 36-1,600
- Number of Spindle Speeds: 12
- Carriage Travel (In.): 108-1/4
- Compound Slide Travel (In.): 5-1/2
- Length of Gap (In.): 8
- Max Tool Size (In.): 1-1/4 x 1-1/4
- Number of Inch Threads: 48
- Range of Inch Threads (TPI): 2-30
- Number of Metric Threads: 22
- Range of Metric Threads: 1-14
- Number of Longitudinal and Cross Feed Rates: 65
- Range of Longitudinal Feeds (IPR): .0023-.0937
- Range of Cross Feeds (IPR): .0040-.0404
- Overall Dimensions (L x W x H) (In.): 178 x 43 x 57
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- 12" 3 Jaw scroll chuck with top reversing jaws
- 2 Steady rests with roller bearings
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
- ACU-RITE 203 DRO
Frequently Asked Questions
- What spindle speed range does the GH-26120ZH offer?
- The GH-26120ZH provides 12 spindle speeds ranging from 36-1,600 RPM, giving operators the flexibility to handle a wide variety of materials and cutting operations.
- How many threading and feed options are available on this lathe?
- This lathe offers 48 inch thread pitches ranging from 2-30 TPI, 22 metric thread pitches ranging from 1-14 mm, and 65 longitudinal and cross feed rates, making it highly versatile for precision threading and turning work.
- What safety features are included on the GH-26120ZH?
- The lathe includes an E-Stop on the Carriage for added safety, a large easy to use foot brake, an Electronic Chuck Key Holder to prevent accidental chuck key ejection, and a Full Length Splash Guard to contain coolant and debris during operation.
- What is the maximum carriage travel and tool size capacity?
- The GH-26120ZH provides 108-1/4 inches of carriage travel and accepts a maximum tool size of 1-1/4 x 1-1/4 inches, supporting large-scale and heavy-duty turning operations.
