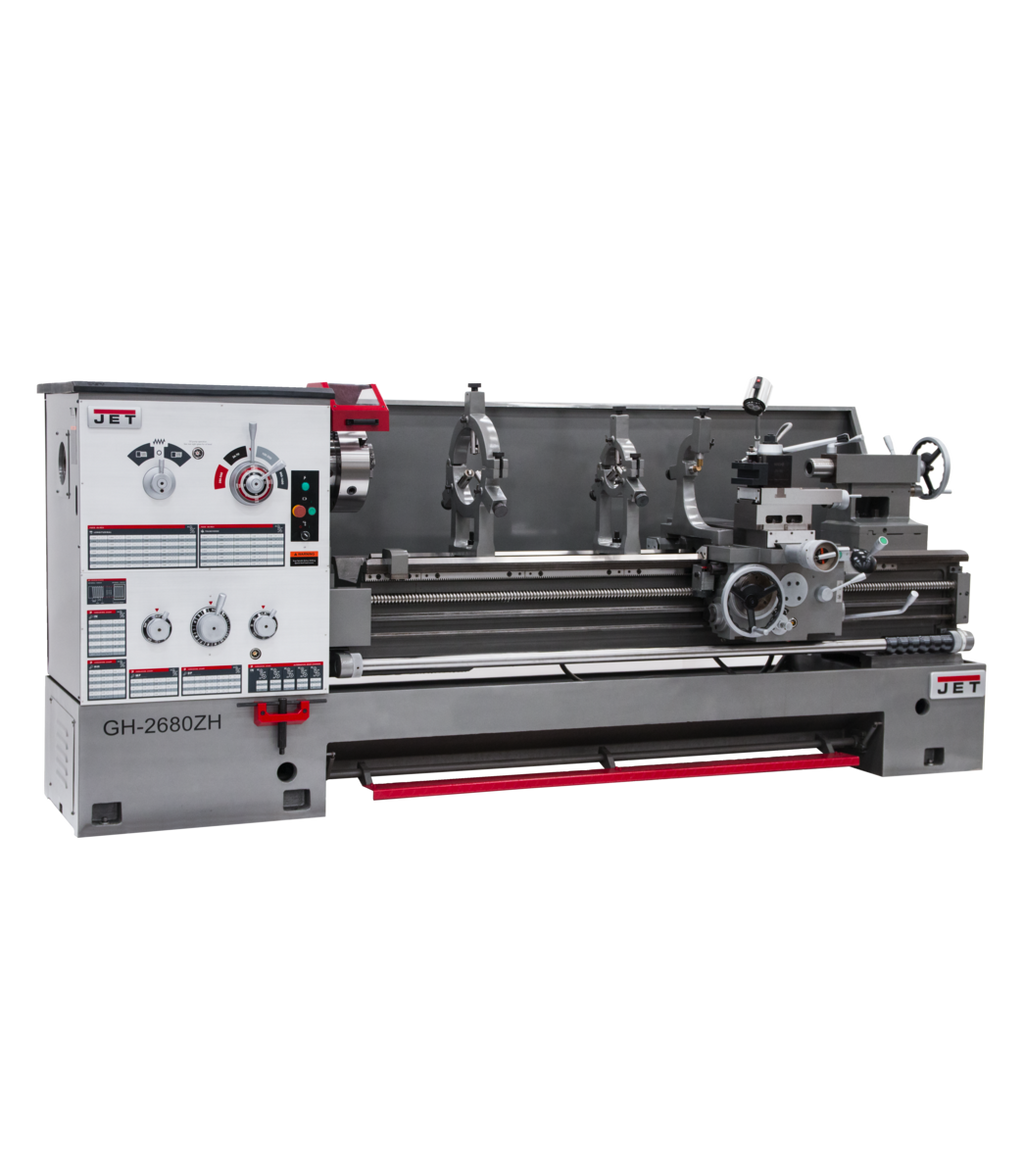

JET GH-2680ZH 4-1/8" Spindle Bore Lathe with Newall DP700 DRO is a heavy-duty geared head lathe engineered by JET for consistent, reliable performance in high-output production environments. Built on a Certified Meehanite casting process, this lathe delivers exceptional rigidity and precision, featuring a clutch-operated headstock with all headstock gears hardened and ground, a universal gearbox, a fully integrated coolant system, and a rapid traverse on the apron - making it an ideal choice for demanding metalworking and machining operations.
Key Features
- Certified Meehanite casting process for superior rigidity and long-term durability
- Clutch-operated headstock with all headstock gears hardened and ground
- Universal gearbox for versatile threading and feed capabilities
- Fully integrated coolant system for extended tool life and workpiece quality
- Rapid power traverse to cross slide and carriage for increased productivity
- Bed ways are induction hardened and ground for durability
- E-Stop on carriage for added safety
- Large easy-to-use foot brake
- Heavy-duty tailstock and quill
- Full length splash guard
- Electronic chuck key holder
- Fitted top mats to hold tooling
- 12 in. 3-jaw scroll chuck with top reversing jaws included
- 2 steady rests with roller bearings included
- Newall DP700 Digital Readout (DRO) for precise, real-time positioning
- Backed by the industry-leading JET Two Year Warranty
Specifications
- MPN: JT9-321861
- Stock Number: 321861
- Drive Type: Geared Head
- Motor: 10 HP, 230/460, 3 Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 36 - 1,600 RPM
- Carriage Travel: 72-1/2 in.
- Compound Slide Travel: 5-1/2 in.
- Length of Gap: 8 in.
- Max Tool Size: 1-1/4 x 1-1/4 in.
- Number of Inch Threads: 48
- Range of Inch Threads: 2 - 30 TPI
- Number of Metric Threads: 22
- Range of Metric Threads: 1 - 14
- Number of Longitudinal and Cross Feed Rates: 65
- Range of Longitudinal Feeds: .0023 - .0937 IPR
- Range of Cross Feeds: .010 - .0404 IPR
- Overall Dimensions (L x W x H): 138 x 43 x 57 in.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- 12 in. 3-jaw scroll chuck with top reversing jaws
- 2 steady rests with roller bearings
- Newall DP700 Digital Readout (DRO)
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
Frequently Asked Questions
- What type of drive system does the JET GH-2680ZH use?
- The JET GH-2680ZH uses a geared head drive system with a clutch-operated headstock. All headstock gears are hardened and ground, and the lathe includes a universal gearbox, providing a wide range of 12 spindle speeds from 36 to 1,600 RPM.
- What threading capabilities does this lathe offer?
- This lathe supports 48 inch thread pitches ranging from 2 - 30 TPI and 22 metric thread pitches ranging from 1 - 14 mm, along with 65 longitudinal and cross feed rates, making it highly versatile for a wide variety of threading and machining tasks.
- What safety features are included on the GH-2680ZH?
- The GH-2680ZH includes an E-Stop on the carriage for added safety, a large easy-to-use foot brake, an electronic chuck key holder to prevent accidental chuck engagement, and a full length splash guard to protect the operator and work area.
- What power requirements does the JET GH-2680ZH require?
- The JET GH-2680ZH is powered by a 10 HP motor rated for 230/460V, 3-phase electrical service. Ensure your facility is equipped with the appropriate 3-phase power supply before installation.
