Product Features
Product Description

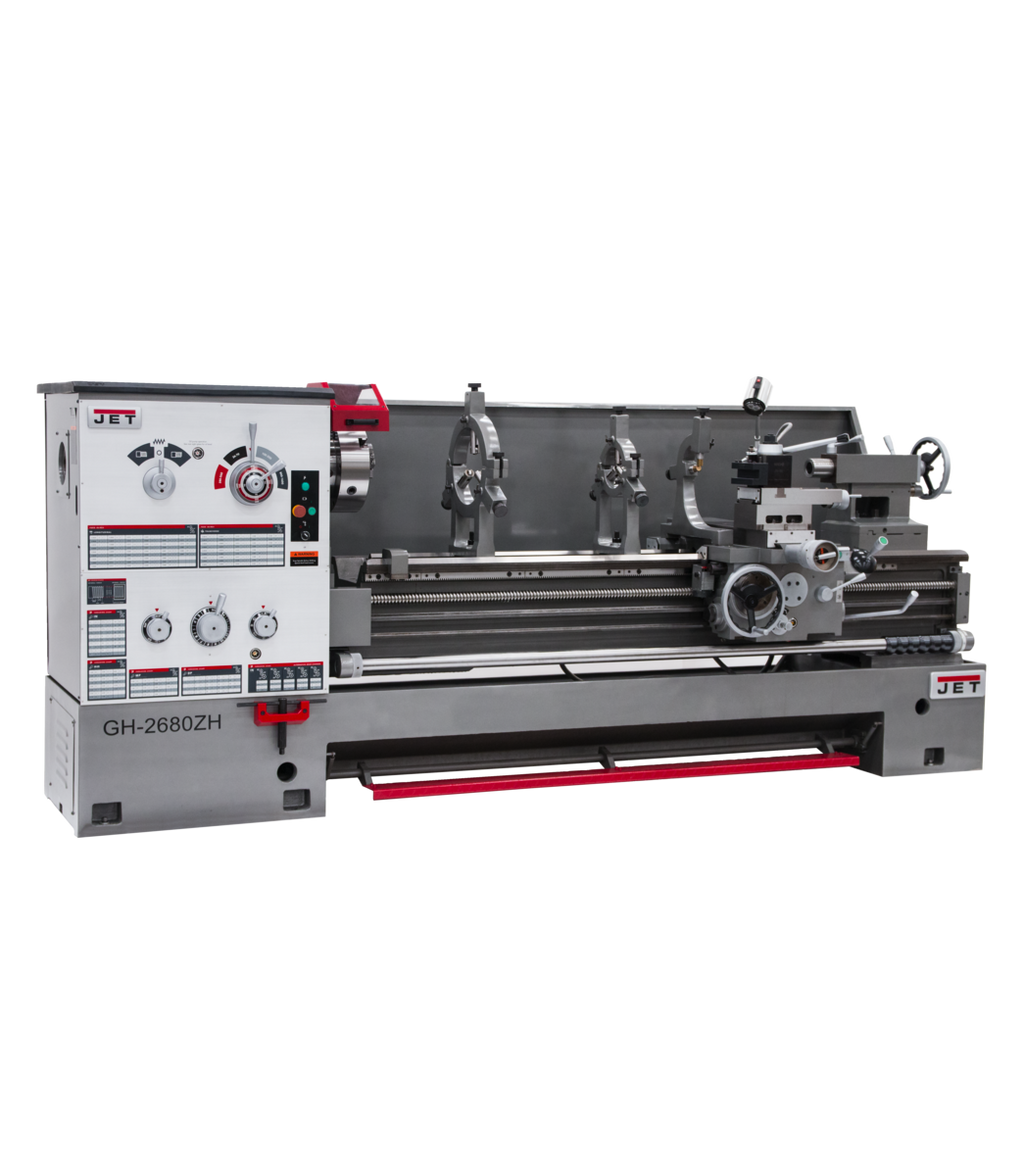

JET GH-2680ZH 4-1/8" Spindle Bore Geared Head Lathe is a heavy-duty, high-output production lathe from JET engineered for demanding machining environments. Built on the Certified Meehanite casting process, this 10 HP geared head lathe delivers consistent, reliable performance across a wide range of turning operations. The clutch-operated headstock features all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and rapid traverse on the apron - making it an exceptional choice for production shops requiring precision, power, and durability in a single machine. It is backed by the industry-leading JET Two Year Warranty.
Key Features
- Certified Meehanite casting process for superior structural rigidity and vibration damping

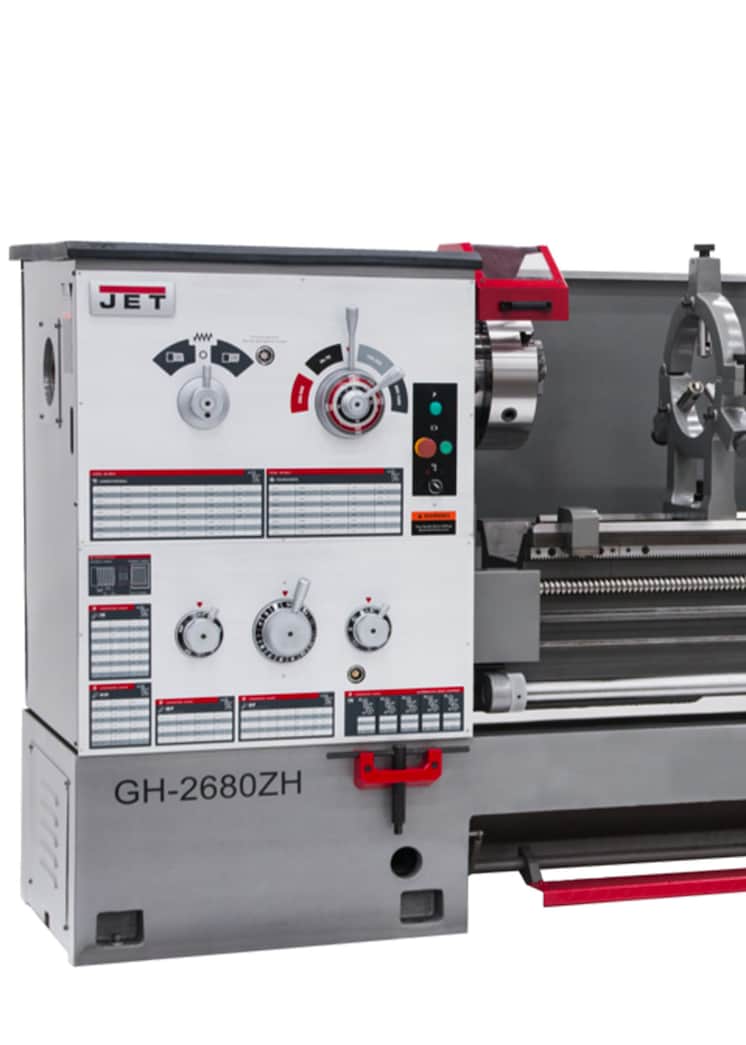

- Clutch-operated headstock with all headstock gears hardened and ground
- Universal gearbox for versatile threading and feed rate selection
- Fully integrated coolant system to extend tool life and improve surface finish

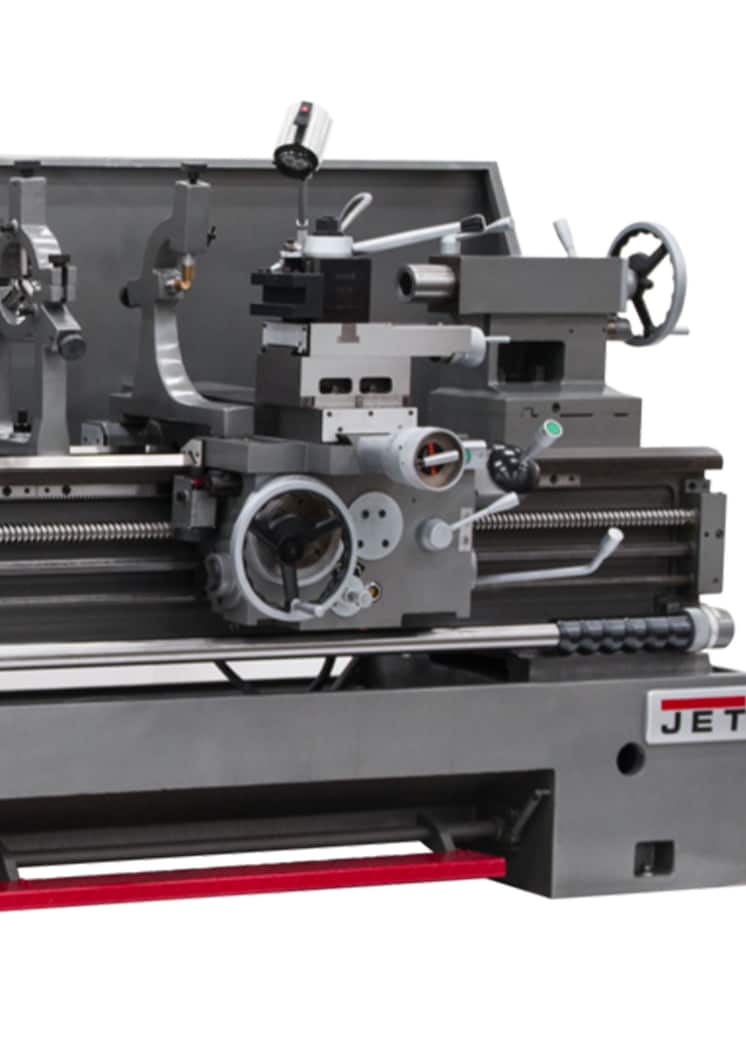

- Rapid power traverse to cross slide and carriage for increased throughput
- Bed ways are induction hardened and ground for durability
- E-Stop on carriage for added safety
- Large easy-to-use foot brake for quick, safe spindle stopping
- Heavy-duty tailstock and quill for rigidity in drilling and between-center turning
- Full length splash guard to contain coolant and chips
- Electronic chuck key holder to prevent accidental chuck key ejection
- Fitted top mats to hold tooling securely in place
- 12 in. 3-jaw scroll chuck with top reversing jaws included
- 2 steady rests with roller bearings for long workpiece support
- 65 longitudinal and cross feed rates for precise material removal
- 48 inch thread pitches and 22 metric thread pitches available
- 24 diametral pitch thread configurations supported
Specifications
- MPN: JT9-321860
- Drive Type: Geared Head
- Motor: 10 HP, 230/460V, 3 Ph
- Input Power: 230/460V, 3Ph
- Motor Voltage: 230/460V
- Motor Amps: 25.4/12.7
- Motor Power: 10 HP
- Coolant Pump Motor: 1/8 HP
- Spindle Bore: 4-1/8 in.
- Distance Between Centers: 80 in.
- Carriage Travel: 72-1/2 in.
- Compound Slide Travel: 5-1/2 in.
- Bed Construction: Cast Iron
- Bed Gap: 8 in.
- Length of Gap: 8 in.
- Max Tool Size: 1-1/4 x 1-1/4 in.
- Number of Longitudinal and Cross Feed Rates: 65
- Number of Inch Threads: 48
- Number of Metric Threads: 22
- Diametral Pitch Threads: 24
- Net Weight: 8,514 lbs.
- Gross Weight: 9,251 lbs.
- Country of Origin: China
What's Included
- 12 in. 3-jaw scroll chuck with top reversing jaws
- 2 steady rests with roller bearings
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
Frequently Asked Questions
- What power supply is required to operate this lathe?
- This lathe requires 230/460V, 3-phase input power. The main spindle motor draws 25.4 amps at 230V or 12.7 amps at 460V, so proper three-phase electrical service must be available before installation.
- How many threading options does this lathe support?
- The GH-2680ZH supports 48 inch thread pitches, 22 metric thread pitches, and 24 diametral pitch thread configurations, giving machinists a broad range of threading capability through the universal gearbox.
- What safety features are included on this lathe?
- This lathe includes an E-Stop on the carriage for added safety, a large easy-to-use foot brake for rapid spindle stopping, and an electronic chuck key holder to prevent the chuck key from being left in the chuck during operation.
- What is the distance between centers and maximum swing capacity of this lathe?
- The distance between centers is 80 in., and the bed features an 8 in. bed gap with an 8 in. length of gap to accommodate larger diameter workpieces. The carriage travels 72-1/2 in. for long-workpiece turning operations.
