JET GHB-1340A Geared Head Bench Lathe w/Newall DP700 DRO w/Collet Closer is a professional-grade JET bench lathe engineered for machinists who demand precision, versatility, and long-term reliability in metal turning applications. Powered by a 2 HP, 230V, 1Ph motor and built around a geared head drive system, this 13 x 40 lathe delivers a wide range of spindle speeds and threading capabilities, making it equally capable on production floors and in dedicated machine shops. The integrated Newall DP700 digital readout and included collet closer elevate accuracy and workflow efficiency, while the V-Way bed design - induction hardened and ground - ensures a rigid, stable foundation for tight-tolerance work.

Key Features

• 6" 3 jaw direct mount chuck with top reversing jaws for versatile workholding right out of the box
• Compound and cross slide have backlash elimination for precise, repeatable cuts
• Gear box gives wide inch threading and feed capabilities with gear changes
• Hardened and ground gears are featured in the headstock and gearbox for durability and smooth power transfer
• Independent lead screw and feed rod for greater operational flexibility and control
• Spindle actuation control is apron mounted for convenient, ergonomic access during operation
• Tailstock may be offset for turning taper, expanding the range of workpieces this lathe can handle
• V-Way bed design is induction hardened and ground for a rigid, long-lasting machining surface
• Enclosed gearbox ensures smooth, quiet operation and contains constantly oiled headstock components for minimal maintenance
• Precision roller bearings support the hardened and ground spindle for tight tolerances and fast, easy speed changes
• Tolerance test certificate included, verifying precision before the machine leaves the factory

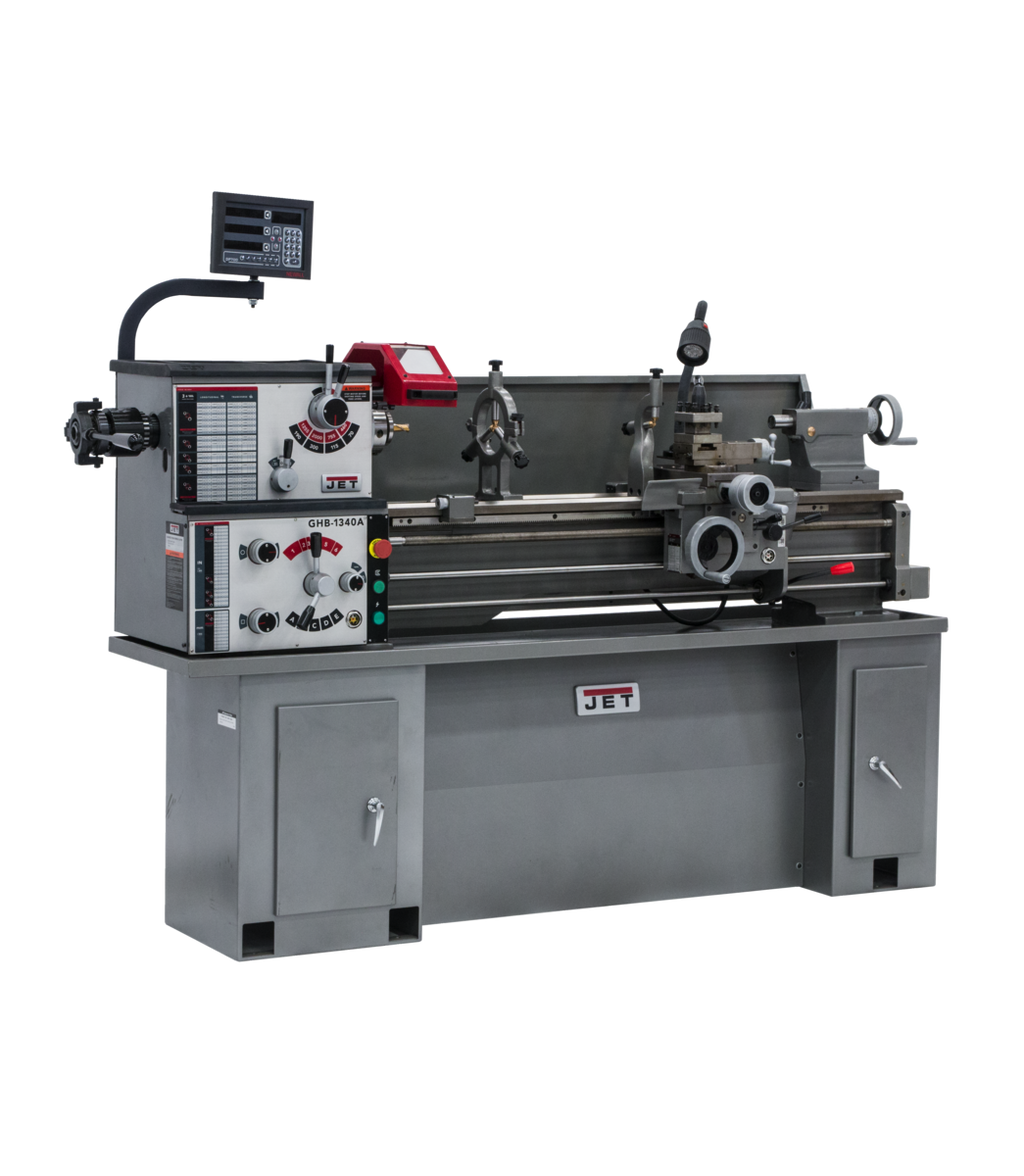

• Note: Image shown with optional bench, p/n 321443AK

Specifications

• Stock Number: 321581
• Size: 13 x 40
• Drive: Geared Head
• Motor: 2 HP, 230V, 1Ph
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 70-2,000
• Spindle Bore (In.): 1-3/8
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5 (M)
• Carriage Travel (In.): 35
• Compound Slide Travel (In.): 2-11/16
• Length of Gap (In.): 8
• Max Tool Size (In.): 5/8 x 5/8
• Number of Inch Threads: 38
• Range of Inch Threads (TPI): 3-1/2-80
• Number of Metric Threads: 23
• Range of Metric Threads: .45-10
• Number of Longitudinal and Cross Feed Rates: 40
• Range of Longitudinal Feeds (IPR): .0018-.0374
• Range of Cross Feeds (IPR): .0006-.0130
• Overall Dimensions (L x W x H) (In.): 79 x 28-1/2 x 30
• Country of Origin: China
• Prop 65: Cancer and Reproductive Harm

What's Included

• 6" 3 jaw direct mount chuck with top reversing jaws
• Newall DP700 Digital Readout (DRO)
• Collet closer
• Tolerance test certificate

Frequently Asked Questions

What spindle speed range does the JET GHB-1340A provide?

The GHB-1340A offers 8 spindle speeds ranging from 70-2,000 RPM, giving machinists the flexibility to work with a wide variety of materials and part diameters at the appropriate cutting speed.

How many threading options are available on this lathe?

This lathe features 38 inch thread pitches ranging from 3-1/2-80 TPI, and 23 metric thread pitches ranging from .45-10 mm. The gear box gives wide inch threading and feed capabilities with gear changes, making it well-suited for both standard and metric threading work.

Can the tailstock be used to turn tapers on this machine?

Yes. The tailstock may be offset for turning taper, allowing the operator to produce tapered workpieces without the need for additional attachments.

What measures are taken to ensure the accuracy and longevity of this lathe?

The V-Way bed design is induction hardened and ground for a rigid machining surface. Hardened and ground gears are featured in the headstock and gearbox, compound and cross slide have backlash elimination for precise repeatability, and each machine ships with a tolerance test certificate confirming it meets precision standards. The headstock is also constantly oiled during operation, minimizing maintenance requirements.
