Product Features
Product Description

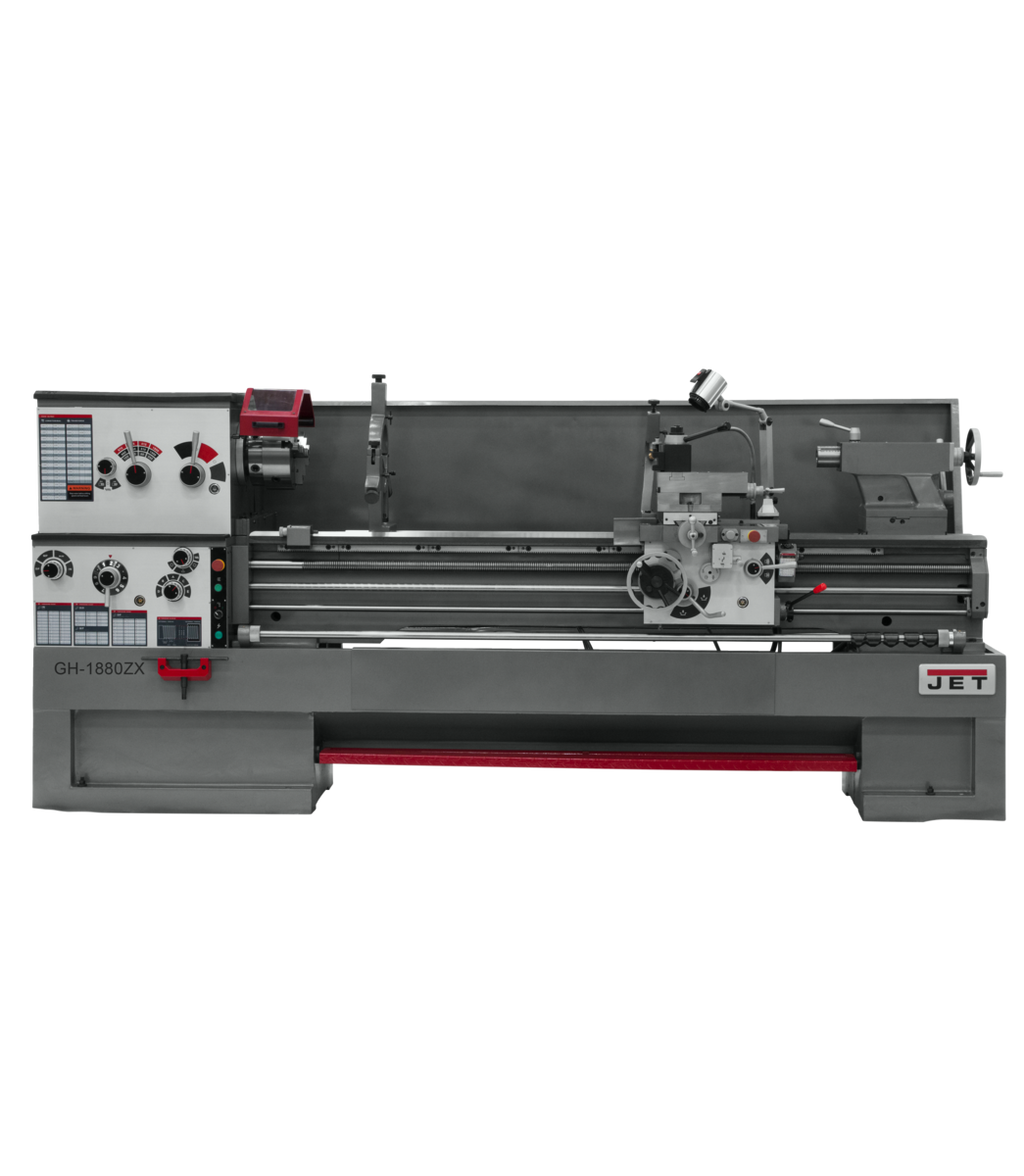

JET Spindle Bore Lathe GH-1880ZX with ACU-RITE 203 DRO is a professional-grade geared head metal lathe engineered to deliver power, precision, efficiency, and reliability in demanding metal shop environments. The ZX-Series Large Spindle Bore Lathe features a one-piece cast iron base that absorbs vibrations during operation, enabling heavier cuts and ensuring consistent accuracy. The Universal Gearbox eliminates the need to change gears, and the integrated ACU-RITE 203 Digital Readout brings precise positional feedback to every operation. Backed by the industry-leading JET Two Year Warranty, this 18 x 80 lathe is built for machinists who require a large-capacity, high-performance machine tool.
Key Features
- Articulating LED work lamp provides targeted, adjustable illumination at the cutting zone
- Centrally located controls with jog button for convenient, ergonomic operation
- Electronic Chuck Key Holder for safe and accessible chuck key storage
- Five-position automatic carriage stop increases productivity and repeatability
- Full-length splash guard and coolant return system for a cleaner, safer work environment
- Large-capacity steady rest with ball bearing tips supports long or heavy workpieces
- Large, easy-to-use foot brake for rapid and safe spindle stopping
- Mounting pads and levelers ensure stable, vibration-minimized installation
- Removable gap allows large-diameter work to be turned with ease
- One-piece cast iron base absorbs vibrations for heavier cuts and improved accuracy
- Universal Gearbox eliminates the need to change gears during threading and feed operations
- Tool box and adjusting tools included for immediate setup and maintenance
- ACU-RITE 203 Digital Readout (DRO) integrated for precise positional measurement
- Geared Head drive type delivers consistent torque across all 12 spindle speeds
- Backed by the industry-leading JET Two Year Warranty
Specifications
- MPN: JT9-321487
- Size: 18 x 80
- Drive: Geared Head
- Motor: 7-1/2 HP, 230/460, 3 Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 25 - 1,800
- Spindle Bore (In.): 3-1/8
- Spindle Mount: D1-8
- Spindle Taper with Sleeve: MT-7 (MT-5)
- Carriage Travel (In.): 74-5/16
- Cross Slide Travel (In.): 9
- Compound Slide Travel (In.): 5-1/8
- Length of Gap (In.): 12
- Max Tool Size (In.): 1 x 1
- Number of Inch Threads: 61
- Range of Inch Threads (TPI): 1-5/8 - 72
- Number of Metric Threads: 24
- Range of Metric Threads: 0.05 - 20
- Number of Longitudinal and Cross Feed Rates: 46/31
- Range of Longitudinal Feeds (IPR): 0.0015 - 0.0900
- Range of Cross Feeds (IPR): 0.0006 - 0.0360
- Overall Dimensions (L x W x H) (In.): 136 x 44 x 66
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- Tool box and adjusting tools
- Large-capacity steady rest with ball bearing tips
- Mounting pads and levelers
- ACU-RITE 203 Digital Readout (DRO)
- Articulating LED work lamp
- Full-length splash guard and coolant return
- Electronic Chuck Key Holder
Frequently Asked Questions
- What is the spindle bore diameter on the GH-1880ZX?
- The spindle bore measures 3-1/8 inches, making it well-suited for passing larger-diameter bar stock directly through the spindle without special fixturing.
- What spindle speed range does this lathe offer, and how many speeds are available?
- The GH-1880ZX provides 12 spindle speeds ranging from 25 RPM to 1,800 RPM, giving operators the flexibility to match cutting speed to a wide variety of materials and operations.
- Does the GH-1880ZX include a Digital Readout, and what type is it?
- Yes. This lathe comes equipped with the ACU-RITE 203 DRO (Digital Readout), which provides precise positional measurement to improve accuracy and efficiency during turning, facing, and threading operations.
- How does the removable gap feature benefit the operator?
- The removable gap allows large-diameter workpieces to be swung over the bed near the headstock. With a gap length of 12 inches, operators can accommodate oversized work that would otherwise exceed the standard swing capacity of the lathe.
