Product Features
Product Description

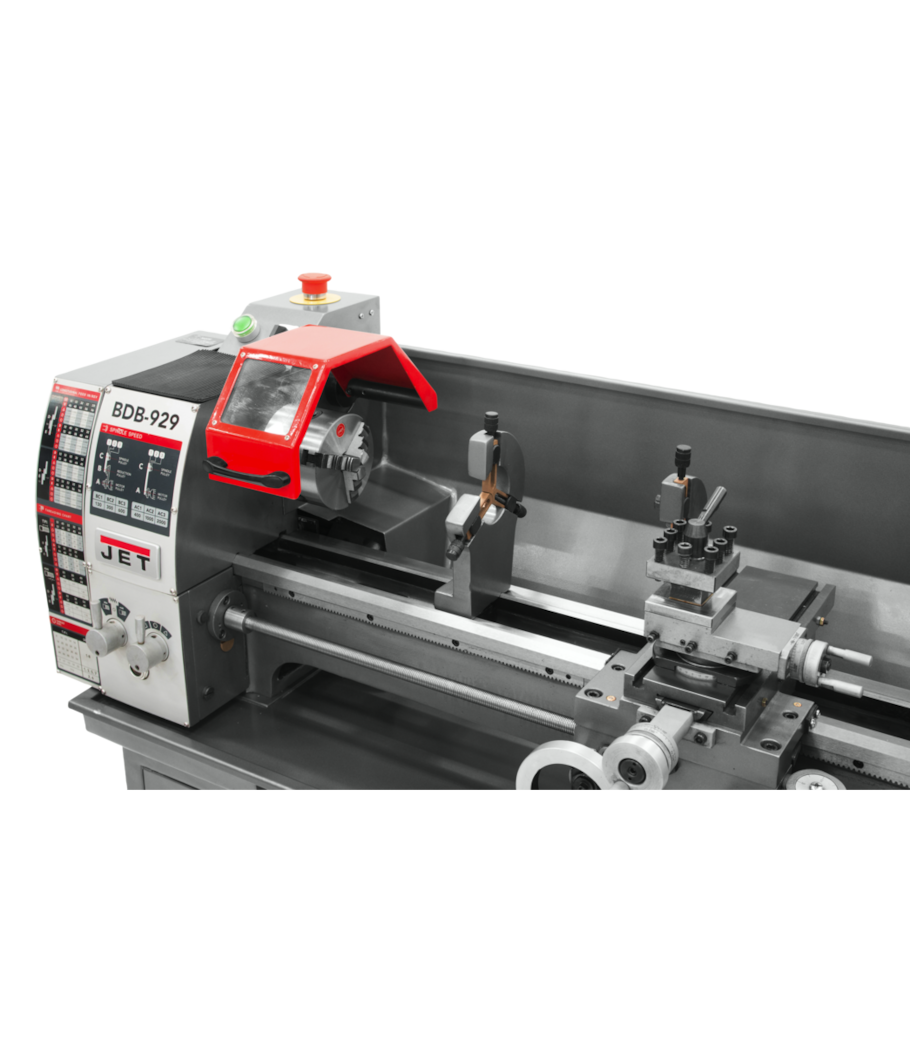

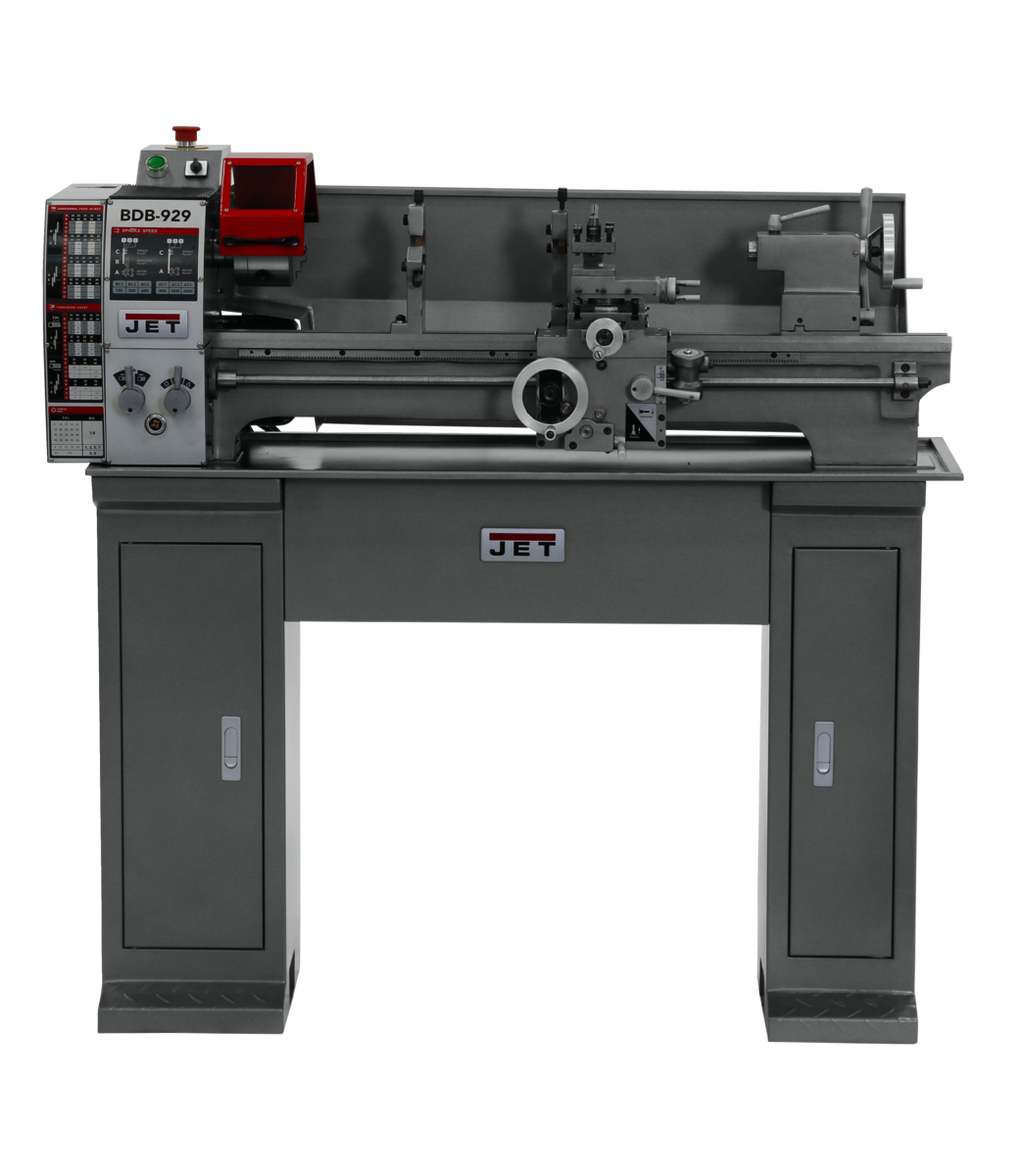

JET BDB-929 Belt Drive Bench Lathe with Stand from JET delivers the precision and rigidity serious machinists demand in a compact benchtop package. Powered by a 3/4 HP, 115V, 1-phase motor and built on an induction hardened and ground bedway, this lathe provides smooth, stable cutting performance across a wide range of turning and threading operations. With 6 spindle speeds spanning 130-2000 RPM and a quick change gearbox offering 27 inch thread pitches and 12 metric thread pitches, the BDB-929 is engineered to handle both everyday turning tasks and demanding threading work with professional-grade consistency.
Key Features

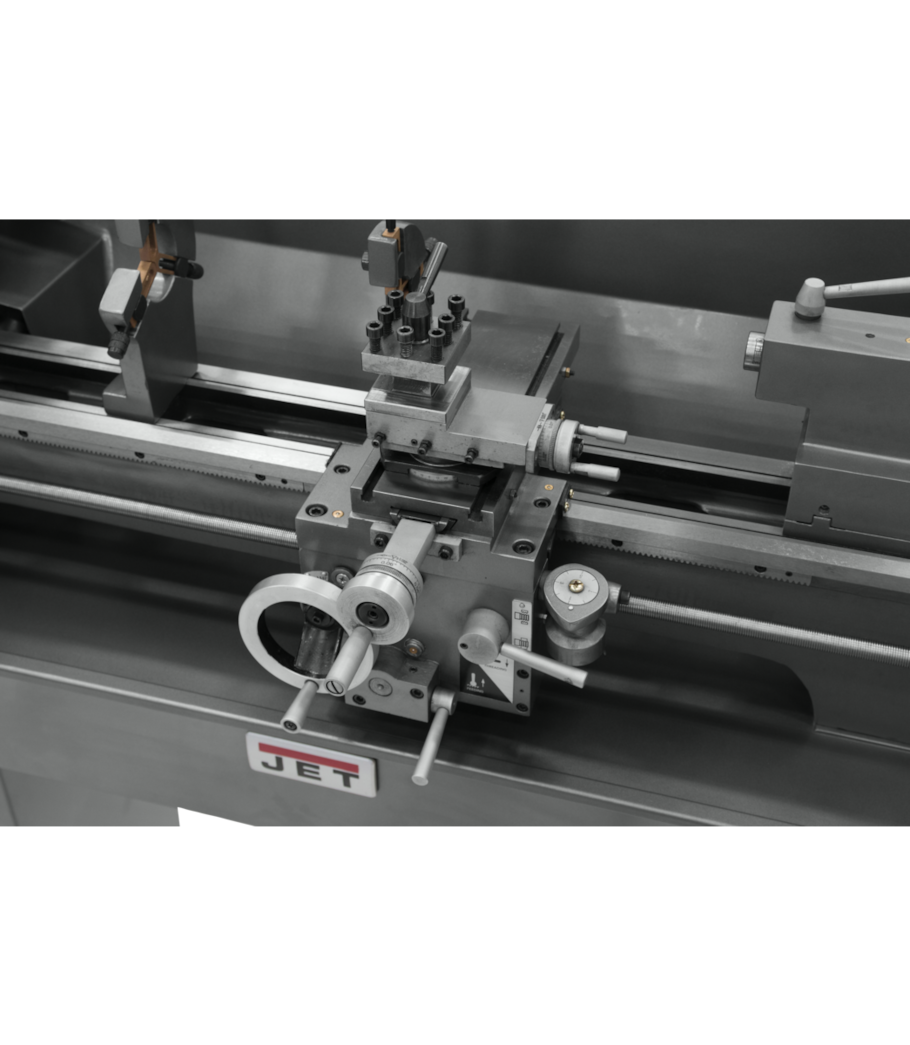

- Backlash adjustments provided throughout the carriage for precise, repeatable cuts
- Emergency stop within easy reach of the operator for enhanced workplace safety
- Full length splash guard to keep the work area clean and protect the operator
- Induction hardened and ground bedway for superior rigidity and long-term accuracy
- Power longitudinal feed allows threading and reverse threading for versatile operation
- Quick change gearbox provides wide range of inch and metric threads without manual gear swapping
- Reversing switch for added versatility in threading and turning operations
- Safety on/off switch for reliable machine control
- Spindle supported by precision tapered roller bearings for smooth, low-vibration performance
- Standard accessories included
Specifications
- Stock Number: 321372K
- Motor: 3/4 HP, 115V, 1PH
- Swing Over Bed: 8-3/4 in.
- Swing Over Cross Slide: 5 in.
- Carriage Travel: 26.5 in.
- Compound Slide Travel: 1-7/8 in.
- Max Tool Size: 1/2 in.
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 130-2000 RPM
- Spindle Bore: 3/4 in.
- Spindle Mount: 1-1/2 x 8TPI
- Spindle Taper with Sleeve: MT-3
- Number of Inch Threads: 27
- Range of Inch Threads: 8-56 TPI
- Number of Metric Threads: 12
- Range of Metric Threads: 0.5-3.5
- Number of Longitudinal and Cross Feed Rates: 60
- Range of Longitudinal Feeds: 0.0006-0.0368 IPR
- Tailstock Spindle Travel: 1-9/16 in.
- Taper in Tailstock Spindle: MT-2
- Steady Rest Capacity: 1-3/4 in.
- Width of Bed: 4-1/2 in.
- Overall Dimensions (L x W x H): 51x22x20 in.
- Weight: 287 lbs.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: China
Frequently Asked Questions
- What spindle speed range does the BDB-929 offer?
- The BDB-929 provides 6 spindle speeds ranging from 130-2000 RPM, allowing you to match the cutting speed to your material and operation type for optimal results.
- How many thread pitches can the BDB-929 cut?
- The quick change gearbox supports 27 inch thread pitches ranging from 8-56 TPI and 12 metric thread pitches ranging from 0.5-3.5, giving you broad threading capability without manually swapping gears.
- What type of bearings support the spindle on this lathe?
- The spindle is supported by precision tapered roller bearings, which provide the rigidity and smooth rotation necessary for accurate, vibration-free turning and threading work.
- What safety features are included on the BDB-929?
- The BDB-929 features an emergency stop within easy reach of the operator, a safety on/off switch, a reversing switch, and a full length splash guard - providing multiple layers of protection during machine operation.
