Product Features
Product Description

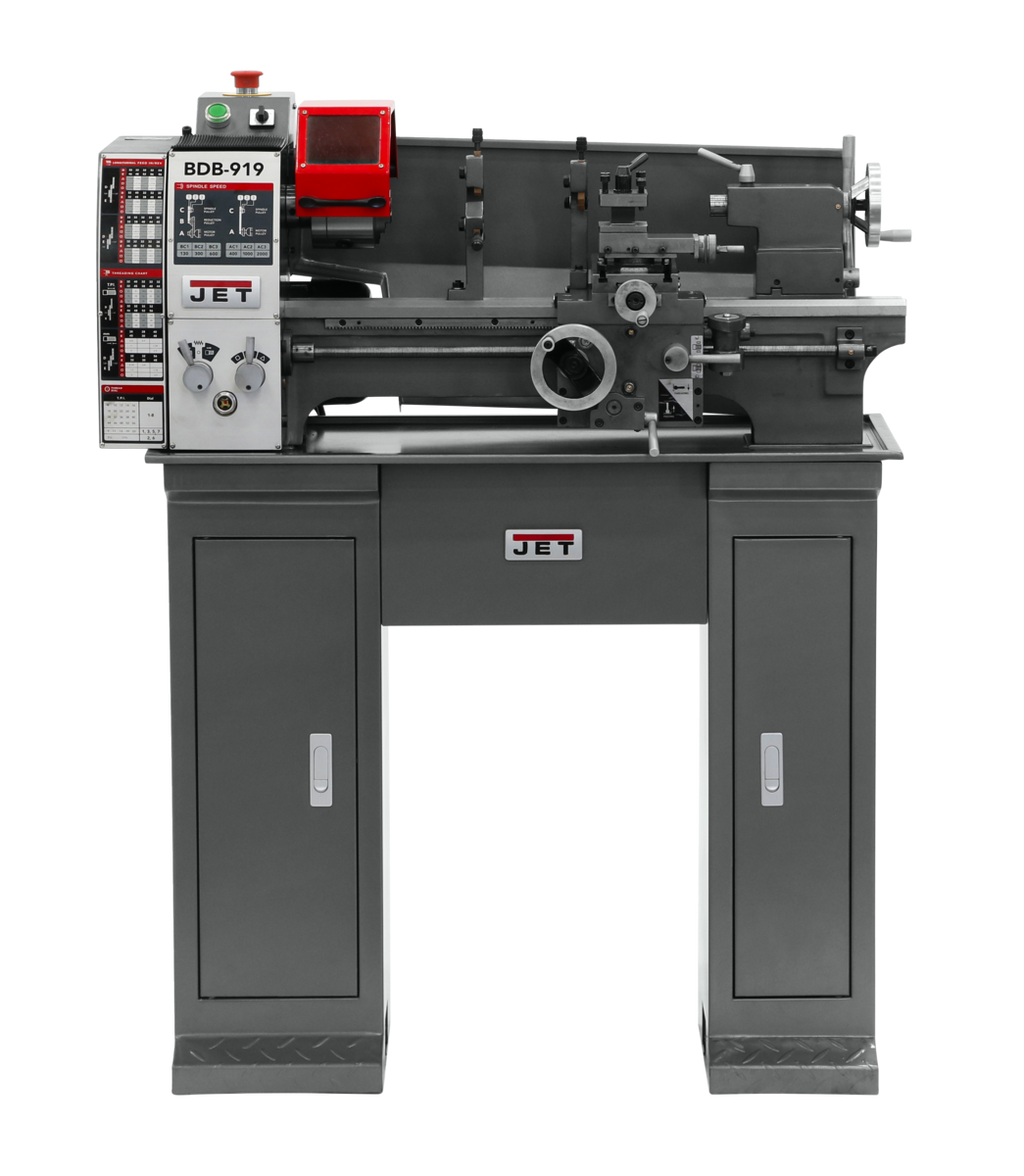

The JET BDB-919 Belt Drive Bench Lathe with Stand is engineered for shops that demand precision and versatility. Built around an induction hardened and ground bedway and spindle supported by precision tapered roller bearings, this 8-3/4 in. swing bench lathe delivers the rigidity and smooth operation required to produce professional-quality work across a wide range of turning applications. With a quick change gearbox offering both inch and metric threading capability, power longitudinal feed, and 6 spindle speeds spanning 130-2000 RPM, the BDB-919 is a capable and well-equipped machine for serious metalworking.
Key Features
- Induction hardened and ground bedway provides exceptional rigidity and long-term accuracy
- Spindle supported by precision tapered roller bearings for smooth, stable rotation
- Quick change gearbox provides wide range of inch and metric threads - 27 inch thread pitches (8-56 TPI) and 12 metric thread pitches (0.5-3.5)
- Power longitudinal feed allows threading and reverse threading for enhanced productivity
- Reversing switch for added versatility in threading and turning operations
- Backlash adjustments provided throughout the carriage for improved precision
- Emergency stop within easy reach of the operator for safe operation
- Safety on/off switch for reliable machine control
- Full length splash guard helps keep the work area cleaner
- 60 longitudinal and cross feed rates (0.0006-0.0368 IPR) for precise material removal
- Comes with Standard Accessories included
Specifications
- Stock Number: 321370K
- Motor: 3/4 HP, 115V, 1PH
- Swing Over Bed: 8-3/4 in.
- Swing Over Cross Slide: 5 in.
- Carriage Travel: 17.5 in.
- Compound Slide Travel: 1-7/8 in.
- Max Tool Size: 1/2 in.
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 130-2000 RPM
- Spindle Bore: 3/4 in.
- Spindle Mount: 1-1/2 x 8TPI
- Spindle Taper with Sleeve: MT-3
- Number of Inch Threads: 27
- Range of Inch Threads: 8-56 TPI
- Number of Metric Threads: 12
- Range of Metric Threads: 0.5-3.5
- Number of Longitudinal and Cross Feed Rates: 60
- Range of Longitudinal Feeds: 0.0006-0.0368 IPR
- Tailstock Spindle Travel: 1-9/16 in.
- Taper in Tailstock Spindle: MT-2
- Steady Rest Capacity: 1-3/4 in.
- Width of Bed: 4-1/2 in.
- Overall Dimensions (L x W x H): 41 x 22 x 20 in.
- Weight: 250 lbs.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- Standard Accessories
Frequently Asked Questions
- What thread types and ranges can the BDB-919 cut?
- The BDB-919 features a quick change gearbox that provides a wide range of inch and metric threads. It offers 27 inch thread pitches ranging from 8-56 TPI and 12 metric thread pitches ranging from 0.5-3.5, making it suitable for a broad variety of threading tasks.
- What spindle speeds are available, and what is the spindle bore size?
- The lathe provides 6 spindle speeds with a range of 130-2000 RPM, allowing the operator to match cutting speed to the material and operation. The spindle bore measures 3/4 in., and the spindle is supported by precision tapered roller bearings for smooth, accurate rotation.
- What safety features does the BDB-919 include?
- The BDB-919 is equipped with an emergency stop within easy reach of the operator, a safety on/off switch, and a reversing switch. These features work together to provide a safer and more controlled working environment.
- What power supply is required to operate the BDB-919?
- The BDB-919 is powered by a 3/4 HP motor operating on 115V, 1-phase power, which is standard single-phase household or shop current and does not require three-phase electrical service.
