Product Features
Product Description

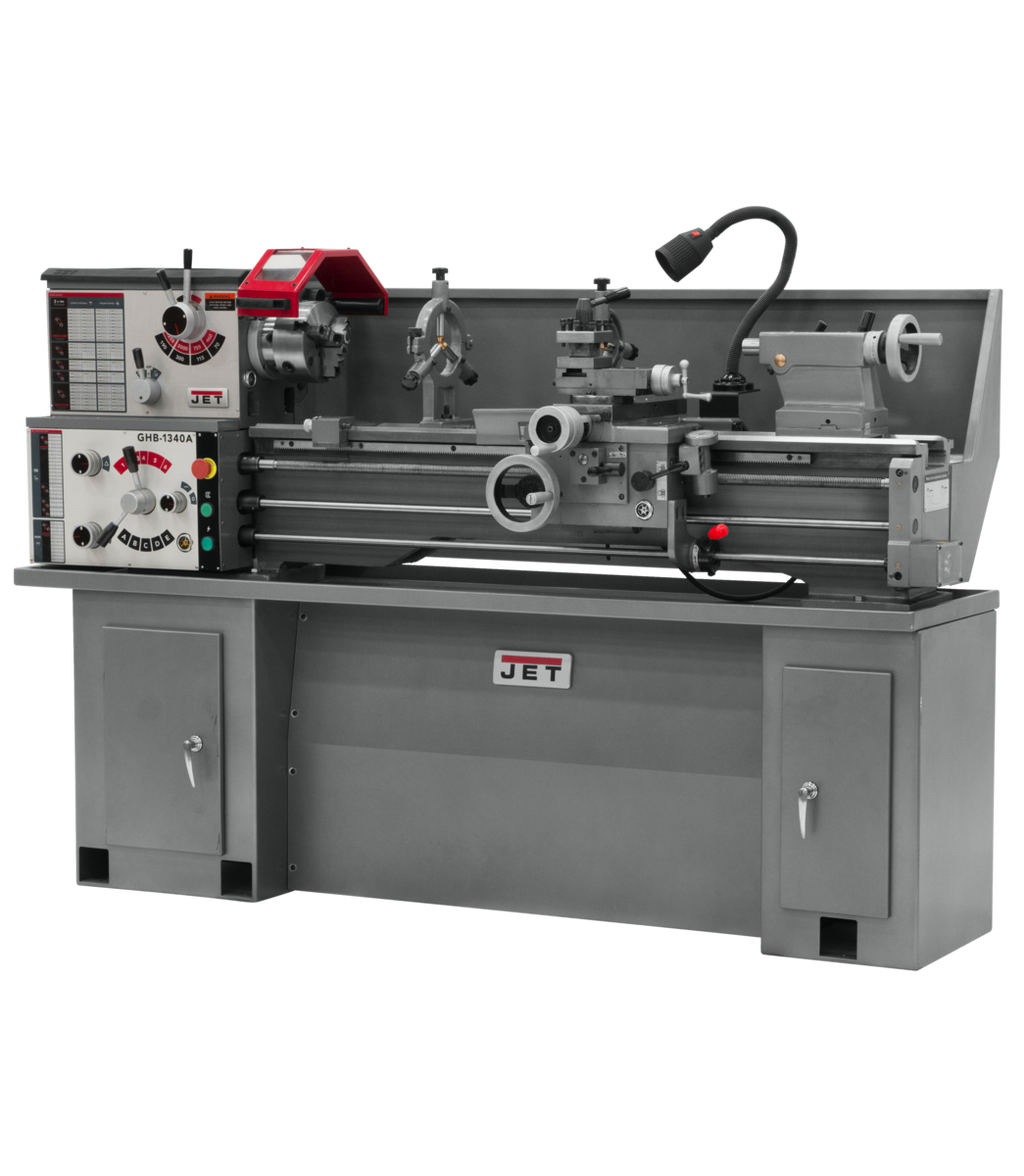

JET GHB-1340A Gear Head Bench Lathe from JET delivers precision metalworking performance in a robust 13 x 40 bench lathe configuration. Designed for machinists who demand tight tolerances and versatile threading capability, this geared head lathe features an enclosed gearbox for smooth, quiet operation, a hardened and ground spindle supported by precision roller bearings, and a headstock that is constantly oiled during operation to minimize maintenance and repair needs. Backed by the industry leading JET Two Year Warranty, the GHB-1340A is a serious tool for serious work.
Key Features
- Enclosed gearbox delivers smooth, quiet operation and protects internal components
- Hardened and ground spindle supported by precision roller bearings for tight tolerances
- Headstock is constantly oiled during operation, keeping maintenance and repair needs to a minimum
- Fast and easy speed changes across 8 spindle speeds ranging from 70-2,000 RPM
- Geared head drive system for reliable, consistent power transfer
- 38 inch thread pitches (3-1/2-80 TPI) and 23 metric thread pitches (.45-10 mm) for broad threading versatility
- 40 longitudinal and cross feed rates for precise material removal control
- D1-4 spindle mount for compatibility with a wide range of chucks and accessories
- MT-5 spindle taper with sleeve for secure tooling engagement
- 8-inch gap length accommodates larger-diameter workpieces
- Accepts up to 5/8 x 5/8 in. tool size
- Backed by the industry leading JET Two Year Warranty
Specifications
- Stock Number: 321357A
- Size: 13 x 40
- Drive: Geared Head
- Motor: 2 HP, 230V, 1Ph
- Number of Spindle Speeds: 8
- Range of Spindle Speeds (RPM): 70-2,000
- Spindle Bore (In.): 1-3/8
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Carriage Travel (In.): 35
- Compound Slide Travel (In.): 2-11/16
- Length of Gap (In.): 8
- Max Tool Size (In.): 5/8 x 5/8
- Number of Inch Threads: 38
- Range of Inch Threads (TPI): 3-1/2-80
- Number of Metric Threads: 23
- Range of Metric Threads: .45-10
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds (IPR): .0018-.0374
- Range of Cross Feeds (IPR): .0006-.0130
- Overall Dimensions (L x W x H) (In.): 79 x 28-1/2 x 30
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle speed range does the JET GHB-1340A provide?
- The GHB-1340A offers 8 spindle speeds spanning a range of 70-2,000 RPM, giving operators the flexibility to turn a wide variety of materials and diameters at appropriate cutting speeds.
- How many threading options are available on this lathe?
- The GHB-1340A supports 38 inch thread pitches ranging from 3-1/2-80 TPI and 23 metric thread pitches ranging from .45-10 mm, making it well suited for a broad range of threading applications.
- What motor powers the GHB-1340A, and what electrical supply is required?
- This lathe is powered by a 2 HP motor requiring 230V, 1-phase electrical service. Verify that your shop electrical supply meets these requirements before installation.
- What warranty comes with the JET GHB-1340A Gear Head Bench Lathe?
- The GHB-1340A is backed by the industry leading JET Two Year Warranty, providing confidence in long-term reliability and manufacturer support.
