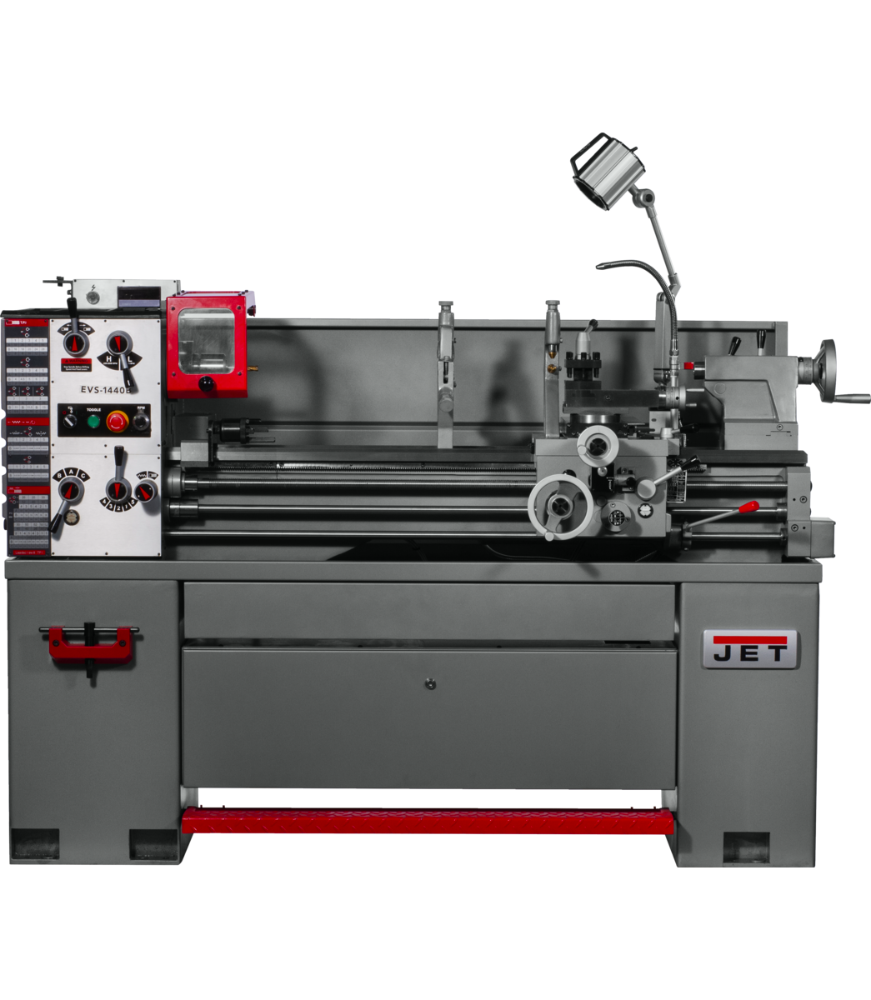

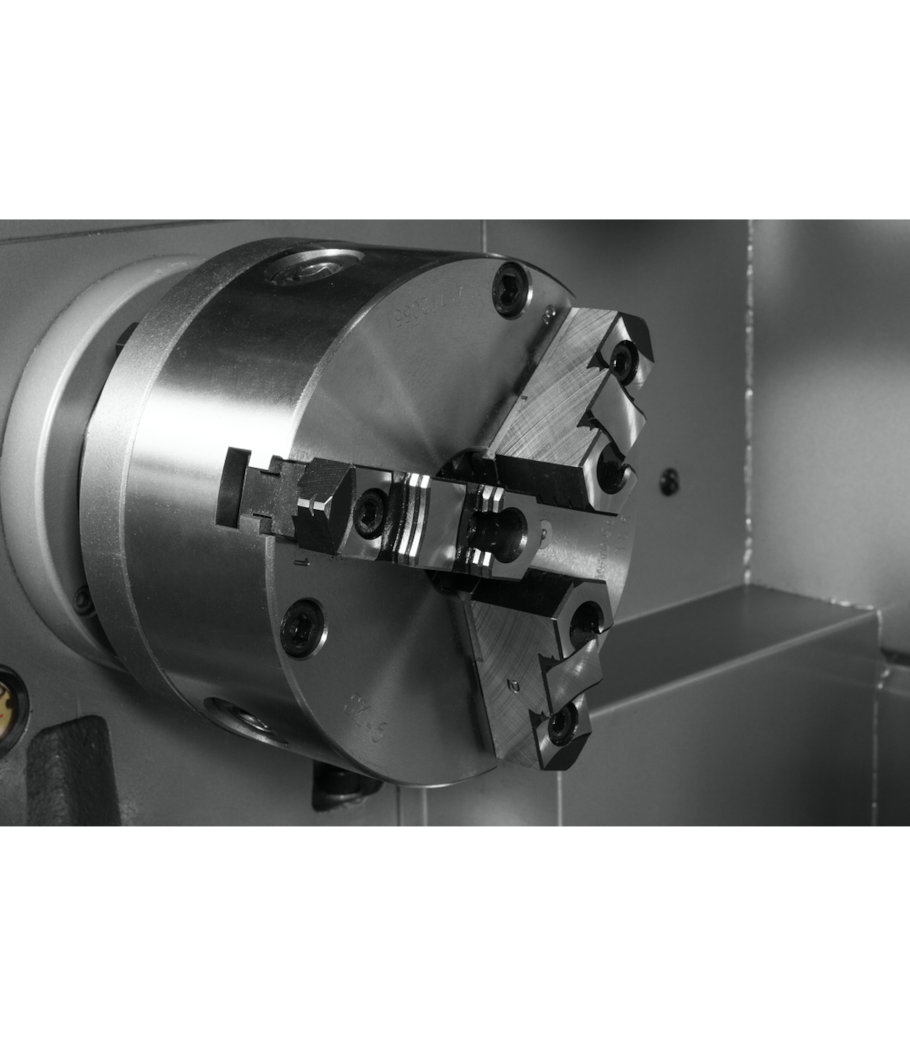

JET EVS-1440 Electronic Variable Speed Lathe with Newall DP700 DRO & Taper Attachment, 3HP is a precision-engineered metalworking lathe from JET designed to maximize shop output across a wide range of turning applications. Featuring electronic variable speed control, a built-in Newall DP700 Digital Readout, and a taper attachment, this machine delivers the accuracy, rigidity, and operator convenience demanded by serious machinists. The D1-4 spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run-out maximum of .0004", while Meehanite castings retain their tolerance and remain rigid over many years of machining.
Key Features

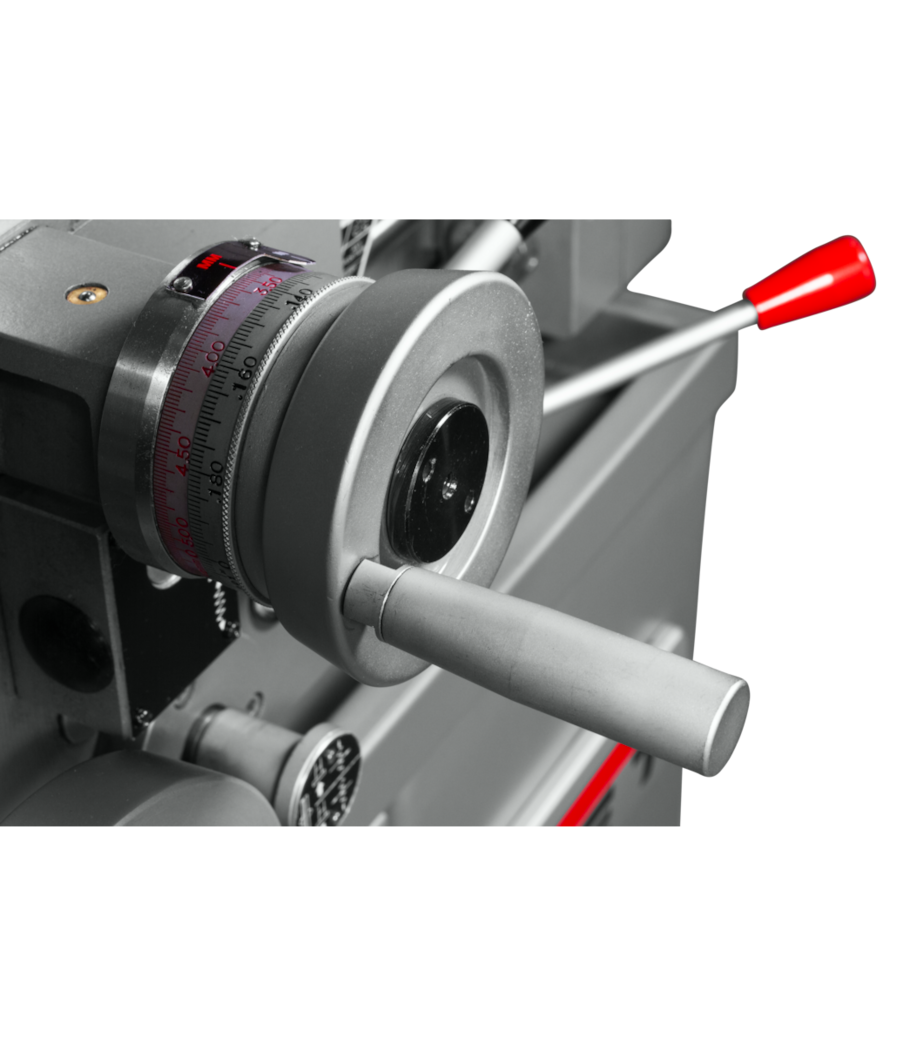

- Compound and cross slide have backlash elimination for precise, repeatable positioning

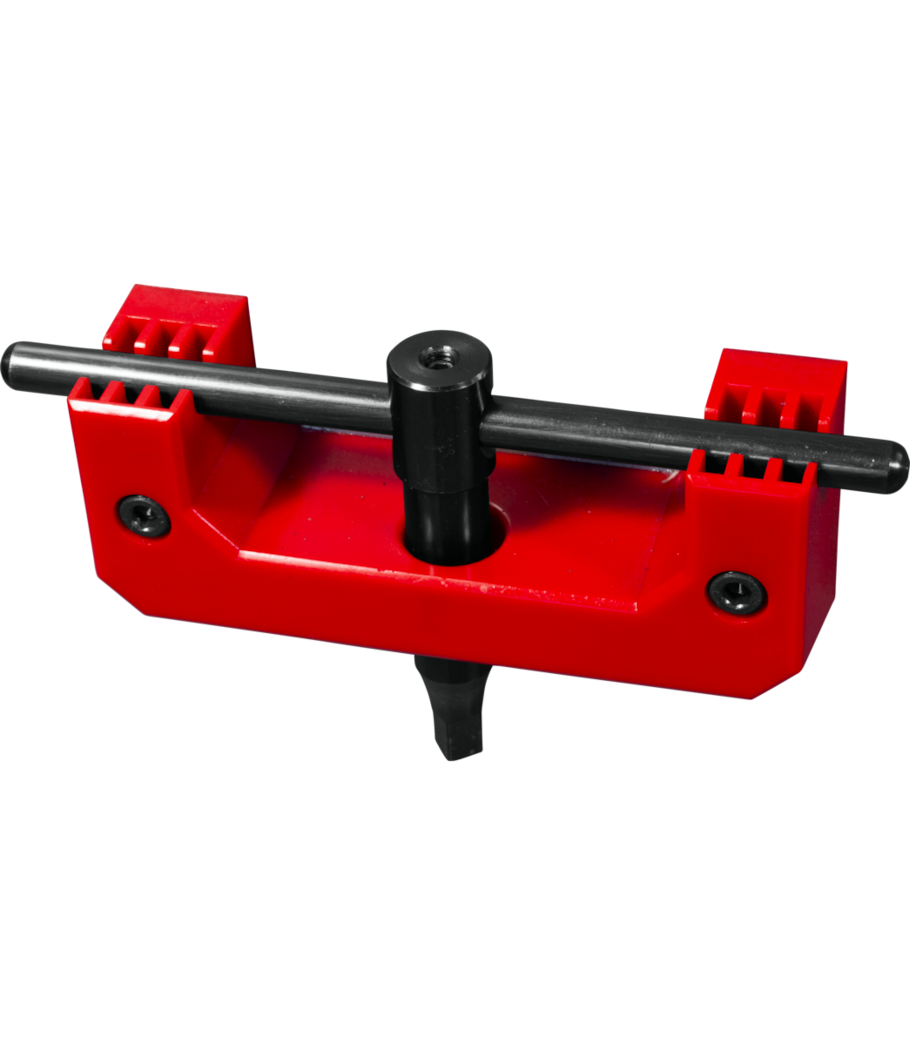

- Electronic Chuck Key Docking Station keeps the chuck key safely secured when not in use

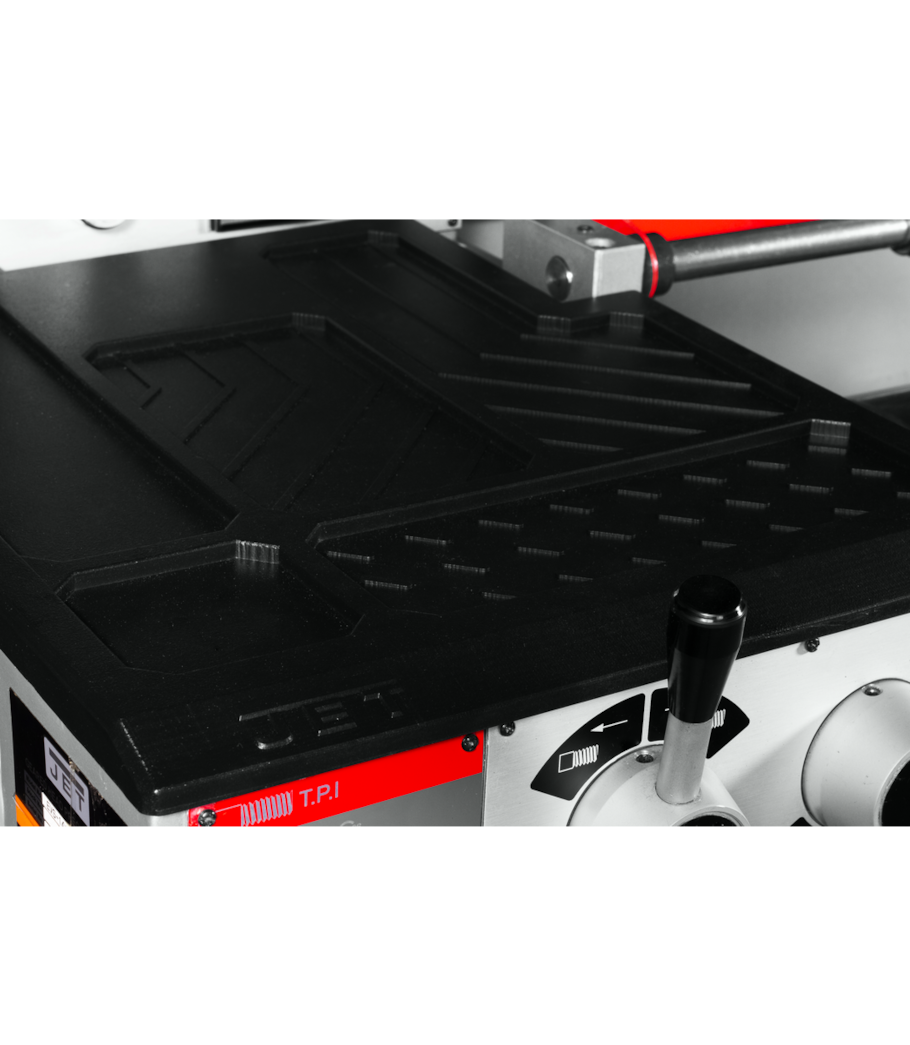

- Front Removable Chip Tray simplifies cleanup and keeps the work area clear
- Full Length Splash Guard protects the operator and surrounding surfaces during cutting operations
- Independent lead screw and feed rod for versatile threading and feeding operations

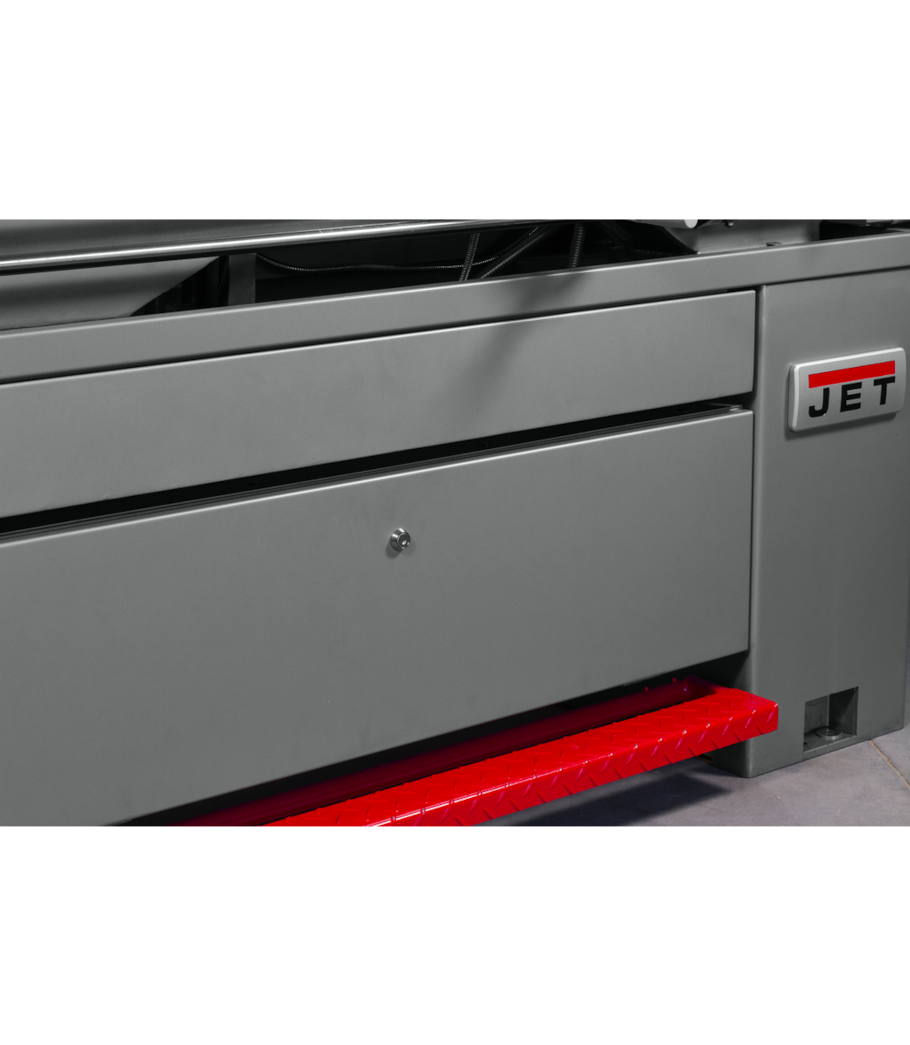

- Integrated locking tool storage cabinet in the stand keeps tooling organized and secure

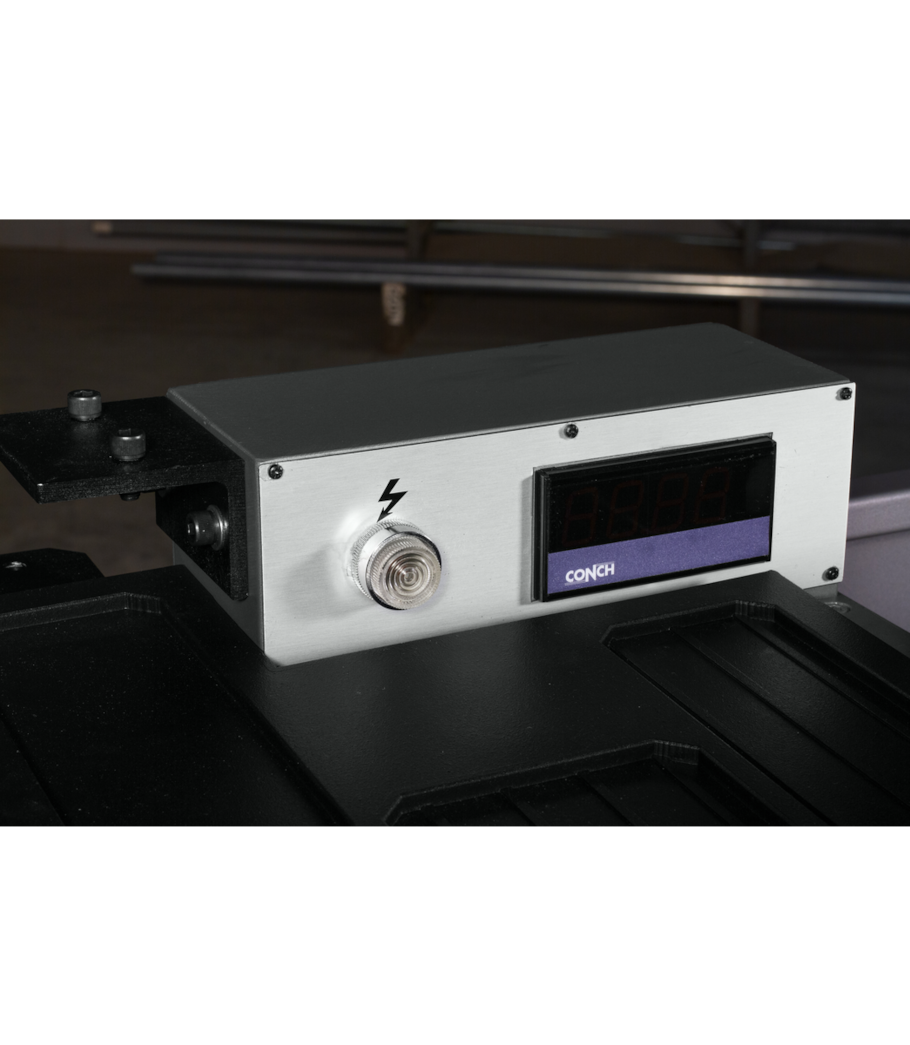

- LED RPM readout allows for precise turning speeds at a glance
- Safety on/off switch for convenient and reliable operator control

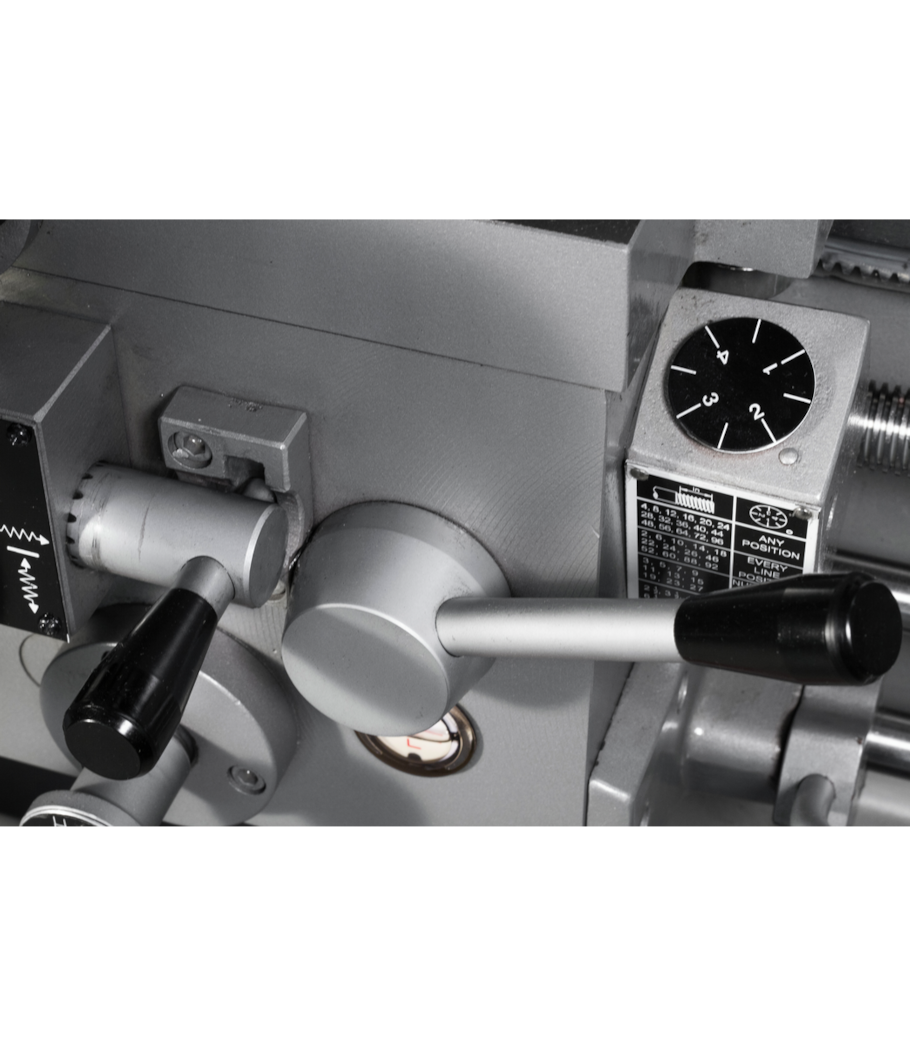

- Threading Dial Indicator for accurate thread pickup and engagement
- V-Way bed design is induction hardened and ground for long-lasting accuracy and durability

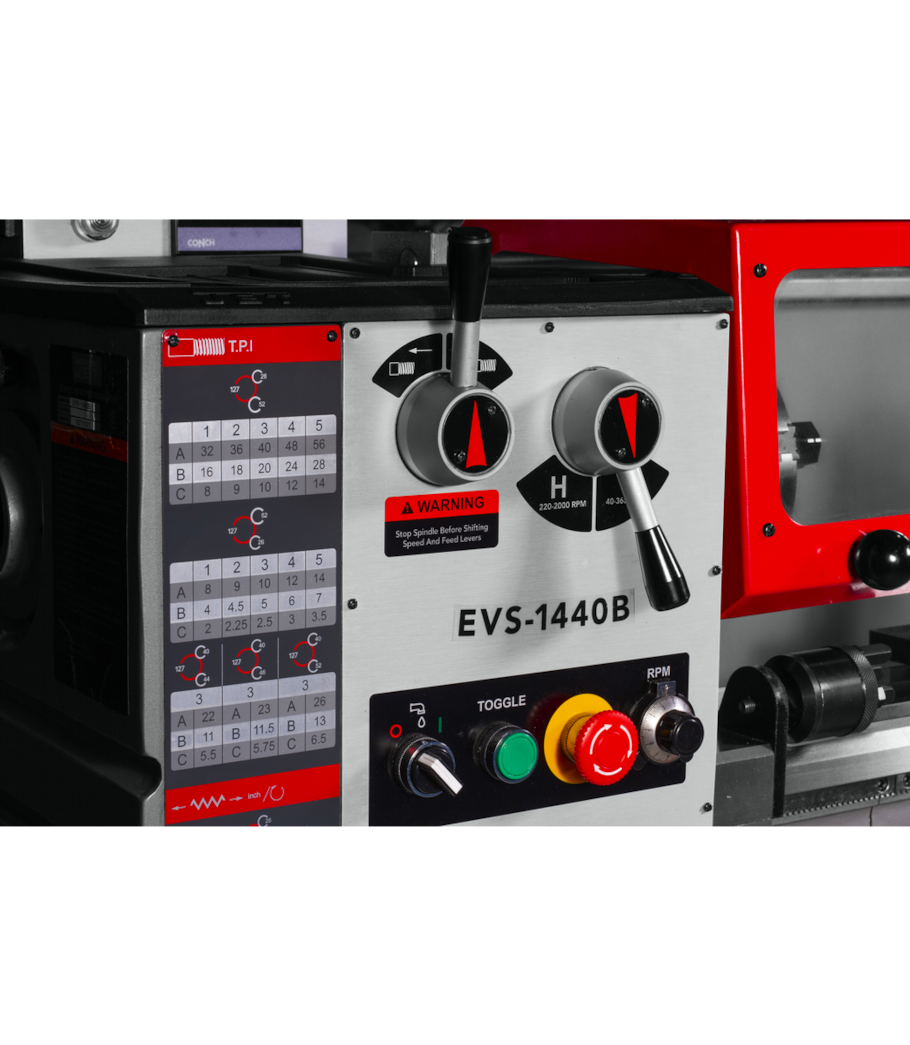

- Two-speed gearbox provides low-speed range of 40-365 RPM and high-speed range of 220-2,000 RPM

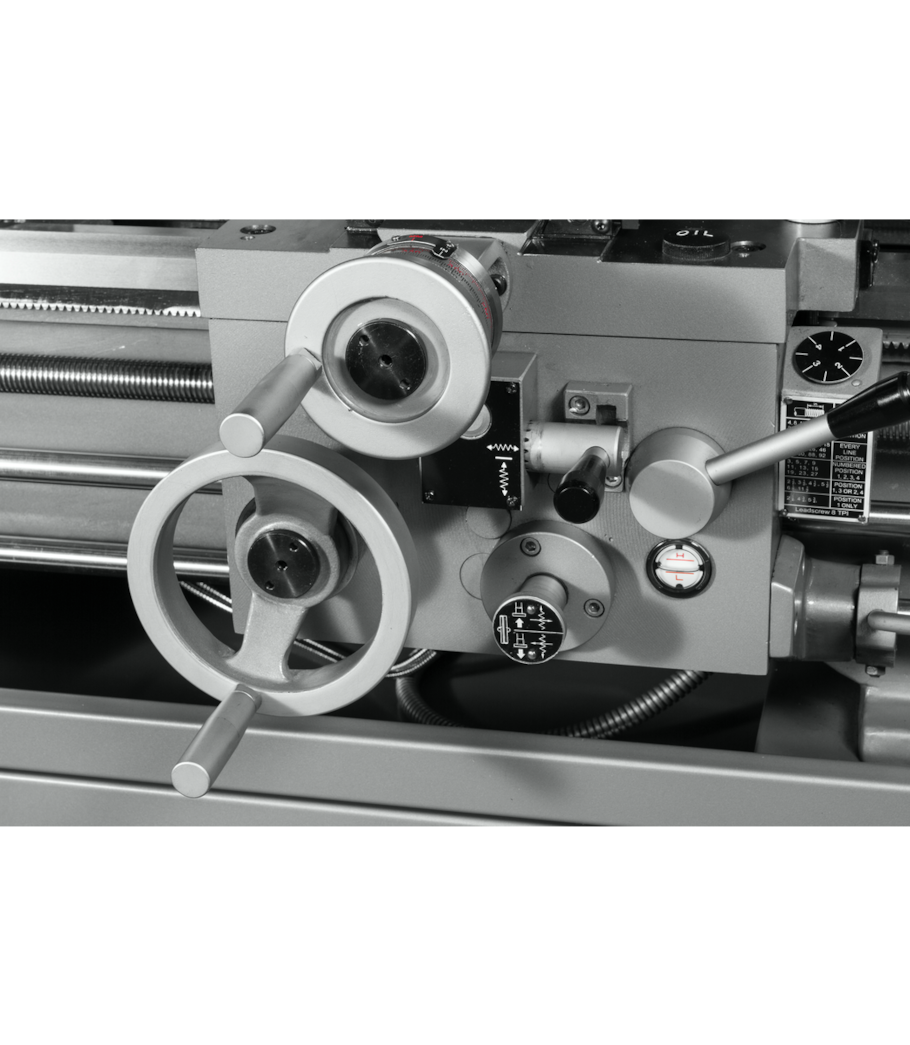

- Apron-mounted actuation control and jog button for easy gear engagement and spindle inching
- Tailstock may be offset for turning taper
- 34 inch thread pitches and 34 metric thread pitches available
- 25 longitudinal and cross feed rates for versatile material removal
Specifications
- MPN: JT9-311450
- Motor: 3HP, 230V, 3Ph
- Range of Spindle Speeds (RPM): 40-2000
- Compound Slide Travel (In.): 3-1/2
- Cross Slide Travel (In.): 7
- Max Tool Size (In.): 3/4 x 3/4
- Length of Gap (In.): 9-1/2
- Number of Inch Threads: 34
- Range of Inch Threads (TPI): 2-56
- Number of Metric Threads: 34
- Range of Metric Threads: 0.5-12
- Number of Longitudinal and Cross Feed Rates: 25
- Range of Longitudinal Feeds (IPR): 0.0016-0.0460
- Overall Dimensions (L x W x H) (In.): 68.5 x 28.3 x 50
- Net Weight (Lbs.): 1320
- Gross Weight (Lbs.): 1584
- Country of Origin: Taiwan
- Prop 65: None
Frequently Asked Questions
- What is the full spindle speed range on this lathe?
- The spindle speed range runs from 40-2000 RPM. The two-speed gearbox delivers a low-speed range of 40-365 RPM and a high-speed range of 220-2,000 RPM, with the LED RPM readout allowing operators to monitor and set precise turning speeds at all times.
- How does the lathe help prevent inaccuracies caused by backlash?
- Both the compound slide and the cross slide feature backlash elimination, ensuring that positioning movements remain precise and repeatable throughout the life of the machine.
- What threading capabilities does this lathe offer?
- The lathe supports 34 inch thread pitches ranging from 2-56 TPI and 34 metric thread pitches ranging from 0.5-12 mm. It also features an independent lead screw and feed rod along with a Threading Dial Indicator for accurate thread engagement.
- What power supply is required to operate this machine?
- This lathe requires a 230V, 3-phase electrical supply to operate its 3HP motor. It is intended for professional shop environments equipped with appropriate three-phase power infrastructure.
