Product Description

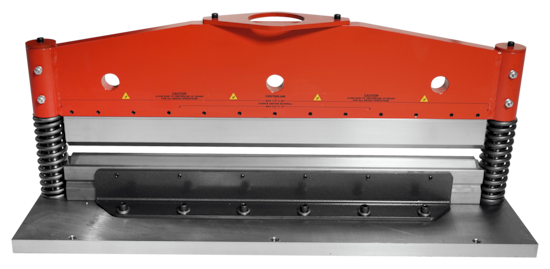

Edwards Press Brake Tooling 36" Press Brake (PRB36) - MPN: ED9-PRB36 - transforms a compatible Edwards Shop Press into a fully functional press brake. Engineered by Edwards for use with their 60-ton and 110-ton Shop Presses, this heavy-duty tooling is built on a machined solid-steel base and pushblock, delivering precise, repeatable bends for metal fabrication work in professional and industrial shop environments.
Key Features

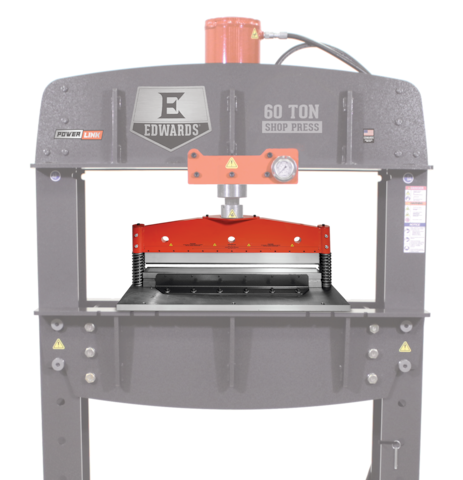

- Converts an Edwards 60-ton or 110-ton Shop Press into a press brake
- Mounted to a machined solid-steel base and pushblock for rigidity and precision
- Heavy-duty return springs ensure smooth, consistent operation
- Rugged, machined punch designed for accuracy and durability
- 4-way die offers versatile bending configurations
- Standard punch accommodates 1/16", 1/8", 3/16", and 1/4" material thickness
- Forms material to a precise 90 deg. angle
- Pairs with the Press Brake Back Gauge for easily repeatable bends
- 36" working width for broad fabrication capability
Specifications
- MPN: ED9-PRB36
- Brand: Edwards
- Model: PRB36
- Working Width: 36"
- Compatible Presses: Edwards 60-ton and 110-ton Shop Presses
- Material Capacities: 1/16", 1/8", 3/16", and 1/4"
- Bend Angle: 90 deg.
- Die Type: 4-way die
- Base Material: Machined solid steel
Approved Applications
- Fabricating metal brackets
- Forming frames
- Bending pans
- Constructing tanks
- General sheet metal forming to 90 deg. angles
What's Included
- 36" press brake tooling assembly
- Machined solid-steel base and pushblock
- Standard machined punch
- 4-way die
- Heavy-duty return springs
Frequently Asked Questions
- Which Shop Presses is the PRB36 compatible with?
- The Edwards PRB36 Press Brake Tooling is designed to complement the Edwards 60-ton and 110-ton Shop Presses, converting either into a functioning press brake.
- What material thicknesses can the PRB36 handle?
- The standard punch included with the PRB36 allows material thicknesses of 1/16", 1/8", 3/16", and 1/4" to be formed to a 90 deg. angle.
- How do I achieve repeatable, consistent bends with this tooling?
- The PRB36 can be paired with the Edwards Press Brake Back Gauge accessory, which enables operators to easily create repeatable bends time after time.
- What is the purpose of the 4-way die included with this tooling?
- The rugged, machined 4-way die provides multiple die configurations in a single unit, offering versatility for a range of bending operations including fabricating brackets, frames, pans, and tanks.
