Product Description

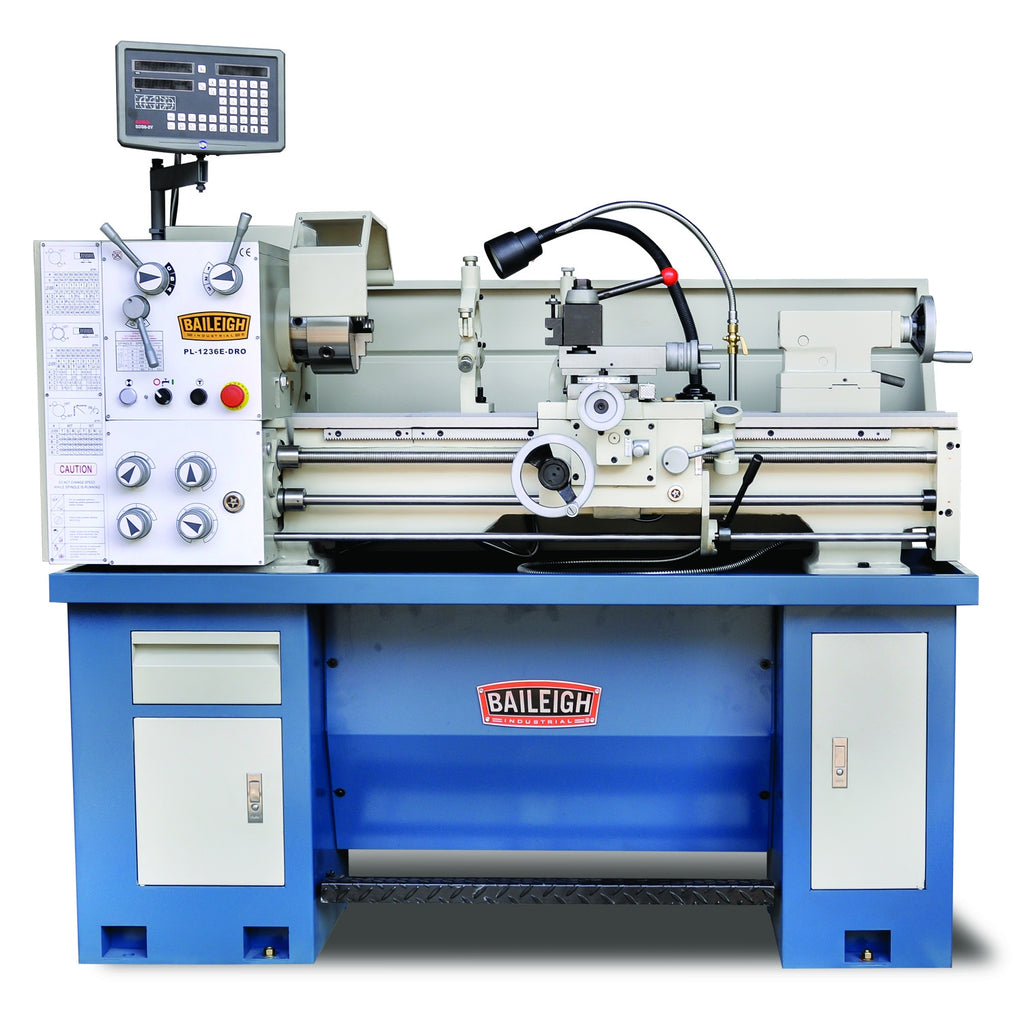

The Baileigh Digital Readout Geared Head Metal Lathe PL-1236E-DRO by Baileigh is a precision-grade metalworking lathe built for small fabricators, schools, and garage shops that demand repeatable, accurate results. An integrated digital readout sets this model apart, giving operators confident control over every cut, while a full-featured accessory package - from quick-change tool post to built-in coolant system - keeps the machine ready for serious work.
Key Features

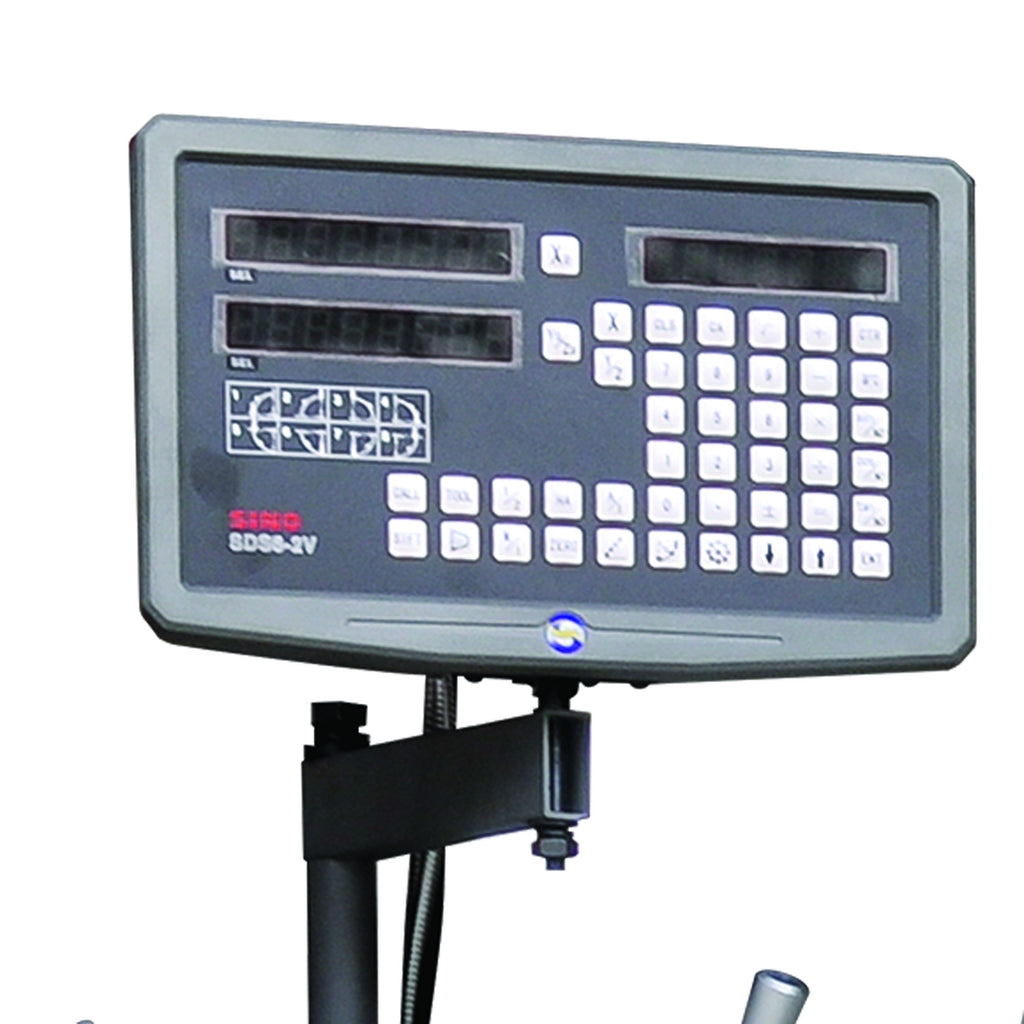

- Integrated digital readout (DRO) helps you get repeatable results

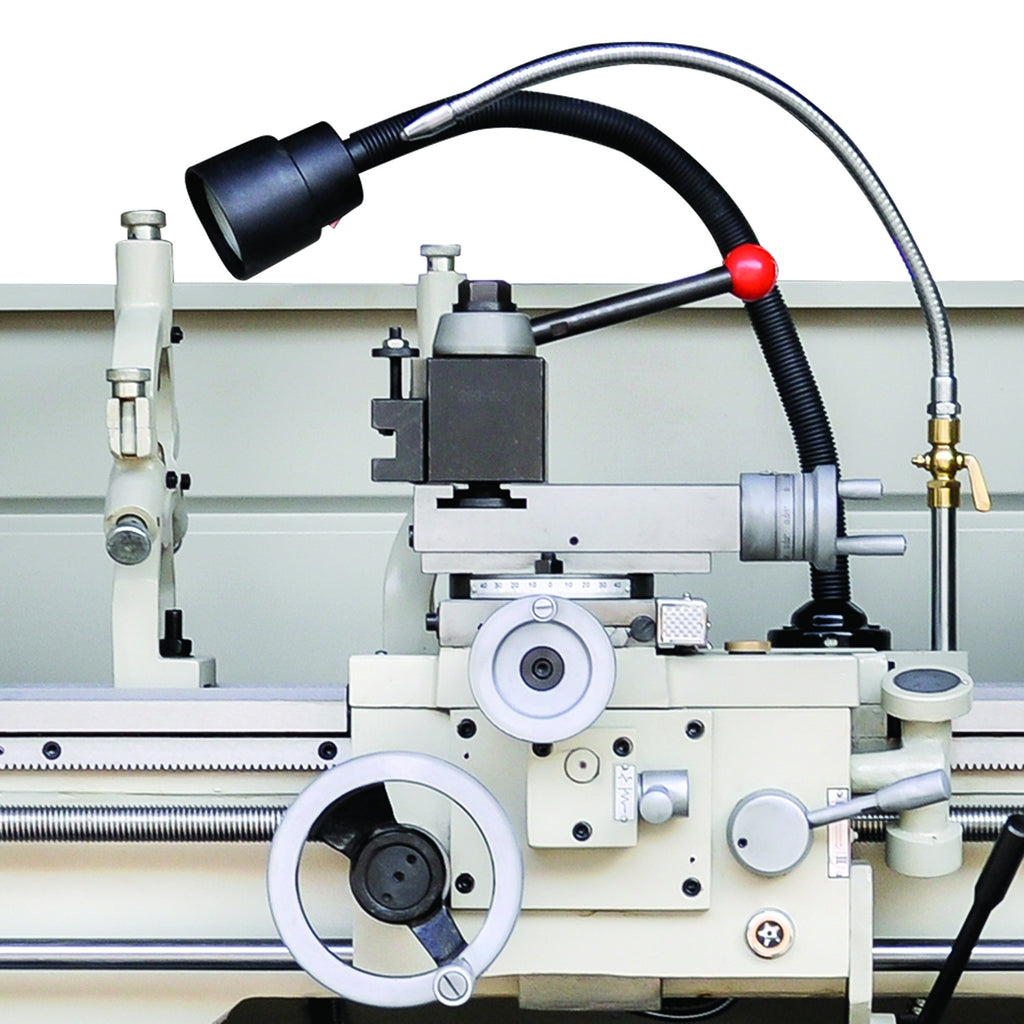

- Quick-change tool post makes tooling changes more efficient and helps you save time

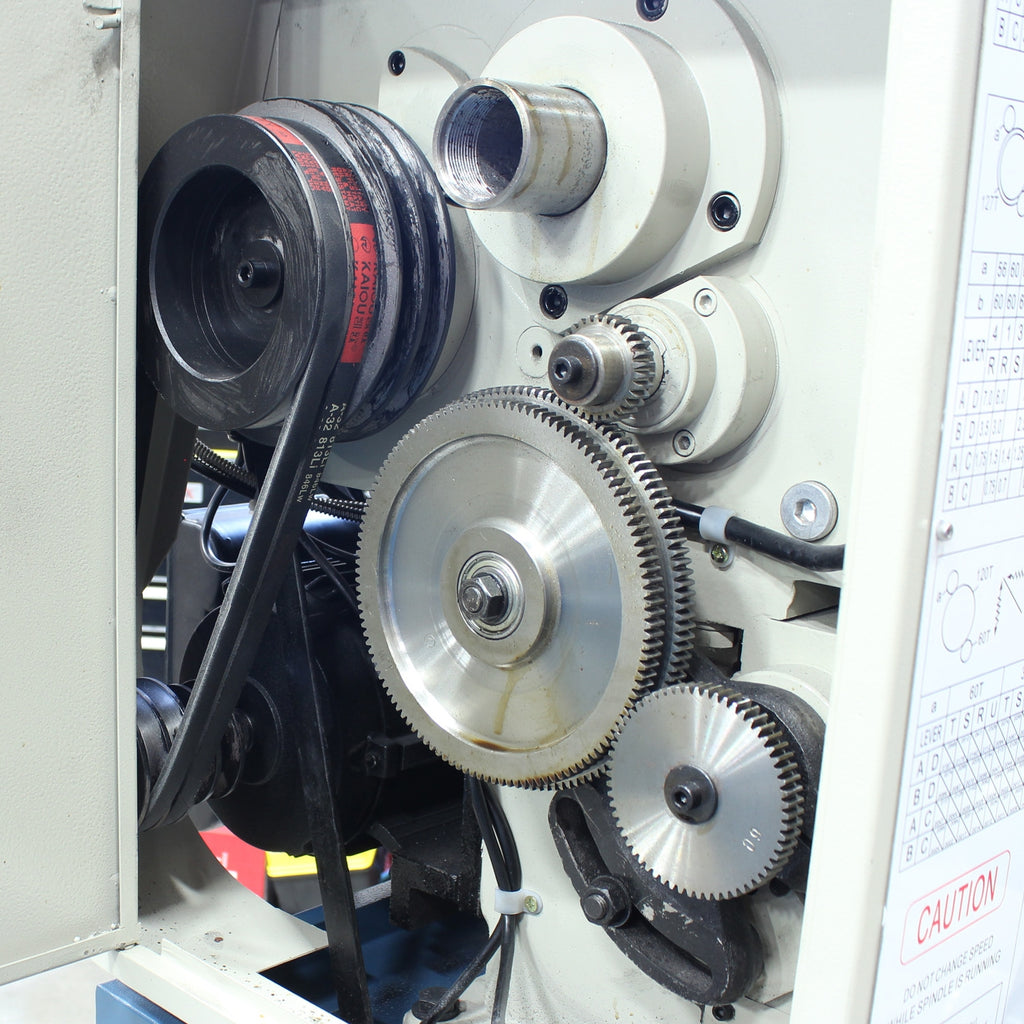

- Gear system allows for taping, turning, and polishing
- All ways are ground and hardened to ensure long life
- Runs on 220-volt single-phase power and 70-1,400 rpm variable speed - capable of standard and metric threading

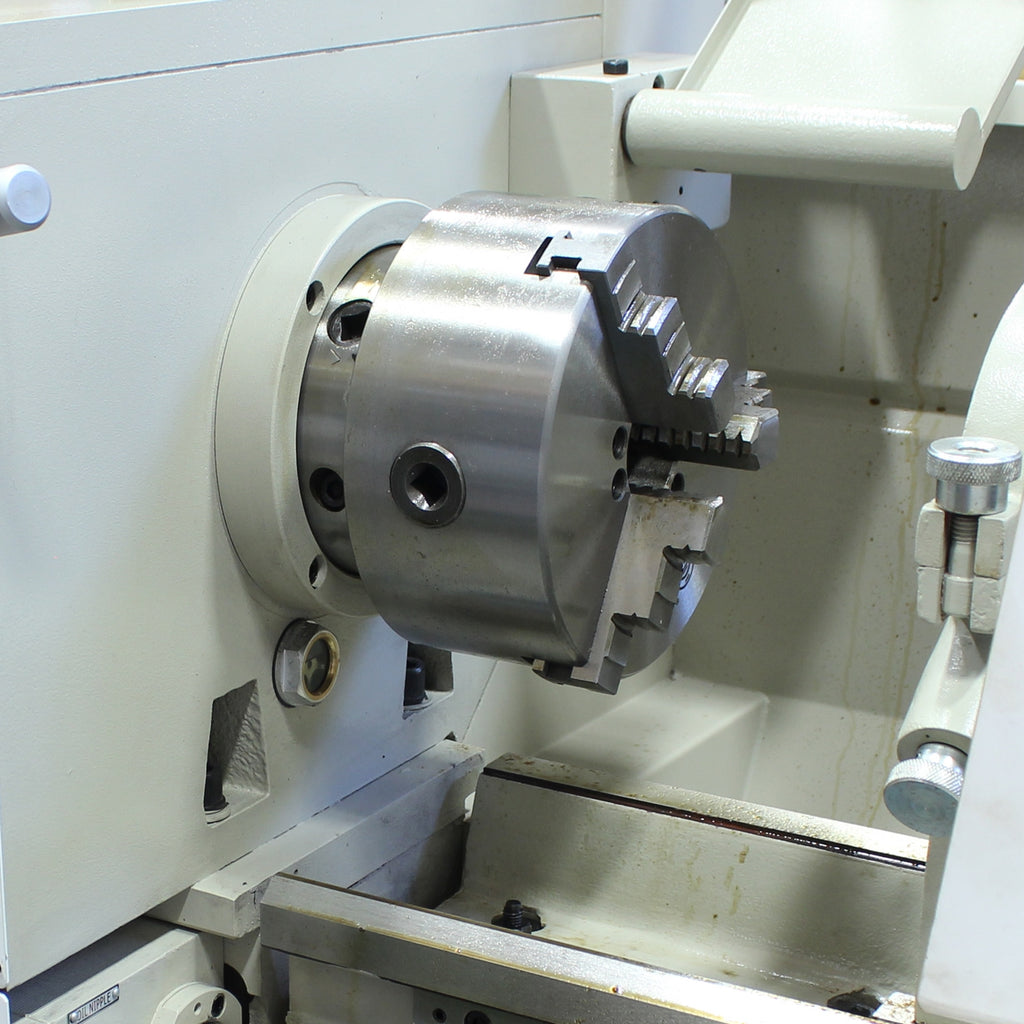

- 3-jaw and 4-jaw chucks can hold both square and rounded materials
- Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy
- Facing plate lets you shape materials that are large but not long - bolt your metal to the plate to keep it square and symmetrical

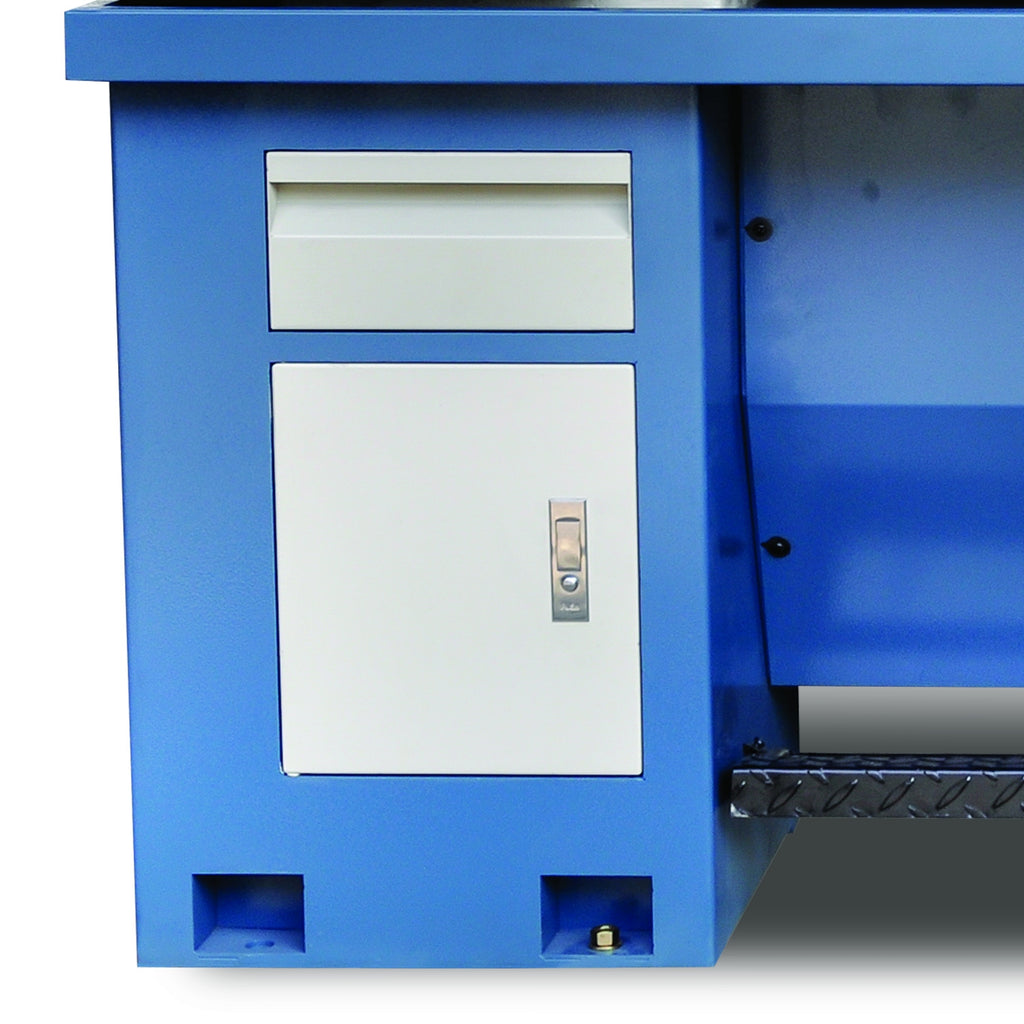

- Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed
- Foot brake helps keep your shop safe and halogen work light comes standard
Specifications
- MPN: BA9-1016617
- Brand: Baileigh
- Assembled Dimensions: 69 in. x 44 in. x 64 in.
- Digital Readout: Yes
- Distance Between Centers: 36 in.

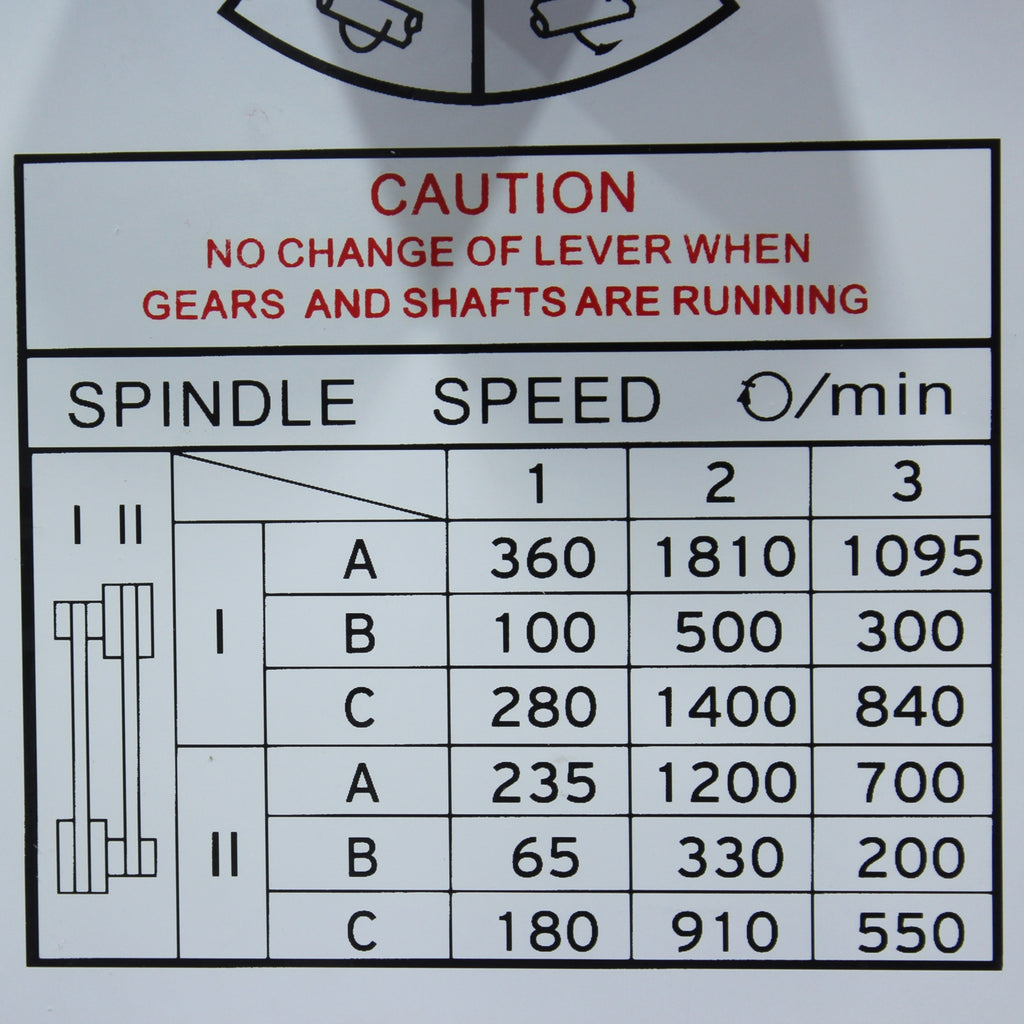

- Speed Range: 70-1,400 rpm

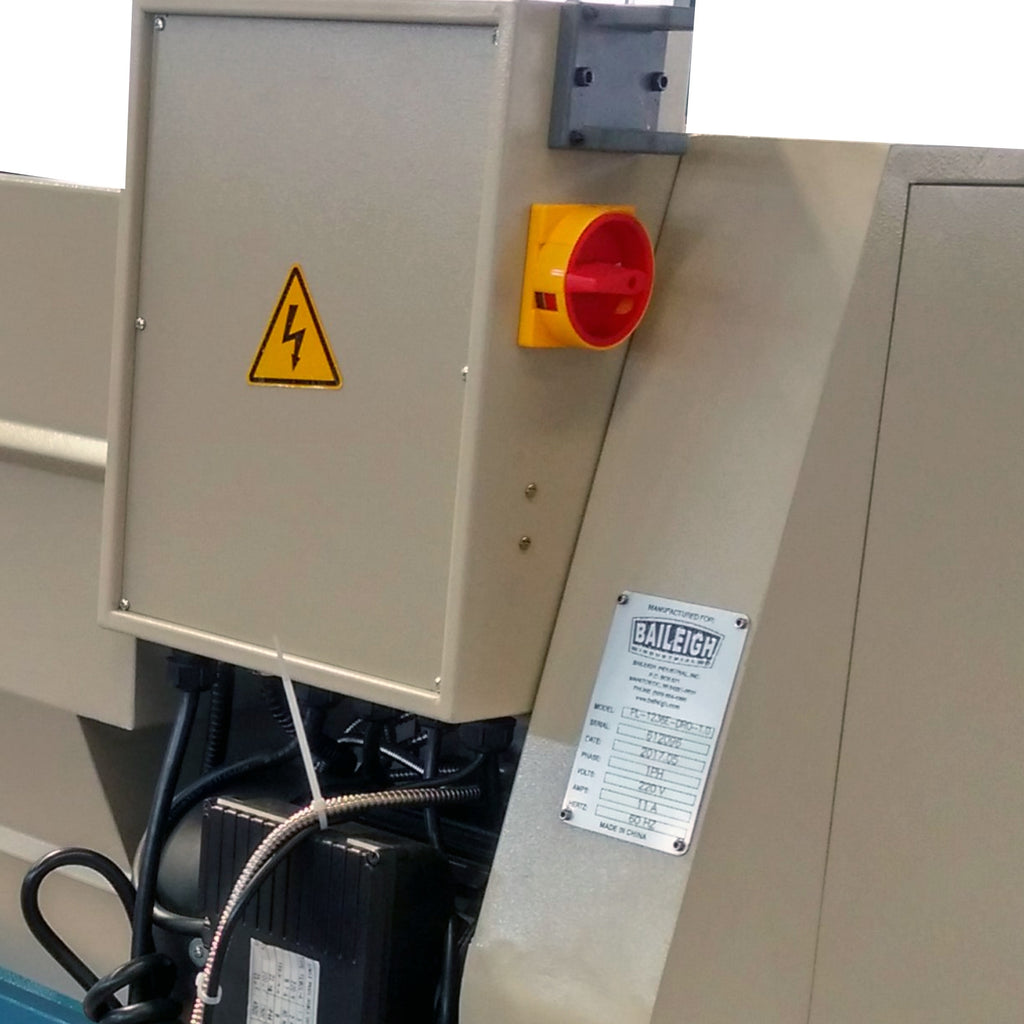

- Power Requirement: 220-volt single-phase
- Chuck Types: 3-jaw and 4-jaw

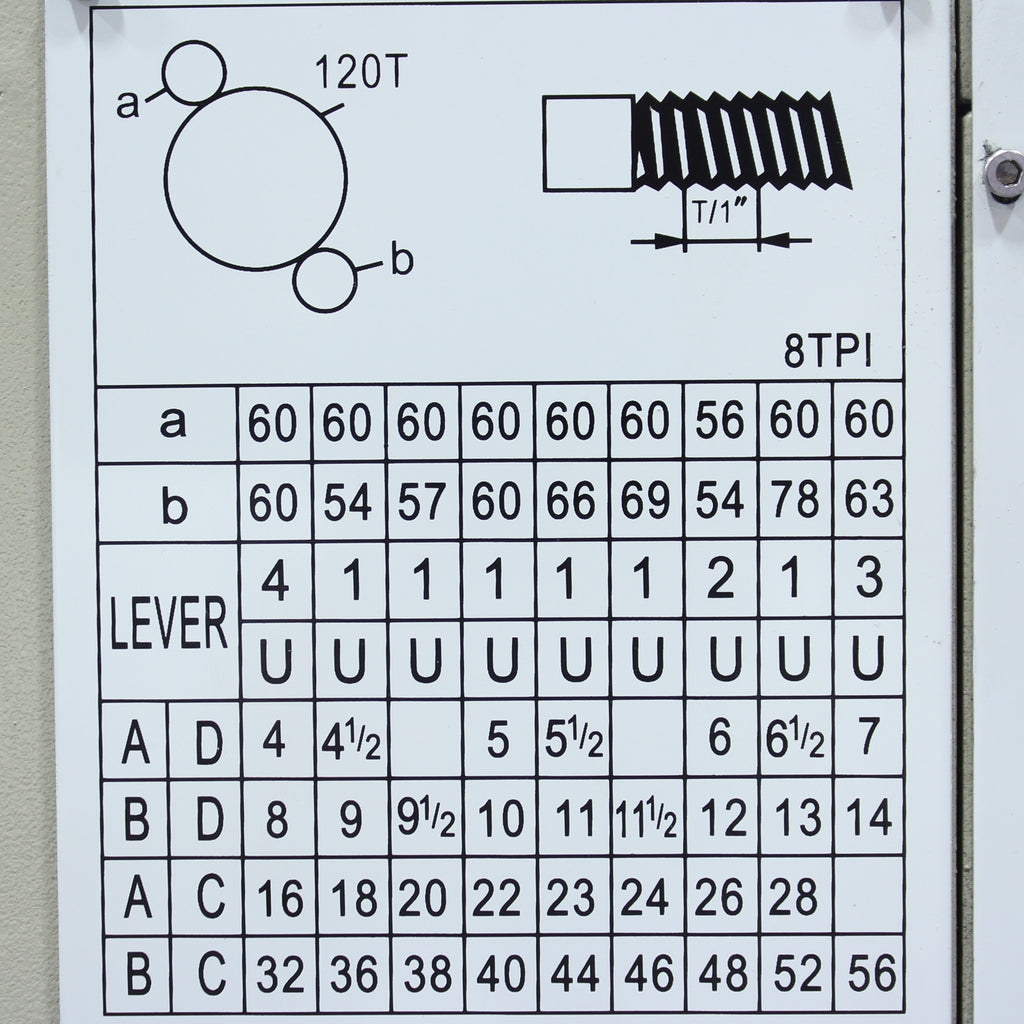

- Threading Capability: Standard and metric
- Country of Origin: China
Frequently Asked Questions
- What is the speed range of this lathe?
- This lathe runs at a variable speed of 70-1,400 rpm, giving you the flexibility to work at the right pace for turning, polishing, and threading operations.
- What power supply does the PL-1236E-DRO require?
- The lathe runs on 220-volt single-phase power. Be sure your shop or workspace has the appropriate electrical setup before installation.
- Can this lathe cut both standard and metric threads?
- Yes. The gear system is capable of standard and metric threading, making it versatile for a wide range of machining projects.
- What accessories are included with this lathe?
- This lathe comes standard with an integrated digital readout (DRO), quick-change tool post, 3-jaw and 4-jaw chucks, steady rest, follow rest, facing plate, a coolant system with reservoir and pump, a foot brake, and a halogen work light.
