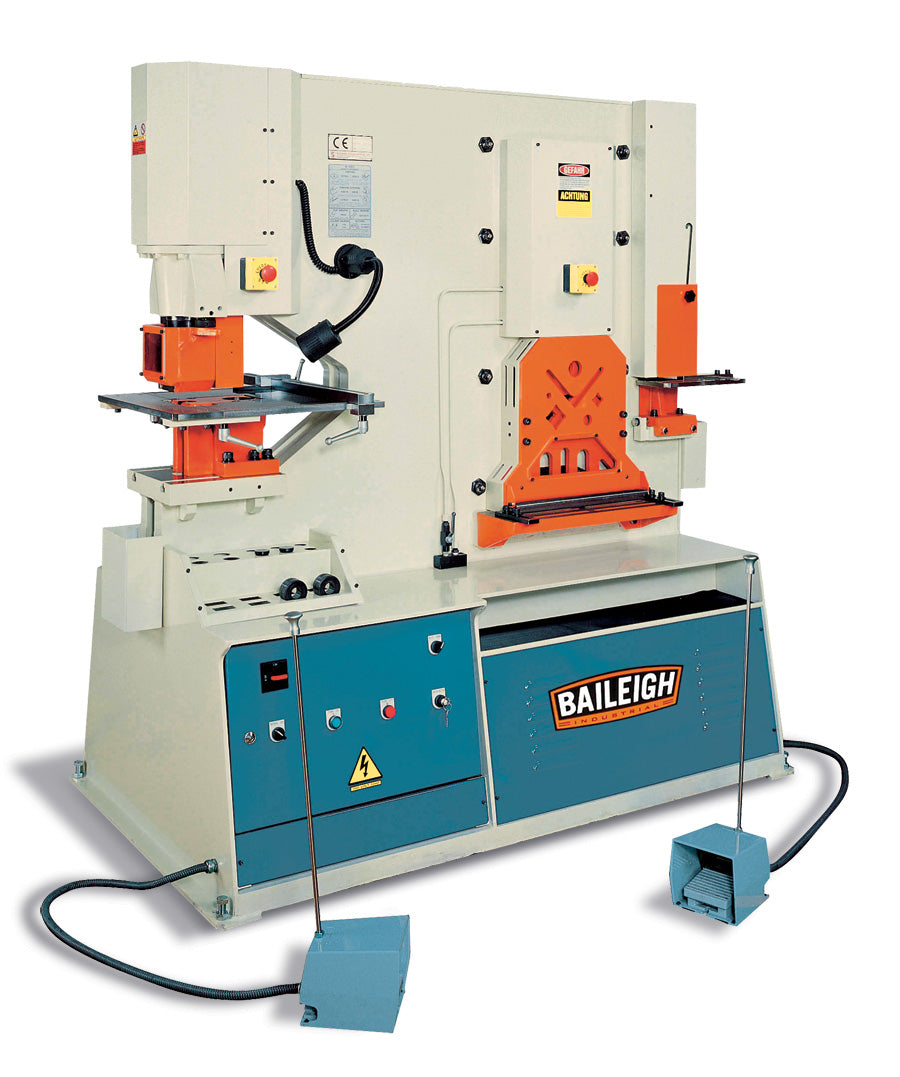

The Baileigh Hydraulic Ironworker SW-95 is a heavy-duty, dual-operator ironworker built for shops that demand maximum throughput without sacrificing precision. Delivering 95 tons of punching pressure and 123 tons of shearing and notching force across 5 integrated workstations, this machine empowers two operators to work simultaneously at opposite ends - effectively doubling your production capacity in a single footprint.

Key Features

• Runs on 220-volt 3-phase power and houses 95 tons of punching pressure as well as a whopping 123 tons of shearing and notching force

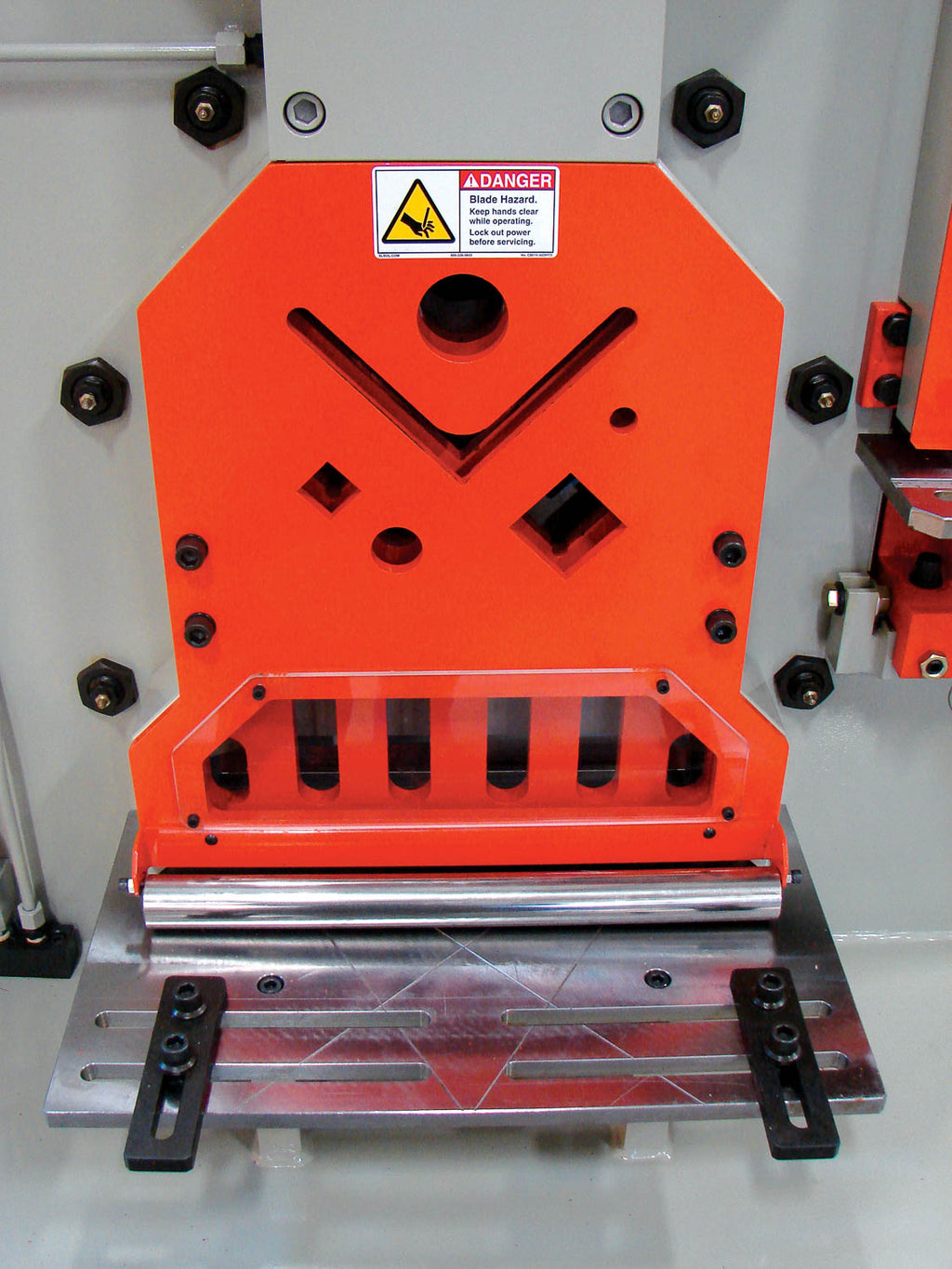

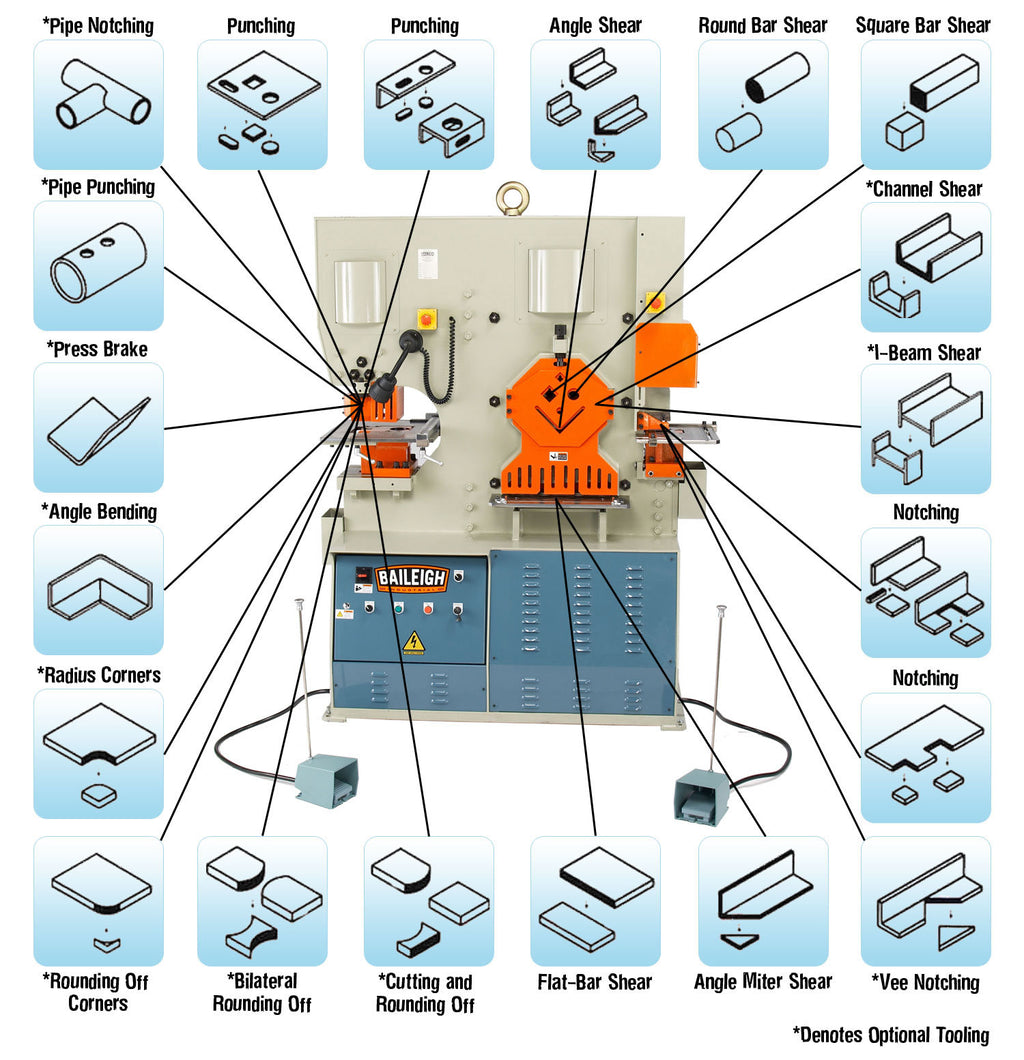

• 5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing
• Dual-operator design enables 2 people to work at opposite ends of the machine simultaneously without loss of power at either station
• Heavy structural steel plate framework ensures rigidity and eliminates flexing and hydraulic cylinders use entirely vertical movement to perform all functions

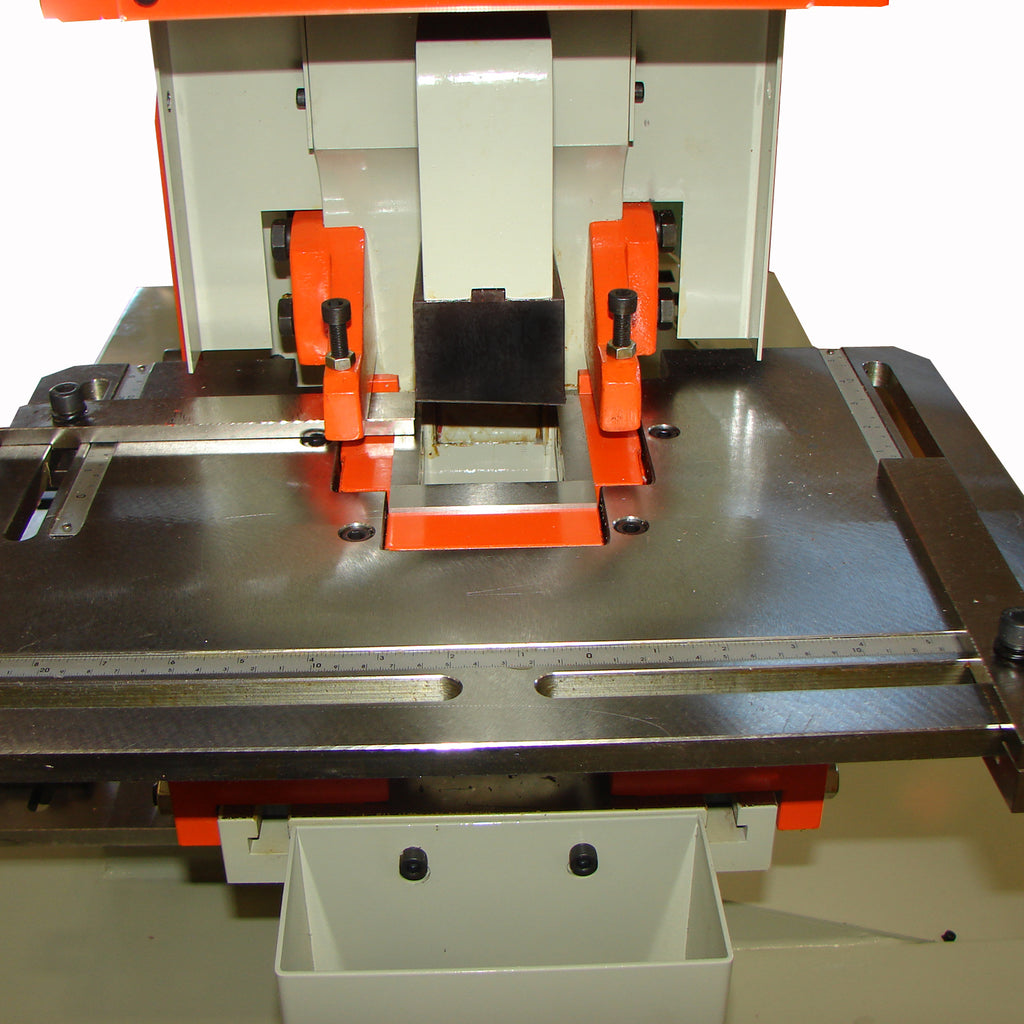

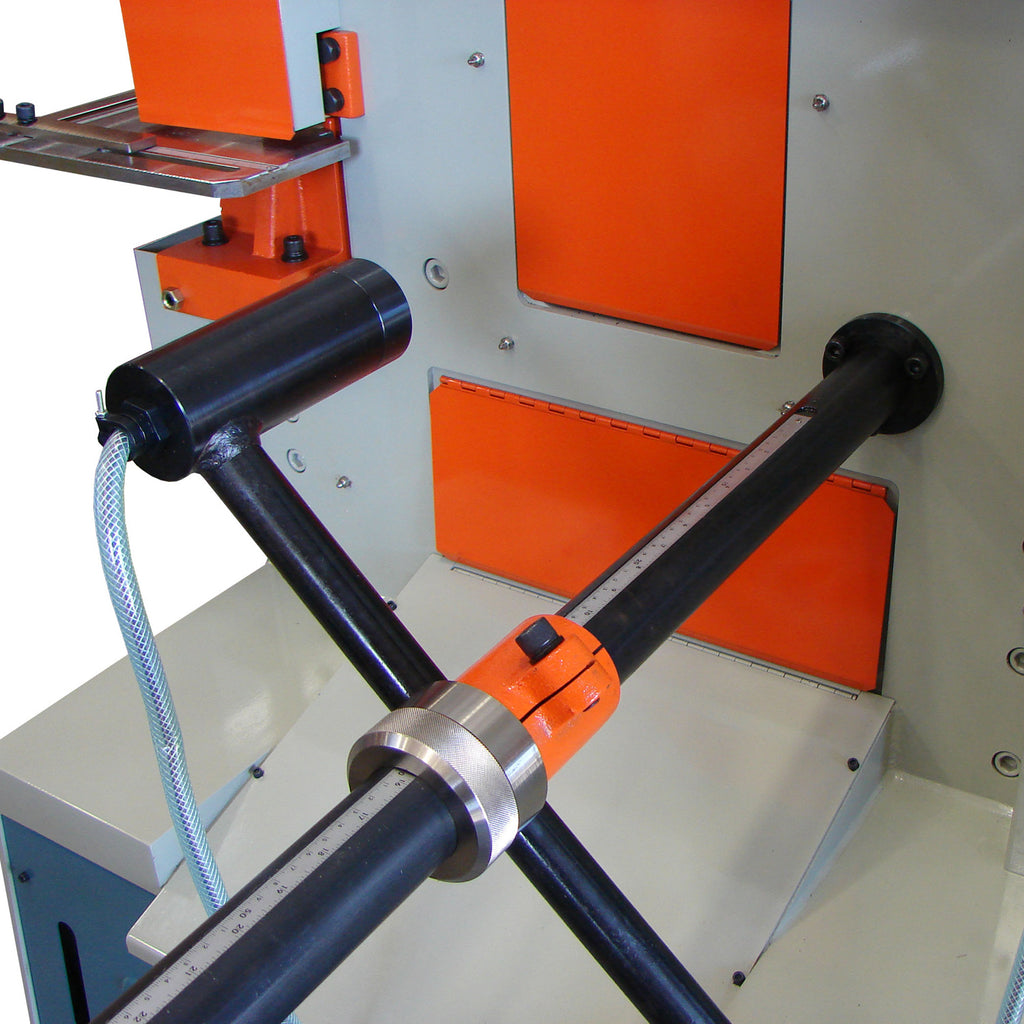

• Electric back gauge and adjustable material stops save you effort and deliver precise results for production runs
• Large worktables separate into 2 pieces, allowing you to get angle iron and oddly shaped materials to the punch without difficulty
• Includes 7 sets of punches and dies to accommodate a variety of applications and accepts universal tooling - Jog dial allows for simple and secure tool alignment

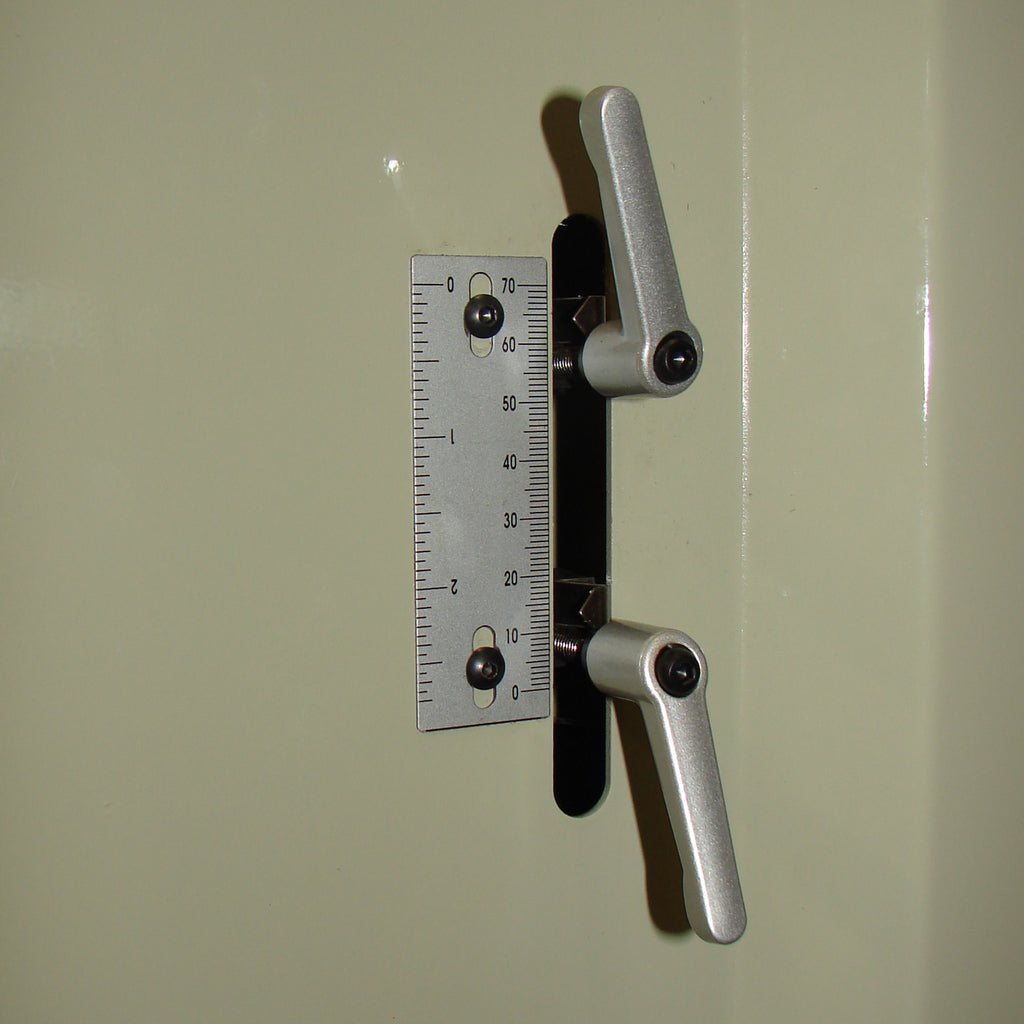

• Foot pedal provides convenient stop and start control and adjustable stroke control of both the upward and downward strokes limits movement and reduces costs

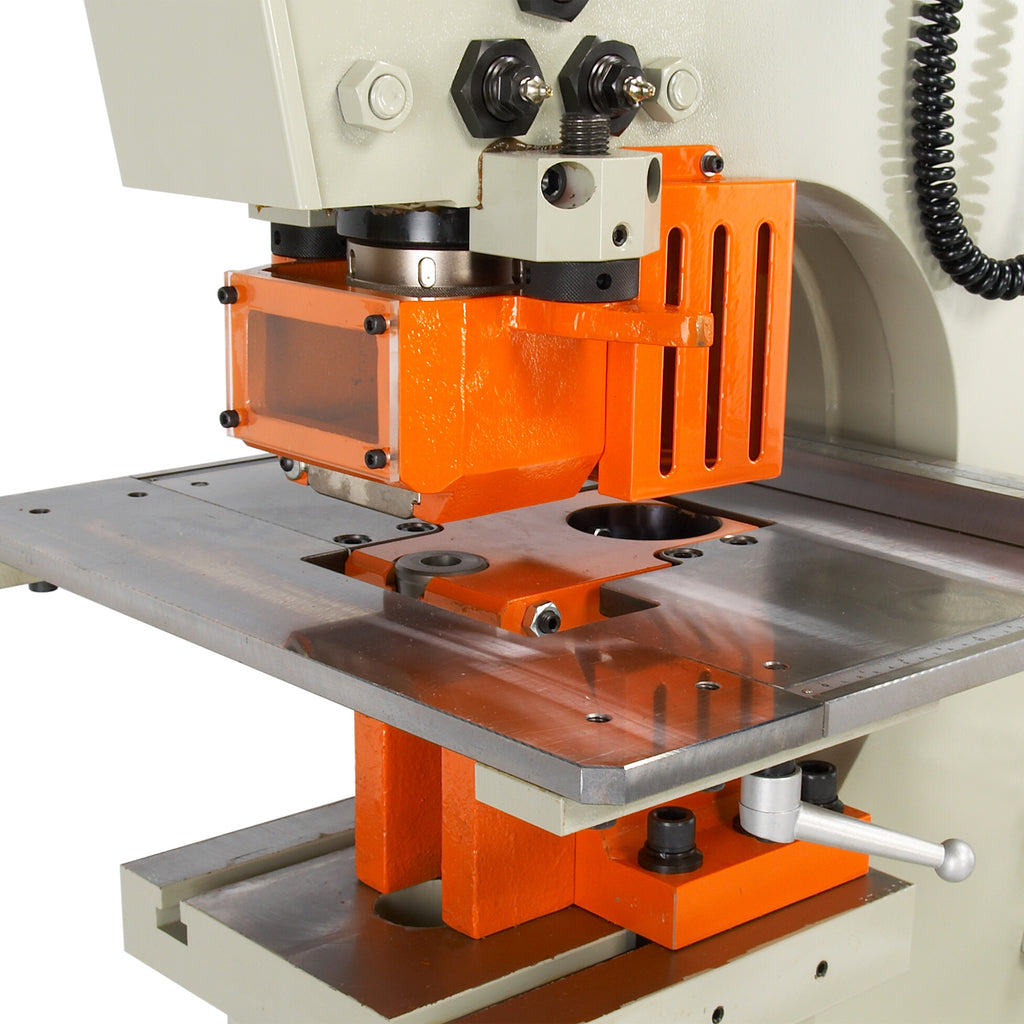

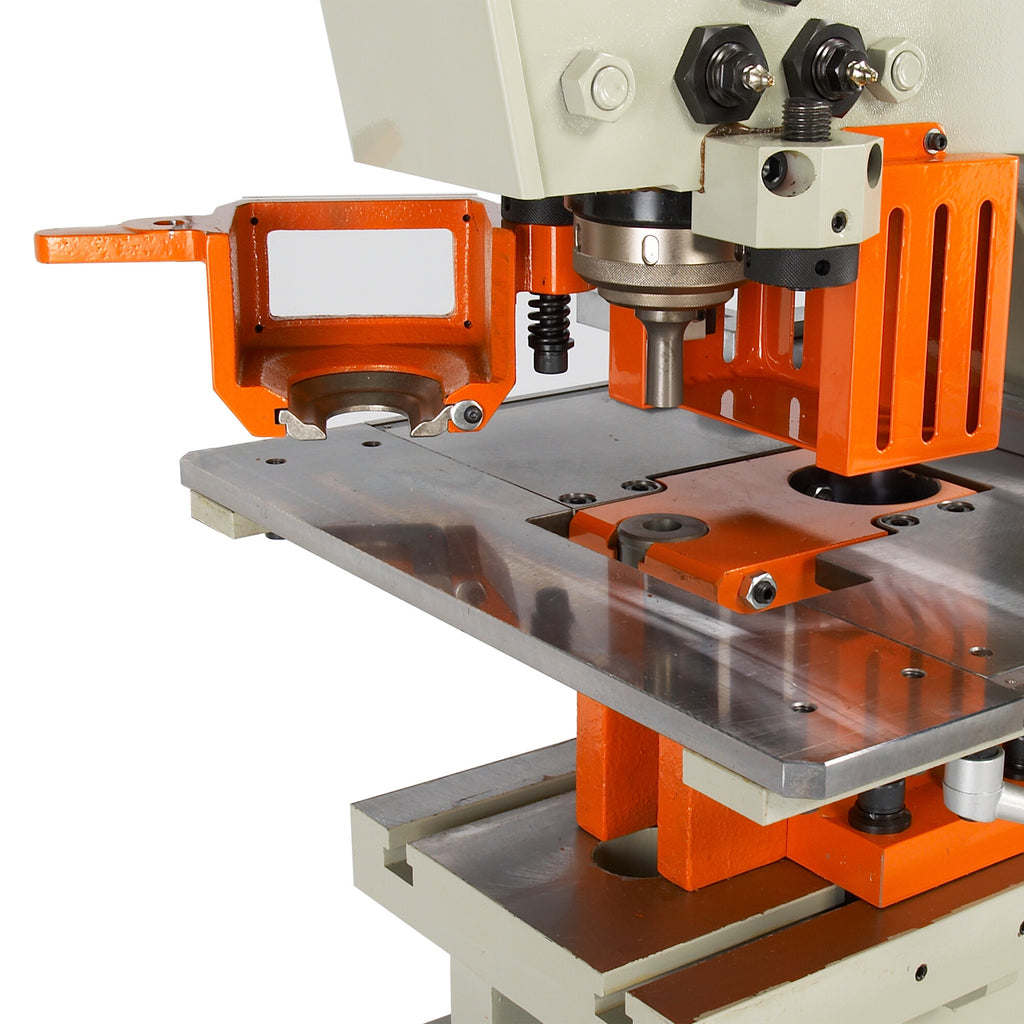

• Extra-deep 16" throat depth at the punch station handles large pieces of material and increases capacity
• Hydraulic hold-downs at the shear station ensure safe operation and even cuts and waste buckets keep your shop neat and reduce time spent on clean-up

Specifications

• MPN: BA9-1007865
• Brand: Baileigh
• Model: SW-95
• Punching Pressure: 95 tons
• Shearing and Notching Force: 123 tons
• Number of Workstations: 5
• Workstation Functions: Punching, notching, flat bar shearing, angle shearing, bar shearing

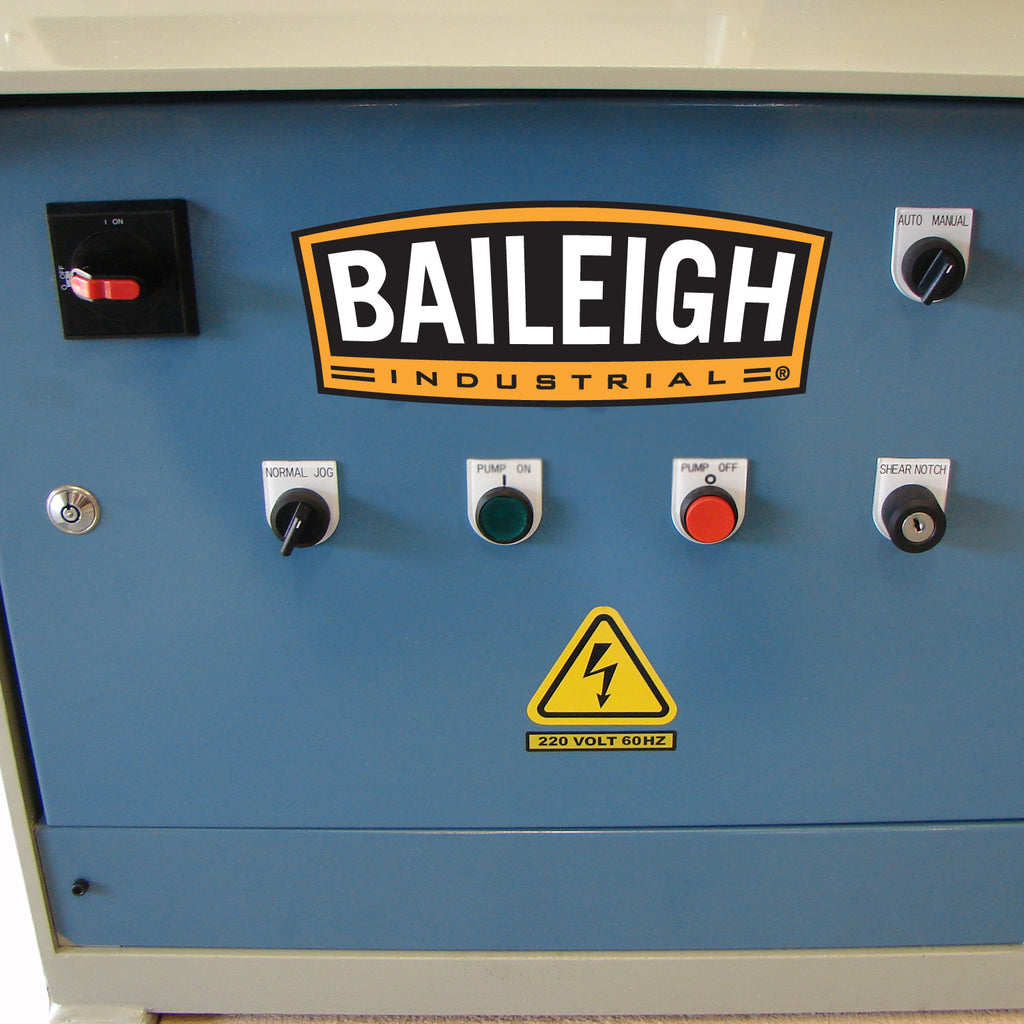

• Power Requirement: 220-volt 3-phase
• Throat Depth at Punch Station: 16"
• Punches and Dies Included: 7 sets
• Tooling Compatibility: Universal tooling
• Country of Origin: Taiwan

What's Included

• 7 sets of punches and dies
• Waste buckets
• Large worktables (separate into 2 pieces)
• Foot pedal for stop and start control
• Electric back gauge
• Adjustable material stops

Frequently Asked Questions

Can two operators use the SW-95 at the same time without one station losing power?

Yes. The dual-operator design enables 2 people to work at opposite ends of the machine simultaneously without loss of power at either station, making it ideal for high-volume production environments.

What power supply does the SW-95 require?

The SW-95 runs on 220-volt 3-phase power. Ensure your facility has a compatible power supply before installation.

How deep is the throat at the punch station, and why does it matter?

The punch station features an extra-deep 16" throat depth, which allows the machine to handle large pieces of material and significantly increases overall punching capacity compared to machines with shallower throats.

Does the worktable accommodate angle iron and irregularly shaped materials?

Yes. The large worktables separate into 2 pieces, allowing you to position angle iron and oddly shaped materials at the punch station without difficulty.
