Product Description

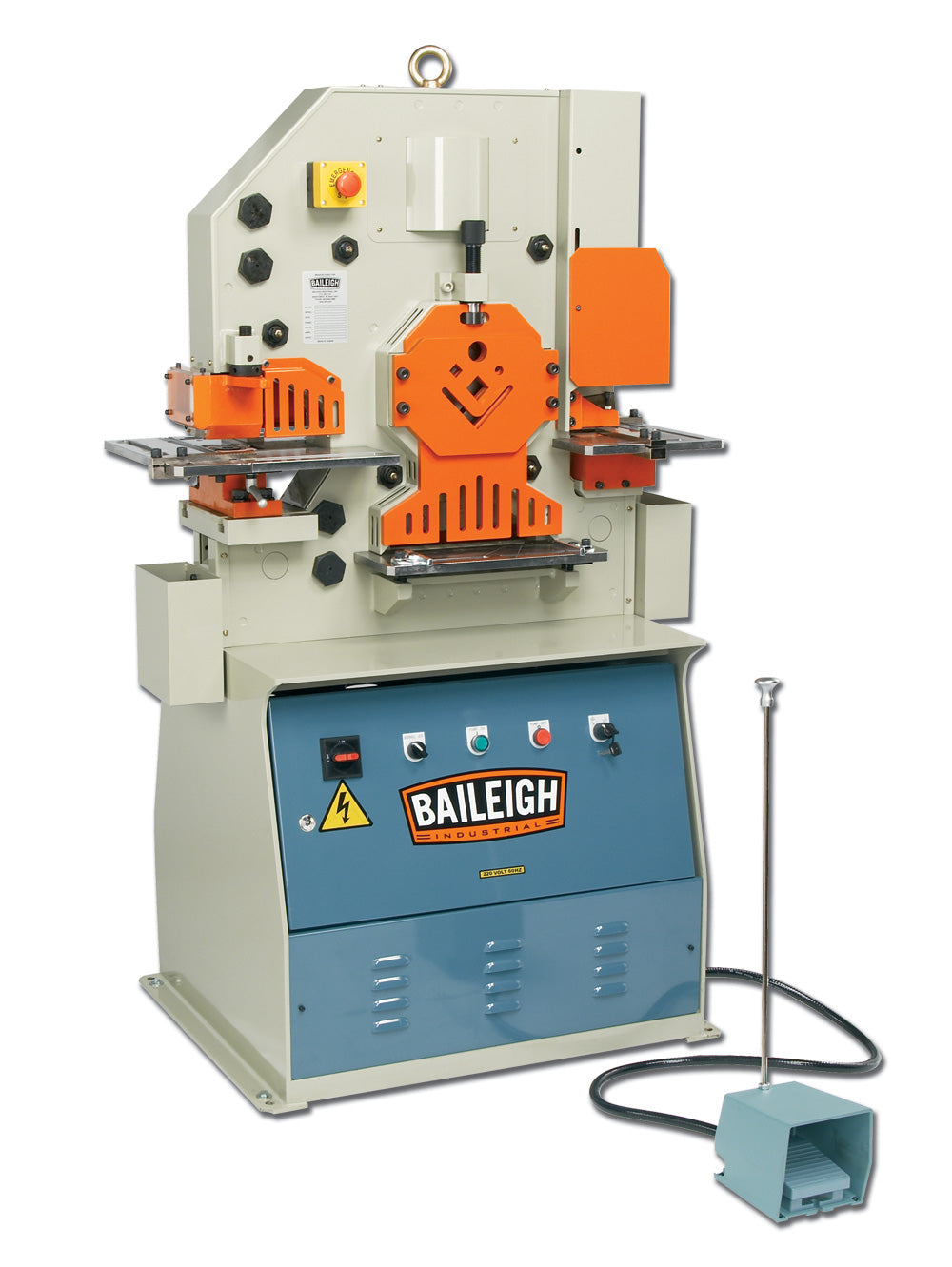

The Baileigh Hydraulic Ironworker SW-501 is a compact, multi-station hydraulic ironworker engineered to handle punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching from a single machine. Delivering 50 tons of vertical pressure across all 5 integrated workstations and running on convenient 220-volt single-phase power, this ironworker is built to execute clean, precise cuts in seconds while minimizing material waste and deformed edges - making it an indispensable workhorse for fabrication shops of every size.
Key Features
- Runs on 220-volt single-phase power and 50 tons of vertical pressure at each of its 5 integrated stations

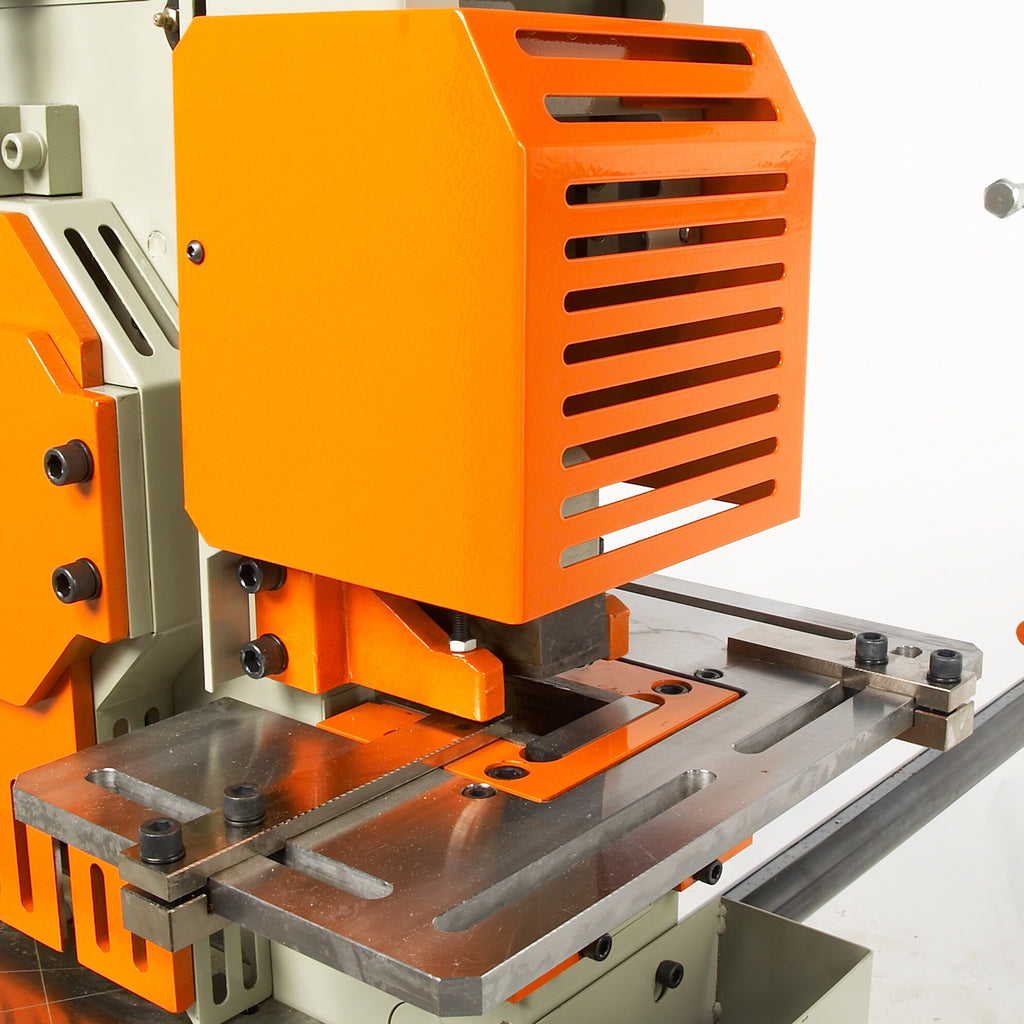

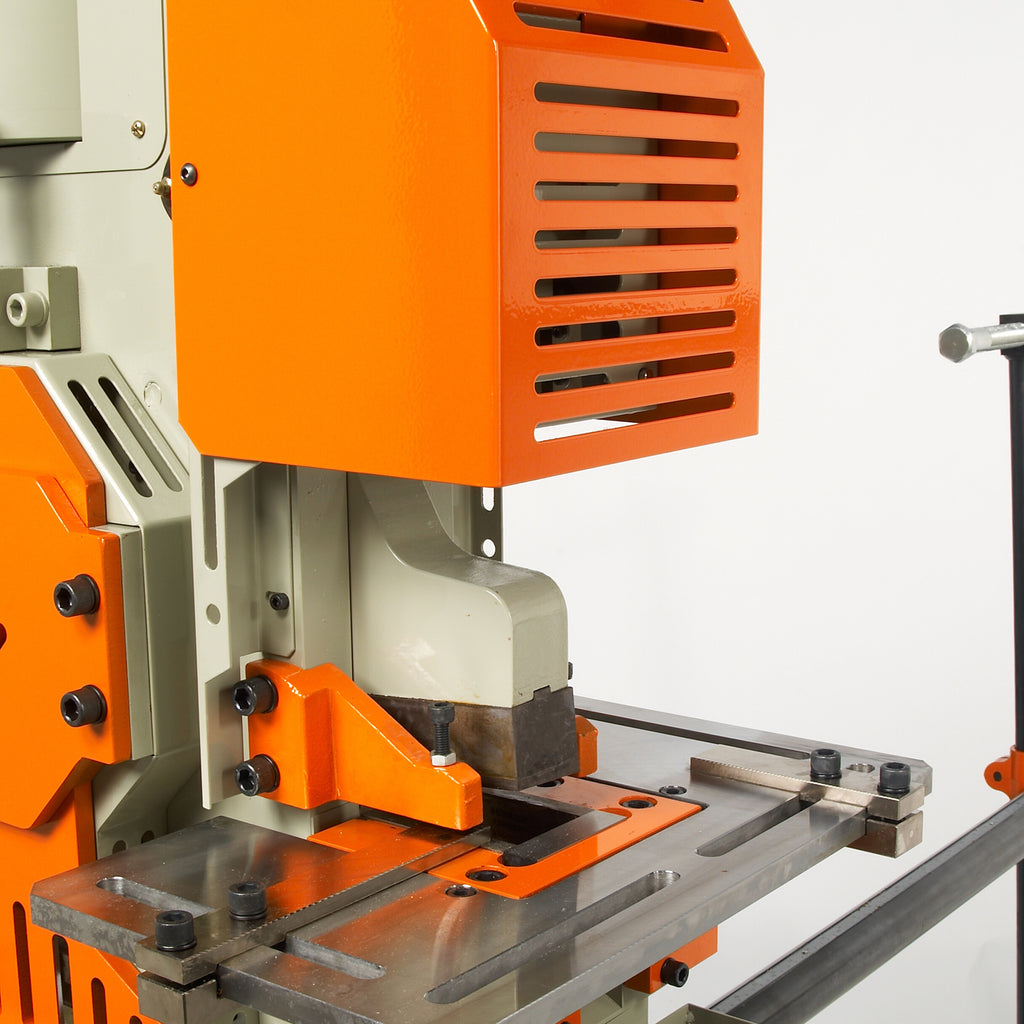

- 5 workstations each execute a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching
- Hydraulic vertical movement executes clean cuts in seconds, prevents deformed edges, and reduces waste
- Large 2-piece tables with meter guides pull out from the machine to handle many shapes and profiles

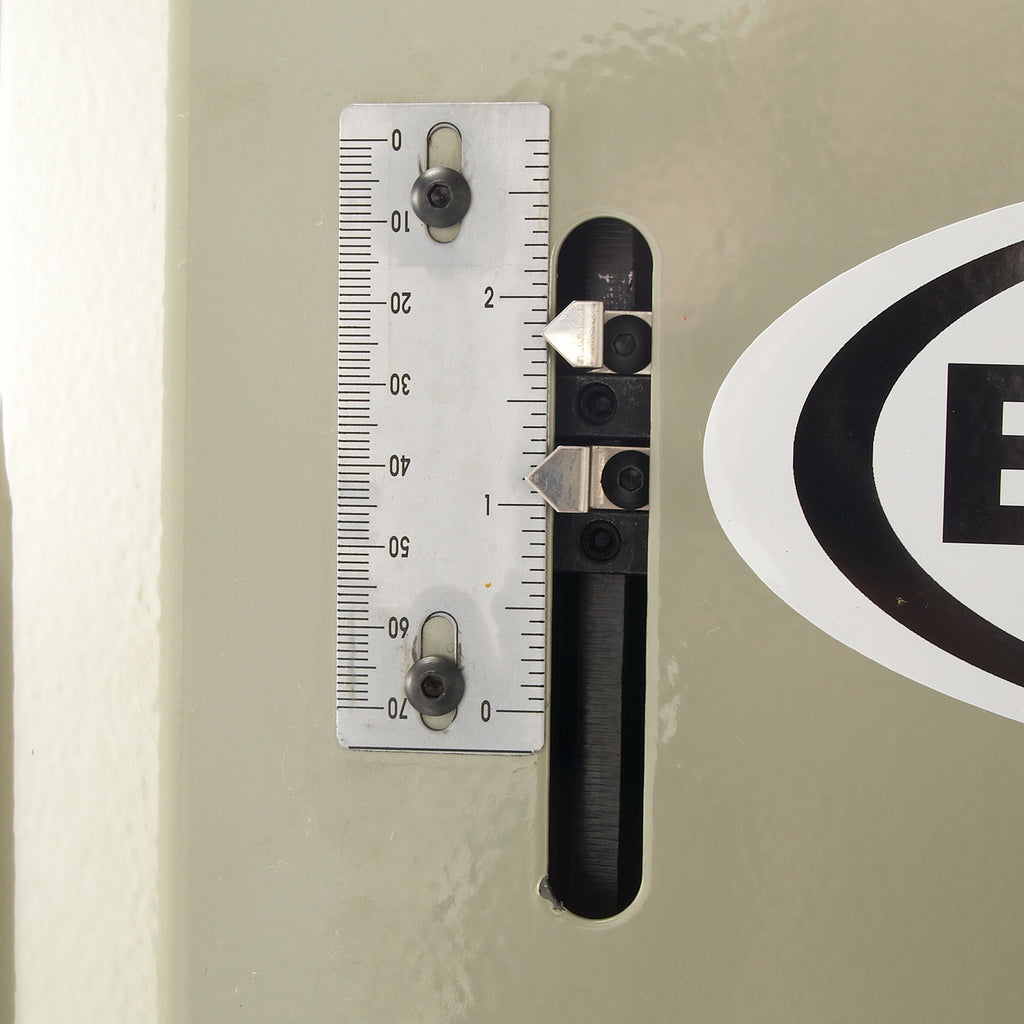

- Adjustable stroke control, with downward and upward stroke knobs, can limit machine movement and reduce production costs

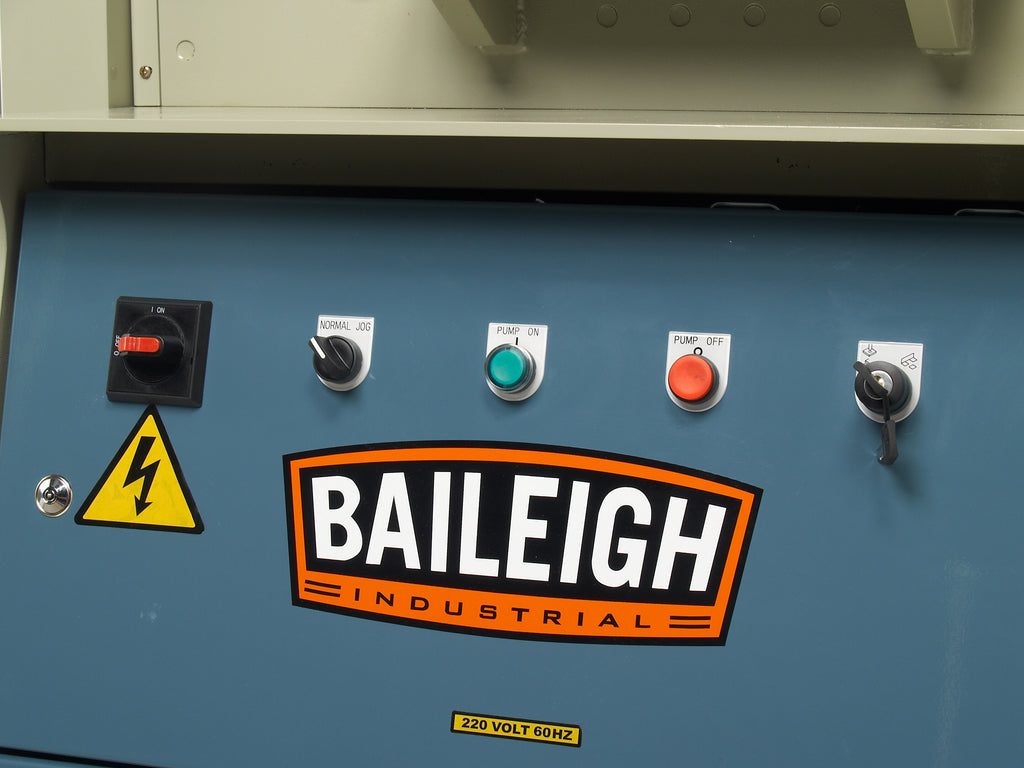

- Jog dial lets you align tooling for safe and easy set-ups

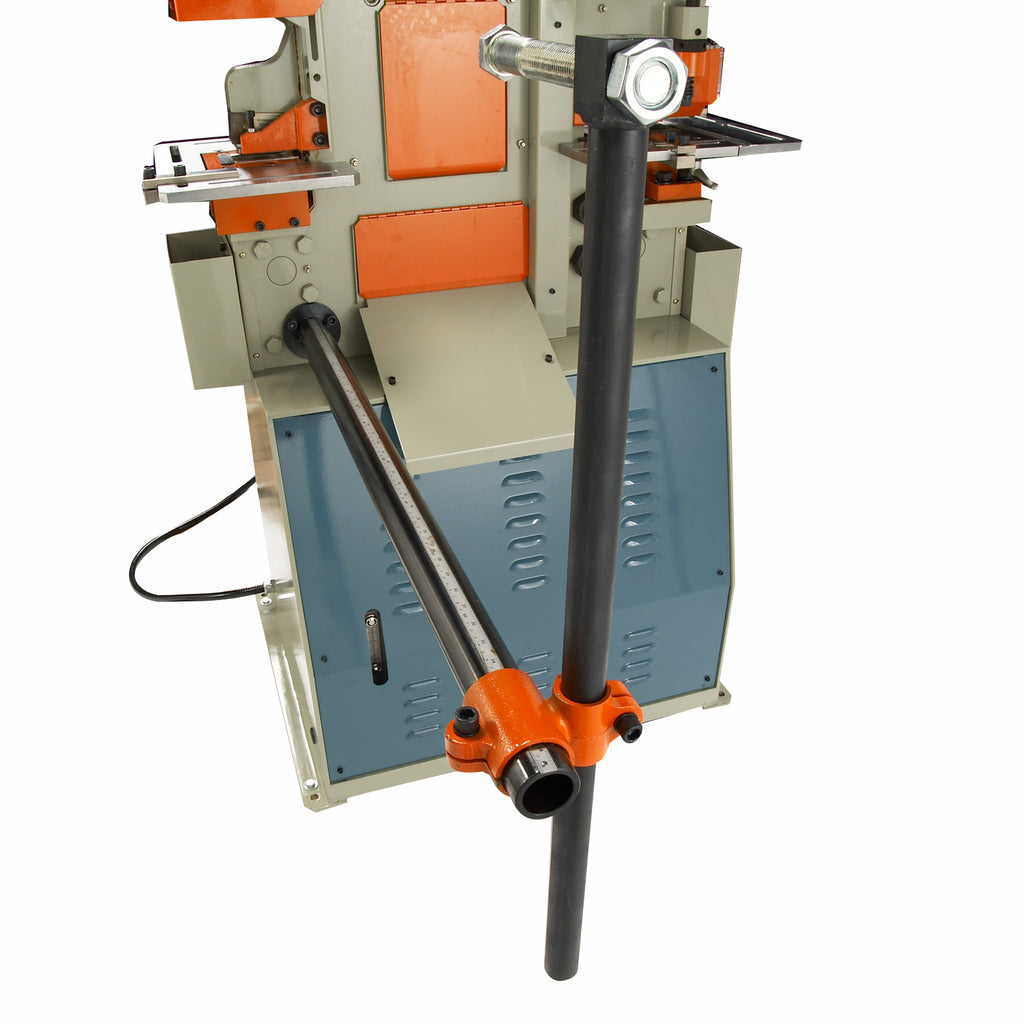

- Material stops and multi-positional back gauge simplify production runs while material hold-down with knurled handle enables you to quickly fine-tune and fit a given profile
- Punching station includes a T-slot base for versatile tooling setups

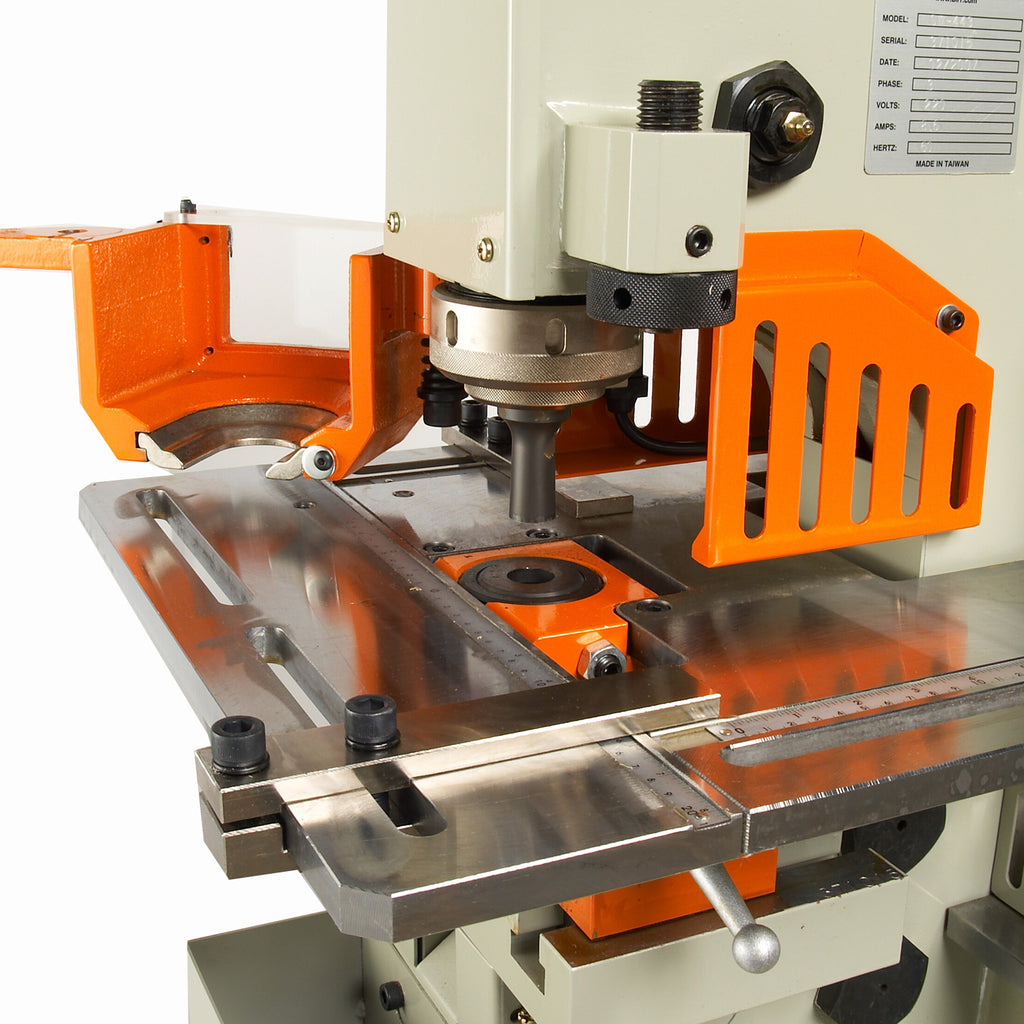

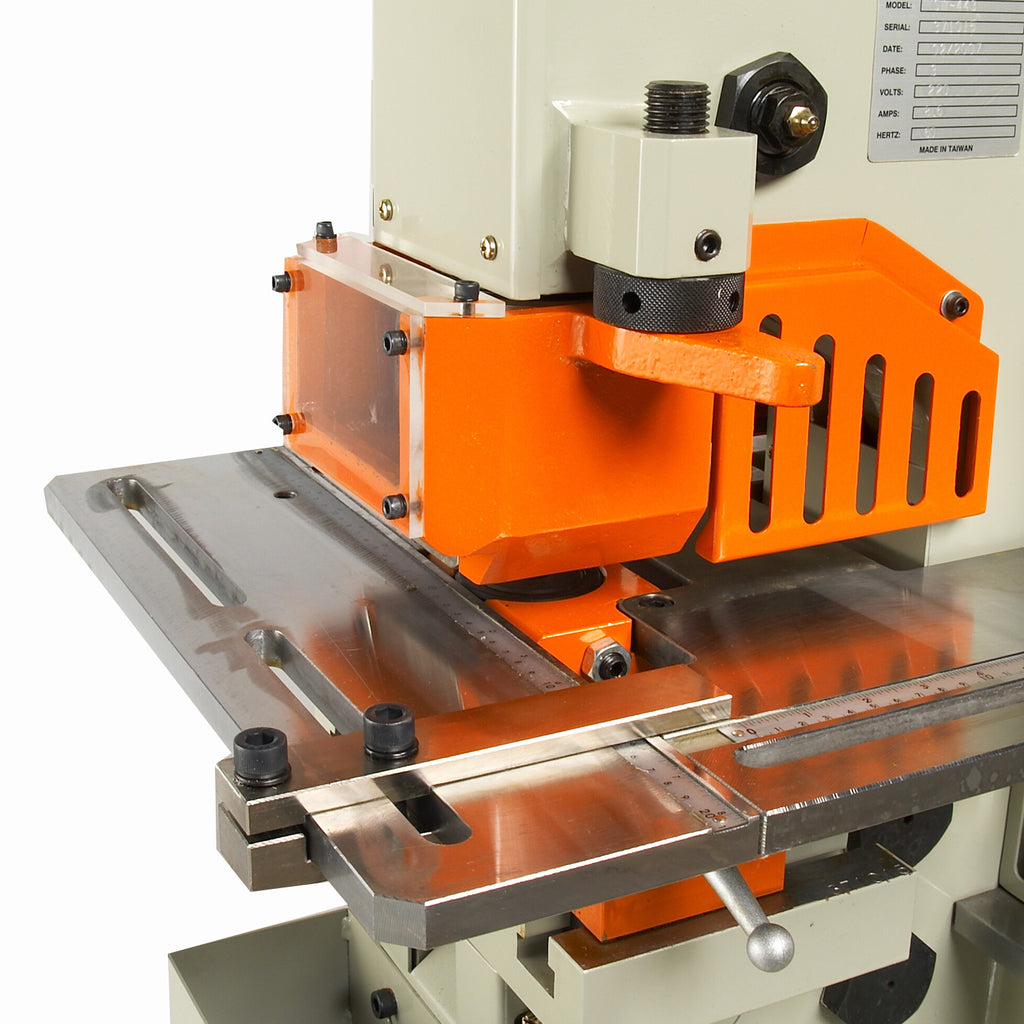

- 7 sets of punches and dies can tackle a wide range of projects, and the patented swing-away stripper makes tooling changes more efficient
- Welded steel plate framework keeps the machine rigid and minimizes flex for long-term durability
Specifications
- MPN: BA9-1007789
- Brand: Baileigh
- Model: SW-501
- Power Requirement: 220-volt single-phase
- Hydraulic Pressure: 50 tons of vertical pressure per station
- Number of Workstations: 5
- Workstation Functions: Punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching
- Included Punch and Die Sets: 7 sets
- Frame Construction: Welded steel plate
- Country of Origin: Taiwan
What's Included
- 7 sets of punches and dies
- Large 2-piece tables with meter guides
- Material hold-down with knurled handle
- Multi-positional back gauge
- Material stops
- Patented swing-away stripper
- T-slot base at punching station
Frequently Asked Questions
- What operations can the SW-501 perform?
- The SW-501 features 5 integrated workstations that each execute a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching - giving you the capability of multiple machines in one compact unit.
- What power supply does the SW-501 require?
- The SW-501 runs on 220-volt single-phase power, making it compatible with standard shop electrical setups without the need for three-phase service.
- How does the SW-501 minimize material waste and edge deformation?
- The machine's hydraulic movement is purely vertical, which executes clean cuts in seconds, prevents deformed edges, and reduces waste - unlike competing ironworkers that use less efficient pivot mechanisms.
- How are tooling changes handled on the SW-501?
- The SW-501 features a patented swing-away stripper at the punching station that makes tooling changes more efficient. The jog dial also allows you to align tooling for safe and easy set-ups, reducing downtime between jobs.
