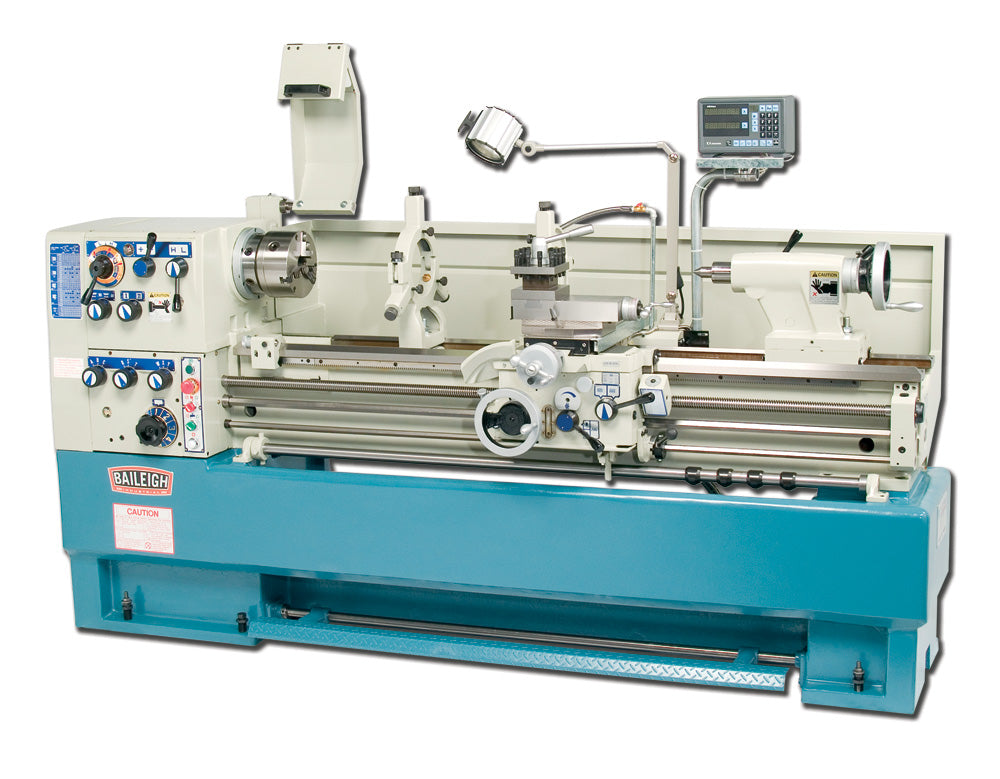

The Baileigh Engine Lathe PL-1860 by Baileigh Industrial is a heavy-duty, precision engine lathe engineered for professional machinists and production shops that demand accuracy, durability, and versatility in a single machine. Combining a powerful 7.5 hp motor with a Mitutoyo 2-axis digital readout system and Turcite-B coated ways, this cast-iron lathe is built to deliver consistently precise results across long production runs and demanding turning operations.

Key Features

• Powerful 7.5 hp motor and 12 speeds between 80-2,000 rpm lets you shave heavy cuts off your parts for better surfaces, faster production, and longer tooling life
• Mitutoyo 2-axis digital readout system makes it simple to achieve high-quality, precise results
• This cast-iron lathe can make metric or standard threads
• Turcite-B coating on the ways offers years of protection under the most grueling turning conditions
• Gap lathe design enables you to fit a larger diameter by removing a slide section
• Precision-ground and hardened slideways move smoothly and consistently with cast iron construction keeps the lathe rigid and accurate over many years of use

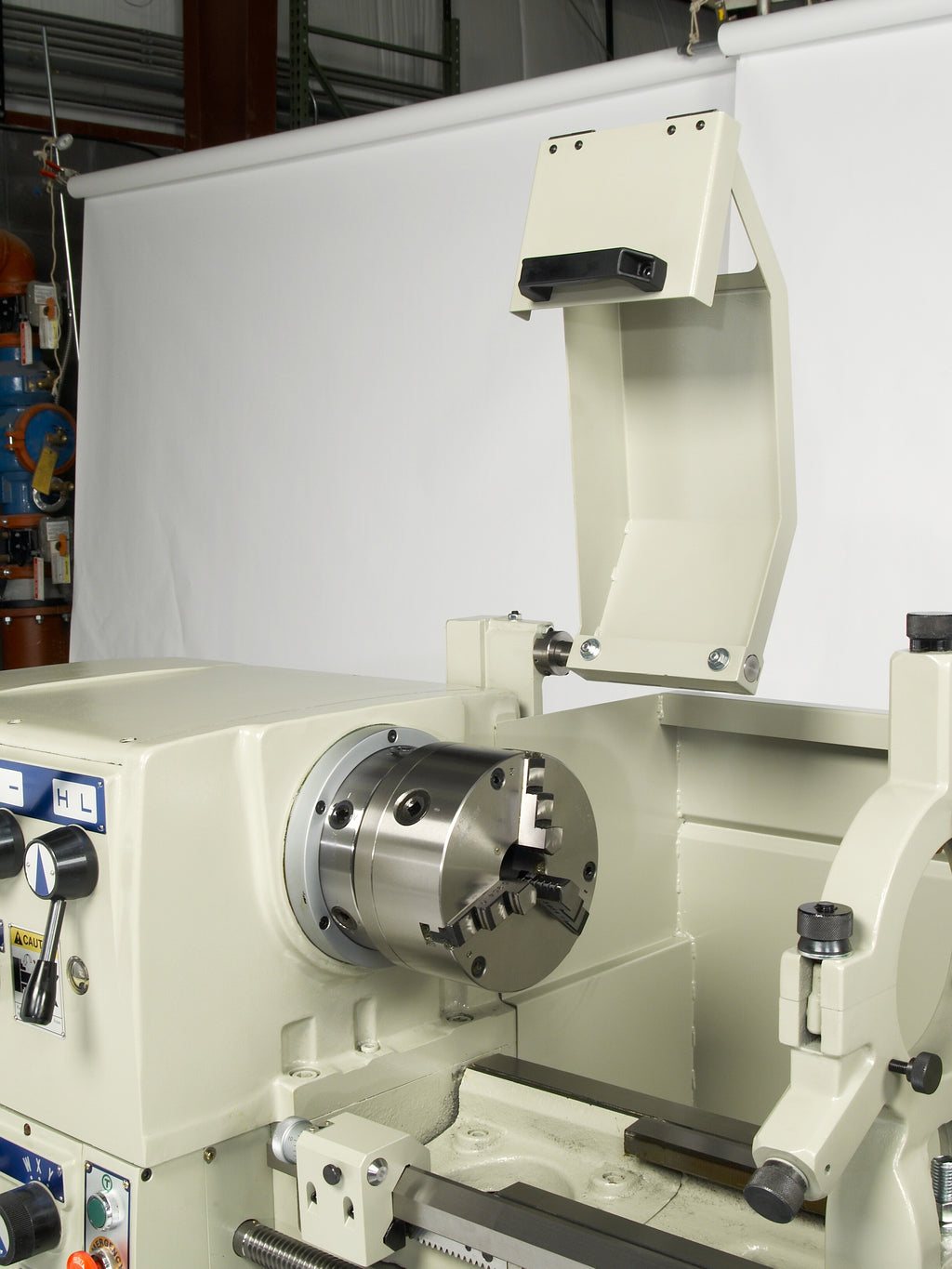

• Headstock chuck guard with automatic safety switch for enhanced operator protection
• Halogen work light, emergency foot brake, and integrated coolant system with a rear splash guard

Specifications

• MPN: BA9-1006157
• Brand: Baileigh Industrial
• Motor: 7.5 hp
• Spindle Speeds: 12 speeds, 80-2,000 rpm
• Chuck Size: 8" 3-jaw universal chuck
• Back Plate: 8"
• Thread Capability: Metric and standard
• Way Coating: Turcite-B
• Construction: Cast iron
• Digital Readout: Mitutoyo 2-axis
• Design: Gap lathe
• Country of Origin: Taiwan

What's Included

• 8" 3-jaw universal chuck
• 8" back plate
• Steady rest
• Follow rest
• Micrometer saddle stop
• Mitutoyo 2-axis digital readout system
• Headstock chuck guard with automatic safety switch
• Halogen work light
• Emergency foot brake
• Integrated coolant system with rear splash guard

Frequently Asked Questions

What spindle speed range does the PL-1860 offer?

The PL-1860 features 12 speeds ranging from 80-2,000 rpm, driven by a 7.5 hp motor. This range allows operators to take heavy roughing cuts at lower speeds or achieve fine finishing passes at higher speeds, supporting faster production and longer tooling life.

Can this lathe cut both metric and standard threads?

Yes. This cast-iron lathe can make metric or standard threads, making it a highly versatile choice for shops that work with a variety of fastener specifications or international part requirements.

What is Turcite-B and why does it matter for the ways?

Turcite-B is a high-performance bearing material applied as a coating on the ways. It reduces friction, resists wear, and offers years of protection under the most grueling turning conditions, helping maintain the accuracy and smooth movement of the slideways over the long term.

What is the advantage of the gap lathe design on the PL-1860?

The gap lathe design enables you to fit a larger diameter workpiece by removing a slide section near the headstock. This flexibility allows the lathe to accommodate oversized parts that would otherwise exceed the standard swing capacity, expanding the range of jobs the machine can handle.
