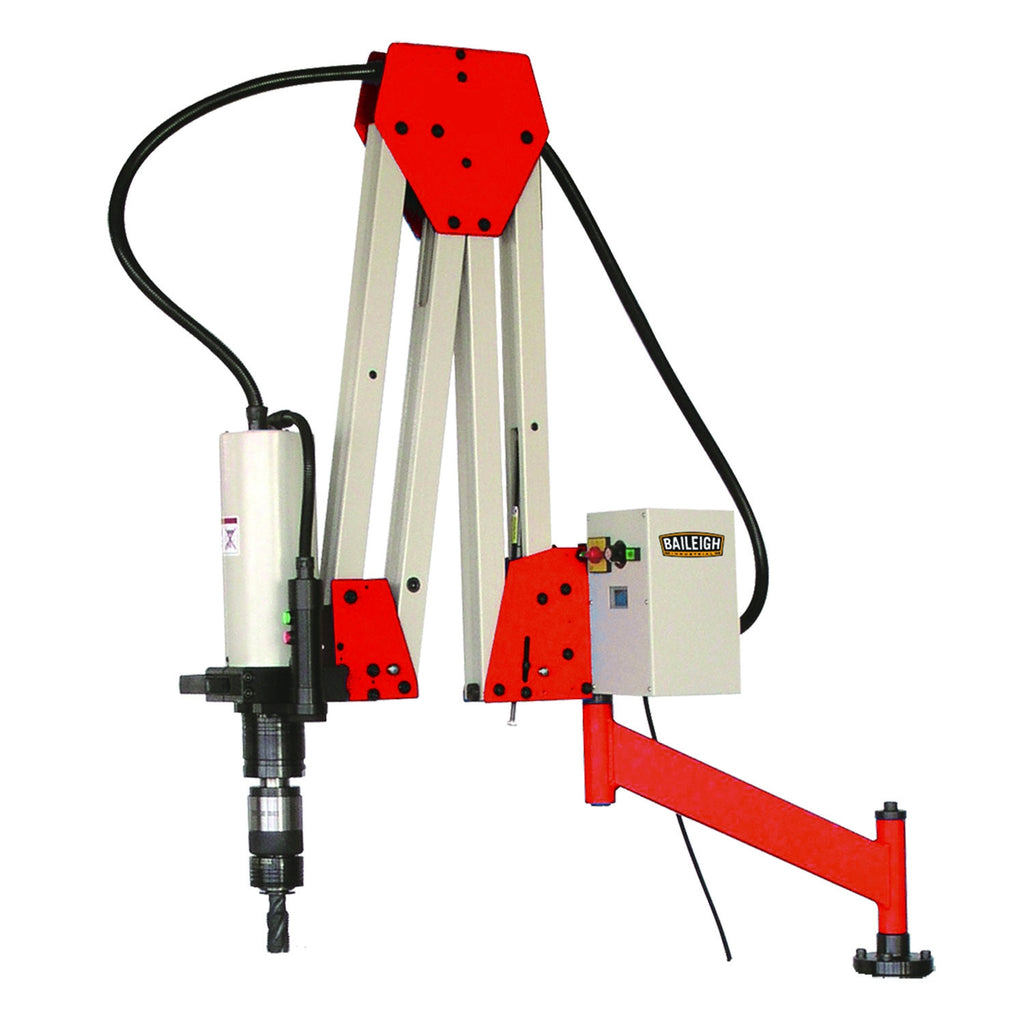

The Baileigh Electronically Controlled Tapping Arm ETM-32-1500 is a self-contained, electronically controlled tapping arm engineered for high-volume, repetitive tapping operations where consistency and worker ergonomics are paramount. Featuring a variable speed electric spindle and a double articulated arm, this unit delivers the versatility and reach needed to handle most every tapping job with precision and efficiency.

Key Features

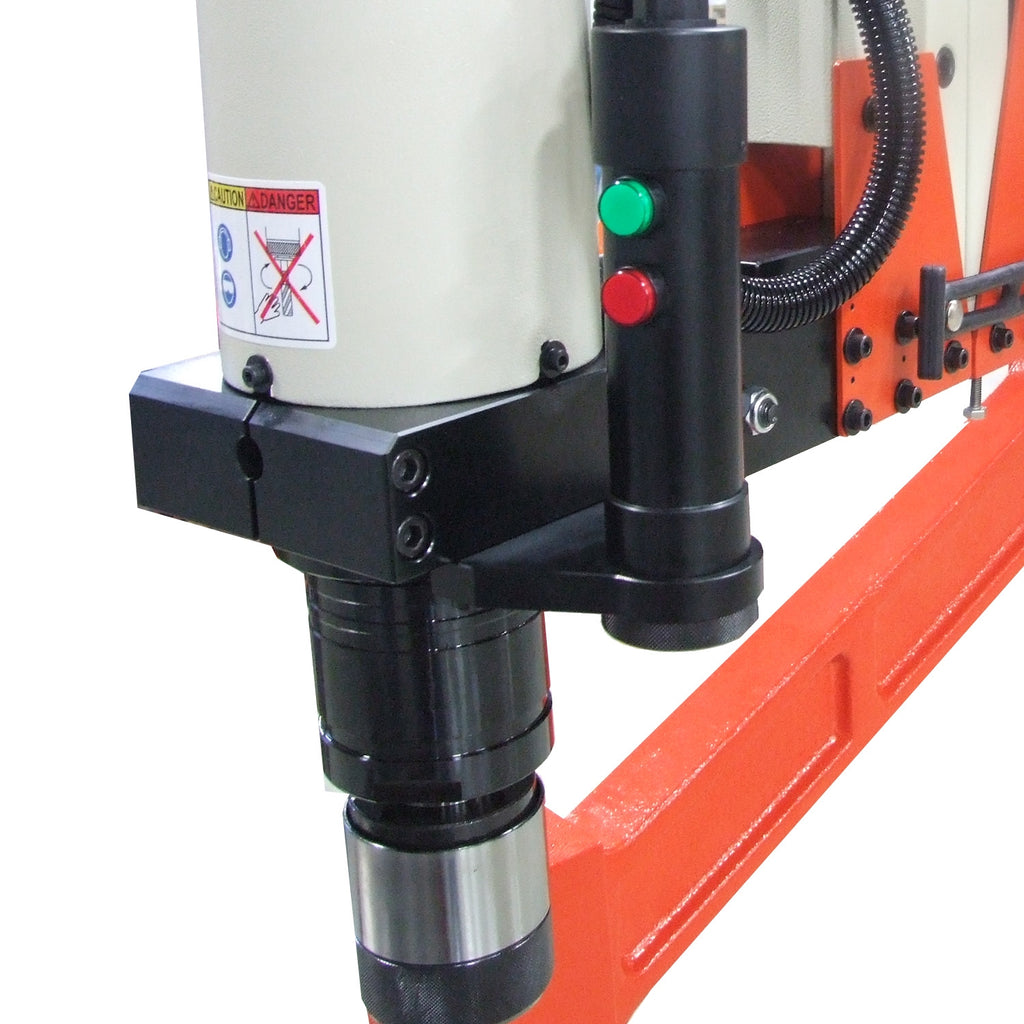

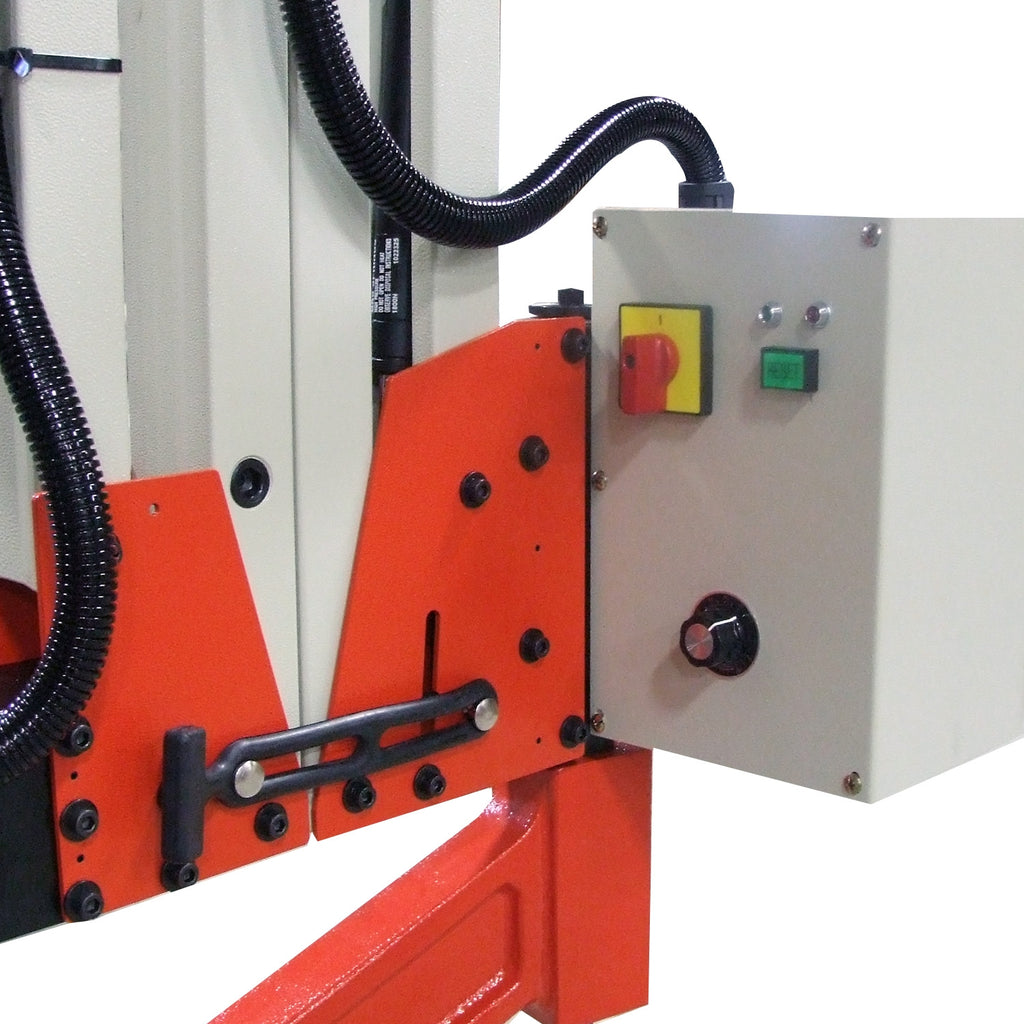

• Electric tapping spindle with variable speed control from 0-300 RPM for optimal performance across a wide range of tap sizes and materials
• Double articulated arm extends work range from 7.8"-59", providing exceptional reach and flexibility on the shop floor
• Maximum tapping capacity of 1-1/4", making this unit suitable for a broad variety of threading tasks

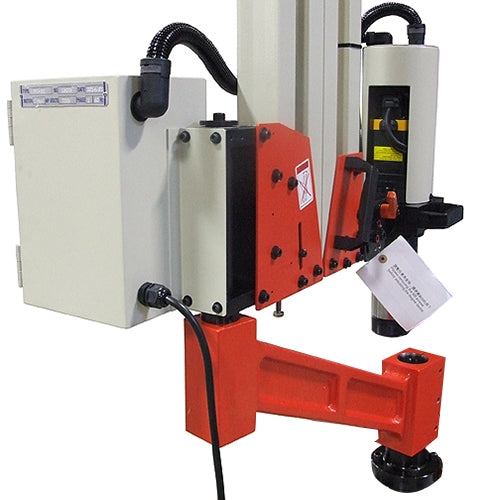

• Sturdy cast iron swing arm connected to the base via a hardened and ground shaft that incorporates a leveling system for accurate, consistent positioning
• Twin parallel arms constructed of heavy gauge aluminum tubing, effectively neutralizing vibration and torque reaction for operator comfort and precision
• Slanted arm design provides increased reach without sacrificing control or stability
• Adjustable spindle mount allows variable degree tapping to accommodate angled or complex workpieces
• Ergonomic design helps protect workers from repetitive-motion injuries that can develop over time during high-cycle tapping operations
• Table mount system provides a secure, stable installation footprint
• Operates on 220V single phase power - a common shop standard
• Optional work cart available to further enhance the versatility and mobility of this tapping arm

Specifications

• MPN: BA9-1004165
• Brand: Baileigh
• Model: ETM-32-1500
• Maximum Tapping Capacity: 1-1/4"
• Spindle Speed: 0-300 RPM
• Work Range: 7.8"-59"
• Arm Type: Double articulated, cast iron swing arm
• Arm Construction: Twin parallel arms of heavy gauge aluminum tubing
• Arm Mount: Hardened and ground shaft with leveling system
• Mounting System: Table mount
• Spindle Mount: Adjustable for variable degree tapping
• Power: 220V single phase

What's Included

• 1/4" tap holder
• 3/8" tap holder
• 1/2" tap holder
• 5/8" tap holder
• 1" tap holder
• 1-1/8" tap holder

Options

• Optional work cart available - contact us for details

Frequently Asked Questions

What is the maximum tapping capacity of the ETM-32-1500?

The ETM-32-1500 has a maximum tapping capacity of 1-1/4", allowing it to handle a wide range of threading applications in production environments.

What is the work range of this tapping arm?

The double articulated arm provides a work range of 7.8"-59", giving operators significant reach and flexibility to position the spindle over various workpiece locations.

What tap holders are included with the ETM-32-1500?

Six tap holders are included in the following sizes: 1/4", 3/8", 1/2", 5/8", 1", and 1-1/8", allowing the unit to get to work immediately across a variety of common tap sizes.

What power supply does the ETM-32-1500 require?

The ETM-32-1500 operates on 220V single phase power, which is a widely available standard in most production and fabrication shop environments.
