Product Description

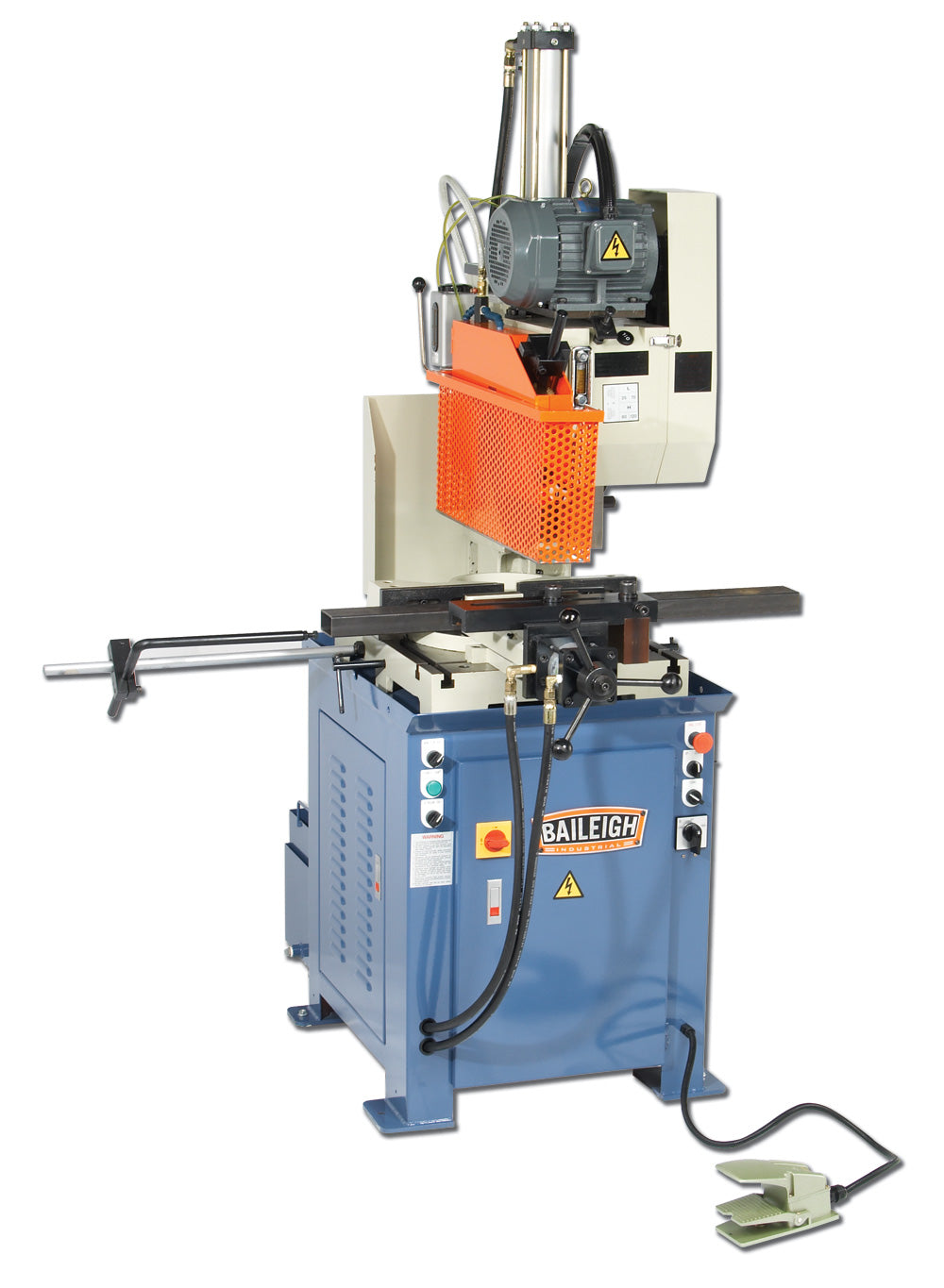

The Baileigh Semi-Automatic Column Coldsaw CS-C425SA is an industrial-grade cold saw engineered for large-scale production at full-service fabrication and machine shops. Built from steel and cast iron for decades of reliable service, this semi-automatic machine combines a powerful 5 hp blade motor, hydraulic downfeed, and a flood coolant system to deliver burr-free, accurate cuts cycle after cycle. Its semi-automatic operation means the blade descends, completes the cut, shuts off, and returns to the home position automatically - maximizing throughput while minimizing operator effort.
Key Features
- Miters 45 deg. left and 60 deg. right, perfect for angle iron and channel, and comes with a box of tools for maintenance and blade changeovers - metered stop rod lets you easily make repeatable lengths for production runs
- 5 hp blade motor runs on 220-volt 3-phase power, offers 4 cutting speeds (35, 60, 70, and 120 rpm), and accepts a maximum 17" blade
- Cutting head rides up and down heavy slideway tracks, hardened and ground to offer the most accurate cuts in the industry; rugged steel base reduces vibrations to produce burr-free cuts like only a cold saw can
- Blade head allows you to adjust the descent speed, turn a dial for manual or semi-automatic mode, and adjustable gibs on the column give the slideways a long lifetime of use
- Set a hard vertical stop so that the blade only cuts so far down - great for faster cycle times - while the hydraulic self-centering vise clamps the material, then the saw starts its descent
- Whole carriage, including motor and blade, will slide up or down with the press of a button so you can get your material in position
- Hydraulic downfeed movement of the cutting head offers precise cutting pressure through the cycle, which extends blade life
- Simple to operate: put the material against the stop rod and press the foot pedal to start cutting; after the cut the blade automatically shuts off and returns to home position
- Flood coolant system prolongs blade and machine life, helps the blade deliver cuts with smooth edges, and the industrial-grade coolant pump cools the blade and washes chips away
- Oiler system lets you pump a lever to release oil from the reservoir and keep the head moving up and down without catching
Specifications
- Brand: Baileigh
- MPN: BA9-1002633
- Model: CS-C425SA
- Blade Motor: 5 hp
- Power Requirement: 220-volt, 3-phase
- Cutting Speeds: 35, 60, 70, and 120 rpm
- Maximum Blade Diameter: 17"
- Miter Capacity: 45 deg. left / 60 deg. right
- Operation Mode: Manual or semi-automatic (dial selectable)
- Downfeed: Hydraulic
- Vise Type: Hydraulic self-centering
- Coolant System: Flood coolant with industrial-grade coolant pump
- Country of Origin: Taiwan
Approved Applications
- Large-scale production cutting at full-service fabrication shops
- Machine shop production runs requiring repeatable cut lengths
- Cutting angle iron and channel at miter angles
- High-volume cutting operations where burr-free, smooth-edge cuts are required
What's Included
- Box of tools for maintenance and blade changeovers
Frequently Asked Questions
- What miter angles does the CS-C425SA support?
- The CS-C425SA miters 45 deg. left and 60 deg. right, making it well suited for cutting angle iron and channel at production volumes.
- How does the semi-automatic mode work on this cold saw?
- In semi-automatic mode, you place the material against the stop rod and press the foot pedal to start the cutting cycle. The hydraulic self-centering vise clamps the material, the saw descends through the cut, and after the cut is complete the blade automatically shuts off and returns to the home position - no manual retraction required.
- What cutting speeds are available, and what is the maximum blade size?
- The CS-C425SA offers 4 cutting speeds: 35, 60, 70, and 120 rpm. It accepts a maximum 17" blade, driven by a 5 hp motor running on 220-volt 3-phase power.
- How does the machine help extend blade life during heavy production use?
- Blade life is extended through two systems working together: the hydraulic downfeed delivers precise, consistent cutting pressure throughout each cycle, and the flood coolant system - powered by an industrial-grade coolant pump - continuously cools the blade and clears chips away from the cut zone.
