Product Description

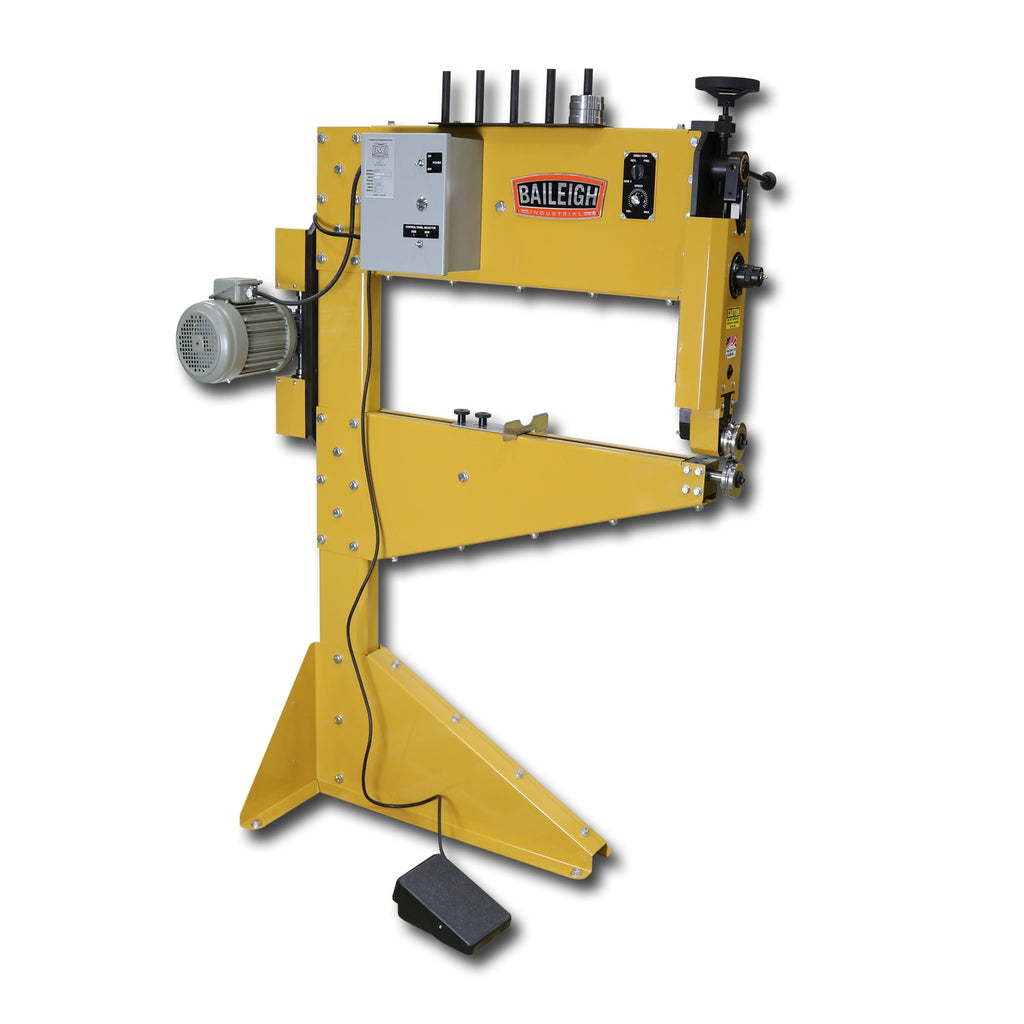

The Baileigh Bead Roller BR-16E-36 by Baileigh is a heavy-duty, American-made electric bead roller engineered for fabricators who need the reach and power to shape the center of large panels with precision and repeatability. With a 36-inch throat depth and an industrial motor, this machine delivers the performance and control professionals demand for consistent, high-quality bead work.
Key Features
- Made in the USA.
- 16 gauge mild steel maximum capacity with a 36" throat depth enables you to work on the middle of large panels.
- Industrial .5 hp motor runs on 110-volt power. Plug it into any household outlet.
- Both rolls are driven. Chain drive on the top roll prevents slippage.
- Variable-speed foot pedal lets you slow down your feed rate for more delicate work.

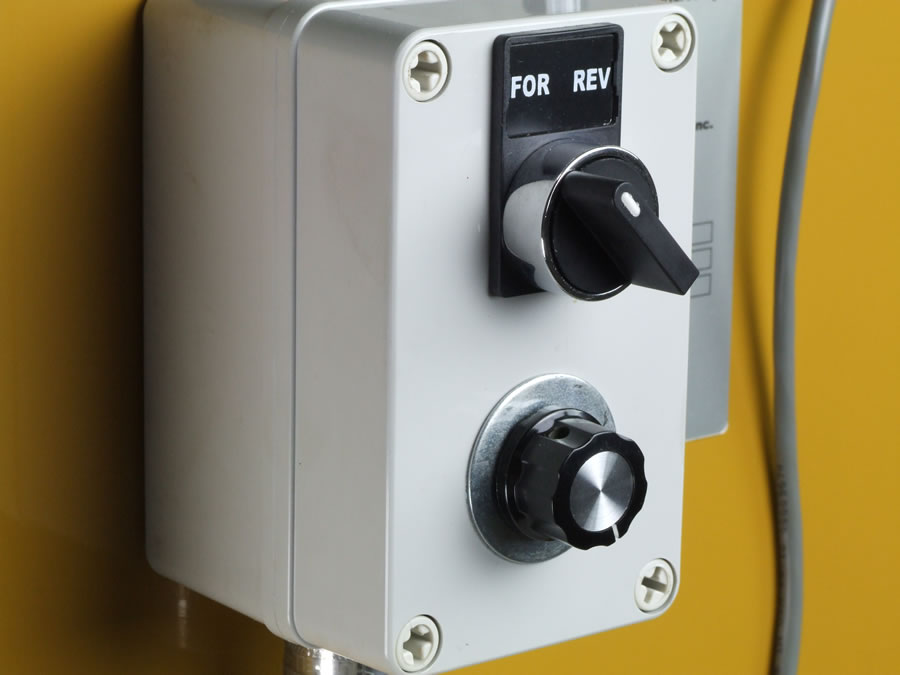

- You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed.
- Rollers can run forward or in reverse, so you can go over a pattern as needed.
- Left- and right-hand controls are the same on both sides of the machine.

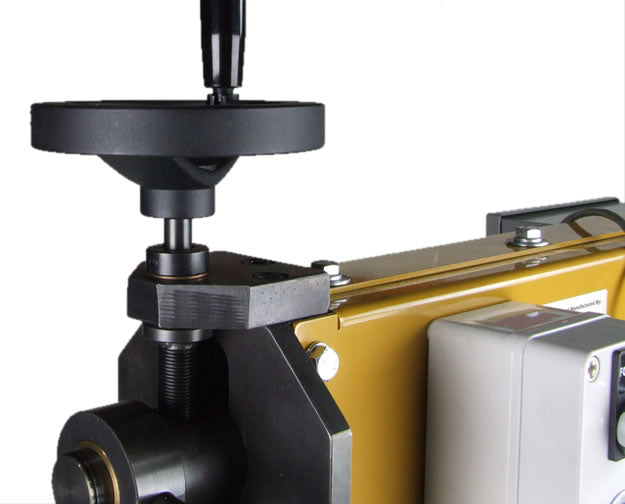

- Adjust the forming depth by turning a hand wheel just above the working area.
- You can begin or end a design in the middle of the panel and not worry if the depth is set correctly.
Specifications
- MPN: BA9-BR36
- Brand: Baileigh
- Model: BR-16E-36
- Maximum Capacity: 16 gauge mild steel
- Throat Depth: 36"
- Motor: .5 hp
- Power Requirement: 110-volt
- Country of Origin: United States
Frequently Asked Questions
- What is the maximum material capacity of the BR-16E-36?
- The BR-16E-36 has a maximum capacity of 16 gauge mild steel, making it well-suited for panel fabrication and metalworking applications requiring precise bead forming.
- Does the machine require special wiring or a dedicated electrical circuit?
- No. The industrial .5 hp motor runs on 110-volt power, so you can plug it into any household outlet without the need for special wiring or a dedicated circuit.
- Can I control the speed of the rolls while the machine is running?
- Yes. You can change the RPM of the rolls in real time by turning the dial on the side, or you can lock the rolls at a constant speed. The variable-speed foot pedal also lets you slow down your feed rate for more delicate work.
- Is the BR-16E-36 able to run in reverse?
- Yes. Rollers can run forward or in reverse, so you can go over a pattern as needed for greater design flexibility and accuracy.
