Product Features
Product Description

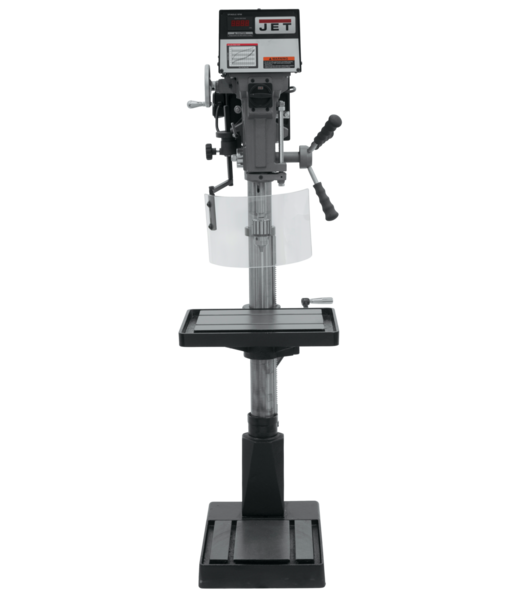

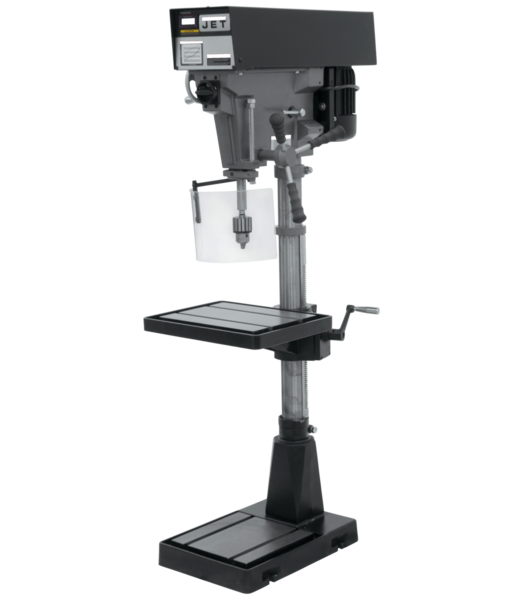

The JET J-A5816 15" Variable Speed Floor Model Drill Press delivers professional-grade drilling performance through a continuously variable transmission system paired with a scale-marked handwheel speed adjustment. Designed for demanding workshop and industrial applications, this floor model combines a wide 400-5,000 RPM speed range with robust construction features - including a large 2-1/4" quill and a 3" column diameter - to provide the rigidity and precision required for accurate, repeatable drilling in cast iron, mild steel, and beyond.
Key Features

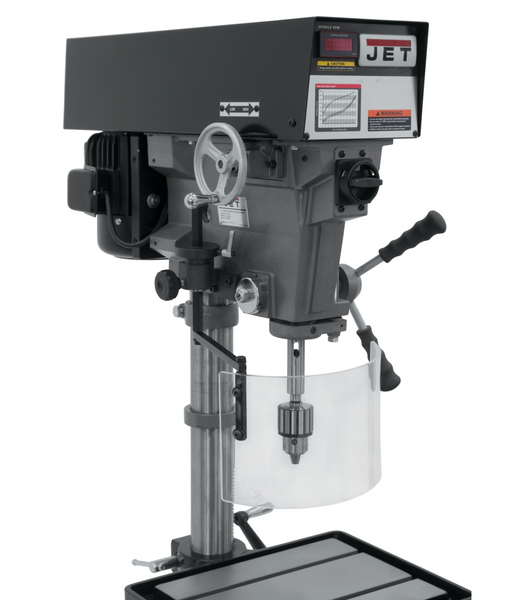

- Handwheel speed adjustment spanning 400-5,000 RPM allows precise control and the ability to change speed during operation
- Large 2-1/4" quill for greater accuracy on every drilling pass
- 6" stroke for deep hole applications
- 3" column diameter for maximum head support and machine stability
- Full bearing support on quill for maximum spindle stiffness
- Variable-speed motor with stepped-pulley system and continuously variable transmission for a wide range of usable speeds
- Scale-marked handwheel mounted to a reduction gearing system for precise operator speed control
- Tensioner pulley in the belt transmission takes up or releases slack as speed changes
- 1/2" drill chuck and arbor included
Specifications
- Model Number: J-A5816
- Stock Number: JT9-354550-2
- Motor: 1 HP, 115/230V, 1Ph
- Range of Spindle Speeds (RPM): 400-5,000
- Column Diameter (In.): 3
- Drills to Center of Circle (In.): 15
- Distance Column to Spindle (In.): 7-1/2
- Drilling Capacity Cast Iron (In.): 5/8
- Drilling Capacity Mild Steel (In.): 1/2
- Spindle Distance to Base (In.): 44-1/2
- Base Dimensions (In.): 20-7/16 x 14-3/16
- Base Work Table (In.): 12-1/8 x 11-13/16
- Overall Dimensions (L x W x H) (In.): 30 x 20 x 71
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- 1/2" drill chuck and arbor
Frequently Asked Questions
- What is the spindle speed range on the J-A5816?
- The J-A5816 offers a handwheel speed adjustment of 400-5,000 RPM. The scale-marked handwheel connects to a reduction gearing system, allowing the operator to dial in precise speeds and even change speed while the machine is in operation.
- Can this drill press handle deep hole applications?
- Yes. The J-A5816 features a 6" stroke specifically suited for deep hole applications, giving operators the reach needed for demanding drilling tasks in a variety of materials.
- What makes the quill design on this machine beneficial for accuracy?
- The J-A5816 uses a large 2-1/4" quill combined with full bearing support on the quill assembly. This configuration provides maximum spindle stiffness, which directly contributes to greater accuracy and consistent hole quality during drilling operations.
- What drilling capacities does the J-A5816 support?
- The J-A5816 has a drilling capacity of 5/8" in cast iron and 1/2" in mild steel, making it well suited for a broad range of metalworking and fabrication tasks. The 3" column diameter provides the head support necessary to handle these capacities with stability.
