Product Features
Product Description

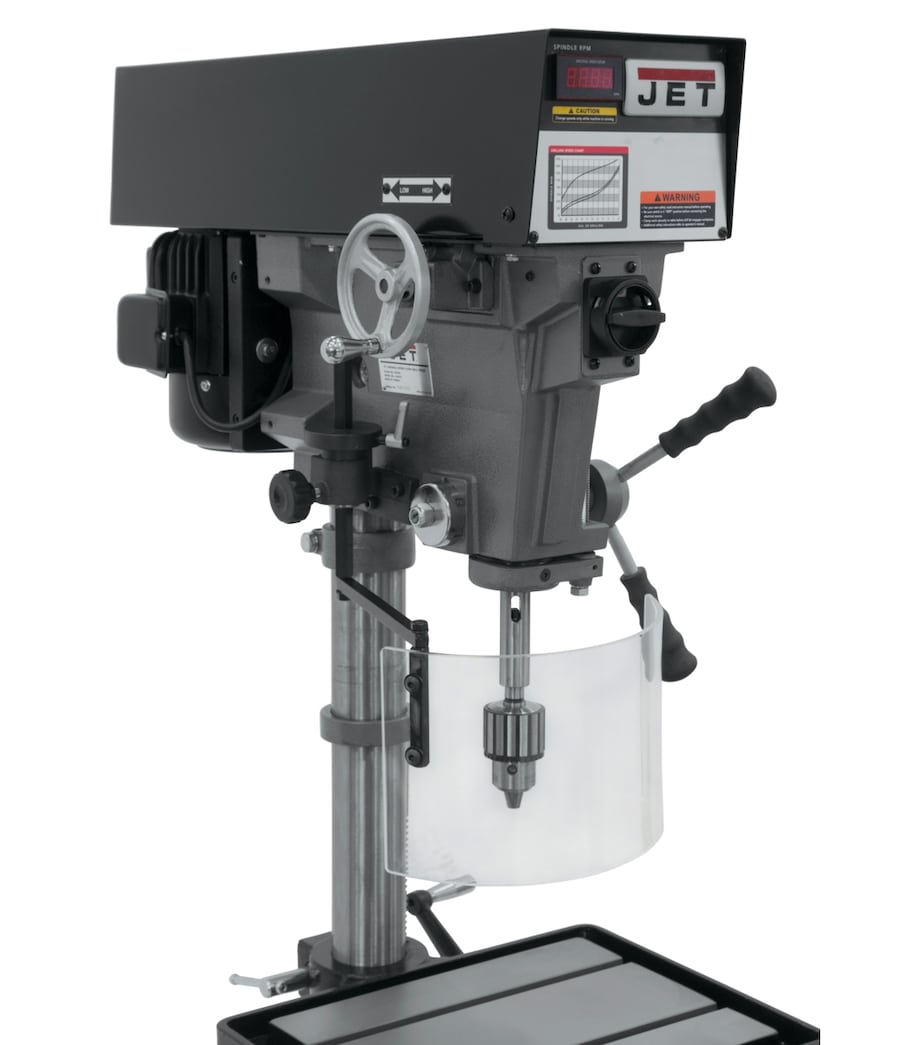

JET J-A5816 15" Variable Speed Floor Model Drill Press by JET delivers professional-grade drilling performance through a continuously variable transmission system that allows smooth speed adjustment from 400-5,000 RPM without stopping the machine. Designed for demanding shop environments, this floor model pairs a rigid 3" column with a large 2-1/4" quill to ensure exceptional spindle stiffness and drilling accuracy across a wide range of materials and applications.
Key Features
- Handwheel speed adjustment spanning 400-5,000 RPM allows precise, on-the-fly speed changes to match any material or bit requirement
- Large 2-1/4" quill delivers greater accuracy by minimizing flex and runout at the spindle
- Full bearing support on the quill ensures maximum spindle stiffness throughout the entire drilling stroke
- 6" stroke accommodates deep hole applications where extended reach is essential
- 3" column diameter provides maximum head support and overall machine stability
- Scale-marked handwheel mounted to a reduction gearing system gives the operator precise, repeatable speed control
- Continuously variable transmission with a tensioner pulley automatically takes up or releases belt slack as speed changes
- 1/2" drill chuck and arbor included - ready to put to work right out of the box
- 1 HP, 115/230V, 1Ph motor offers flexible voltage configuration for a variety of shop electrical setups
Specifications
- Stock Number: 354550
- Country of Origin: Taiwan
- Motor: 1 HP, 115/230V, 1Ph
- Range of Spindle Speeds (RPM): 400-5,000
- Column Diameter (In.): 3
- Quill Diameter (In.): 2-1/4
- Stroke (In.): 6
- Drilling Capacity - Mild Steel (In.): 1/2
- Drilling Capacity - Cast Iron (In.): 5/8
- Drills to Center of Circle (In.): 15
- Distance Column to Spindle (In.): 7-1/2
- Spindle Distance to Table, Max. (In.): 25-3/4
- Spindle Distance to Base (In.): 44-1/2
- Base Dimensions (In.): 20-7/16 x 14-3/16
- Base Work Table (In.): 12-1/8 x 11-13/16
- Overall Dimensions L x W x H (In.): 30 x 20 x 71
- Prop 65: Cancer and Reproductive Harm
What's Included
- 1/2" drill chuck
- Arbor
Frequently Asked Questions
- Can the speed be changed while the drill press is running?
- Yes. The continuously variable transmission allows the operator to adjust speed during operation using the scale-marked handwheel. The built-in tensioner pulley automatically takes up or releases belt slack as the speed changes, so no machine shutdown is required between speed adjustments.
- What is the full speed range of this drill press?
- The spindle speed is adjustable from 400-5,000 RPM via the handwheel speed adjustment system, providing a wide operating range suitable for drilling into materials from hardened metals to softer woods and plastics.
- What is the maximum drilling capacity of this machine?
- This drill press is rated for a drilling capacity of 1/2" in mild steel and 5/8" in cast iron. The 6" stroke supports deep hole applications where extended reach is needed.
- What voltage configurations does this drill press support?
- The 1 HP motor is configured for 115/230V, 1Ph operation, allowing it to be wired for either standard 115V single-phase or 230V single-phase power to suit different shop electrical setups.
