Product Description

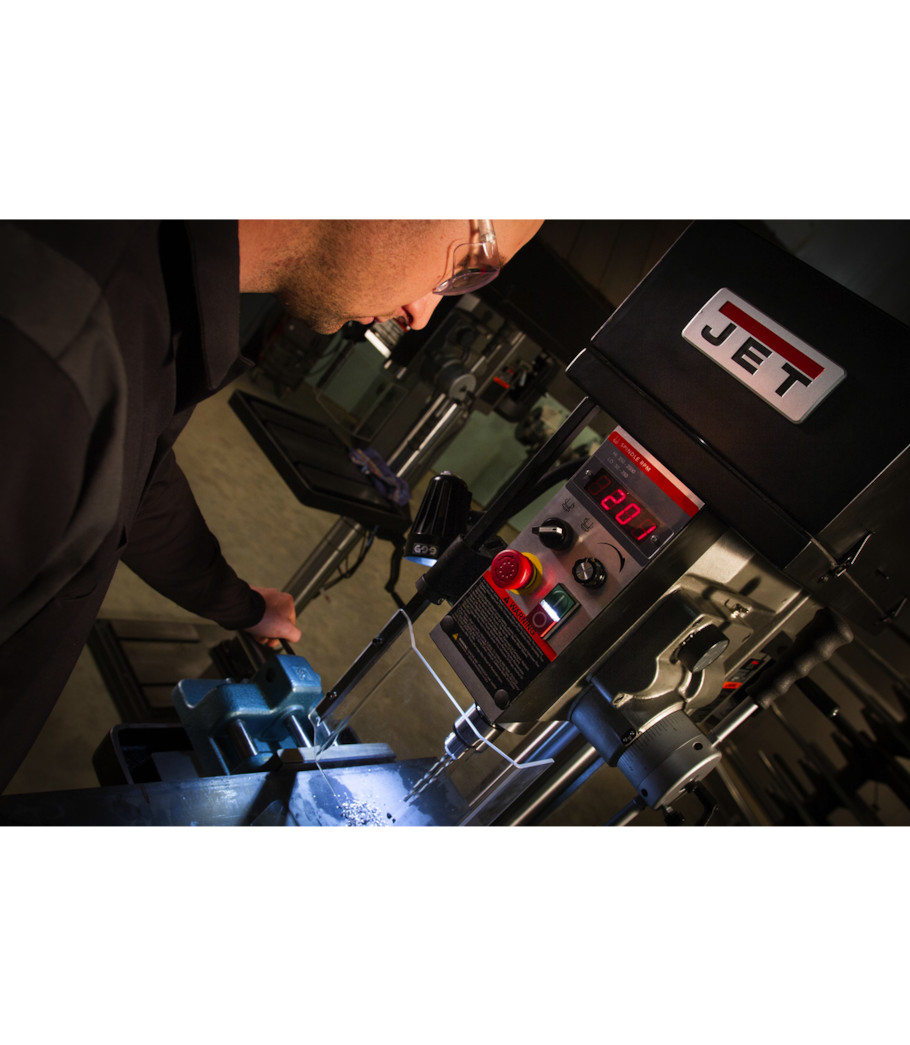

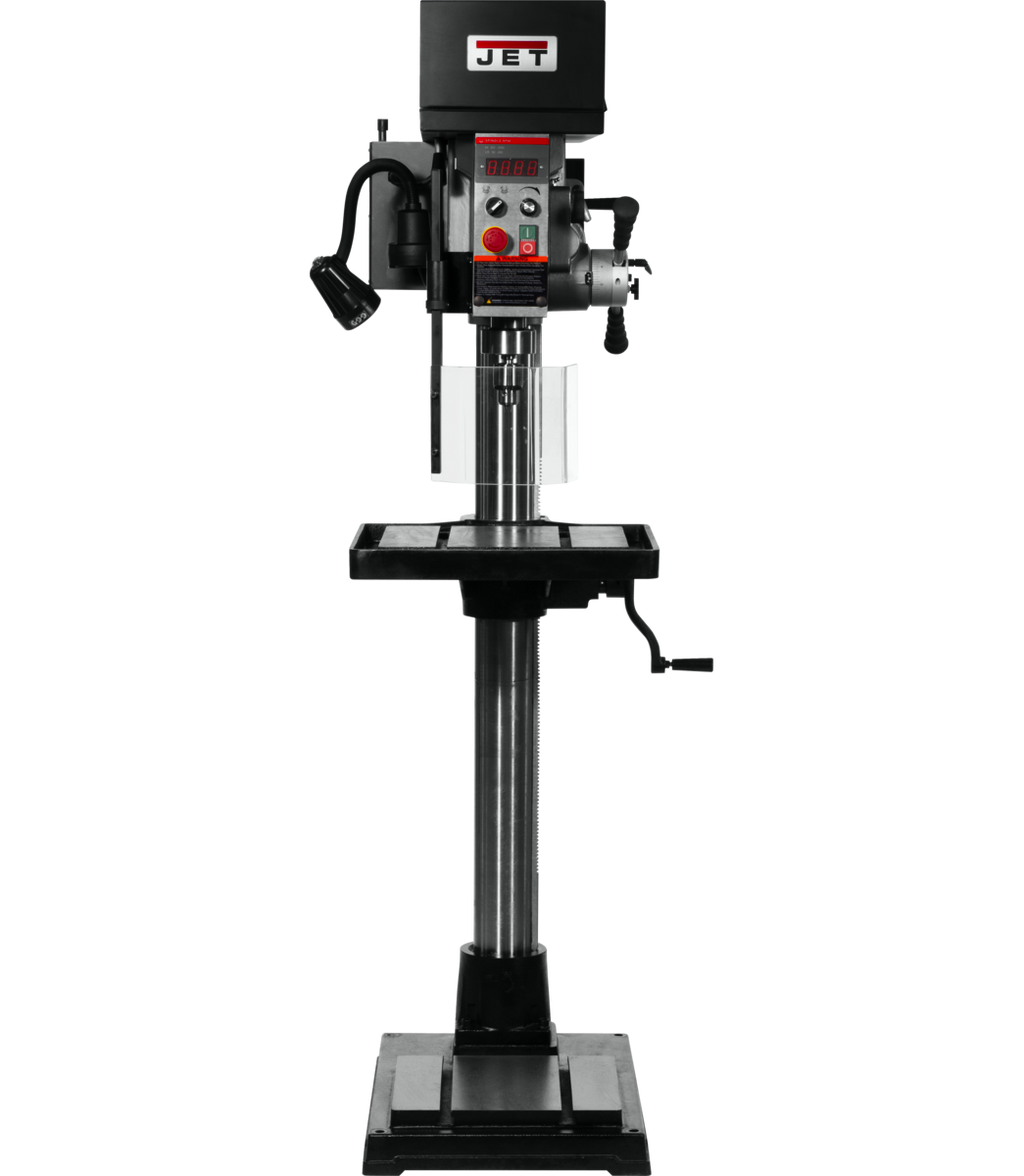

JET JDPE-20EVSC-PDF Drill Press from JET delivers high torque across a full range of speeds in both forward and reverse, making it a versatile solution for demanding drilling and tapping operations. With a 1-1/4" drilling capacity in cast iron and an electronic variable speed system, this floor-standing drill press is engineered for precision, durability, and operator safety in professional shop environments.
Key Features
- Casted head for more accuracy and rigidity

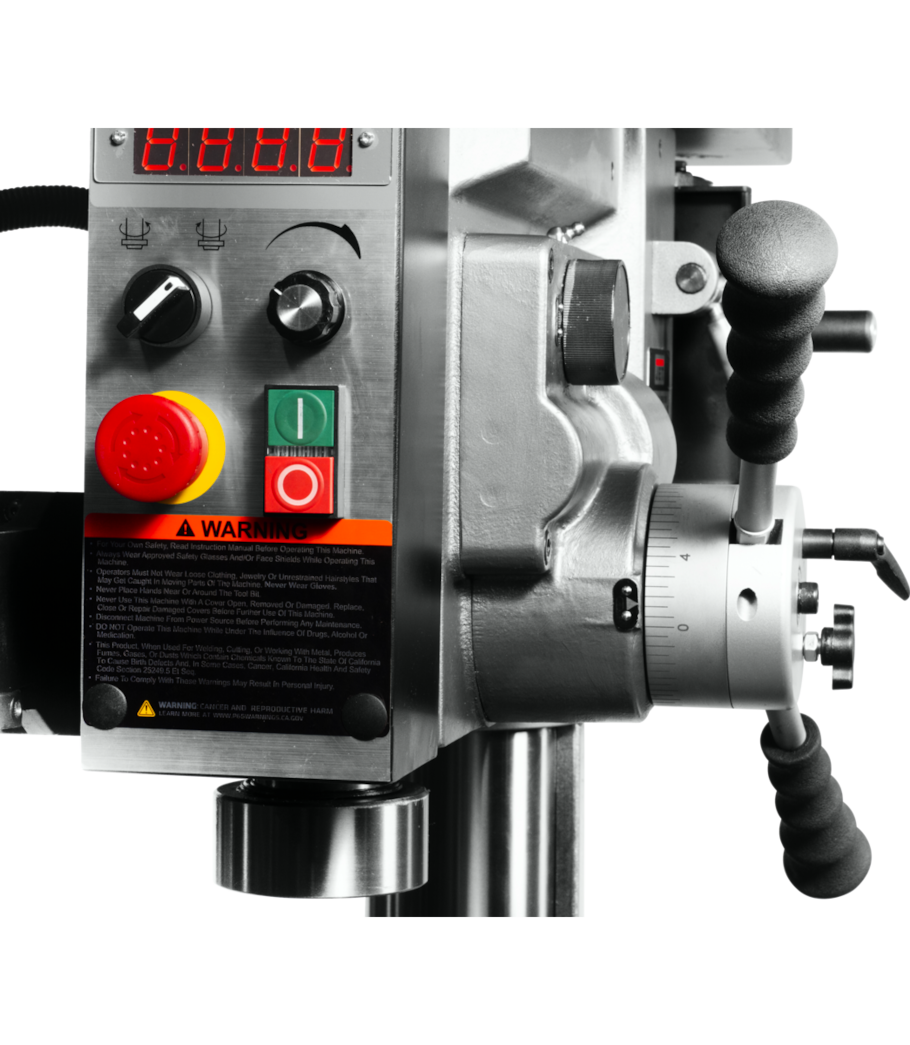

- Emergency stop allows for immediate shut off
- Forward and reverse switch for instant tapping mode

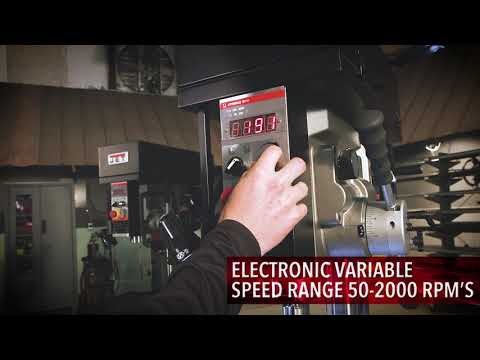

- Front mounted LED spindle RPM readout keeps speed visible at a glance
- Heavy casted column prevents failures prolonging the life of the machine
- LED machine lamp delivers extra light for more precise drilling

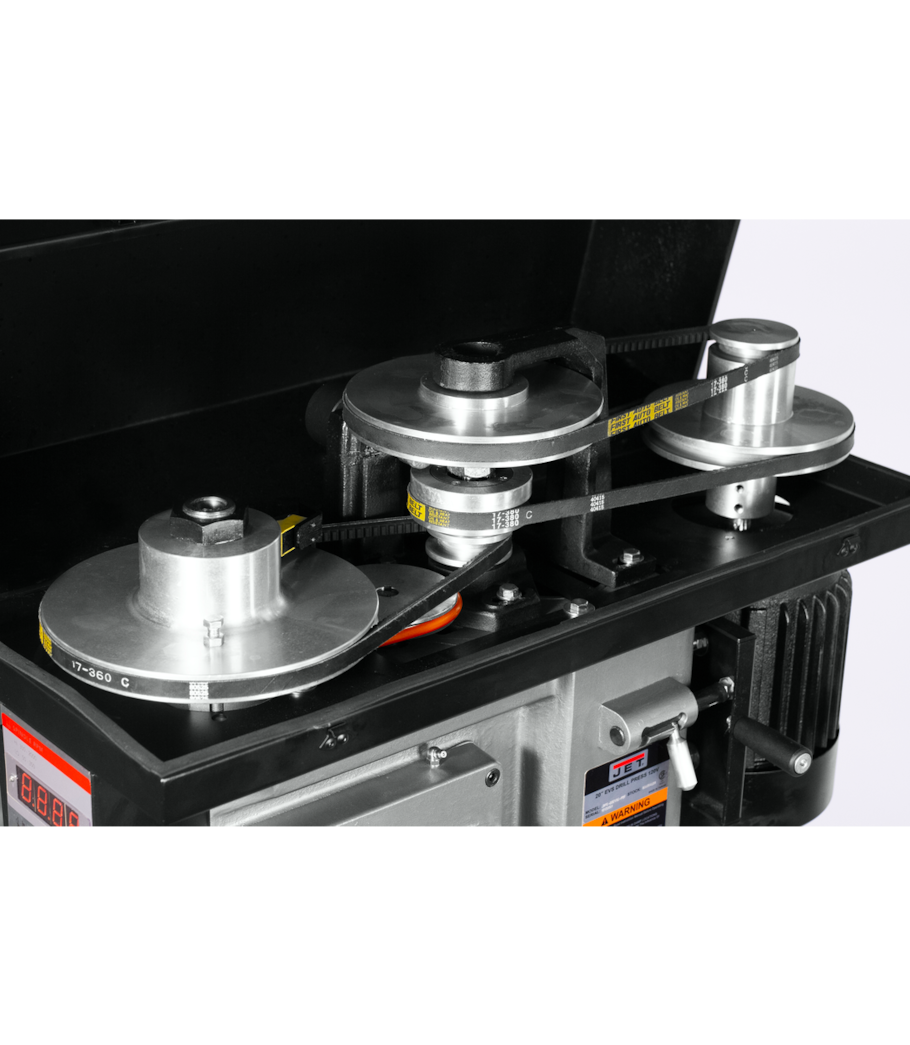

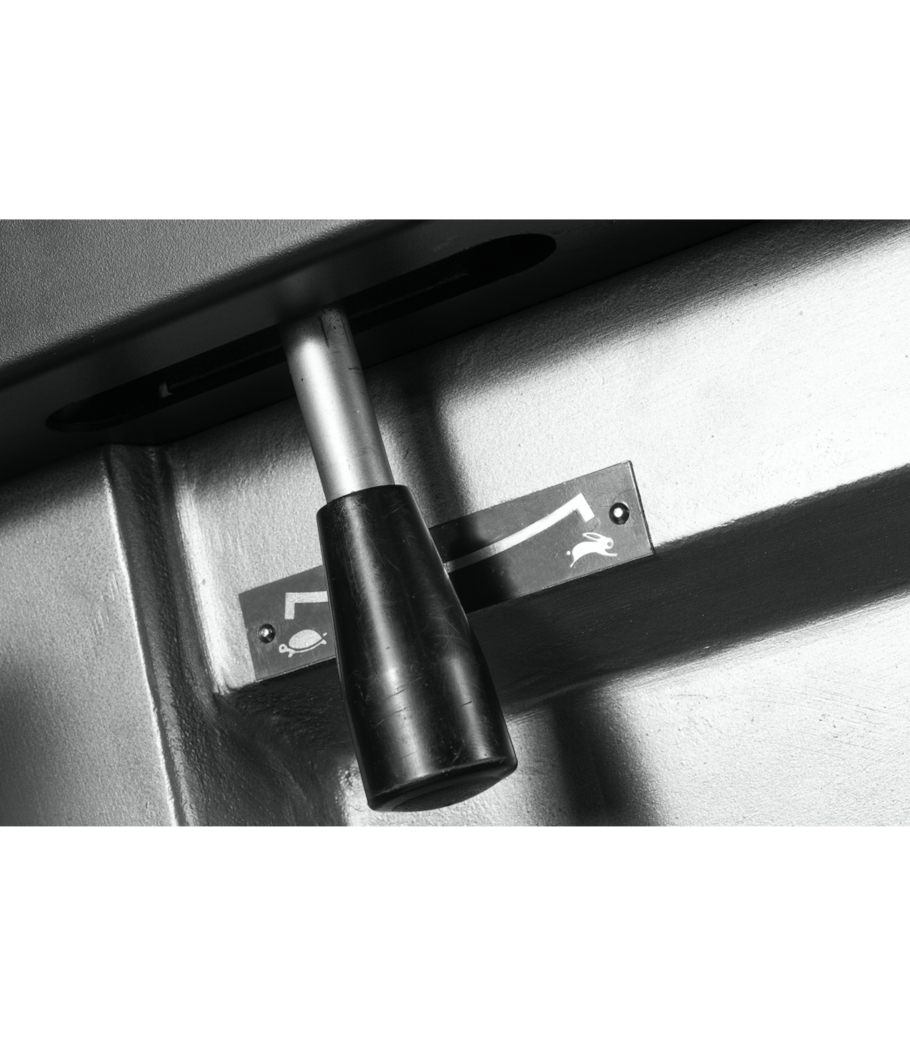

- Speed changes using a clutch system

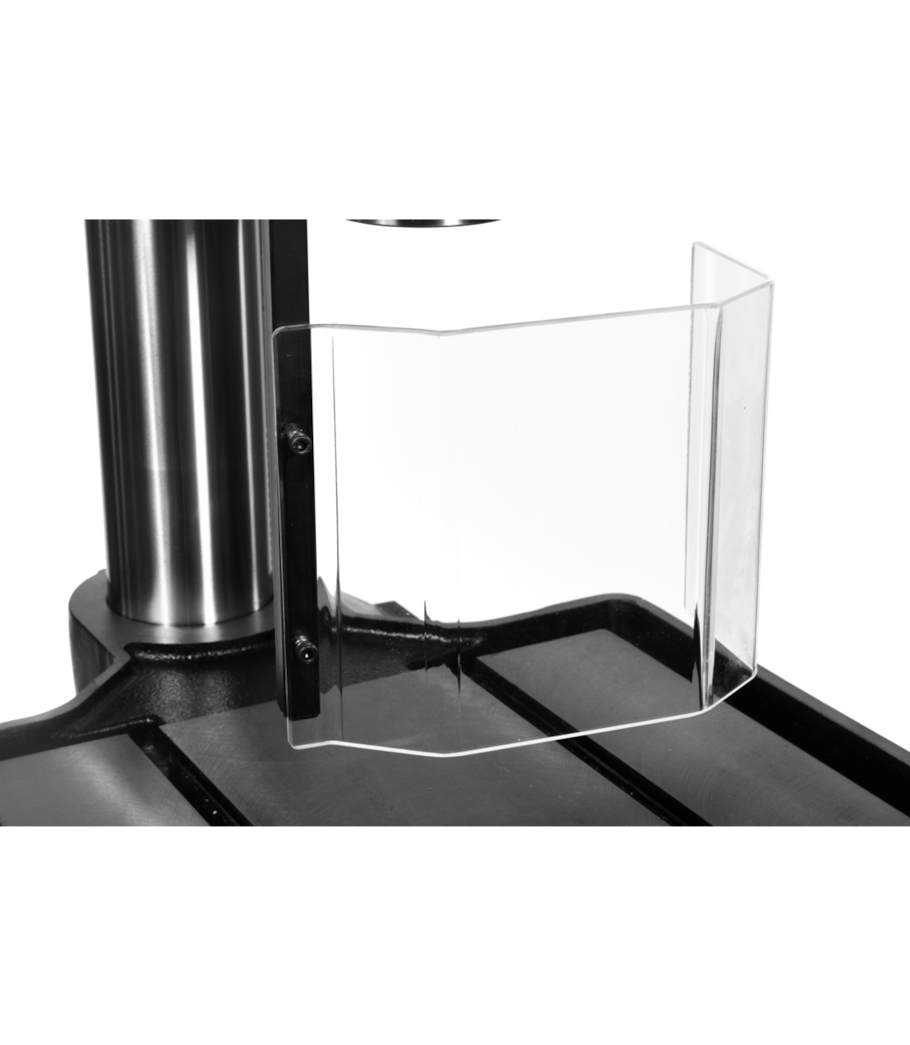

- Spindle guard protects user from flying debris

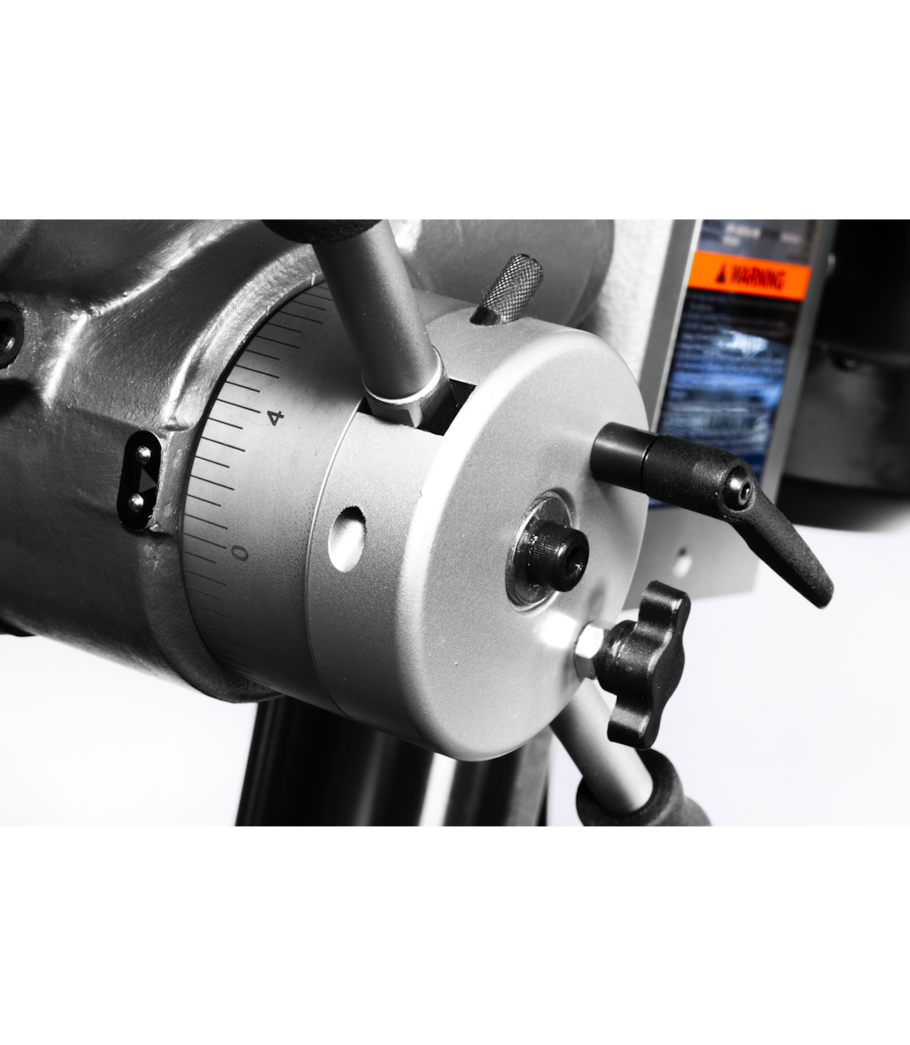

- Spindle power down feed system for controlled, consistent drilling depth
Specifications
- MPN: JT9-354251
- Country of Origin: Taiwan
- Inverter Type / Power Source: 2HP/115V/1PH
- Motor: 1.5HP, 230V, 3PH
- Inverter Type: JET Exclusive
- Drilling Capacity Cast Iron (In.): 1-1/4
- Drilling Capacity Mild Steel (In.): 1-1/8
- Drills to Center of Circle (In.): 10

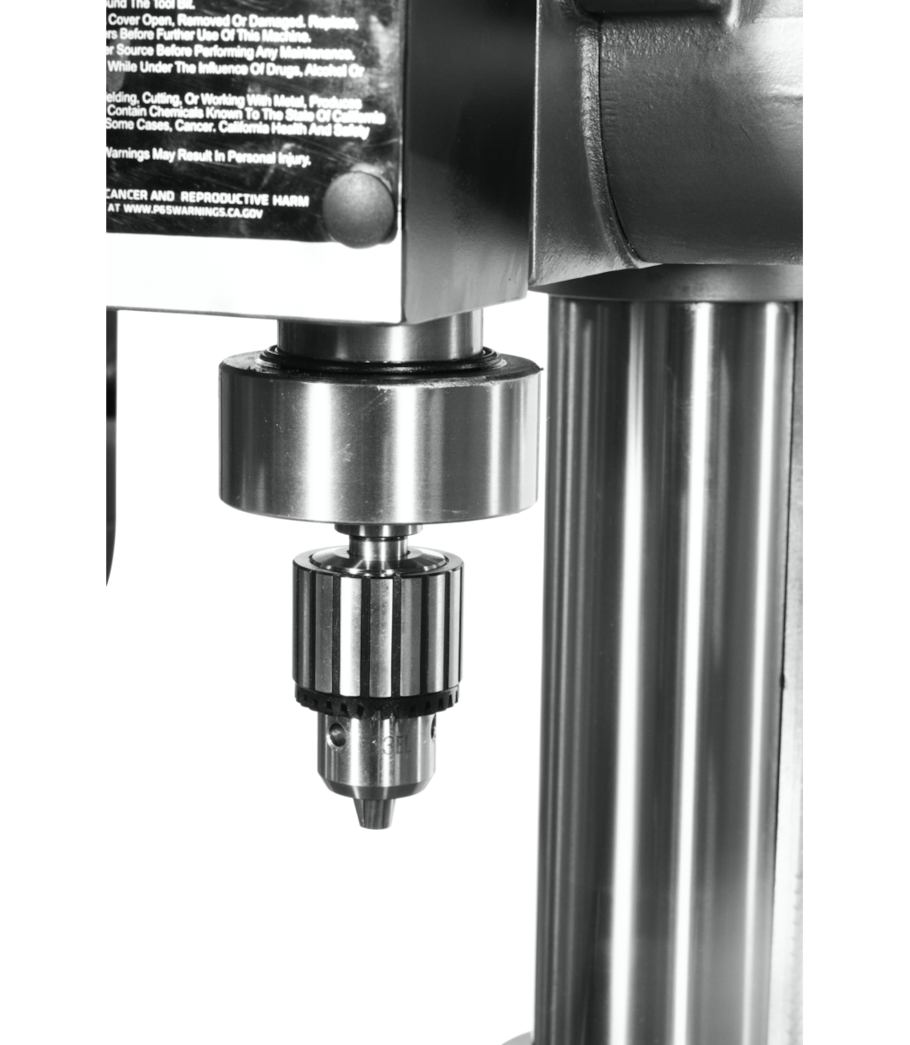

- Spindle Taper: MT-3
- Spindle Travel, Manual (In.): 5
- Spindle Travel Auto (In.): 4-1/4
- Quill Diameter (In.): 2.16
- Spindle Distance to Base (In.): 48-1/4
- Spindle Distance to Table, Max. (In.): 46.85
- Column Diameter (In.): 4
- Distance Column to Spindle (In.): 26-1/2
- Base Dimensions (In.): 17.7 x 25-1/2

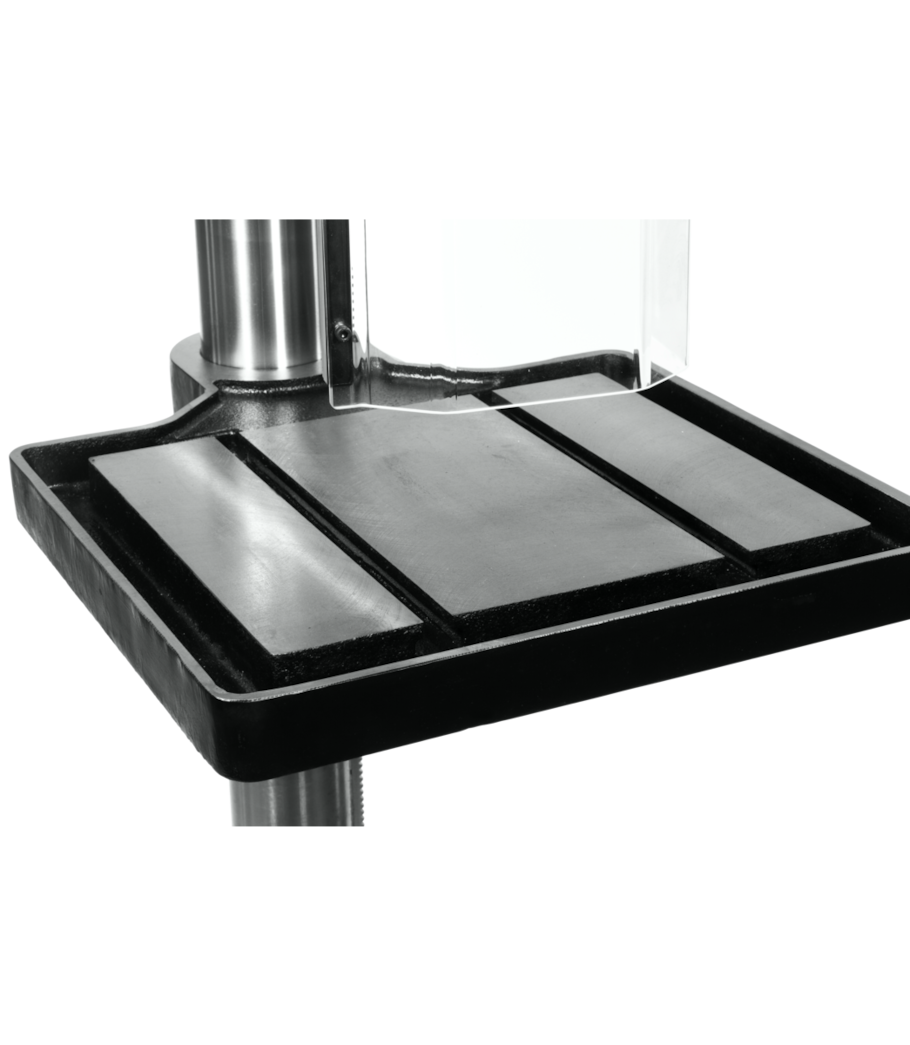

- Base Work Table (In.): 14-3/16 x 13
- Overall Dimensions L x W x H (In.): 32-3/5 x 22-2/3 x 70-25/64
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum drilling capacity of this drill press in cast iron?
- This drill press has a drilling capacity of 1-1/4" in cast iron and 1-1/8" in mild steel, making it well-suited for heavy-duty applications across a variety of materials.
- Can this drill press run in reverse, and why would that be useful?
- Yes. The forward and reverse switch provides instant tapping mode, allowing operators to reverse spindle direction quickly and efficiently for threading operations without stopping the machine.
- How does the operator change speeds on this drill press?
- Speed changes are made using a clutch system, giving the operator smooth and reliable transitions between speeds. The front mounted LED spindle RPM readout displays the current speed at all times for precise control.
- What safety features are built into this drill press?
- This drill press includes an emergency stop for immediate shut off, a spindle guard that protects the user from flying debris, and an LED machine lamp that delivers extra light for more precise and safer drilling.
