Product Features
Product Description

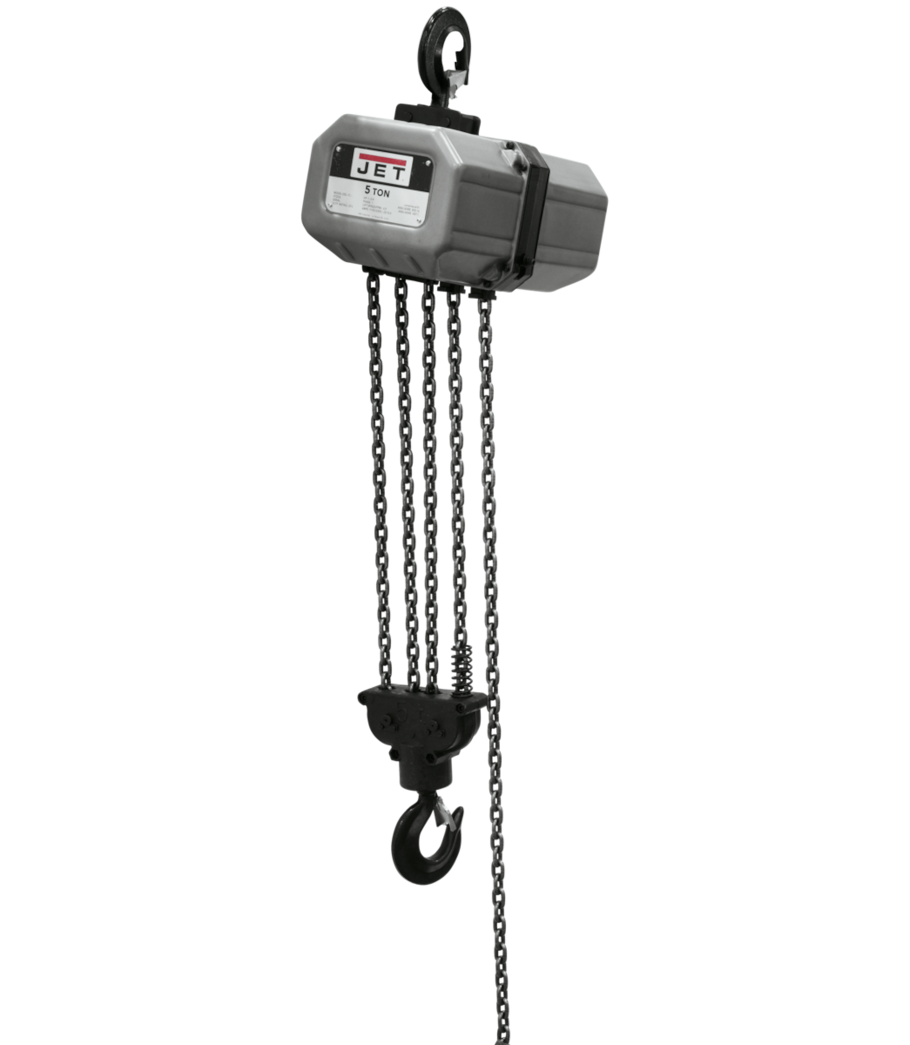

JET 5SS-3C-15 5-Ton Electric Chain Hoist from JET delivers dependable lifting performance in demanding commercial and industrial environments. Built with all steel construction and a durable powder coat finish, this three-phase electric chain hoist provides a 5-ton (11,200 lb) rated capacity with a standard 15-foot lift, combining robust engineering with multiple integrated safety systems for confident, reliable operation.
Key Features
- All Steel Construction - Heavy-duty all steel body delivers lasting strength and resilience in tough industrial settings.
- Durable Powder Coat Finish - Protective powder coat finish resists wear and corrosion for long-term durability.
- Grade 80 Load Chain - Grade 80 black oxide coated load chain for durability stands up to heavy, repeated use cycles.
- Overload Protection - Slip clutch design prevents the hoist from lifting damaging loads above its rated capacity, protecting both the equipment and the operator.
- Limit Switches - Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Reverse Phase Relay - A safety switch that protects the hoist from incorrect wiring of the power supply.
- NEMA 4X Compliant Push Button Control Pendants - Corrosion-resistant NEMA 4X rated pendant controls provide reliable operation in challenging environments.
- Push Button Controller with Cable Strain Relief System - Strain relief system on the push button controller enhances durability and reliability during continuous use.
Specifications
- MPN: JT9-531500
- Brand: JET
- Capacity: 11,200 lbs
- Load Capacity (Tons): 5
- Lift (Ft.): 15
- Phase: 3-Phase
- Country of Origin: China
Frequently Asked Questions
- What is the maximum load capacity of this hoist?
- This hoist is rated for a maximum capacity of 11,200 lbs (5 tons). The built-in slip clutch overload protection prevents the hoist from lifting damaging loads above its rated capacity.
- What safety features are included to prevent over-travel of the load chain?
- Upper and lower limiting switches increase safety by preventing the load chain from over traveling in either direction during operation.
- What protection does this hoist offer against incorrect electrical wiring?
- The hoist includes a reverse phase relay - a safety switch that protects the hoist from incorrect wiring of the power supply, helping prevent motor damage and unsafe operation.
- Are the push button pendant controls rated for harsh environments?
- Yes. The push button control pendants are NEMA 4X compliant, providing a high level of protection against corrosion and contaminants. The push button controller also incorporates a cable strain relief system for added durability and reliability during regular use.
