Product Features
Product Description

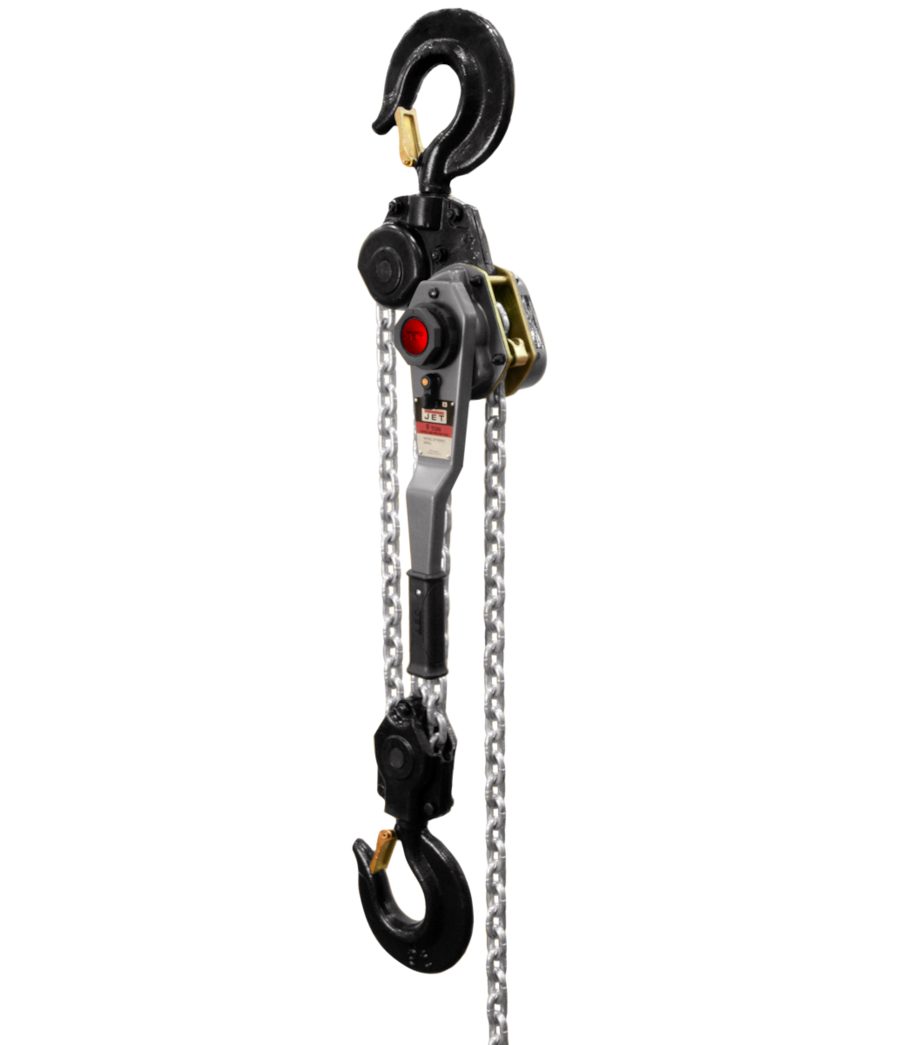

JET JLH-900WO-20 9 Ton Lever Hoist with 20' Lift and Overload Protection is a heavy-duty industrial lever hoist engineered by JET for demanding lifting and pulling applications in severe industrial environments. Built to a 19,800 lb. capacity with a 20-foot lift, this hoist combines all-steel construction, slip clutch overload protection, and a compact design suited for confined spaces and low-headroom applications - delivering exceptional load security and operator confidence on every job.
Key Features
- All steel construction provides maximum durability and long service life in heavy-duty industrial environments.
- Caged needle bearings support the load sheave to increase efficiency and promote smooth operation, reducing friction and wear during use.
- Enhanced ergonomic grip allows for greater operator control and increased comfort during extended lifting and pulling operations.
- Grade 100, corrosive resistant plated load chain features a smaller, more compact link that is 20% stronger than Grade 80 load chain, offering superior strength in a reduced footprint.
- Heat treated load plates enhance structural integrity under heavy loads and resist deformation during continuous use.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging from any angle, including vertical, horizontal, and inverted positions.
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and reliable holding power.
- Slip clutch overload protection prevents the hoist from lifting or pulling loads beyond its rated capacity, protecting both equipment and operators.
- Lightweight design with a shorter handle and smaller body makes this hoist ideal for confined areas and low-headroom applications.
- Backed by a lifetime replacement warranty for lasting value and peace of mind.
Specifications
- Model: JLH-900WO-20
- MPN: JT9-376703
- Stock Number: 376703
- Capacity (Lbs.): 19,800
- Load Capacity (Tons): 9
- Lift (Ft.): 20
- Lever Length (in.): 16-1/3
- Lbs. of Pull to Lift Capacity: 88.0
- Headroom (in.): 24-4/5
- Load Chain Dimensions (dia/mm): 10 x 28
- Weight (Lbs.): 160
- Ship Yard Hooks: No
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum load capacity of the JET JLH-900WO-20 Lever Hoist?
- This lever hoist has a rated capacity of 19,800 lbs. (9 tons), making it suitable for heavy-duty industrial lifting and pulling applications.
- How does the overload protection work on this hoist?
- The JET JLH-900WO-20 features a slip clutch style overload protection system that prevents the lever hoist from lifting or pulling loads beyond its rated capacity, helping to protect both the equipment and the operator from damage caused by overloading.
- What makes the load chain on this hoist superior to standard chains?
- The hoist uses a Grade 100, corrosive resistant plated load chain that features a smaller, more compact link design that is 20% stronger than Grade 80 load chain, providing enhanced strength and durability in a more compact form factor.
- Can this lever hoist be used in multiple lifting orientations?
- Yes. The industrial rated alloy steel hooks rotate 360 degrees for easy rigging, and the hoist is designed to operate in inverted, vertical, horizontal, or any other load angle - making it versatile for a wide range of industrial rigging scenarios.
