Product Features
Product Description

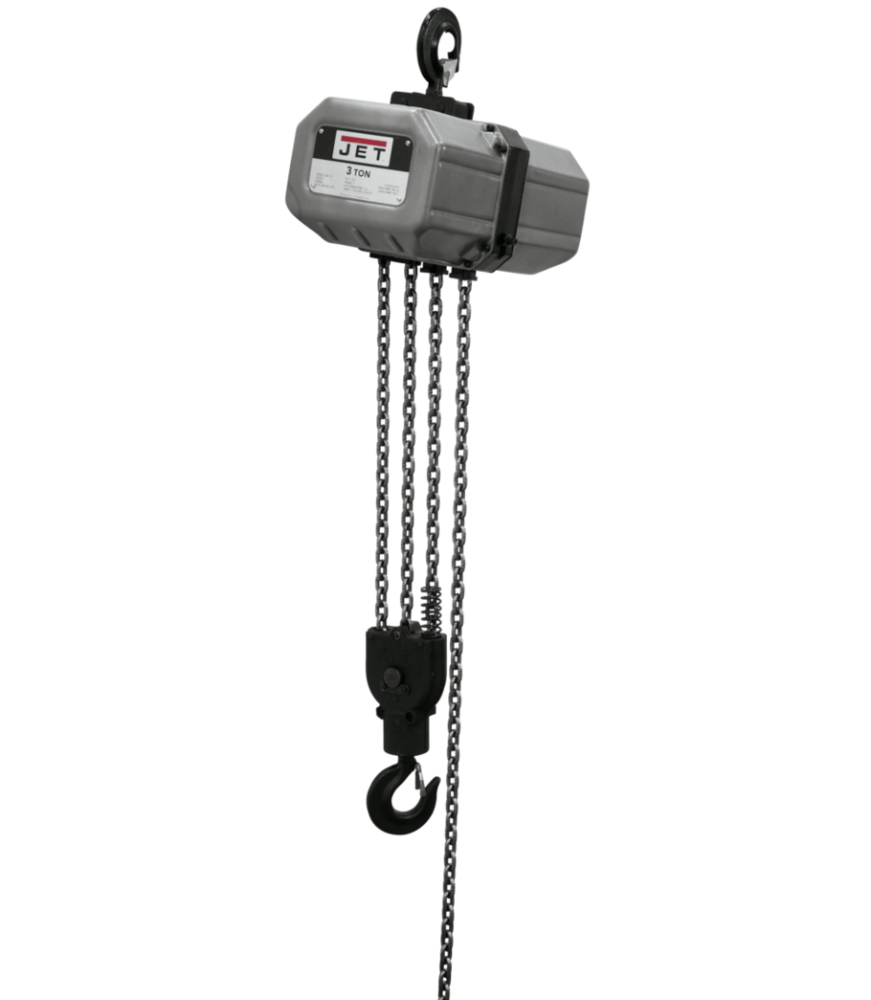

JET 3SS-1C-20 3-Ton Electric Chain Hoist is a heavy-duty, single-phase electric chain hoist from JET, engineered for demanding commercial and industrial lifting applications. With a rated capacity of 6,600 lbs. and a 20-foot lift, this hoist delivers the power, safety, and durability needed for reliable everyday operation in challenging environments.
Key Features
- 24-Volt Push Button Controller: Includes a cable strain relief system for enhanced durability and reliability during extended use.
- All Steel Construction: Built entirely from steel for maximum strength and long service life.
- NEMA 4X Compliant Push Button Control Pendants: Rated for use in harsh or washdown environments, providing added protection and safety.
- Durable Powder Coat Finish: Resilient finish protects the hoist against corrosion and wear.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for exceptional durability and load-bearing performance.
- Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train: Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal Overload Protection: Keeps the hoist motor from overheating during demanding single-phase operation.
Specifications
- MPN: JT9-312000
- Brand: JET
- Capacity: 6,600 lbs. (3 Tons)
- Lift: 20 ft.
- Motor: 1-3/4 HP, 230V, 1 Phase
- Lifting Speed: 6.6 FPM
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts: 150 per hour
- Max. On Time: 15 min./hr.
- Load Chain: Grade 80, black oxide coated
- Control Voltage: 24 Volt
- Country of Origin: China
Frequently Asked Questions
- What is the maximum lifting capacity of the JET 3SS-1C-20 electric chain hoist?
- This hoist has a rated capacity of 6,600 lbs. (3 tons), making it suitable for heavy commercial and industrial lifting tasks.
- What type of load chain does this hoist use?
- The JET 3SS-1C-20 uses a Grade 80 black oxide coated load chain, selected for its outstanding durability and strength under demanding load conditions.
- Does this hoist require regular gear train maintenance?
- No. The maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep, reducing downtime and long-term maintenance costs.
- What safety features are included to prevent over-travel and overheating?
- The hoist is equipped with upper and lower limiting switches that increase safety by preventing the load chain from over traveling. It also features thermal overload protection to keep the motor from overheating during single-phase operation.
