Product Features
Product Description

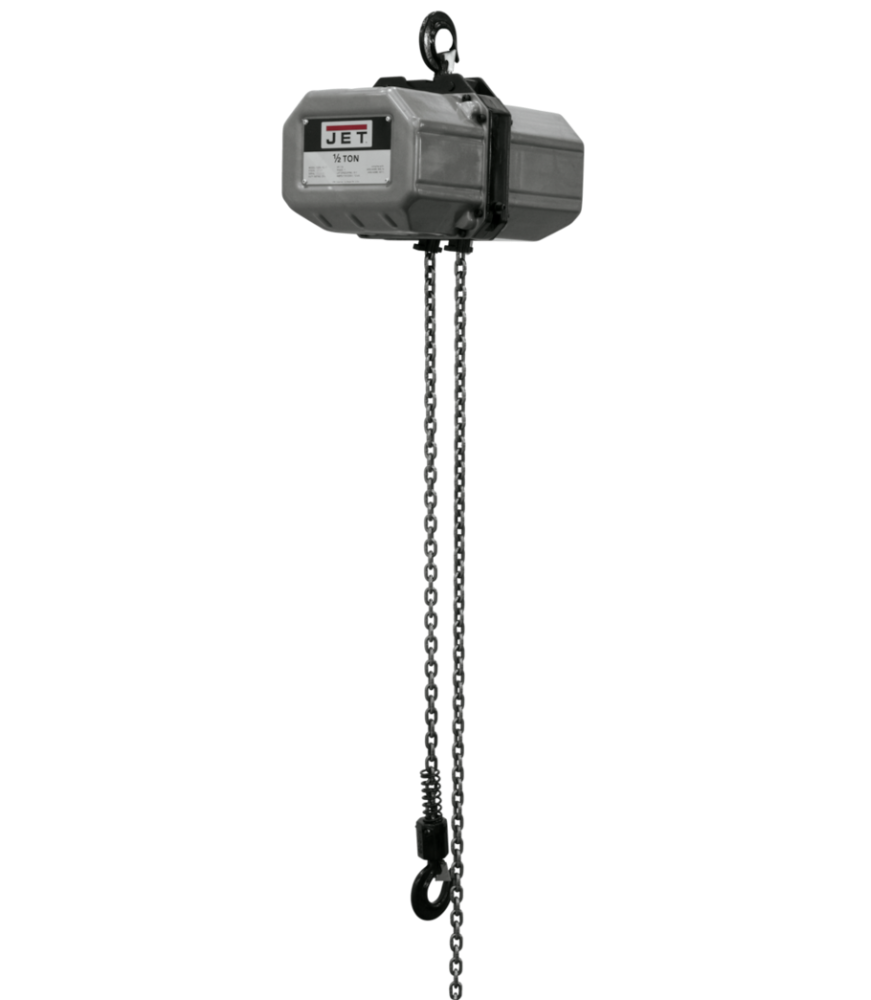

The JET 1/2-Ton Electric Chain Hoist, Model 1/2SS-1C-15 is a single-phase electric chain hoist engineered by JET for demanding commercial and industrial lifting applications. With a rated capacity of 1,000 lbs and a 15-foot lift, this hoist delivers dependable performance through all-steel construction, a sealed maintenance-free gear train, and a NEMA 4X compliant push button pendant - making it a trusted solution wherever safety, durability, and reliability are required.
Key Features
- 24-Volt Push Button Controller: Includes a cable strain relief system for enhanced durability and long-term reliability during daily operation.
- All Steel Construction: Built to withstand the rigors of commercial and industrial environments.
- NEMA 4X Compliant Push Button Control Pendants: Rated for use in harsh or wet conditions, providing operator safety and control precision.
- Durable Powder Coat Finish: Resists corrosion and wear to extend the service life of the hoist.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for durability and reliable load handling.
- Upper and Lower Limit Switches: Increase safety by preventing the load chain from over traveling in either direction.
- Sealed Gear Train: Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal Overload Protection: Keeps the single-phase motor from overheating during extended use cycles.
Specifications
- MPN: JT9-121150
- Brand: JET
- Capacity: 1,000 lbs (1/2 Ton)
- Lift: 15 ft
- Motor: 7/8 HP, 115/230V, 1 Phase
- Lifting Speed: 19 FPM
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts: 150 per hour
- Max. On Time: 15 min/hr
- Load Chain: Grade 80, black oxide coated
- Control Voltage: 24V
- Pendant Rating: NEMA 4X
- Country of Origin: China
Frequently Asked Questions
- What is the maximum lifting capacity of this hoist?
- This hoist has a rated capacity of 1,000 lbs (1/2 ton), making it suitable for a wide range of commercial and industrial lifting tasks within that weight range.
- Does this hoist require regular gear train maintenance?
- No. The maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep, so no routine lubrication or servicing of the gear train is required.
- What safety features are built into this electric chain hoist?
- This hoist includes upper and lower limiting switches that prevent the load chain from over traveling, thermal overload protection to guard against motor overheating, and a NEMA 4X compliant push button control pendant for safe operation in challenging environments.
- What type of electrical supply does this hoist require?
- This model is configured for single-phase operation and is compatible with 115/230V single-phase power, with a 7/8 HP motor. The push button controller operates on a safe 24-volt control voltage.
