Product Features
Product Description

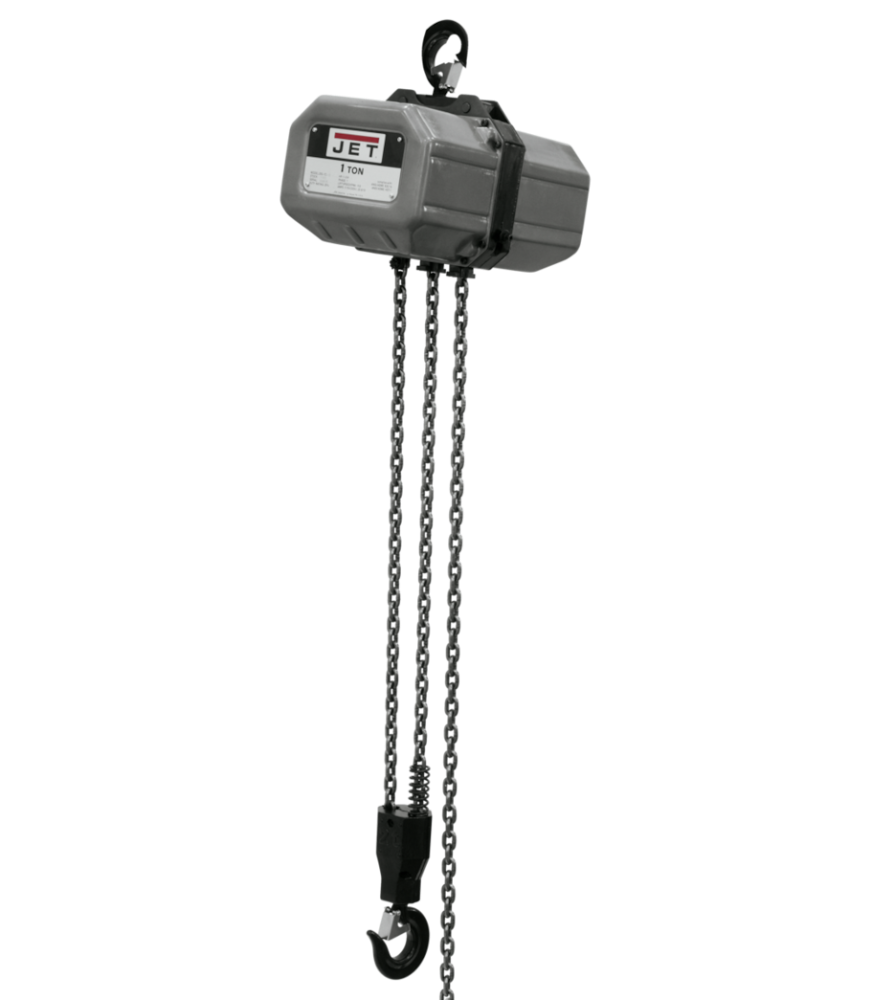

JET SSC Series 1-Ton Electric Chain Hoist (1-Phase, 20' Lift) - Model 1SS-1C-20 is a heavy-duty lifting solution engineered by JET for demanding commercial and industrial applications. Built with all steel construction and a durable powder coat finish, this single-phase electric chain hoist delivers reliable, long-lasting performance where safety and durability are non-negotiable.
Key Features
- 24 Volt Push Button Controller: Includes a cable strain relief system for enhanced durability and day-to-day reliability.
- All Steel Construction: Provides a rugged, industrial-grade build designed to withstand demanding work environments.
- NEMA 4X Compliant Push Button Control Pendants: Meets NEMA 4X standards for protection against corrosion, dust, and water ingress.
- Durable Powder Coat Finish: Resists wear and environmental exposure for long-term appearance and protection.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for superior durability and load-bearing strength.
- Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train: Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal Overload Protection: Keeps the single-phase motor from overheating during extended or demanding use cycles.
Specifications
- MPN: JT9-112000
- Load Capacity (Tons): 1
- Capacity (Lbs.): 2,200
- Lift (Ft.): 20
- Lifting Speed (FPM): 19
- Motor: 1-3/4 HP, 230V, 1 Ph
- Duty Cycle (%): 25
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 150
- Max. On Time (Min. / Hr.): 15
- Prop 65: Cancer
- Country of Origin: China
Frequently Asked Questions
- What type of electrical supply does this hoist require?
- This hoist is designed for single-phase operation and requires a 230V, 1 Ph electrical supply, making it compatible with standard single-phase industrial power configurations.
- How does the hoist protect against overheating?
- The hoist features thermal overload protection, which is a design feature that keeps the single-phase motor from overheating during heavy or extended lifting use.
- Does this hoist require regular gear train maintenance?
- No. The sealed gear train incorporates a sealed oil bath that eliminates upkeep, making the gear train effectively maintenance-free over the life of the hoist.
- What safety features prevent the load chain from traveling too far?
- Upper and lower limiting switches are built into the hoist and increase safety by preventing the load chain from over traveling in either direction during operation.
