Product Description

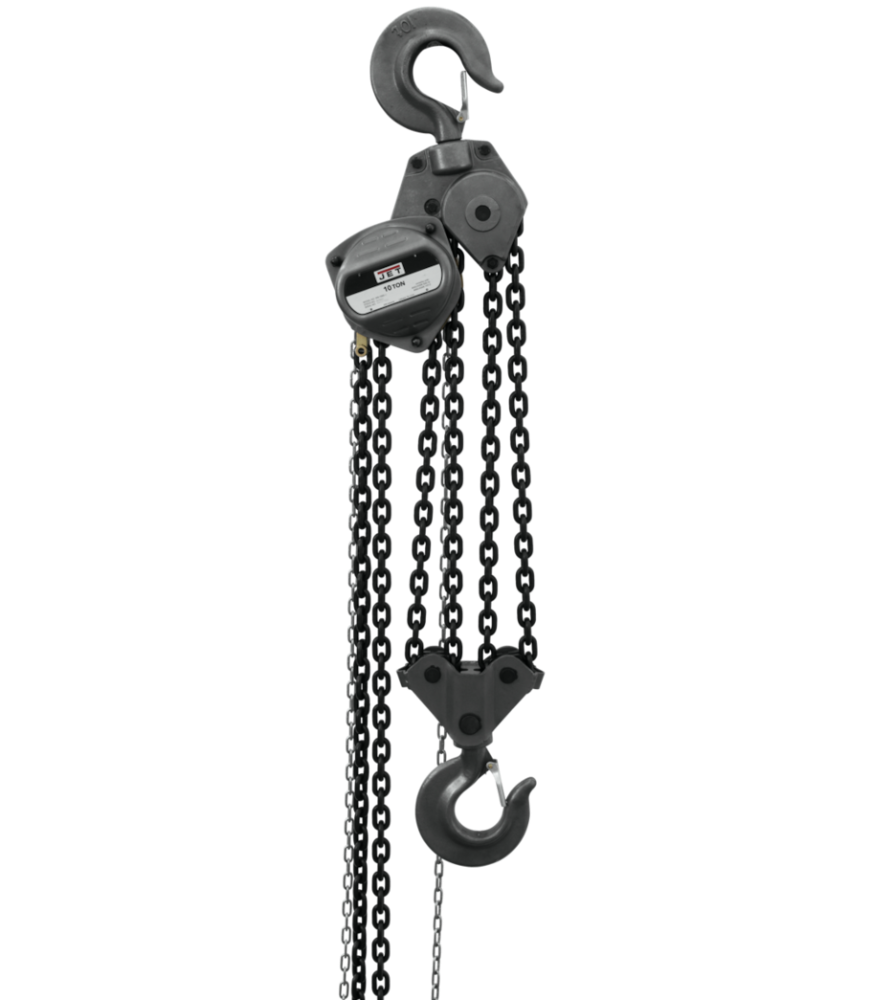

JET 10-Ton Hand Chain Hoist with 10' Lift S90-1000-10 is a heavy-duty manual lifting solution from JET, engineered to handle the most demanding industrial environments. With a massive 22,000-lb capacity and a compact, lightweight body designed for confined spaces and low headroom applications, this hoist delivers exceptional load security, long service life, and smooth operation for riggers and industrial professionals who refuse to compromise on safety or durability.
Key Features
- Grade 80 black oxide coated load chain for added durability
- Heat treated load plates extend the working life of the hoist in the harshest environments
- Case hardened corrosive resistant internal parts provide long-term reliability under tough conditions
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Cast-steel safety latches secured with Allen screws and lock nuts are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
- Smaller body and lightweight design are ideal for confined areas and low headroom applications
Specifications
- MPN: JT9-101960
- Brand: JET
- Series: S90
- Capacity (Lbs.): 22,000
- Load Capacity (Tons): 10
- Lift (Ft.): 10
- Load Chain Dimensions (dia/mm): 10 x 30
- Headroom (In.): 30
- Weight (Lbs.): 220
- Lbs. of Pull to Lift Capacity: 96.0
- Hand Chain Pulls to Lift Load 1 ft.: 357
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Red Assurance Lifetime Warranty
Frequently Asked Questions
- What is the maximum load capacity of this hand chain hoist?
- This hoist has a rated capacity of 22,000 lbs (10 tons), making it suitable for the heaviest manual lifting tasks in industrial and rigging applications.
- How does the overload protection work on this hoist?
- The industrial rated alloy steel hooks are engineered to slowly stretch under an overload situation, providing a visible warning indicator before a failure can occur. This design helps protect both the load and the operator.
- What makes the brake system on this hoist particularly safe?
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear, providing greater load security and increased safety compared to single-pawl systems. This ensures the load is held securely whenever hoisting effort is stopped.
- Is this hoist suitable for low-clearance or confined work areas?
- Yes. The smaller body and lightweight design are specifically intended to be ideal for confined areas and low headroom applications, with a minimum headroom requirement of 30 inches, making it practical in tight workspaces where larger hoists cannot be used.
