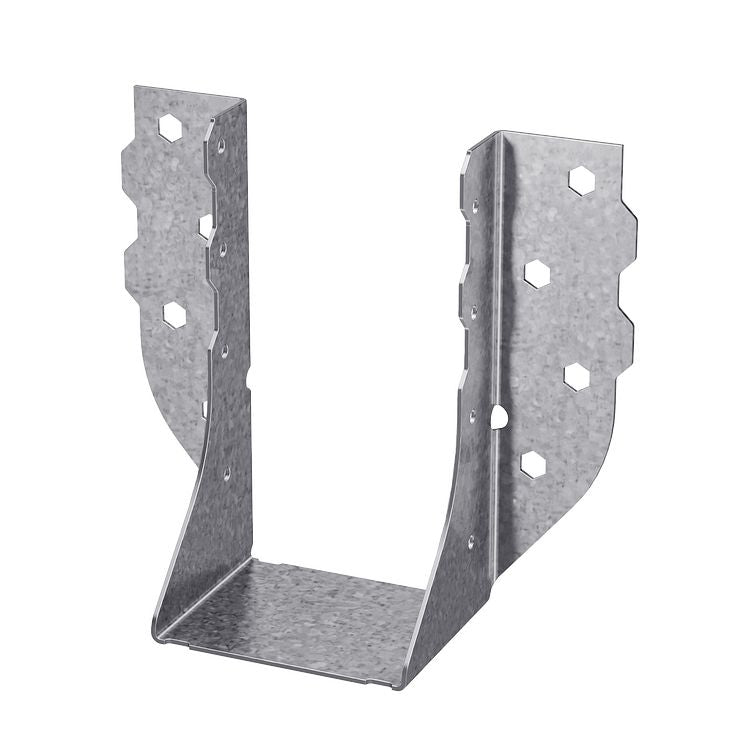

The Simpson LGUM210-3-SDS LGUM High-Capacity Girder Hanger for Masonry by Simpson is a heavy-duty connector engineered to create a strong, reliable connection between a triple 2x10 beam and a concrete or grouted CMU wall. Built from 12-gauge steel with a G90 zinc galvanized finish, this hanger is suited for interior structural applications where a high-capacity, code-compliant masonry connection is required. Installation is straightforward because Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors are included, eliminating the need to source fasteners separately.

Key Features

• Titen HD anchors secure the hanger directly to concrete or grouted CMU walls - purpose-built fasteners are matched to the substrate, giving you a proven, engineered masonry connection rather than a generic alternative.
• Strong-Drive SDS Heavy-Duty Connector screws attach the hanger to the wood member - both fastener types are included in the package, so the installation is complete out of the box with no additional hardware required.
• Designed for triple 2x10 girder trusses, solid sawn lumber, and engineered wood products - broad compatibility with common structural members means the hanger fits a wide range of beam configurations without modification.
• 12-gauge steel construction - the heavy-gauge profile is engineered for high-capacity loads, making it appropriate for demanding structural framing situations where a standard hanger would be undersized.
• G90 zinc galvanized finish - the galvanized coating adds a layer of corrosion resistance, helping the hanger hold up in interior environments where moisture exposure is a concern.
• Titen HD anchor is not recommended for exposed exterior applications - knowing this upfront helps contractors select the correct product for interior installations and avoid field errors that could compromise the connection.
• Moisture barrier required between beam and wall per jurisdictional requirements - this built-in guidance keeps the installation on track with local code expectations, reducing the risk of failed inspections.

Why This Product

• Everything needed for installation is included - Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors ship with the hanger, so contractors can go straight from delivery to installation without a separate trip to source compatible fasteners.
• Purpose-built for concrete and masonry substrates - unlike standard wood-to-wood joist hangers, this hanger is specifically engineered for attachment to concrete walls and grouted CMU walls, providing a structurally appropriate solution for masonry framing conditions.
• High-capacity design supports demanding beam loads - the 12-gauge steel body and matched fastener system work together to handle the significant loads associated with triple 2x10 girder assemblies, supporting structural confidence on the job site.
• Simplified installation process reduces labor complexity - the combination of SDS screws into the wood member and Titen HD anchors into the masonry follows a straightforward sequence that keeps the connection process efficient without sacrificing structural integrity.

Specifications

• Model Number: LGUM210-3-SDS
• Member Size: Triple 2x10
• Gauge: 12
• Seat Width: 4-15/16 in.
• Height: 9-1/4 in.
• Coating/Finish: Zinc Galvanized, G90
• Width: 4-15/16 in.

Approved Applications

• Hanging girder trusses, solid sawn lumber, and engineered wood products (EWP) onto concrete or masonry walls
• Concrete wall installations using Titen HD masonry anchors
• Grouted CMU (concrete masonry unit) wall installations
• Interior applications where the carbon-steel Titen HD anchor is not exposed to exterior conditions

What's Included

Each pack contains (1) LGUM210-3-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Note: Product dimensions and/or screw or bolt holes may differ from picture.
