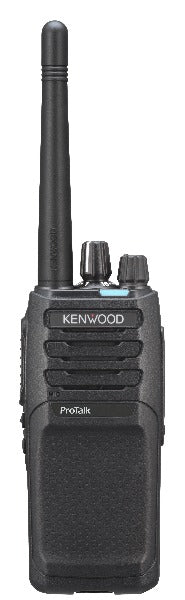

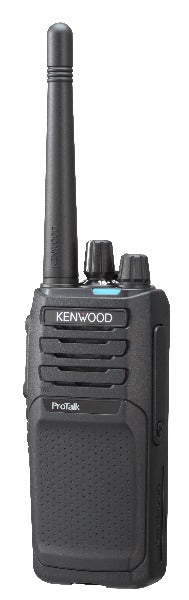

The Kenwood NX-P1202AVK 2 Watt VHF Analog Two-Way Radio is a compact business radio built for construction sites, farms, and general on-site communication. This VHF model is designed for outdoor use, and can be upgraded to support NXDN digital operation as communication needs evolve.

Key Features

• 2 Watt RF output power - provides reliable VHF coverage for job site communication
• 64 total channels, 16 channels per zone across 4 zones - offers flexible channel organization for different teams or areas
• 16-code voice inversion scrambler in analog mode - helps maintain confidentiality of radio communications
• Second PTT button - allows transmission on a second channel without switching channels, useful for relaying separate instructions
• Selectable 7-color LED indicator - illuminates to notify multi-status functions such as power-on and call alerts

Why This Product

• MIL-STD-810 C/D/E/F/G testing and IP54/55 water and dust intrusion ratings are built for reliable performance on demanding job sites
• Cloning capability lets one radio's programming be copied to a group of radios quickly, saving setup time across a fleet
• The design allows an upgrade to NXDN digital operation at a later time if requirements change, without replacing the radio

Specifications

• Brand: Kenwood
• Model: NX-P1202AVK
• Preset Frequency Range: 151-159 MHz
• Maximum Channels: 64 (16 Channels x 4 Zones)
• RF Power Output (High/Low): 2 W / 1 W
• Battery Life (5-5-90 Duty Cycle, KNB-45L): Approx. 15 hours
• Operating Temperature: -22 deg. F to +140 deg. F (-30 deg. C to +60 deg. C)
• Dust and Water Rating: IP54/55
• Environmental Testing: MIL-STD-810 C/D/E/F/G
• FCC ID: K44501000

What's Included

• Radio
• Rechargeable lithium-ion battery pack
• Drop-in rapid charger
• AC charging adapter
• Antenna
• Belt clip
• Owner's manual

Frequently Asked Questions

Can this radio be upgraded to digital later?

Yes, the NX-P1202AVK can be upgraded to support NXDN digital operation.

How many channels does this radio support?

It supports up to 64 total channels, organized as 16 channels per zone across 4 zones.

Is this radio suited for outdoor use?

Yes, as a VHF radio, it works best outdoors.
