Product Description

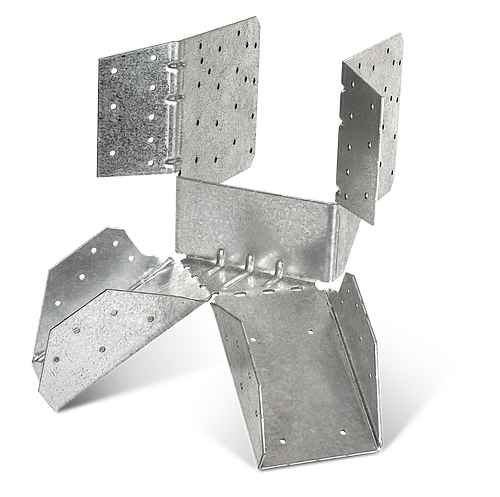

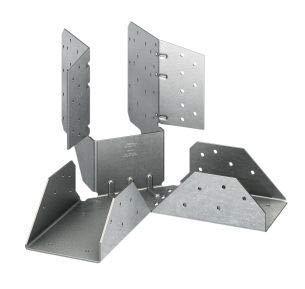

The Simpson Hip-Ridge Connector is a face-mount connector engineered to attach hip beams to the end of a ridge beam with a standardized, load-rated connection. Where this common framing detail has traditionally relied on inconsistent field methods, this connector assigns a defined load capacity to the hip-ridge joint, giving contractors and builders a repeatable, structurally reliable solution for residential and commercial roof framing. Compatible with both Structural Composite Lumber and Solid Sawn Lumber, it is built to meet the demands of modern structural framing assemblies.
Key Features
- Face-mount hip-to-ridge connection - attaches hip beams directly to the end of a ridge beam, replacing an inconsistent field detail with a defined, load-rated solution that improves structural predictability on every job.
- Adjustable positioning on the ridge beam - the connector can be placed higher or lower on the ridge, allowing hip members to sit flush at the top for a clean, professional finish without additional shimming or custom cuts.
- Compatible with Structural Composite Lumber and Solid Sawn Lumber - designed to work with the lumber types most commonly used in structural roof framing, keeping this connector relevant across a wide range of project types.
- 12-gauge steel construction with Zinc Galvanized G90 finish - heavy-gauge steel provides the structural integrity required for demanding load-bearing applications, while the G90 galvanized coating offers corrosion resistance for long-term durability.
- Standardized load capacity - assigns a consistent, engineered load rating to the hip-ridge connection, supporting code compliance and simplifying the structural design process for engineers and inspectors alike.
Why This Product
- Engineered consistency where it matters most - the hip-to-ridge connection is one of the most structurally critical and historically inconsistent details in roof framing. This connector resolves that by delivering a standardized, load-rated solution every time.
- Installation flexibility built in - the ability to reposition the connector along the ridge beam means contractors can achieve a flush hip-to-ridge top without reworking lumber, saving time and reducing waste on the job site.
- Broad lumber compatibility - acceptance of both Structural Composite Lumber and Solid Sawn Lumber makes this connector a practical choice across residential builds, commercial projects, and hybrid framing assemblies without requiring separate hardware.
- Built and backed by Simpson - manufactured in the United States and produced by Simpson, a name recognized throughout the structural connector industry, this hip-ridge connector is engineered to meet the performance expectations of professional framers and structural designers.

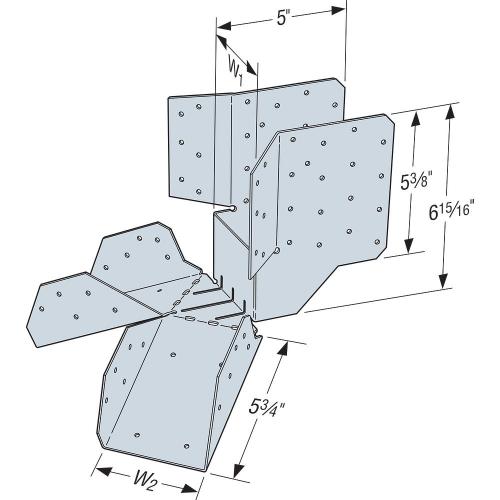

Specifications
- Manufacturer Part Number (MPN): HHRC5.37/3.56
- Application: Structural Composite Lumber / Solid Sawn Lumber
- Member Size: Ridge: 5-1/4 in. - Hip: 3-1/2 in.
- Gauge: 12
- Width 1: 5-3/8 in.
- Width 2: 3-5/8 in.
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Hip-to-ridge beam connections in residential and commercial roof framing
- Structural Composite Lumber framing assemblies
- Solid Sawn Lumber framing assemblies
- Applications requiring a standardized, load-rated hip-ridge face-mount detail
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What is the primary function of the HHRC5.37/3.56?
The HHRC5.37/3.56 attaches hip beams to the end of a ridge beam. It takes the inconsistency out of this common detail and assigns a standard load capacity.
What lumber types is this connector compatible with?
This connector is designed for use with Structural Composite Lumber and Solid Sawn Lumber.
Can the connector be repositioned on the ridge beam?

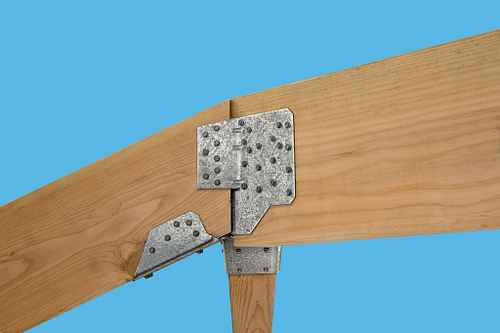

Yes. The HHRC can be placed higher or lower on the ridge beam so the hips are flush at the top, providing installation flexibility.
What gauge steel and finish does this connector use?
The HHRC5.37/3.56 is made from 12-gauge steel with a Zinc Galvanized G90 finish for corrosion resistance.
