Product Description
The Freud 19 mm Diameter Cylinder (Hinge) Bit is a precision-engineered boring bit built for professional woodworking environments where clean, accurate holes are essential. Designed specifically for use on multiple spindle boring machines, this industrial-grade hinge boring bit delivers consistent performance across a wide range of wood-based and composite materials. The two wing cutters and two spur cutters work together to prevent bottom side tear out, giving you cleaner results in hardwoods, softwoods, veneered plywood, solid surface materials, and composites alike. Backed by Freud's Limited Lifetime Guarantee, this carbide tipped cylinder bit is a reliable choice for cabinet makers, millwork shops, and woodworking professionals who depend on repeatable precision every day.
Key Features
- Industrial carbide tips - provide superior hardness and edge retention, meaning the bit stays sharp longer and reduces the frequency of tool changes in high-production environments
- Two wing cutters and two spur cutters - work in tandem to prevent bottom side tear out, delivering clean, splinter-free bore holes in finished and veneered materials
- 10 mm shank with adjustable top screw - ensures compatibility with most boring machines, so you can integrate this bit into your existing multi-spindle setup without modification
- Right hand rotation - matches the standard spindle direction of most drill presses and multi-spindle boring machines, allowing drop-in use without reconfiguration
- 19 mm diameter, 70 mm length - purpose-built dimensions ideal for hinge cup boring and cabinetry applications where precise hole sizing is critical
- Wood case included - protects the carbide cutting edges during storage and transport, extending the working life of the bit between uses
- Freud's Limited Lifetime Guarantee - provides long-term assurance of quality, giving buyers confidence in a professional-grade tool investment
- Compatible with drill presses and hand held drills - offers flexibility for both bench-mounted and portable drilling applications
Why This Product
- Purpose-built for multi-spindle boring machines - if your shop runs automatic or manual multi-spindle equipment for cabinet production or millwork, this bit's 10 mm shank with adjustable top screw is designed to seat correctly and perform reliably in that environment
- Prevents tear out in finished wood panels - the dual wing and dual spur cutter geometry specifically addresses bottom side tear out, making this bit a smart choice when working with veneered plywood or solid surface materials where surface quality matters
- Industrial carbide construction for long service life - carbide tipping is not a consumer-grade feature; it is an industrial specification that translates to more holes between sharpenings and lower cost-per-hole over time
- Versatile material compatibility - drills composites, solid surface materials, veneered plywood, hardwoods, and softwoods from a single bit, reducing the need to swap tooling when moving between material types
Specifications
- Brand: Freud
- Part Number: CB19570R
- Category: Cylinder Bits

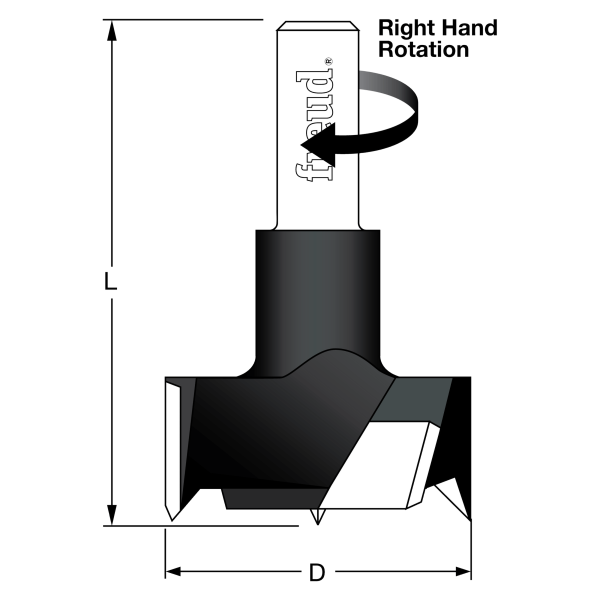

- Diameter: 19 mm
- Length: 70 mm
- Shank: 10 mm
- Rotation: RH
- Compatible Tools: Drill Press; Hand Held Drill
- Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
- Pack Quantity: 1
- Country of Origin: Italy
Approved Applications
- Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.
Frequently Asked Questions
What machines is the Freud CB19570R compatible with?
This cylinder boring bit is designed for use on automatic and manual multi-spindle boring machines. It is also compatible with drill presses and hand held drills. The 10 mm shank with an adjustable top screw makes it compatible with most boring machines.
What materials can this 19 mm hinge boring bit drill through?
The CB19570R is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. Its industrial carbide tips and dual-cutter geometry support clean boring across all of these material types.
How does this bit prevent tear out on the bottom side of the workpiece?
The bit features two wing cutters and two spur cutters. This four-cutter configuration is specifically designed to prevent bottom side tear out, which is especially important when boring into veneered plywood or other finished panel materials where surface quality is critical.
Does the Freud CB19570R come with any storage solution or warranty?
Yes - the bit comes with a wood case for easy storage and protection of the carbide cutting edges. It is also backed by Freud's Limited Lifetime Guarantee, providing long-term assurance of the tool's quality and performance.
