Product Description

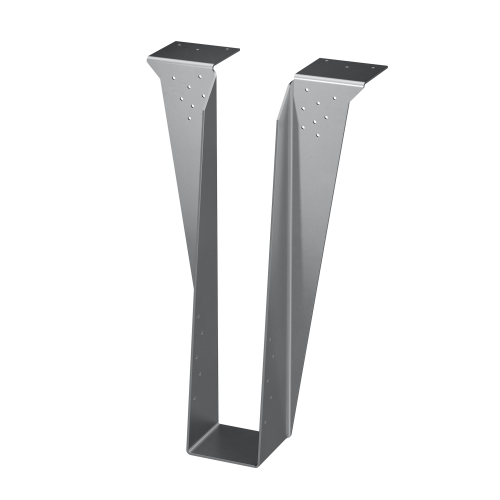

The Simpson HB616 Top-Flange Heavy Beam Hanger is built to handle medium to high loads in both solid sawn and engineered wood framing applications. Its full-height joist flange captures the top chord of the joist, preventing rotation and maintaining structural alignment under demanding conditions. The one-piece construction eliminates the complexity and added cost of welded alternatives, making this heavy beam hanger a reliable and efficient choice for residential and commercial framing projects where a 6x16 connection is required.
Key Features
- One-piece, top-flange design - eliminates the need for welded hangers, reducing material costs while maintaining structural integrity for high-load applications
- Full-height joist flange - captures the top chord of the joist to prevent rotation, keeping beams stable and properly aligned throughout the life of the structure
- Compatible with solid sawn and engineered wood - provides versatility across a wide range of framing applications without requiring different hardware for different lumber types
- Available for special order in sloped and/or skewed configurations - accommodates non-standard framing angles so builders are not limited to square connections
- G90 zinc galvanized finish - provides extra corrosion resistance, making this hanger suitable for environments where moisture exposure is a concern
Why This Product
- Cost-effective alternative to welded hangers - the efficient one-piece construction delivers comparable load-carrying performance for 6x16 beam applications without the higher cost typically associated with fabricated or welded connectors
- Engineered for rotation prevention - the full-height joist flange actively captures the top chord, adding a layer of structural control that standard hangers do not provide, which is especially important in heavy beam framing
- Built to handle demanding load requirements - designed specifically for medium to high load capacities in both solid sawn and engineered wood, this hanger is suited for structural connections where performance cannot be compromised
- Corrosion-resistant construction for long-term durability - the G90 galvanized coating offers extra protection against corrosion, supporting a longer service life in challenging jobsite and environmental conditions
Specifications
- Model Number: HB616
- Member Size: 6x16
- Gauge: 10
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for Special orders
Note: Product dimensions may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size joist is the HB616 designed to support?
The HB616 is designed for a nominal joist size of 6x16, making it suitable for heavy beam applications requiring medium to high load capacity.
What type of steel and coating is used in the HB616?
The HB616 is made from 10-gauge steel and features a Zinc Galvanized (G90) finish, which provides extra corrosion resistance for demanding environments.
How is the HB616 installed and what fasteners are required?
Installation requires (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist for a secure connection.
Can the HB616 be used with both solid sawn and engineered wood?
Yes. The HB616 top-flange hanger is designed to carry medium to high loads for both solid sawn and engineered wood applications, offering versatility across a wide range of construction projects.
