Product Description

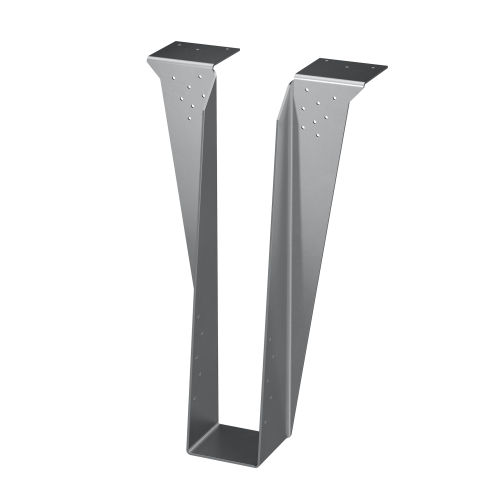

The Simpson HB5.12/18 Top Flange Hanger for Heavy Beam 5x18 is a professionally engineered top-flange hanger built for medium to high load-bearing connections in heavy beam framing applications. Designed for compatibility with both solid sawn lumber and engineered wood products, this one-piece stamped hanger delivers a structurally reliable connection at beam-to-header and beam-to-beam joints in residential and commercial construction. Its full-height joist flange captures the top chord of the joist, preventing rotation and maintaining alignment where structural integrity matters most.
Key Features
- Top-Flange Design - Seats the hanger at the top of the supporting member, allowing for a flush, clean installation in heavy beam framing without the need for additional blocking or support
- Full-Height Joist Flange - Captures the top chord of the joist to prevent rotation and maintain alignment, protecting the long-term structural integrity of the connection under demanding load conditions
- One-Piece Stamped Construction - Single-piece design eliminates the inconsistencies associated with welded alternatives, offering a cost-effective and consistent connector for heavy beam applications
- 10-Gauge Steel with Galvanized Finish - Heavy-gauge steel provides the strength required for medium to high load capacities, while the galvanized finish adds corrosion resistance for lasting performance
- Broad Framing Compatibility - Suitable for solid sawn lumber and engineered wood product framing systems, making it a versatile choice across a wide range of structural hanger applications
Why This Product
- Engineered for Heavy Loads - Purpose-built for medium to high load-bearing connections, this hanger is a dependable choice for structural framing where undersized connectors are not an option
- Versatile Across Framing Systems - Compatibility with both solid sawn and engineered wood products means this top-flange hanger fits naturally into a wide variety of residential and commercial framing projects without requiring a different connector for each application
- Rotation-Resistant Connection - The full-height joist flange actively prevents joist rotation at the point of connection, reducing the risk of misalignment over time and contributing to a more stable finished structure
- Domestic Quality You Can Specify with Confidence - Produced in the United States and manufactured by Simpson, this heavy beam hanger meets the expectations of contractors and specifiers who require consistent, high-quality structural connectors on every job
Specifications
- Manufacturer Part Number (MPN): HB5.12/18
- Description: 5x18 Top Flange Hanger for Heavy Beam
- Material: 10-gauge Steel
- Finish: Galvanized
- Country of Origin: United States
Approved Applications
- Heavy beam framing connections in residential and commercial construction
- Solid sawn lumber beam-to-header and beam-to-beam connections
- Engineered wood product (EWP) framing applications
- Medium to high load-bearing structural connections requiring top-flange hanger support
Note: Product dimensions may differ from picture. Please see item description for specifications.
Options
- Contact us for Special orders
Frequently Asked Questions
What type of framing systems is the HB5.12/18 compatible with?
The HB5.12/18 is suitable for use with both solid sawn and engineered wood framing systems, making it a versatile choice for a range of heavy beam applications.
How does the full-height joist flange benefit the installation?
The full-height joist flange captures the top chord of the joist, which prevents rotation and maintains alignment. This helps ensure structural integrity and long-term reliability in demanding framing applications.
What material and finish does the HB5.12/18 feature, and is another finish option available?
The HB5.12/18 is constructed from 10-gauge steel with a standard galvanized finish that provides corrosion resistance. For environments requiring enhanced corrosion protection, a hot-dip galvanized finish option is also available.
What is the advantage of the one-piece construction on this hanger?
The one-piece stamped design provides a cost-effective alternative to welded hangers without sacrificing strength, delivering high performance in medium to high load capacity heavy beam installations.
